16AWG cable harness junction box wiring for commercial LED rooms

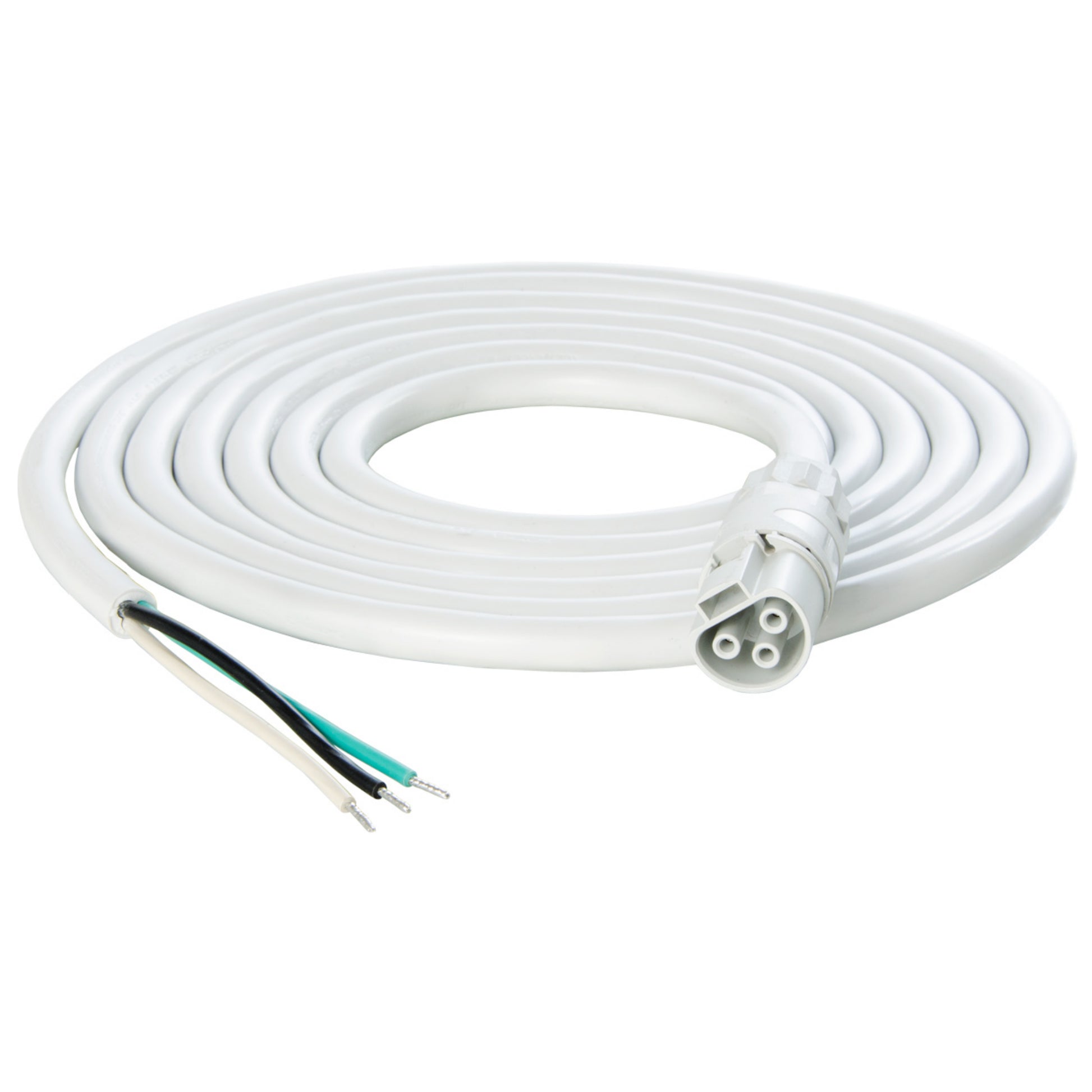

The PHOTOBIO X bare-lead harness routes 16AWG copper from a junction box to a PHOTOBIO LED fixture across a 10-foot run. Bare wire leads at one end terminate directly into a junction box, cutting plug-receptacle parts and contractor labor. An IP-rated mini connector at the fixture end resists dust and humidity inside active flowering rooms. The white, UV-resistant jacket bounces stray light back to the canopy rather than absorbing it. 16AWG copper handles continuous load on PHOTOBIO CX, MX, T, and TX fixtures wired to commercial branch circuits.
16AWG cable harness junction box termination for hardwired installs
Growers typically reach for the bare-lead variant when an electrician is hardwiring fixtures into a junction box per row. Place the cable along the rear truss so the bare-lead end lands at the junction box, with the IP connector at the fixture. That orientation keeps the sealed end at the wet zone and the dry electrical work in a sealed enclosure. The 10-foot run reaches across most commercial bay spacings without splicing or pulling extra conduit. Skipping the plug and receptacle on the supply side cuts parts cost and labor on a multi-fixture install. And the white jacket reads at a glance during a 3 a.m. fixture-down troubleshoot when the canopy lights are off. On dense commercial rooms the bare-lead approach keeps the panel breakdown legible across rows of identical fixtures. Pair the cable with the PHOTOBIO X plug variant where individual fixture rotation is more frequent than rare.
Key Features
- 16AWG copper, 10-foot reach: Carries continuous LED fixture load across a single rack without splicing.
- Bare-lead termination at the supply end: Wires direct into a junction box and skips the plug-receptacle parts cost.
- IP-rated mini connector at the fixture end: Sealed plug-and-play termination resists dust and runoff in flower rooms.
- White, UV-resistant jacket: Bounces stray photons back to the canopy and stays visible at low light.
- Built for PHOTOBIO CX, MX, T, TX: Drop-in fit on the Phantom PHOTOBIO LED fixture line.
Technical Specifications
| Specification | Value |
|---|---|
| Conductor | 16AWG copper |
| Length | 10 ft |
| Termination | Bare wire leads (junction box) at one end; IP-rated mini connector at fixture end |
| Jacket | White, UV-resistant |
| Compatible Fixtures | PHOTOBIO CX, MX, T, TX |
