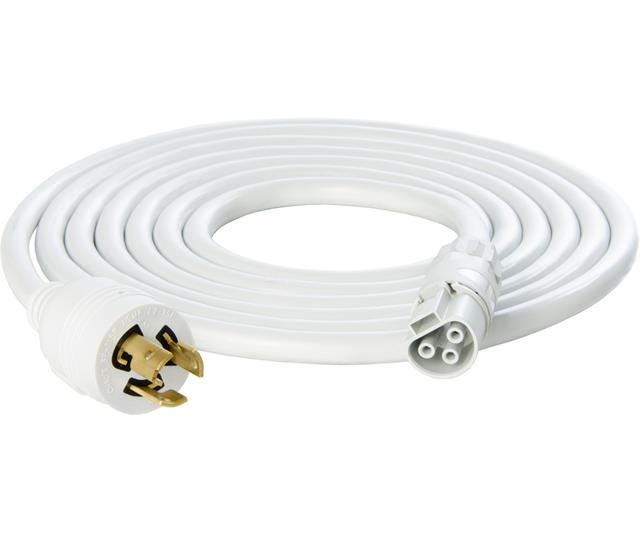

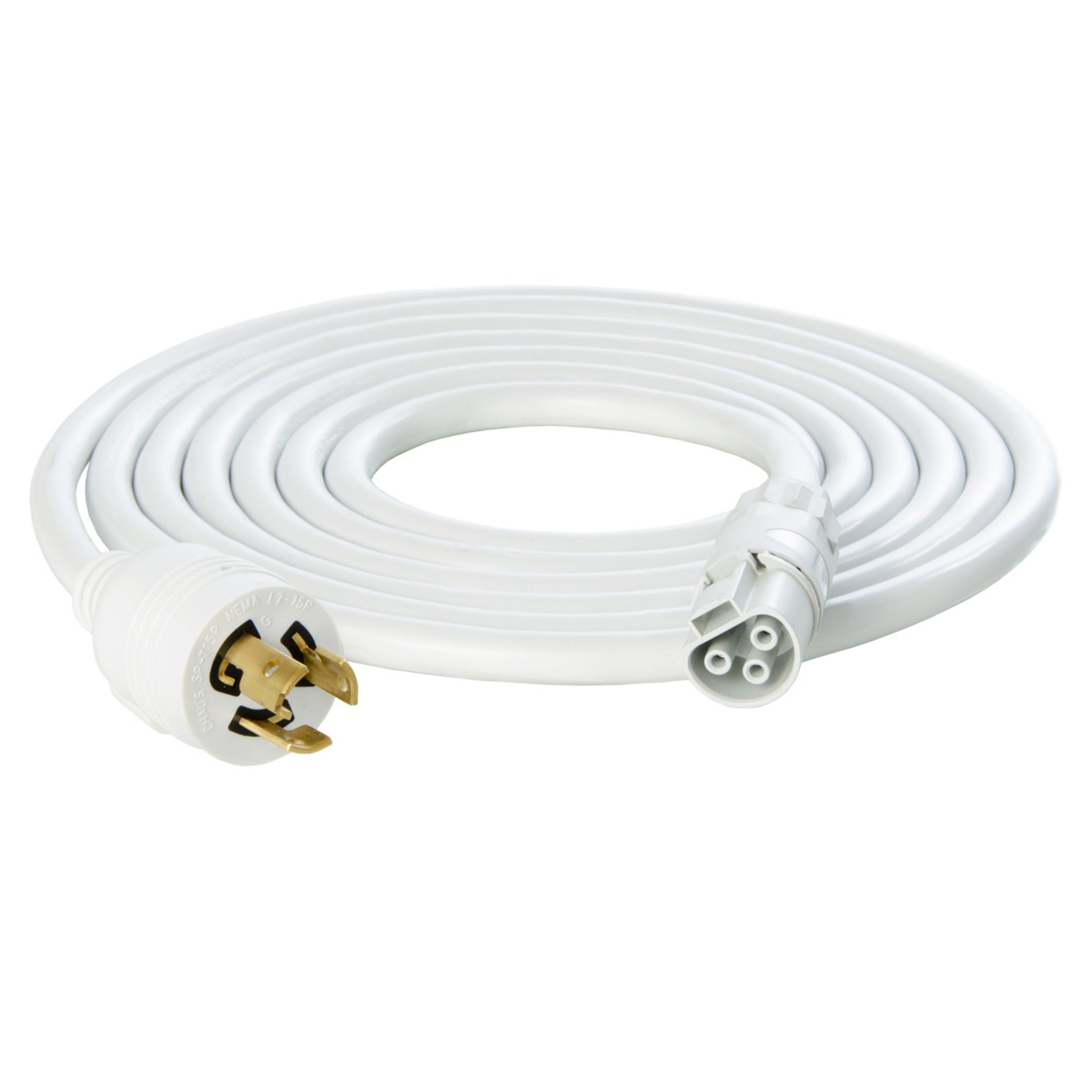

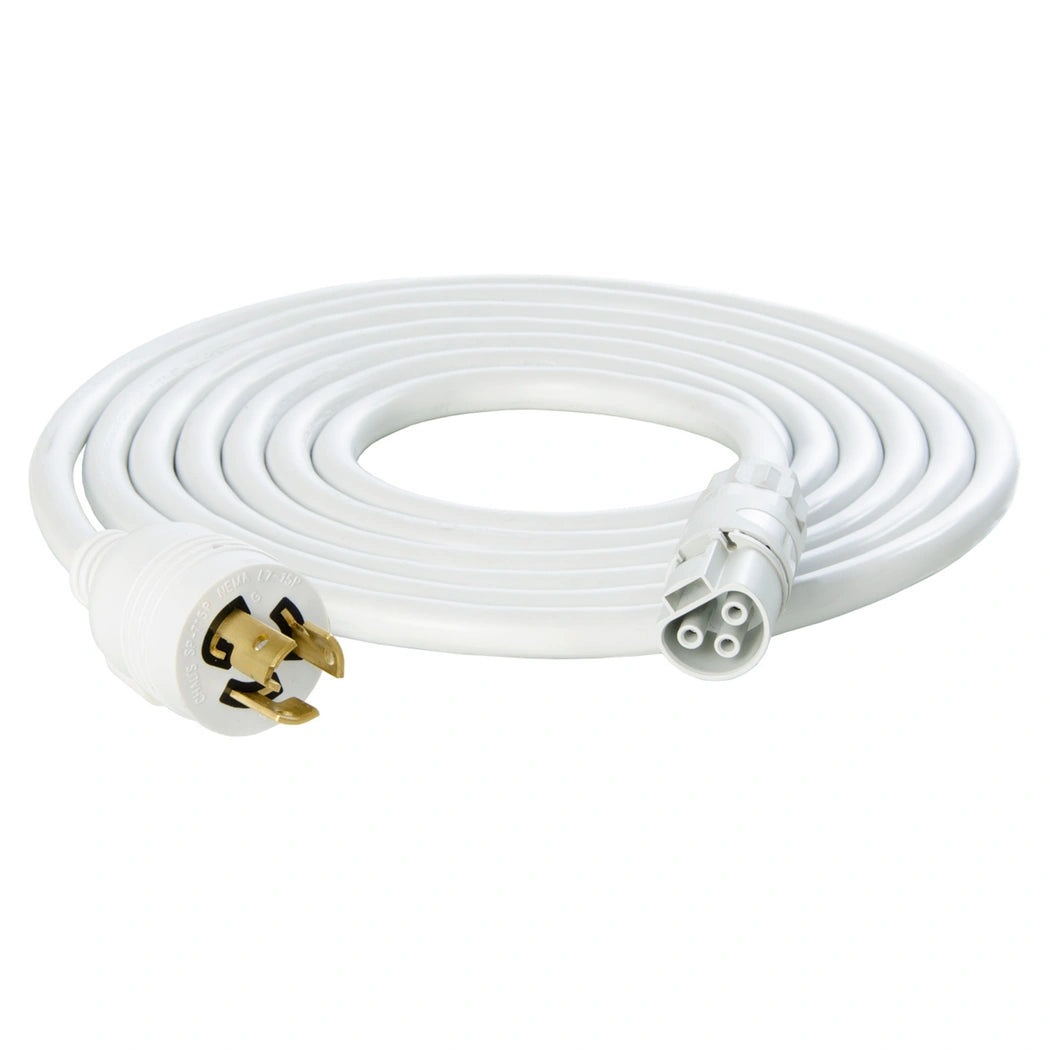

L7-15P locking power cord for commercial LED layouts
The PHOTOBIO X 277V harness routes a stable 277-volt feed to LED fixtures across a 10-foot run. Its locking connector and 18AWG conductors hold load on tight commercial racks. An IP-rated mini connector resists dust and humidity inside active flowering rooms. The white UV-resistant jacket adds usable canopy reflectance instead of disappearing into a dark corner. The lock pulls weight off the breaker rail and stays seated through thermal cycling that loosens straight blades.
L7-15P locking power cord for the PHOTOBIO X fixture line
Growers typically run a single L7-15P locking power cord trunk along the truss to keep aisles clear. The 18AWG copper handles continuous load on PHOTOBIO CX, MX, T, and TX fixtures wired to 277V branch circuits. Place the cable so the locking ring faces the fixture, then quarter-turn it to seat against the gasket. That orientation prevents drip-trail moisture pooling at the contact point during canopy mist or runoff cleanup. The cable terminates at the fixture's onboard connector, so swap fixtures without re-pulling conduit. That matters in commercial grow room wiring where SKU rotations happen mid-cycle, not between flips. Across multi-row layouts the 277V branch keeps panel headroom available for HVAC and dehumidifiers on shared feeders. Pair the cable with a matching 277V daisy chain to push fixture density per breaker without rewiring.
Key Features
- 277V L7-15P locking connector: Twist-lock plug stays seated through thermal cycles instead of backing out like a straight blade.
- 18AWG copper, 10-foot length: Reaches across commercial racks without splice or extension on a 277V branch circuit.
- IP-rated mini connector: Resists dust and humidity in flowering rooms and during canopy runoff cleanup.
- White UV-resistant jacket: Bounces stray light back to the canopy and stays visible during a fixture-down troubleshoot.
- Built for PHOTOBIO CX, MX, T, TX: Drop-in for the Phantom PHOTOBIO power lead family without adapters.
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 277V |
| Plug Pattern | L7-15P locking |
| Conductor | 18AWG copper |
| Length | 10 ft |
| Connector | Mini IP-rated plug-and-play |
| Jacket | White, UV-resistant |
| Compatible Fixtures | PHOTOBIO CX, MX, T, TX |
