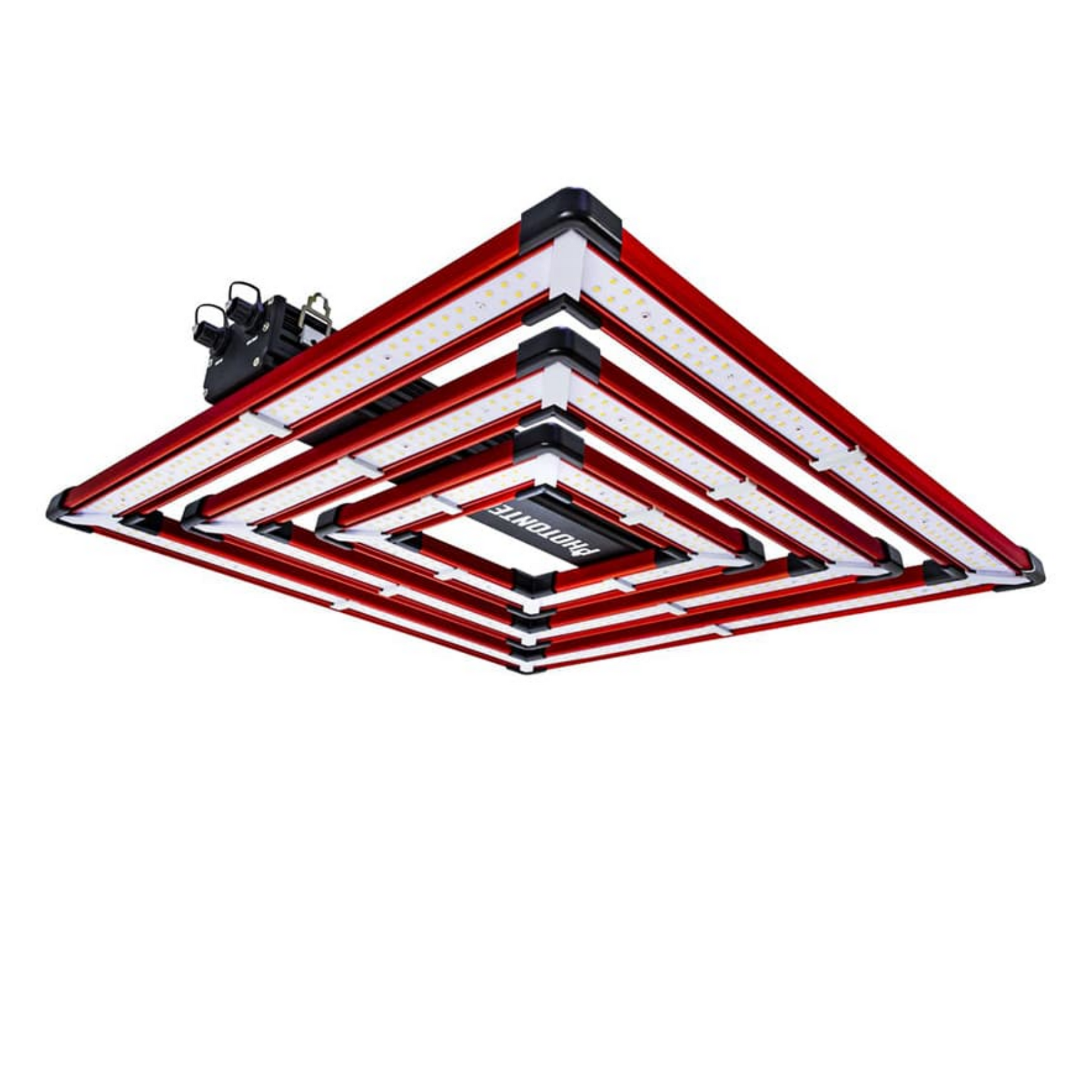

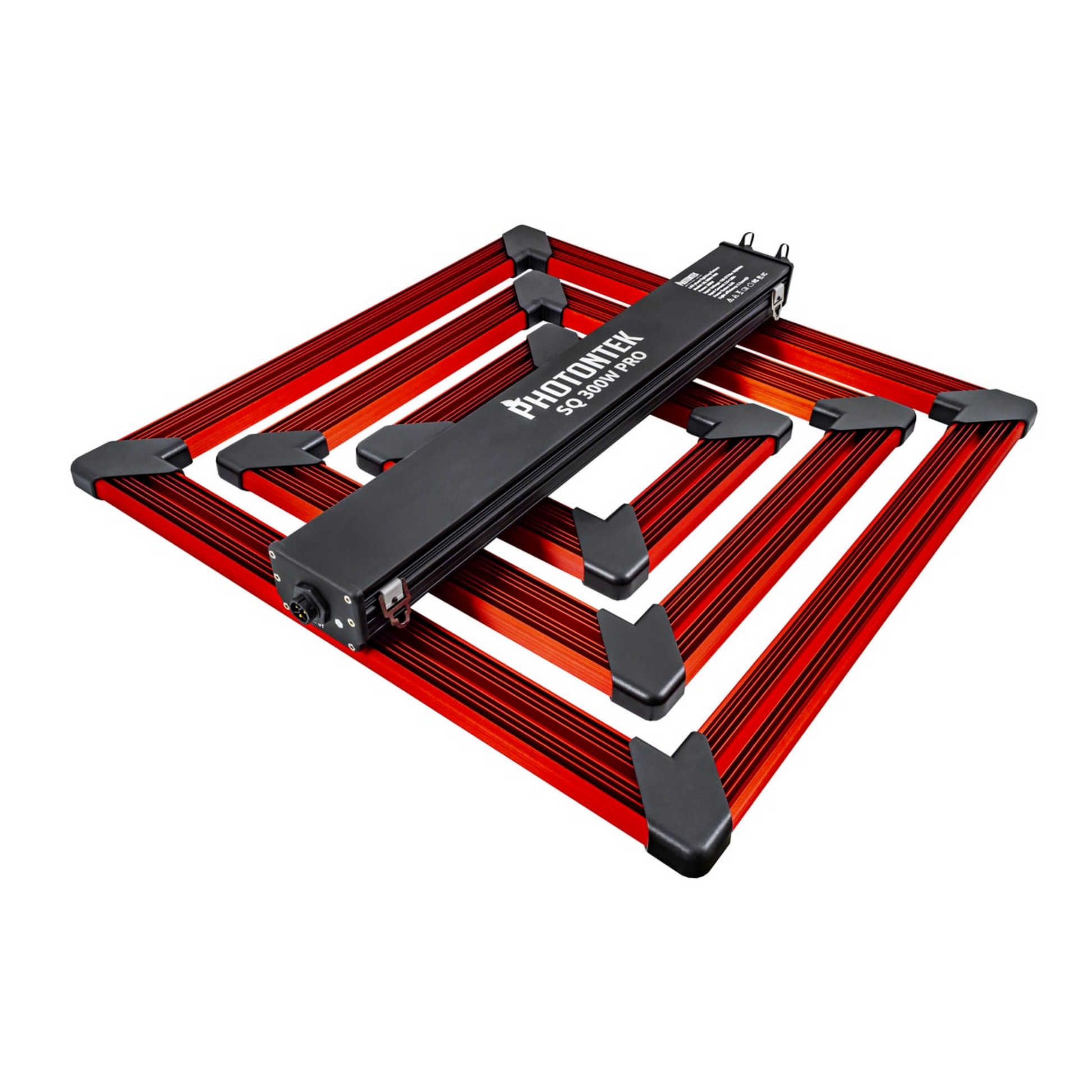

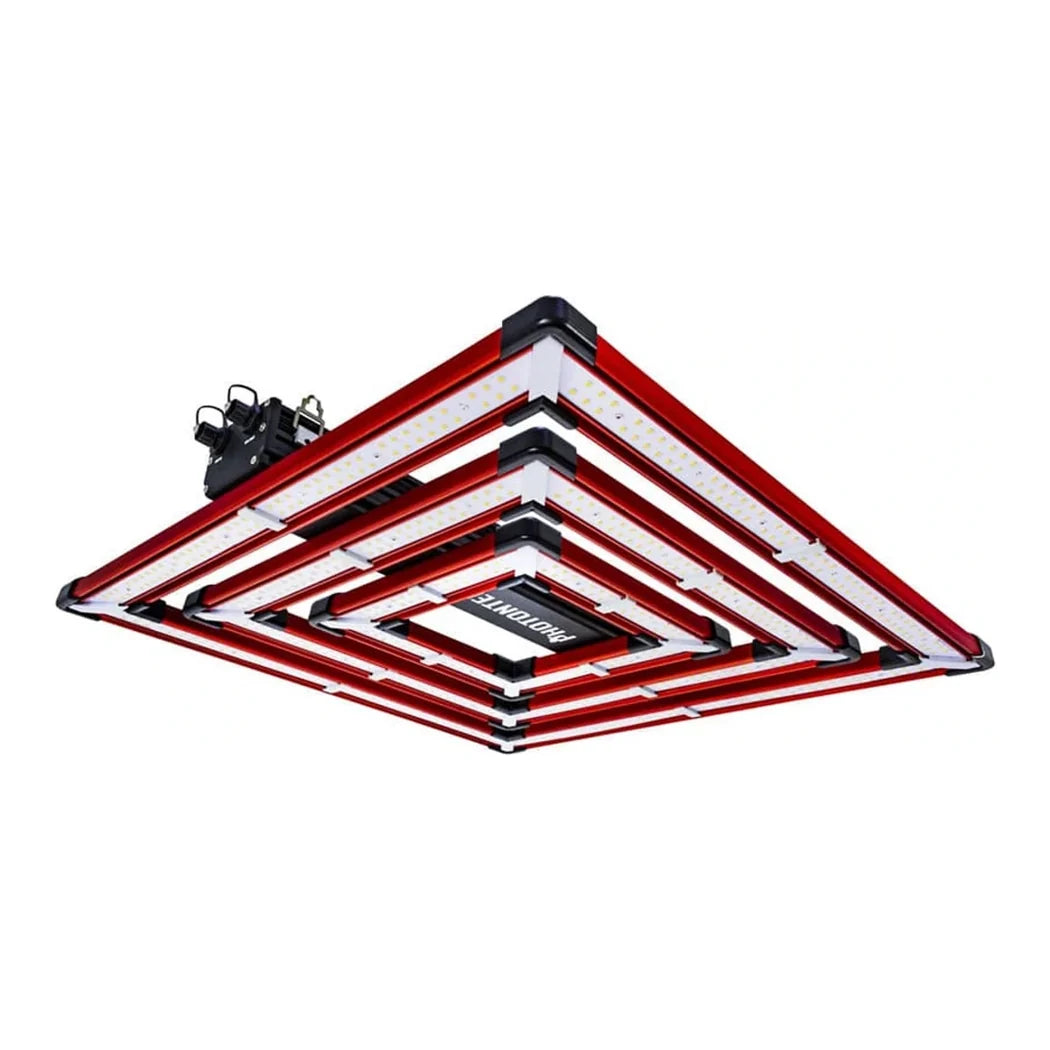

Compact LED for Tight Spaces: SQ300W Pro for 3x3 Footprints
The fixture pulls 310 watts of full-spectrum white, deep red 660nm, and far-red 730nm diodes. They sit across a 22.08 by 22.08 inch square bar array. The PhotonTek SQ300W Pro LED produces 816 µmol/s PPF at 2.7 µmol/J fixture efficacy. Independent tests measured peak PPFD near 1000 µmol/m² at a 44 cm hang height. Mid-700 µmol/m² readings appeared along the edges of the rated 3.3 by 3.3 ft footprint. The IP65 dimmable LED grow light runs on 120-277V at 50/60 Hz. It draws 2.72A at 120V. A clear-glue diode coating lifts light transmittance to 99 percent over standard cover materials.
Full-Spectrum LED Grow Light for 3x3 Grow Tent Builds

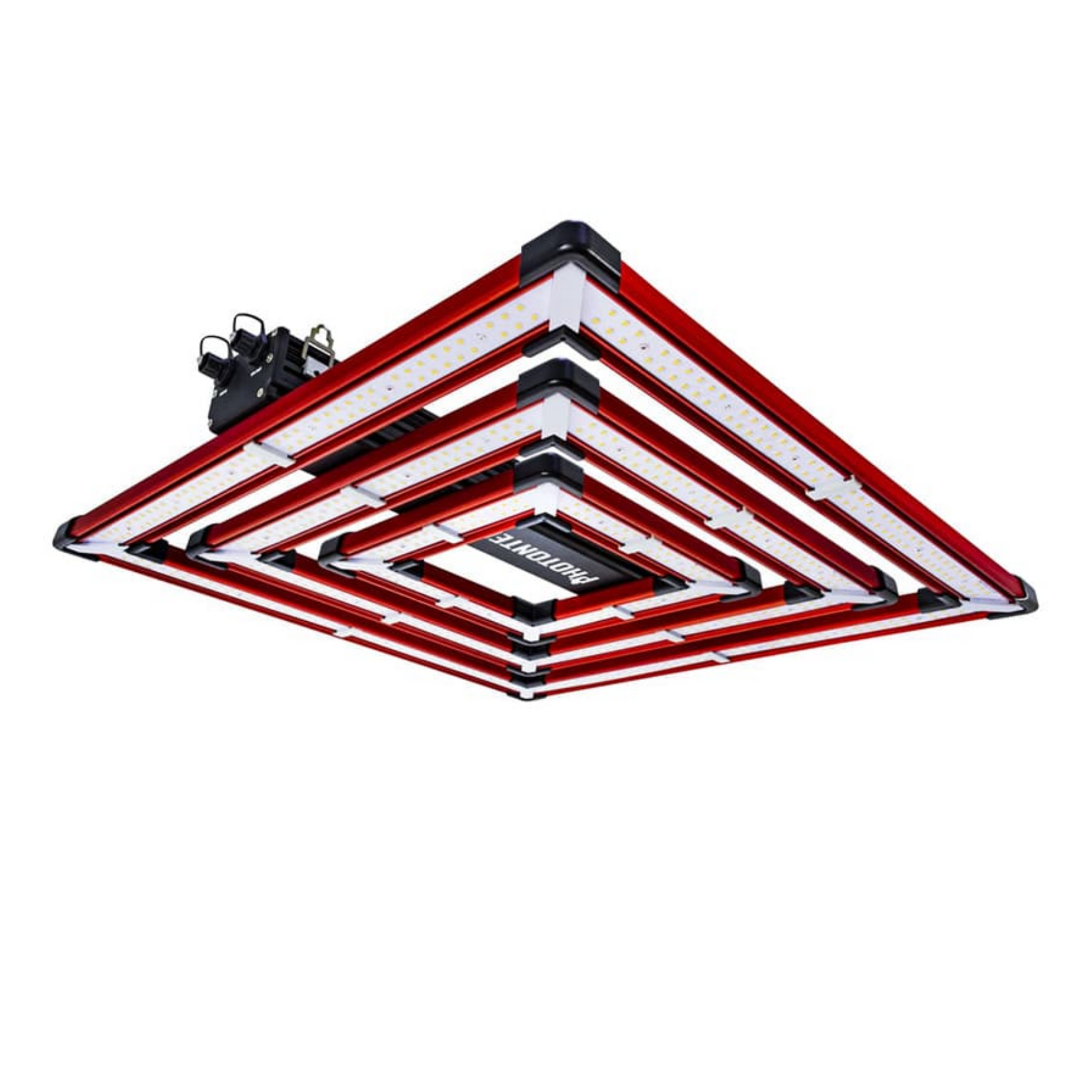

Growers typically hang the fixture 16 to 24 inches above the canopy in a 3x3 grow tent or compact rack tier. Then ramp from 25 percent through veg up to 100 percent in peak flower using the included 0-10V dimmer. The high efficacy 2.7 µmol/J fixture pulls about 310W to deliver PPF 816 umol/s full-spectrum output. Sizing two units side by side on a 120V 15A circuit becomes simple math at this current draw. External control through a 0-10V universal controller covers Trolmaster, Growlink, and similar room-management gear via RJ-to-0-10V adapter. The fanless passive-cooled LED design drops noise and extends the 60,000 hour rated lifetime in tight tent footprints.
Key Features
- Photon Efficacy: 2.7 µmol/J fixture efficiency turns 310W of input into usable PAR delivery.
- PPF Output: 816 µmol/s full-spectrum produces high-intensity light with even canopy coverage.
- Compact LED for Tight Spaces: 22.08 in square form and 11.46 lb weight fit small tents and rack builds.
- IP65 Dimmable LED Grow Light: Sealed enclosure with 0-10V dimmer handles wet rooms and humid bloom cycles.
- Fanless Passive-Cooled LED: No fan to fail; lower acoustic output and a 60,000 hour rated lifetime.
- Universal Controller Compatibility: 0-10V signal works with P-Tek, Trolmaster, Growlink, and RJ-port adapters.
- Full-Spectrum Diode Mix: White 4000K plus 660nm deep red and 730nm far-red for veg through finish.
- Multi-Voltage Input: 120-277V at 50/60 Hz covers residential 120V and commercial 277V circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Input Power | 310W (300W class) |
| Photon Efficacy | 2.7 µmol/J |
| PPF Output | 816 µmol/s |
| Coverage Footprint | Up to 3.3 ft x 3.3 ft (1m x 1m) |
| Input Voltage | 120-277V, 50-60Hz |
| Input Current | 2.72A @ 120V / 1.4A @ 230V / 1.16A @ 277V |
| IP Rating | IP65 |
| Lifetime | 60,000 hours |
| Light Distribution | 120 degrees |
| Spectrum | Full Spectrum (White 4000K + 660nm + 730nm) |
| Diode Count | 576 white 4000K + 24 deep-red 660nm + 24 far-red 730nm |
| Dimming | 0-10V dimmer (OFF/25/50/75/100%); 1% via P-Tek Controller |
| External Control | 0-10V signal; P-Tek Digital Controller compatible |
| Cooling | Passive natural convection (fanless) |
| Weight | 11.46 lbs |
| Dimensions | 22.08 x 22.08 x 2.82 in |
| BTU | 1051 BTU/h |
| Light Transmittance | 99% (clear glue cover) |
| Product Code | PTEKLED024 |
| Warranty | 3 years |
