PhotonTek X 465W Pro LED Grow Light | 1,256 µmol/s, 2.7 µmol/J

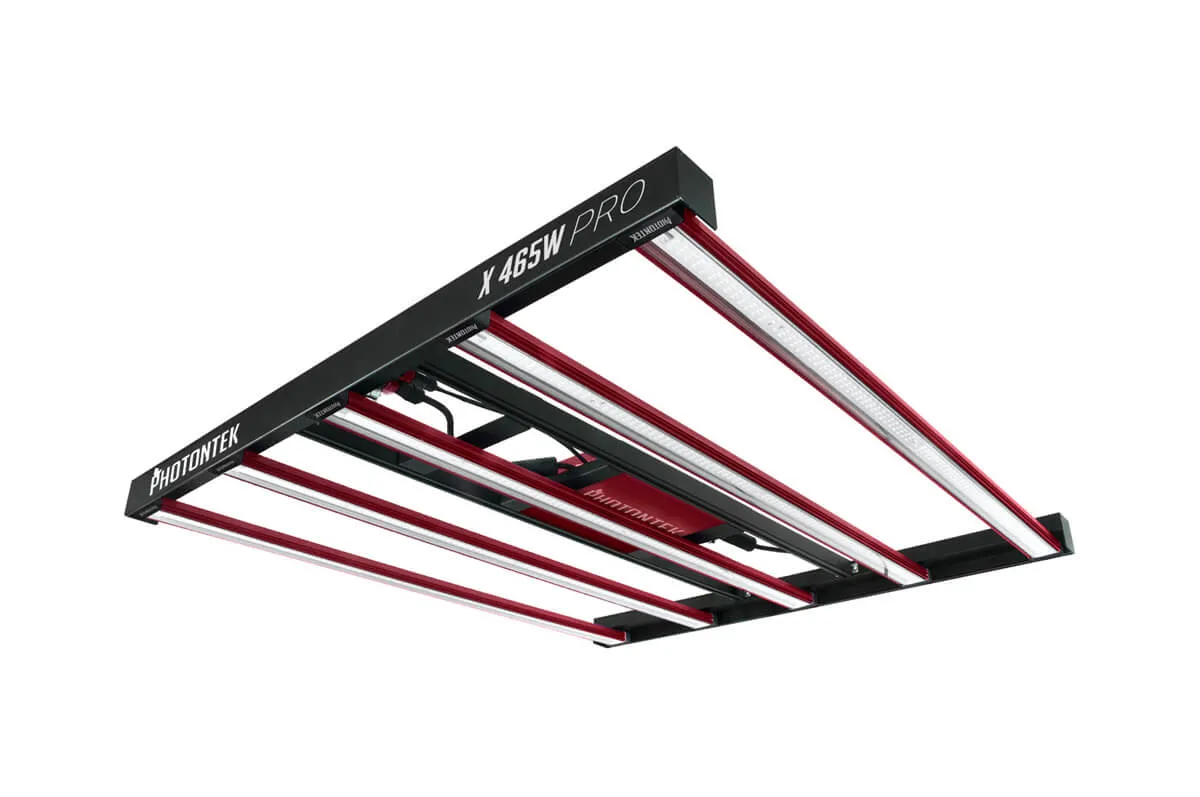

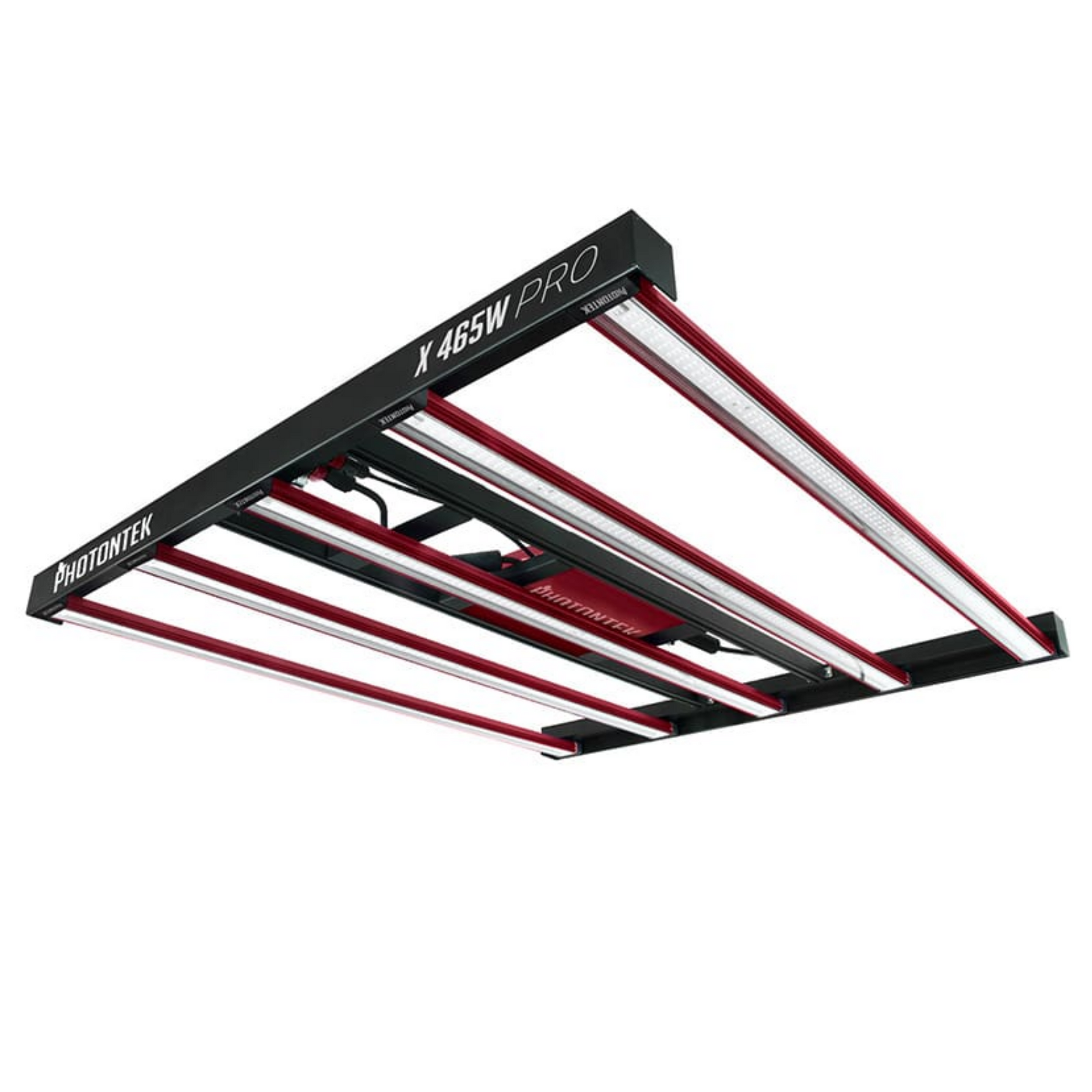

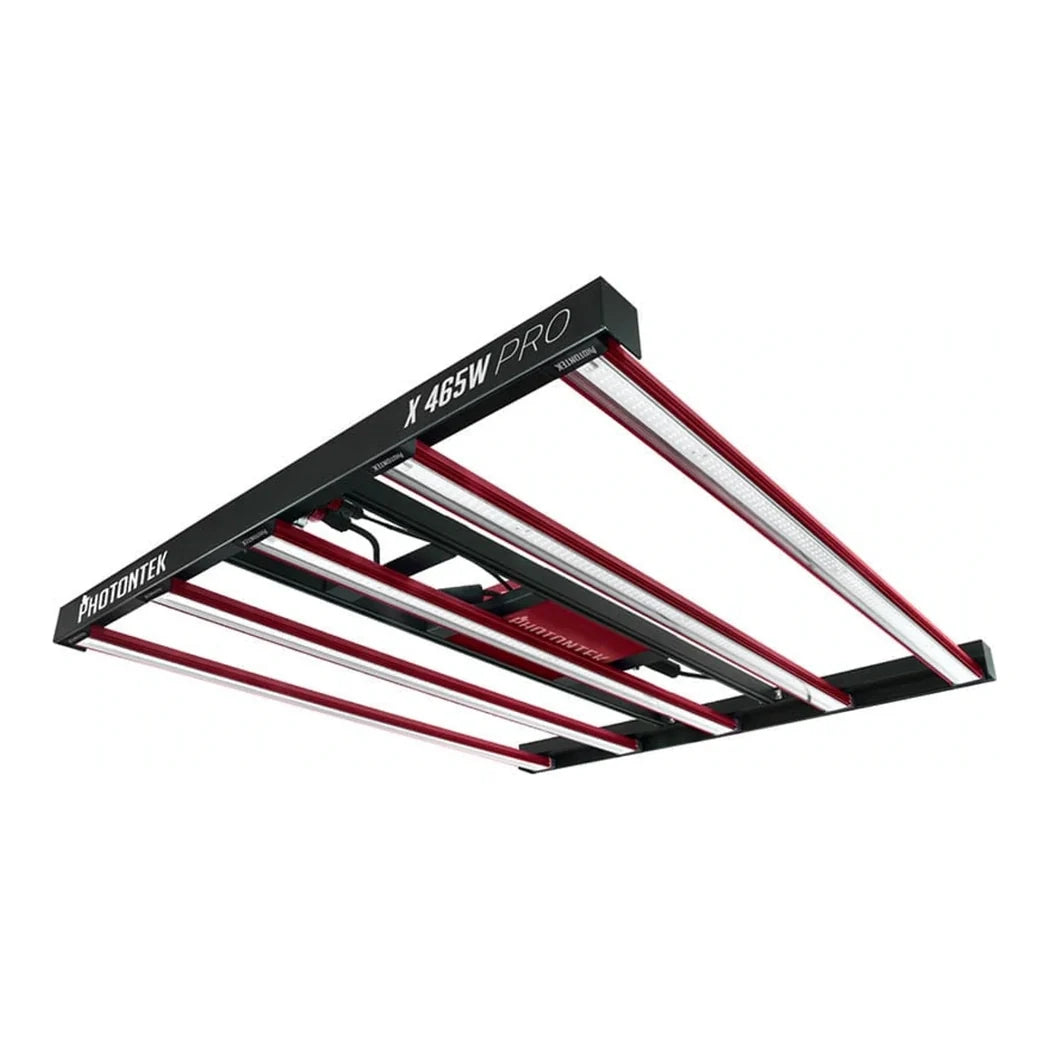

PhotonTek X 465W Pro LED: Five Magnetic Bars on One Driver

Each of the five bars on this fixture snaps onto the frame magnetically, so a damaged bar comes off without pulling the whole light down. Together they draw 465W through one driver, about 93W per bar. Output is 1,256 µmol/s PPF at a fixture efficacy of 2.7 µmol/J. The diodes come from Osram and Lumileds, arranged as a full-spectrum mix with a 120° beam angle. PhotonTek rates coverage at 4 x 4 ft for veg and 3.3 x 3.3 ft for flower. The frame spans 39.29 x 35.43 x 2.92 in and weighs 24.25 lbs. The driver accepts 120–277V, which works out to roughly 3.9A on a 120V outlet. Heat load is about 1,706 BTU/h with the driver attached. Moving the driver outside the tent drops that to roughly 1,586 BTU/h inside. Bars are sealed to IP65 and rated for 60,000 hours, under a 5-year warranty.

Where This 4x4 LED Grow Light Earns Its Place

The flat bar layout spreads light wider than a square panel of the same wattage, which is why the veg footprint runs a full tent. Hang it high over young plants and let the stepped dimmer carry the early weeks at a quarter or half power. Once flower sets in, bring it down and run it at full, checking the corners with a PAR meter. The included dimmer clicks through off, a quarter, half, three-quarters and full. Room controllers that speak 0–10V, including the PhotonTek Digital Controller, handle smooth ramps and sunrise timing. Mounting the driver on the tent frame outside keeps the canopy a few degrees cooler in summer. One honest limit is the flowering footprint. In a full 4x4 flower tent, the outer edges will read softer than the middle. Growers who want edge-to-edge bloom intensity at that size usually choose the larger X 600W. It is also a wide, heavy frame, so hang it with two people and level it before the first watering.

Key Features

• 1,256 µmol/s at 2.7 µmol/J: Strong flowering intensity over a 3x3 canopy and a full veg footprint in a 4x4 tent.
• Five Magnetic 93W Bars: Individual bars detach from the frame for cleaning or replacement without rehanging the fixture.
• Osram and Lumileds Diodes: Name-brand chips in a full-spectrum mix that runs from seedling through late bloom.
• Remote-Capable Driver: Moving the driver outside the tent pulls part of the heat load away from the canopy.
• IP65 Bars: Handles humid flower rooms and foliar spray drift without exposing the diodes.

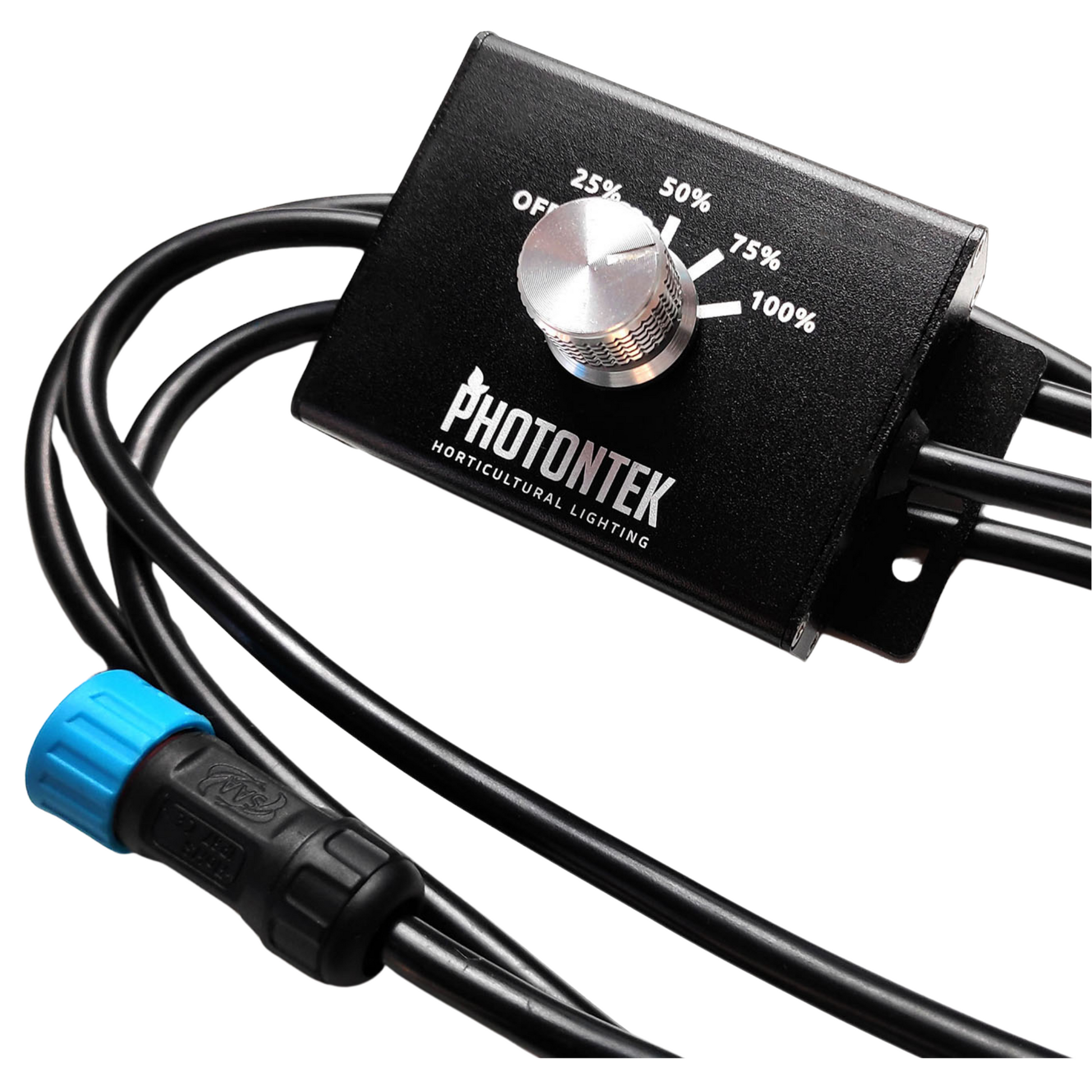

• Stepped 0-10V Dimmer Included: Off, 25, 50, 75 and 100% settings, with external control through 0-10V room controllers.
• 5-Year Warranty: Longer coverage than the smaller SQ models, matching the fixture's commercial-grade build.
