AC Infinity 12-Inch Pre-Filter for Large Carbon Filters

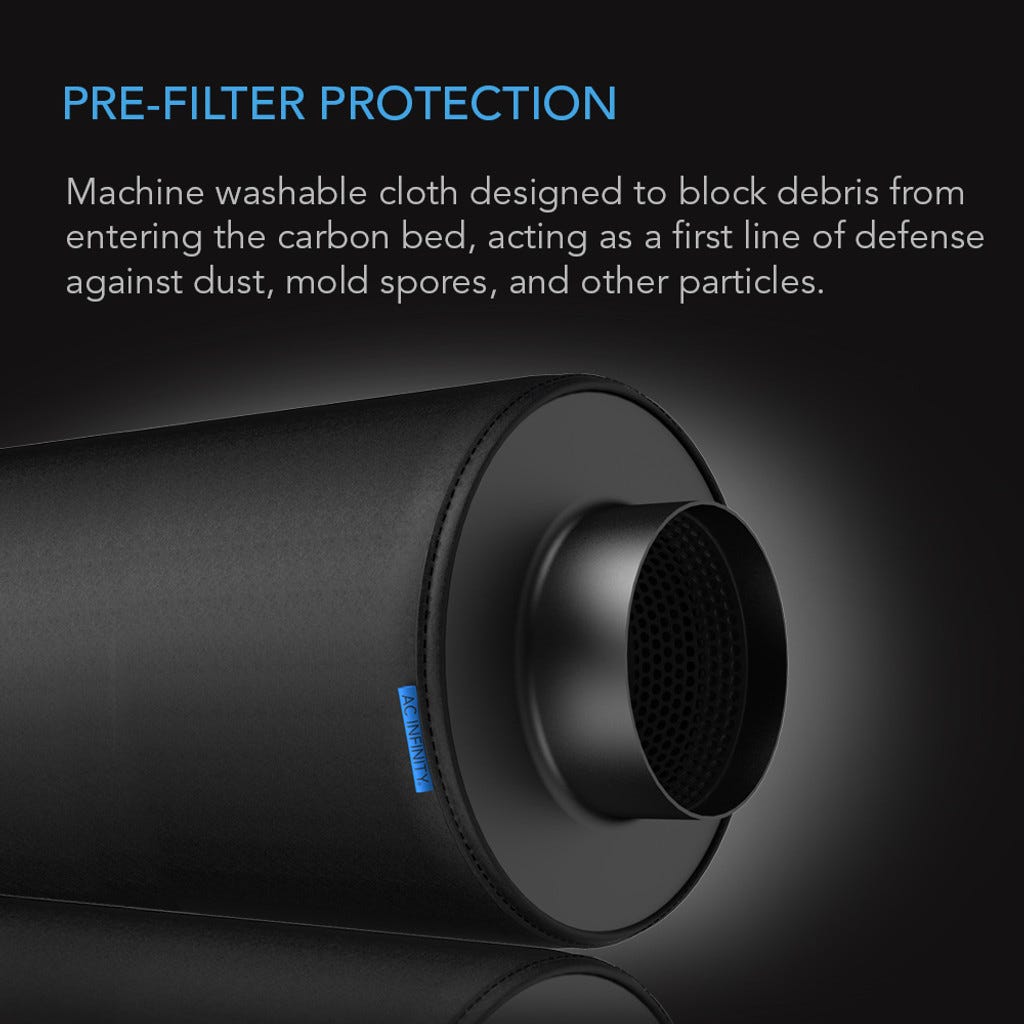

This pack holds two polyester sleeves cut for carbon filters with a 12-inch duct opening. Filters of this size handle the exhaust for large grow rooms, drying rooms and multi-light spaces. They move a heavy volume of air, and every cubic foot carries some dust and fiber. Each sleeve keeps that coarse material on its surface, away from the charcoal. Hair, lint, pollen and dust collect on the fabric while air passes freely through. The cloth is 0.05 in thick and measures 14.80 x 25.59 in when laid flat. It is shaped to fit the tall body of a 12-inch filter snugly. AC Infinity rates a sleeve for up to six months of continuous use between cleanings. Service is a quick vacuum to clear the surface, then a normal machine wash. Hang it to dry, since tumble heat can shrink polyester and loosen the fit. The second sleeve in the pack covers the filter while the first is cleaned. That way the carbon bed is never exposed to raw room air.
Maintaining Carbon Filter Cloth on a Large Exhaust Filter

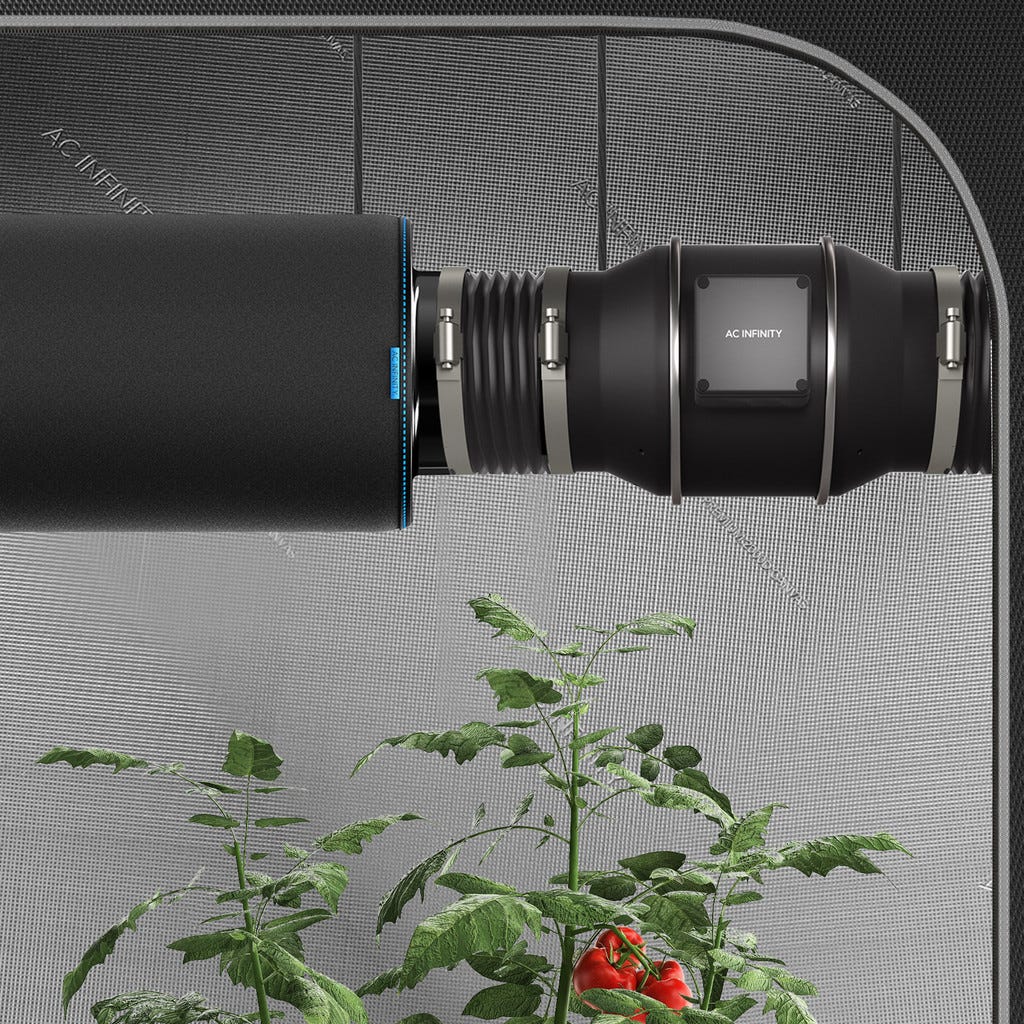

Identify the airflow path before the sleeve goes on. For intake airflow, with air drawn in through the outer wall, it slips over the outside of the filter. In exhaust configurations, AC Infinity places it in the inner chamber. The cloth should always face the air as it first reaches the carbon. A 12-inch filter is heavy, so get a second person to steady it during fitting. Roll the sleeve on from the top and draw it down evenly to the base. In a drying room, plant debris adds to the normal dust and lint load. Check the sleeve on each walk-through and vacuum it once a light coat shows. Schedule full washes between harvests, when the fan can run briefly with the spare in place. Wash the soiled sleeve, then hang it in a clean area until it is completely dry. Store the dry spare folded in a sealed bag near the filter. Keep a service date on the filter housing so anyone on the team can see when it was last changed.
Key Features
- 12-Inch Fit: Pre-cut for carbon filters with a 12-inch duct opening.
- Coarse Debris Barrier: Keeps hair, lint, pollen and dust off the charcoal.

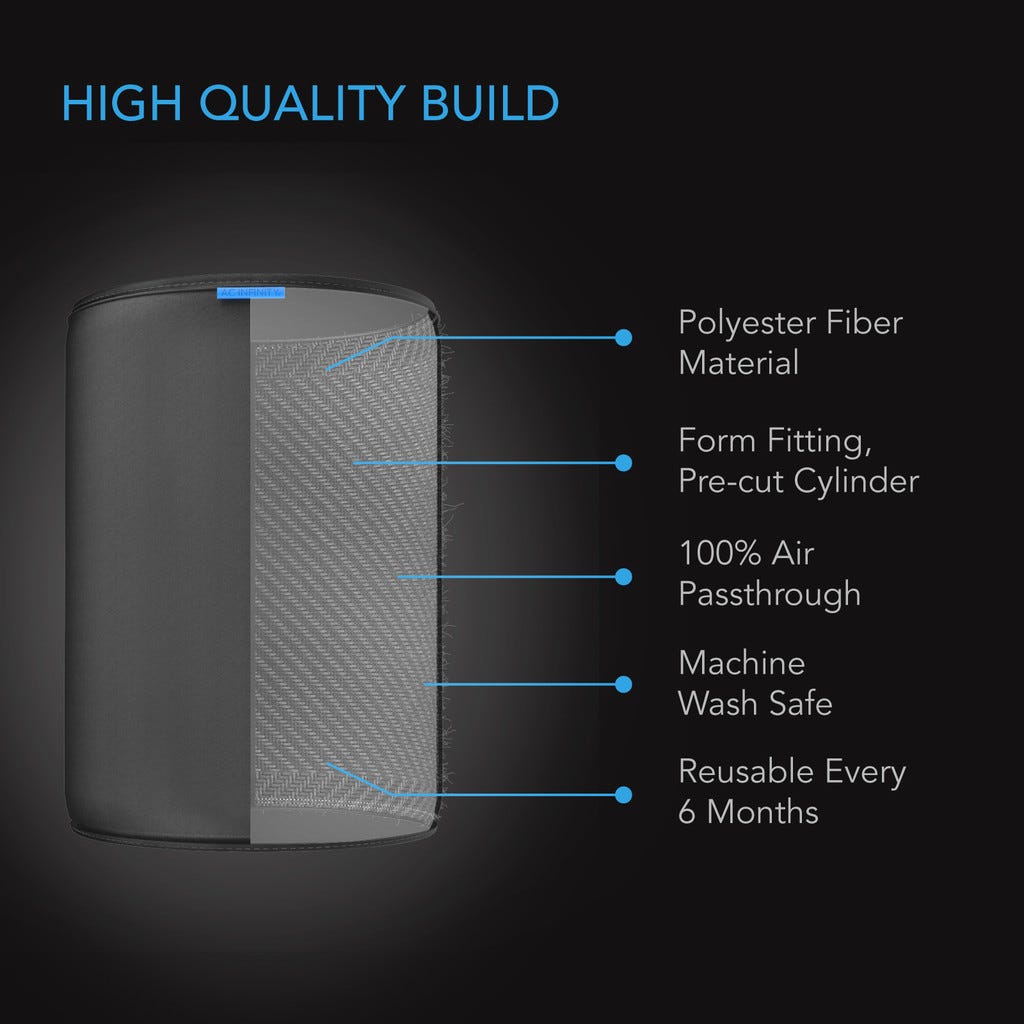

- Breathable Polyester: 0.05 in fabric lets air pass freely.
- Snug Shape: 14.80 x 25.59 in flat size for a tall filter body.
- Reusable: Vacuum, machine wash and hang dry.

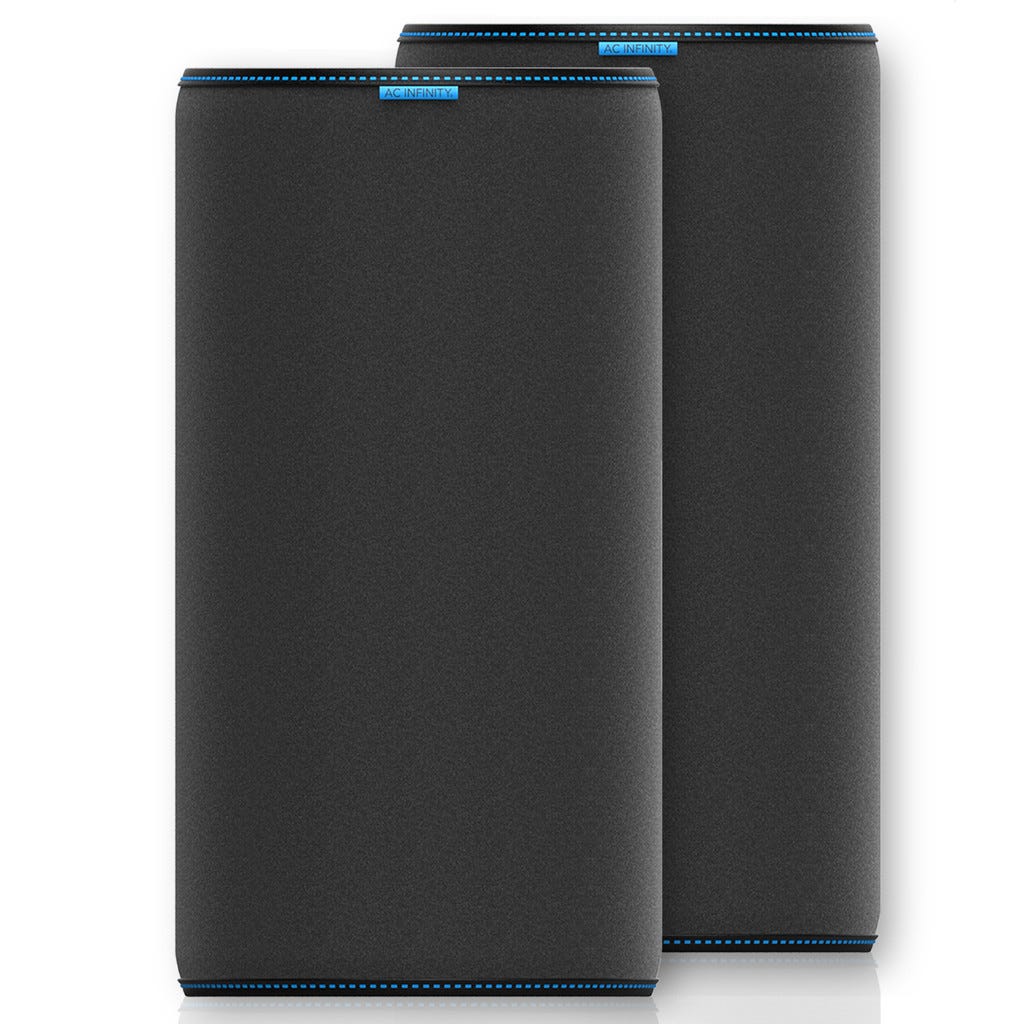

- Two Per Pack: A spare covers the filter during every wash.

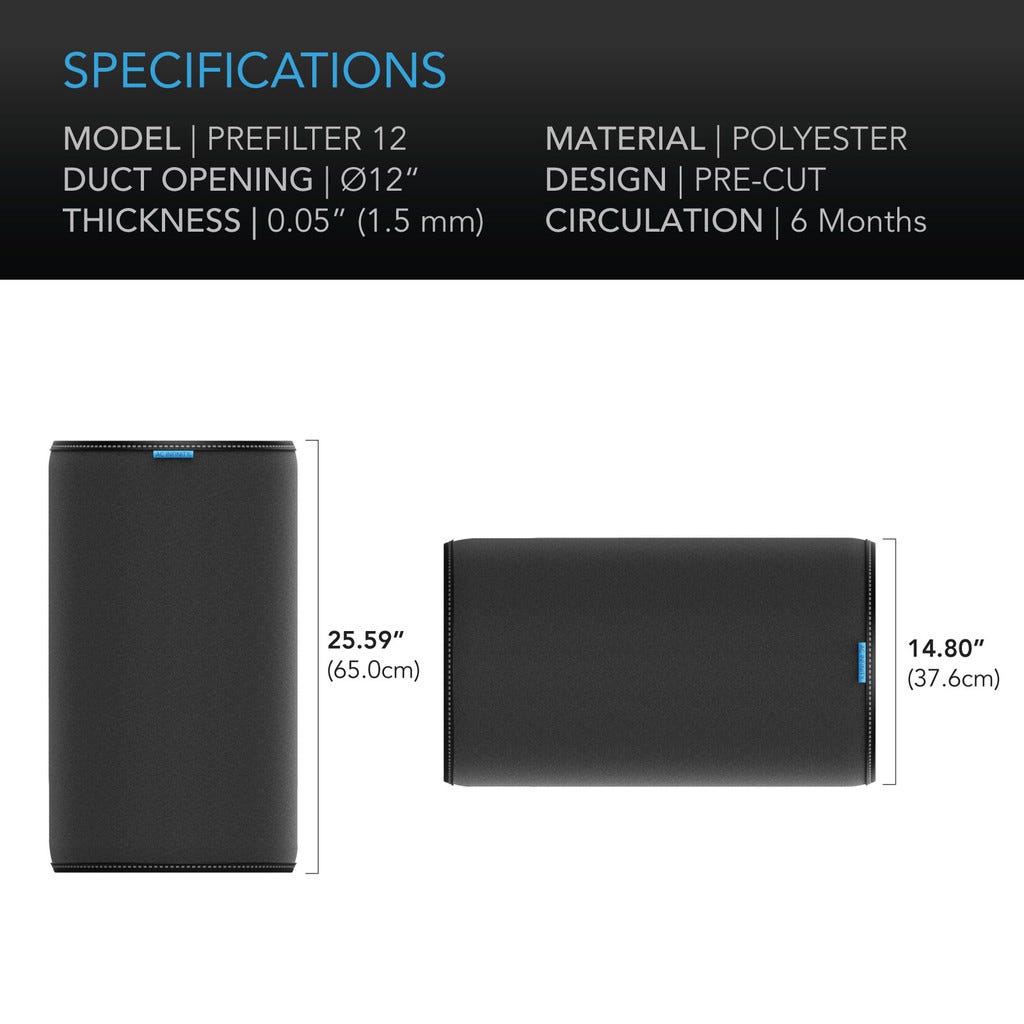

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-PFC12 |
| UPC | 819137021846 |
| Duct opening size | 12 in |
| Flat dimensions | 14.80 x 25.59 in (37.6 x 65.0 cm) |
| Thickness | 0.05 in (1.5 mm) |
| Material | Polyester |
| Color | Black |
| Design | Pre-cut, form-fitting |
| Cleaning interval | Up to 6 months of continuous use |
| Care | Vacuum, machine wash, hang dry |
| Pack quantity | 2 |
