AC Infinity 4-Inch Pre-Filter Sleeve, 2-Pack

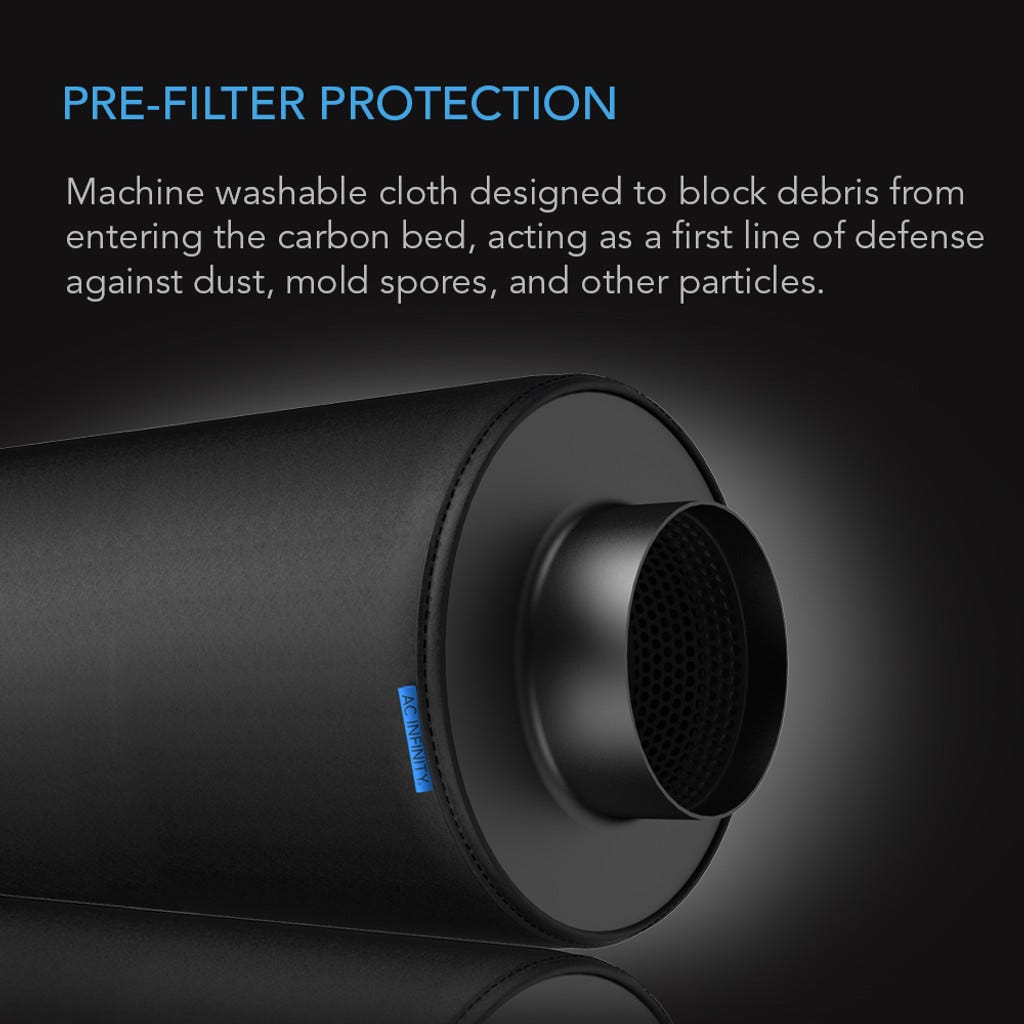

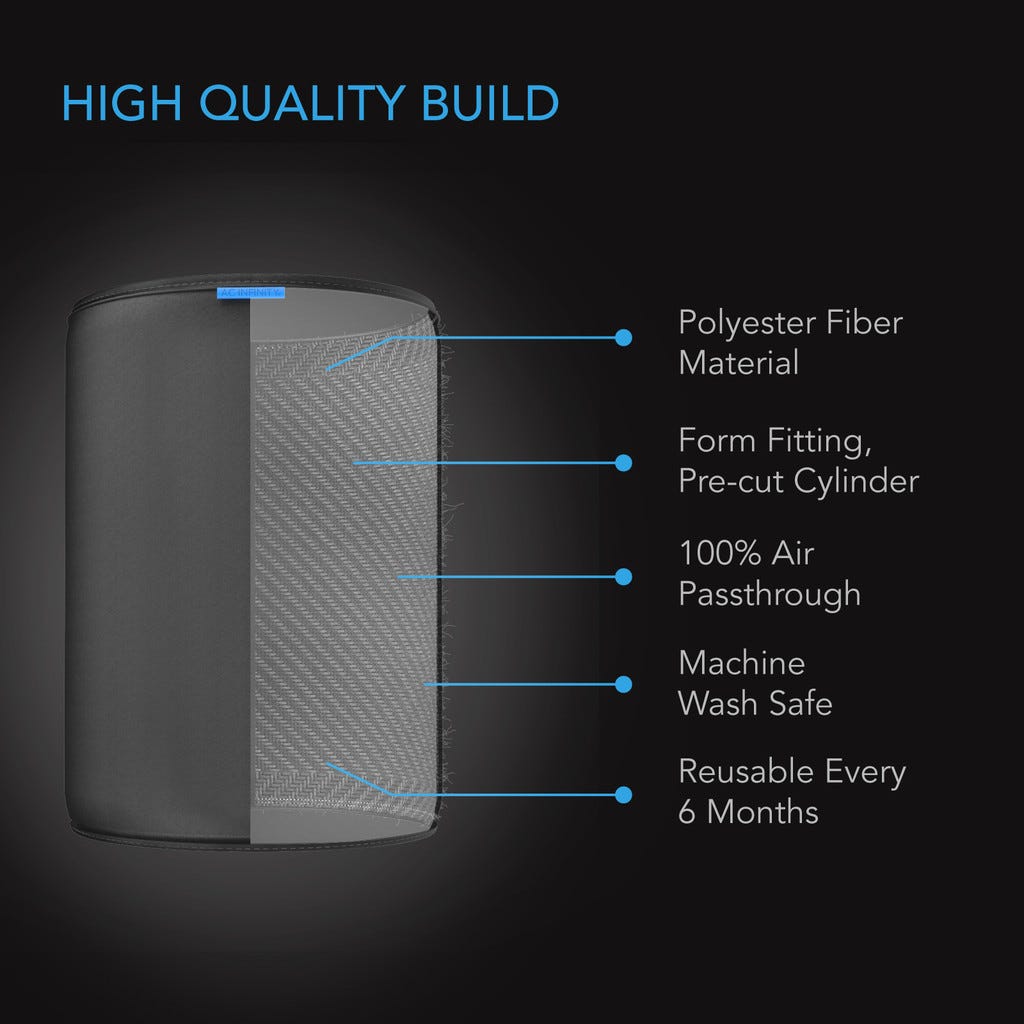

This pre-cut sleeve catches dust before it reaches the charcoal bed of a carbon filter. Keeping the carbon clean leaves its surface free to hold odor. It is sized for carbon filters with a 4-inch duct opening, the size common on small tents and compact exhaust runs. The fabric is a black polyester, 0.05 in thick, that stops hair, lint, pollen and other larger particles. It stays breathable, so air keeps passing through to the carbon. Laid flat, each sleeve measures 6.96 x 9.84 in. The form-fitting cut slides over the filter without clips or tape. AC Infinity rates one cloth for up to six months of continuous use between cleanings. Cleaning takes a vacuum pass to lift loose dust, then a regular machine wash. Hang it to dry, since a dryer can shrink the fabric and spoil the fit. Two cloths come in the pack, so one goes back on while the other is washed. That rotation keeps the filter covered without any downtime. Its job is to keep the carbon working on odor rather than on dirt.
Fitting Carbon Filter Fabric to a Small Tent Filter
Look at which way air moves through the filter before the sleeve goes on. For intake airflow, where air is drawn in through the outer wall, slip the cloth over the outside. For exhaust setups, AC Infinity places the cloth in the filter's inner chamber instead. Either way, the fabric sits where air first meets the carbon. Pull it smooth so no folds bunch up and choke the flow. In a 2 x 2 or 2 x 4 tent, the sleeve picks up a surprising amount of fabric lint from clothing and tent walls. Check it at each feeding or every couple of weeks, and look for a gray film on the outside. A visible coat of dust is the sign to vacuum it. Vacuum the sleeve in place first if it only needs a light refresh. When it needs a full wash, swap on the spare and carry the dirty one to the machine. A normal machine wash brings the fabric back. Shake it out before hanging so it dries flat and keeps its shape. Let it hang until fully dry before it goes back on the filter. Write the install date on a piece of tape on the filter to track the six-month mark.
Key Features
- 4-Inch Fit: Pre-cut to fit carbon filters with a 4-inch duct opening.
- Polyester Sleeve: Black, 0.05 in thick, blocks hair, lint, pollen and dust.
- Breathable: Air passes through freely to the charcoal bed.
- Washable: Vacuum, machine wash and hang dry to reuse.
- Six-Month Interval: Up to six months of continuous use between cleanings.

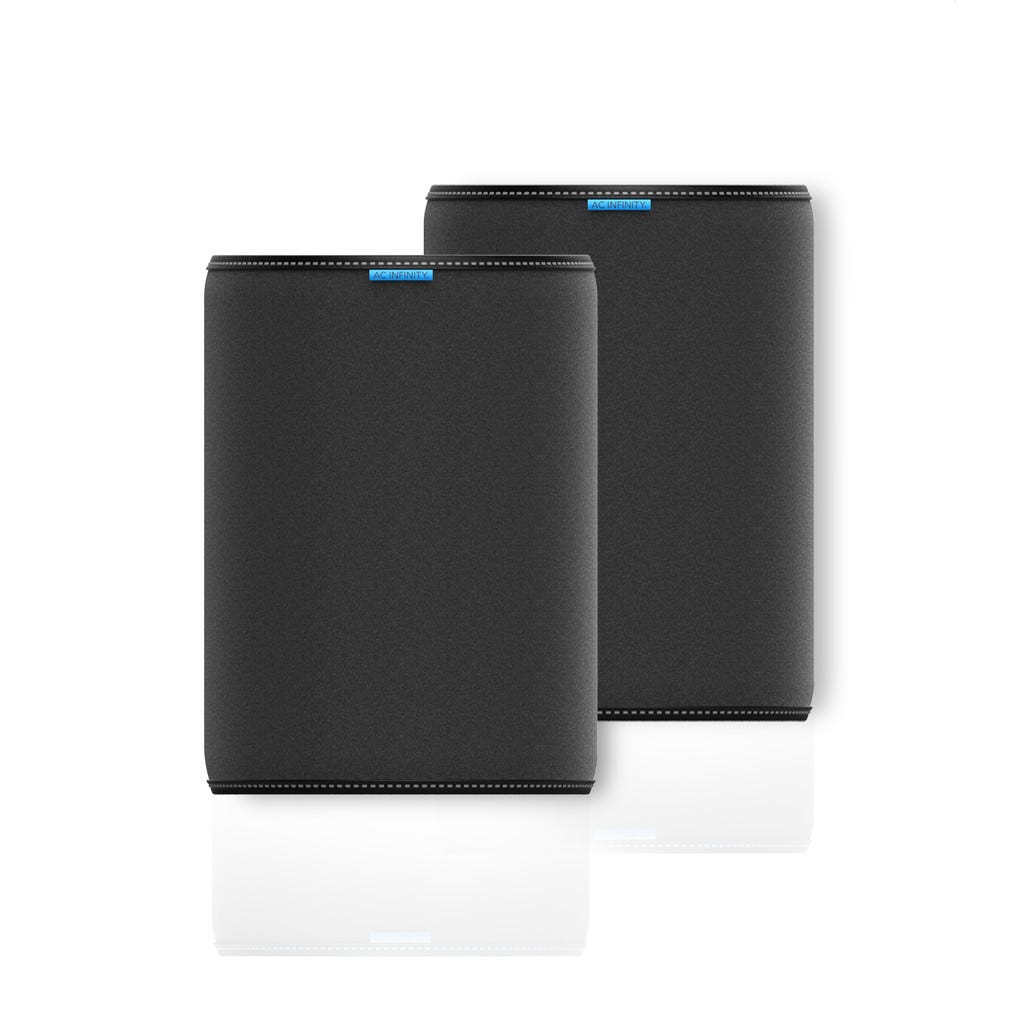

- 2-Pack: One cloth on the filter while the other is washed.

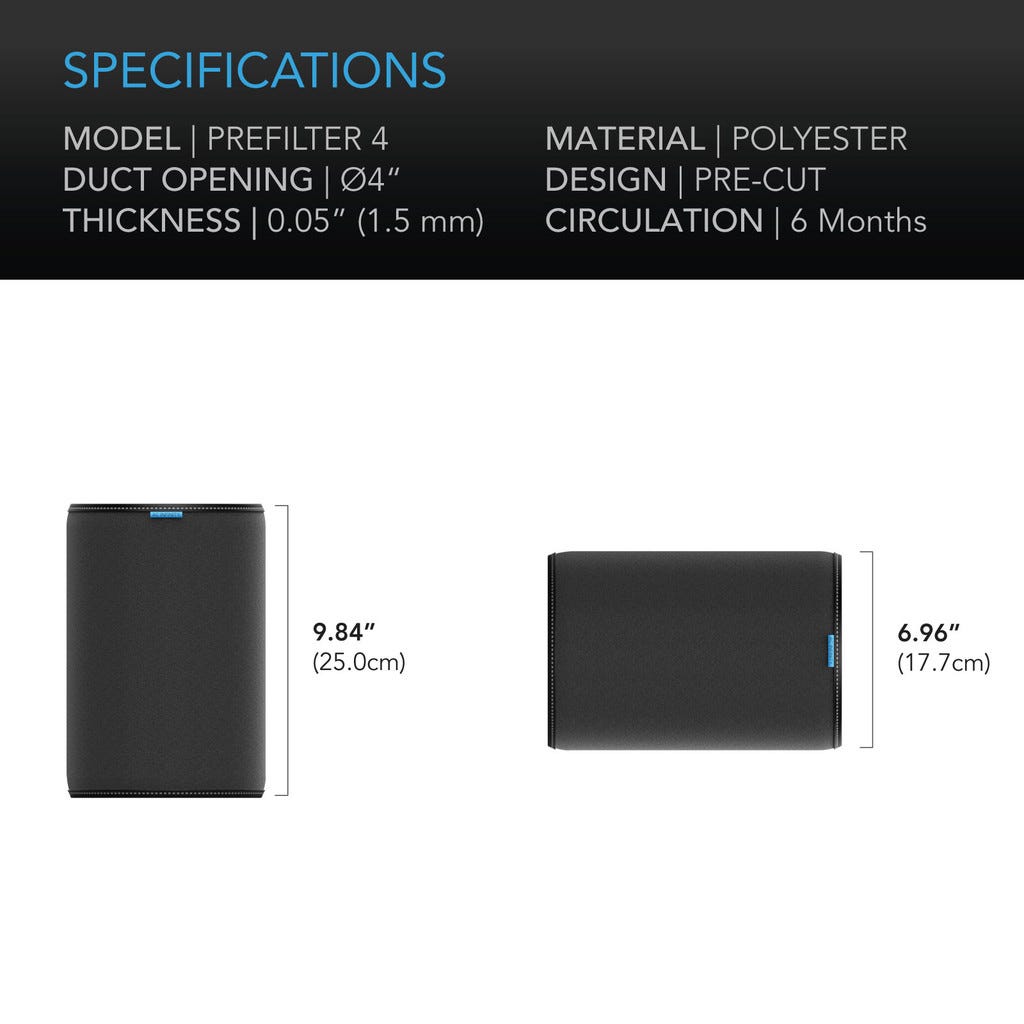

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-PFC4 |
| UPC | 819137021808 |
| Duct opening size | 4 in |
| Flat dimensions | 6.96 x 9.84 in (17.7 x 25.0 cm) |
| Thickness | 0.05 in (1.5 mm) |
| Material | Polyester |
| Color | Black |
| Design | Pre-cut, form-fitting |
| Cleaning interval | Up to 6 months of continuous use |
| Care | Vacuum, machine wash, hang dry |
| Pack quantity | 2 |
