Quest 70 Pint Dehumidifier Duct Kit: Supply and Return Collars

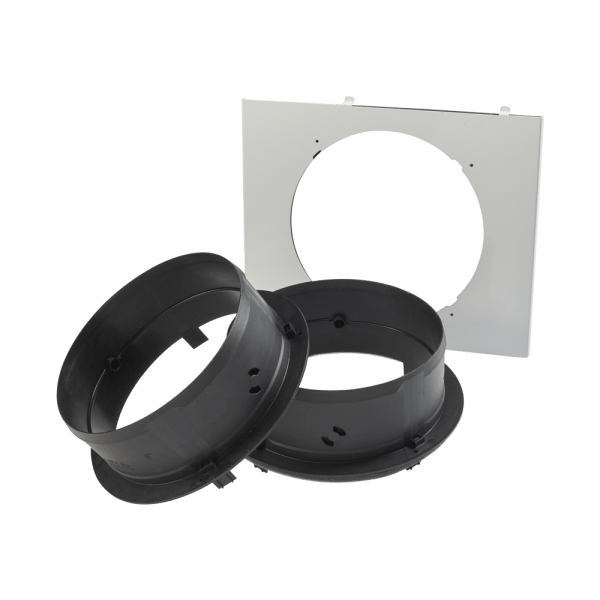

This supply and return duct kit connects ductwork to a Quest 70 dehumidifier. It fits the Quest 70 (PN 4033750) and the Quest 70 50 Hz (PN 4033810). The kit includes two 8 in duct collars, a flange plate and the hardware to seal them to the unit. One collar serves the return side, where the unit draws air in. The other serves the supply side, where dry air leaves the dehumidifier. With both sides ducted, the dehumidifier can sit in a mechanical room or crawlspace and still treat the grow space. It can also discharge dry air into the ductwork of an existing forced-air system. Another option is to draw air from a separate area that opens to the space being treated. The Quest 70 moves 150 CFM through these duct connections. Quest's part number for the kit is 4038599.
Running Dehumidifier Ducting on the Quest 70
Disconnect the dehumidifier from power before fitting the collars. For total duct runs up to 25 ft, use at least eight-inch round duct or the rectangular equivalent. Longer runs call for ten-inch round duct or larger. Grilles and diffusers at the duct ends must not restrict airflow. Use UL-listed flexible duct on every connection to the Quest 70. A short length of flex duct between each collar and any rigid duct cuts the noise and vibration carried into the structure. Keep runs as straight as possible, since every elbow costs capacity and efficiency. When the supply ties into an existing heating system, install a backdraft damper in the Quest 70 supply duct. That damper stops air from flowing backward through the unit while it is off. Quest offers an optional eight-inch check damper for this purpose. Seal each collar firmly to the flange plate so the air stays inside the duct.
Key Features
- Supply and return: Two 8 in collars, one for each side of the unit.
- Flange plate and hardware: Seals the collars to the dehumidifier.
- Quest 70 fit: PN 4033750 and the 50 Hz model, PN 4033810.
- Remote placement: The unit can sit outside the space it treats.
- HVAC tie-in: Supply side can feed existing forced-air ductwork.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Quest |
| Part number | 4038599 |
| Type | Supply and return duct kit |
| Compatible models | Quest 70 (4033750), Quest 70 50 Hz (4033810) |
| Collars | 2 x 8 in |
| Included | 2 duct collars, flange plate, hardware |
| Recommended duct | 8 in round minimum up to 25 ft total; 10 in round for longer runs |
| UPC | 859029004892 |
