Quest Dual MERV 13 Filter: the Finer Grade for the Same Slot

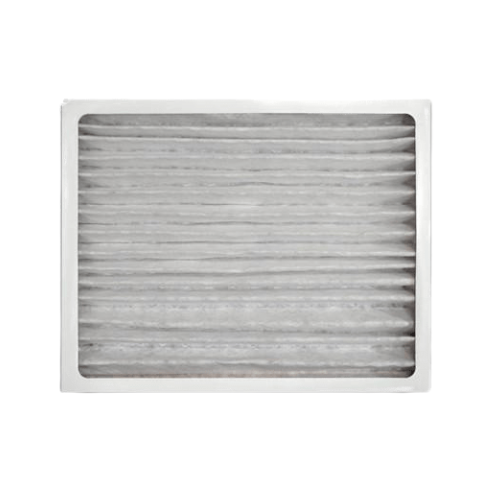

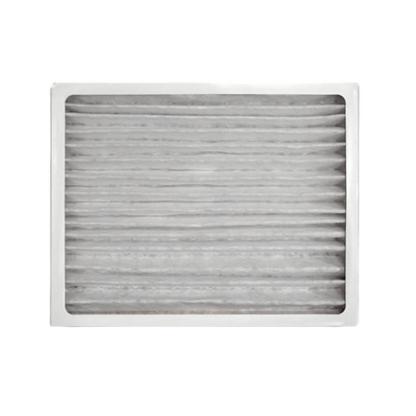

Quest part 4039391 is a pleated MERV 13 panel cut to the Dual overhead's filter opening. Nothing about the unit or the install changes. What changes is the media. The EPA holds MERV 13 to 50 percent or better capture from 0.3 to 1 micron. MERV 11 is only held to 20 percent on that same band. It is where mold spores travel. Quest's own wording is 20 percent more effective than MERV 11 and 65 percent more than MERV 8. In practice that is the difference between a coil that stays clean through a cycle and one that films over. A clean coil is a machine still making its rated pints. The catalogue size is 16 x 20 x 2 and a tape reads 19.5 x 15.5 x 1.75.
Which Quest Dual 155 Dehumidifier Air Filter Slot This Panel Fits
Quest publishes this panel for the Dual 105 at unit part 4032270 and the Dual 155 at 4031490. The Dual 165 uses 4037410, the Dual 205 uses 4033060 and the Dual 225 uses 4035400. The Quest 155 50-Hz, part 4037400, takes it as well. Read the part number off the data plate first. A Next Gen 155, 205 or 225 carries the same pint rating on a different chassis and takes an 18 x 18 x 2 instead. Two limits worth knowing before making the swap. Quest does not list this MERV 13 for the Hi-E Dry 120 or Hi-E Dry 195. The MERV 11 panel in the same size does cover them. And finer media loads sooner, so a dusty room reaches the change interval faster than it would on MERV 11. Quest's manual for this family says to check the filter every six months and change it at least that often. For agriculture it calls for a change with every grow cycle.
Key Features
- Quest part 4039391: The part number to match for a single panel, which is how these are stocked
- Drop-in upgrade from MERV 11: Same slot as part 4021475-01, so nothing about the unit or the install changes
- MERV 13 pleated media: EPA holds the grade to 50 percent or better from 0.3 to 1 micron, where MERV 11 is only held to 20 percent
- Keeps the evaporator coil clean: Quest's manual warns a clogged coil can need disassembly to clean, which is the repair this panel exists to prevent
- Holds rated capacity: A coil that films over costs the machine pints, so the finer media pays back in output as well as air quality

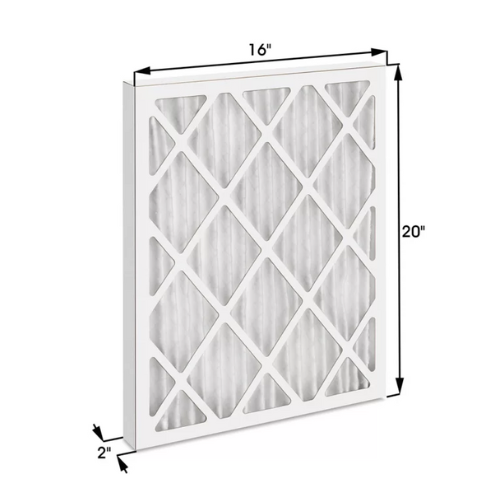

- 16 x 20 x 2 nominal, 19.5 x 15.5 x 1.75 actual: Both figures published here, which settles the gap between the Quest catalogue and a tape measure
- Dual line and the 155 50-Hz: Quest publishes Dual 105, 155, 165, 205 and 225 plus the 155 50-Hz, each with its unit part number
- Not listed for Hi-E Dry: Quest covers the Hi-E Dry 120 and 195 on the MERV 11 panel in this size but not on this one
- Not the Next Gen size: Next Gen 155, 205 and 225 units take an 18 x 18 x 2 MERV 13, part 4042787
Technical Specifications
| Specification | Value |
|---|---|
| Quest part number | 4039391 |
| Filtration grade | MERV 13 |
| Nominal size | 16 x 20 x 2 in |
| Actual size | 19.5 x 15.5 x 1.75 in |
| Filters per unit | 1 |
| Compatible models | Quest Dual 105 (4032270), Dual 155 (4031490), Dual 165 (4037410), Dual 205 (4033060), Dual 225 (4035400), Quest 155 50-Hz (4037400) |
| MERV 11 equivalent | Part 4021475-01, same slot, coarser grade |
| Replacement interval | Check every 6 months; change at least every 6 months, or with every grow cycle in agriculture |
More on how Quest and Anden size their filters, what the MERV numbers mean and when each brand says to change them: Quest and Anden Filters: Sizes, Ratings and Replacement Timing.
