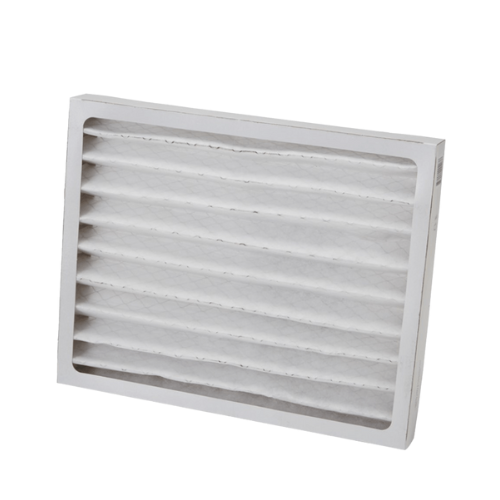

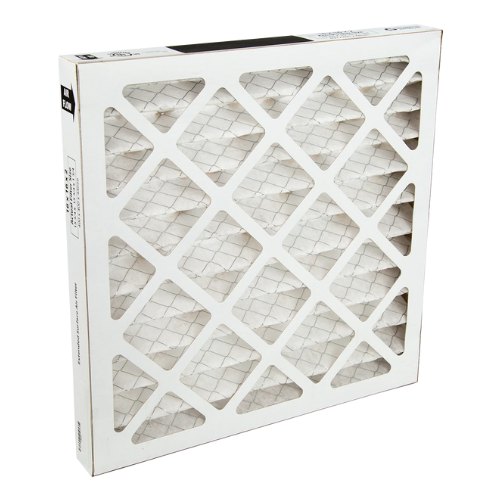

Quest MERV 8 Filter, 16 x 16 x 2, Matched by Size
Most filters in this catalogue are identified by the machine they belong to. This one is not. Quest lists it as a MERV 8 standard pleat at 2 x 16 x 16 inches, part 4021799-01. Their page names no compatible model at all. Their own description is generic: indoor air quality, keeping an HVAC system running smoothly. So the honest way to match this panel is on the measurement rather than on a model list. Measure the opening in your unit. If it takes a 16 x 16 x 2, this is the Quest part for it.
What MERV 8 Does, and What Quest Does Not Publish About This Size
MERV 8 is the coarse end of the pleated range. The EPA holds it to 20 percent or better capture from 1 to 3 microns and 70 percent from 3 to 10. That covers the visible load in a working space: settled dust, leaf litter, grit. It is not a spore filter, and nothing about the grade pretends otherwise. The pleats matter more than the number here. Folding the media multiplies the face area inside the same frame, so the panel holds far more debris before back pressure climbs. On the compatibility question we will not invent an answer. Quest publishes no equipment list for this size, and any model named on a listing elsewhere is that seller's guess rather than Quest's specification. Match on the opening and the part number.
Key Features
- Quest part 4021799-01: The part number to match for a single panel, which is how these are stocked
- 16 x 16 x 2, matched by size: Quest catalogues this one by measurement rather than by machine, so the opening is what decides the fit
- MERV 8 standard pleat: EPA holds the grade to 20 percent or better from 1 to 3 microns and 70 percent from 3 to 10, which covers the visible load
- Pleated for face area: Folding the media multiplies surface inside the same frame, so it holds more debris before back pressure climbs
- No Quest equipment list: Quest's own page names no compatible model for this size, and we would rather say so than name one they do not publish
- Not the Dual 110 or 150 filter: Those take a 17.5 x 14 x 1.75 MERV 8, Quest part 4031062, which is a different panel
Technical Specifications
| Specification | Value |
|---|---|
| Quest part number | 4021799-01 |
| Filtration grade | MERV 8 |
| Size | 16 x 16 x 2 in |
| Media type | Standard pleat |
| Filters per unit | 1 |
| Compatible models | None published by Quest for this size |
| Often confused with | Quest 4031062, MERV 8 at 17.5 x 14 x 1.75, for the Dual 110 and Dual 150 |
More on how Quest and Anden size their filters, what the MERV numbers mean and when each brand says to change them: Quest and Anden Filters: Sizes, Ratings and Replacement Timing.
