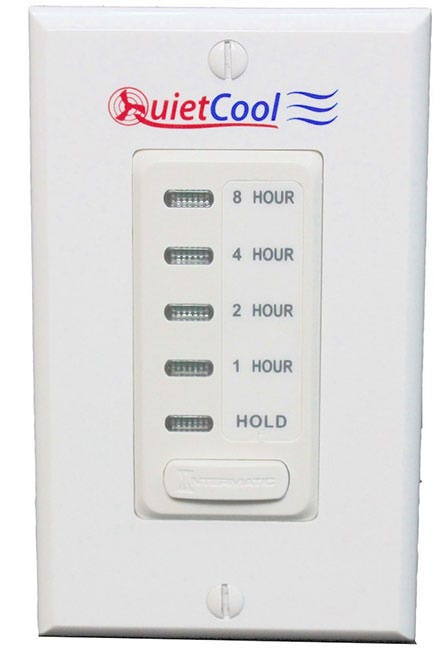

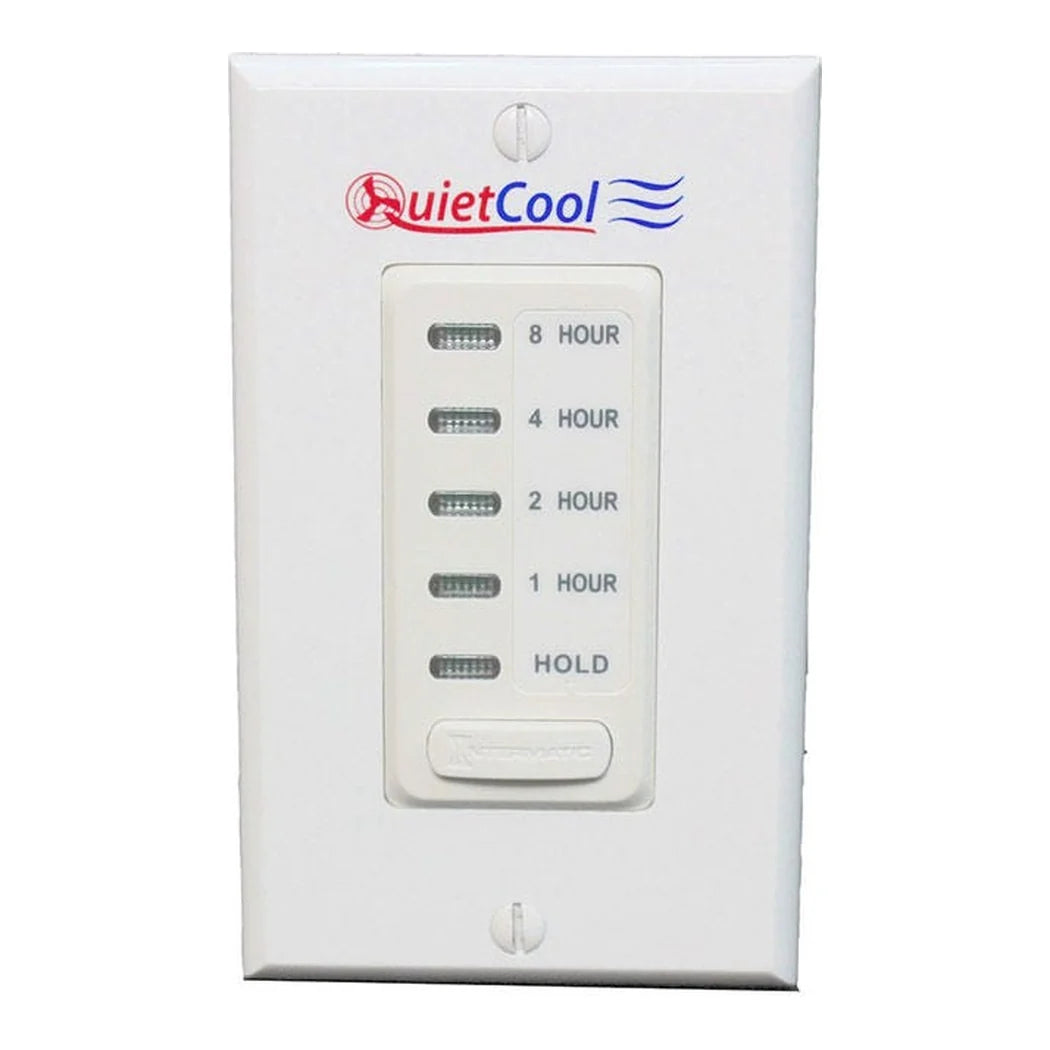

QuietCool 8 Hour Electronic Timer with Hold | IT-30070 Wall Switch

What the QuietCool Timer Switch Replaces

This is the part that turns a whole house fan from something you remember to switch off into something that switches itself off. It mounts in a standard wall box in place of an ordinary switch. Four preset intervals sit on the face at 1, 2, 4 and 8 hours. A hold position runs the fan indefinitely when you want manual control back. Model IT-30070.

Running the 8 Hour Timer Switch With Speed Control

On its own this unit gives you one speed and a countdown. Pair it with a speed control switch and you get both. An 8 hour timer switch handles duration while the second switch handles speed. It works alongside control switches IT-30020, IT-30030 and IT-30035, and it sits happily beside them in a double gang box. Running two fans means two timers, set side by side behind a two gang plate. The load rating is 1800 watts, far above any single QuietCool fan. The timer will never be the limit in the circuit. The unit measures 2.1 in by 2.75 in by 1.75 in and carries a 1 year warranty. Wiring instructions ship with the fan rather than with the timer. Most whole house fan installs are a job for an electrician, and this one is no different.

Key Features

• Four presets plus hold: 1, 2, 4 or 8 hours on a countdown, or indefinite running when hold is engaged.
• Works on every QuietCool fan: A universal control across the range rather than a model-specific part.
• Pairs with a speed control switch: Add IT-30020, IT-30030 or IT-30035 and you get timed operation at multiple speeds.
• 1800 watt load rating: Far above the draw of any single QuietCool fan, so the timer is never the bottleneck.
• Gangs beside a second unit: Two fans take two timers, mounted side by side behind a double gang plate.
• 2.1 x 2.75 x 1.75 in, 1 year warranty: Fits a standard wall box. Wiring instructions come with the fan.
