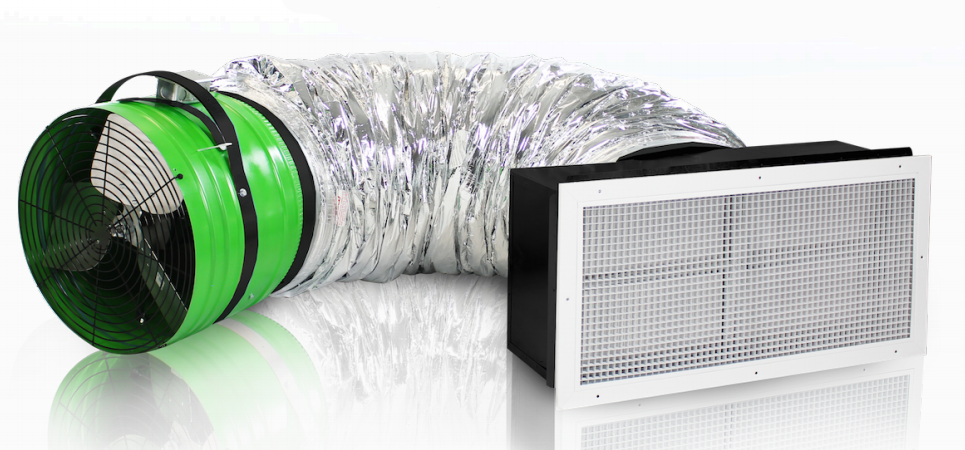

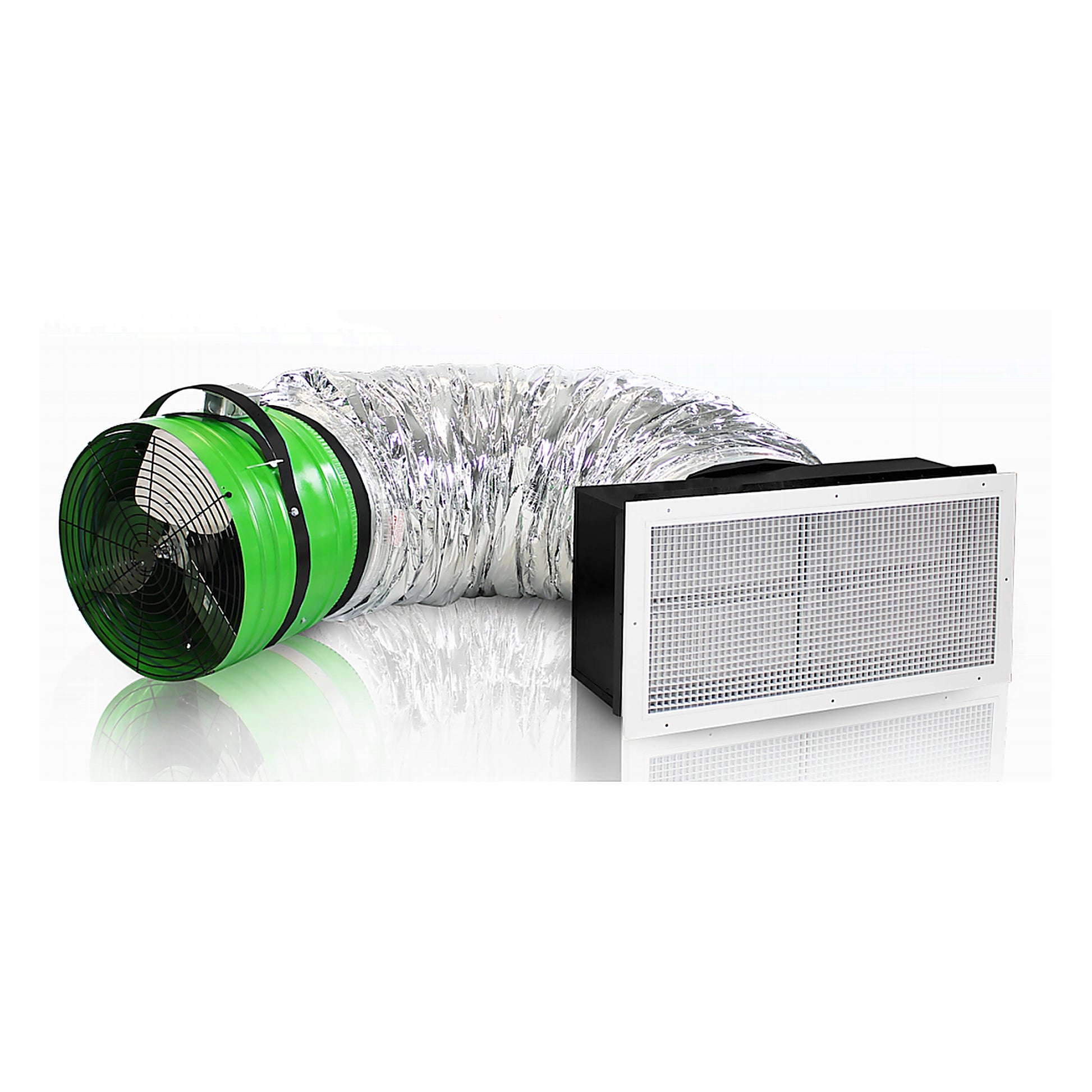

QuietCool Energy Saver Classic - QC ES-5400
The QuietCool Energy Saver Classic - QC ES-5400 features a patented, self”contained duct system that hangs in the attic to help neutralize the sound and noise vibration heard in the home. The result is zero noise vibration allowing the system to be used in the home without disturbing anyone who may be sleeping.
- Motor Voltage 120 VAC, 60 Hz
- Energy Use Hi: 728 Watts / Low: 82 Watts
- Air Flow Hi: 5422 CFM / Low: 2719 CFM
- Square Foot Coverage @ 2 CFM per SQ FT Covers up to 2700 SQ FT
- # of Speeds 2
- Duct Diameter 20"
- Duct Length 9 feet
- Motor Head Diameter 20 1/2"
- Motor Head Length 13 1/2"
- Sound Level in Room Hi: 50 dB Low: 41 dB
- Dampers Barometric Pressurized R5 Dampers
- Controls (not included) 8 Hour Electronic Timer and Double 3-Way Switch or Wi-Fi Smart Control (not included)
- Warranty 10 Years
- Framing None required
- Joist Cutting None required; fits 16” or 24” on center
- Minimum Suggested Attic Venting 7.6 SQ FT net free area
- Ceiling Rough Opening 14 1/4" X 30 1/4"
- Removable Grille Outside Dimension 16" x 32"
-
In the Box
- QC ES-5400 Motorhead
- Damper Box - Ceiling Grille - 9 foot duct
- Cut-out template - Accessory bag - Window locks
