QuietCool Energy Saver Classic - QC ES-6000

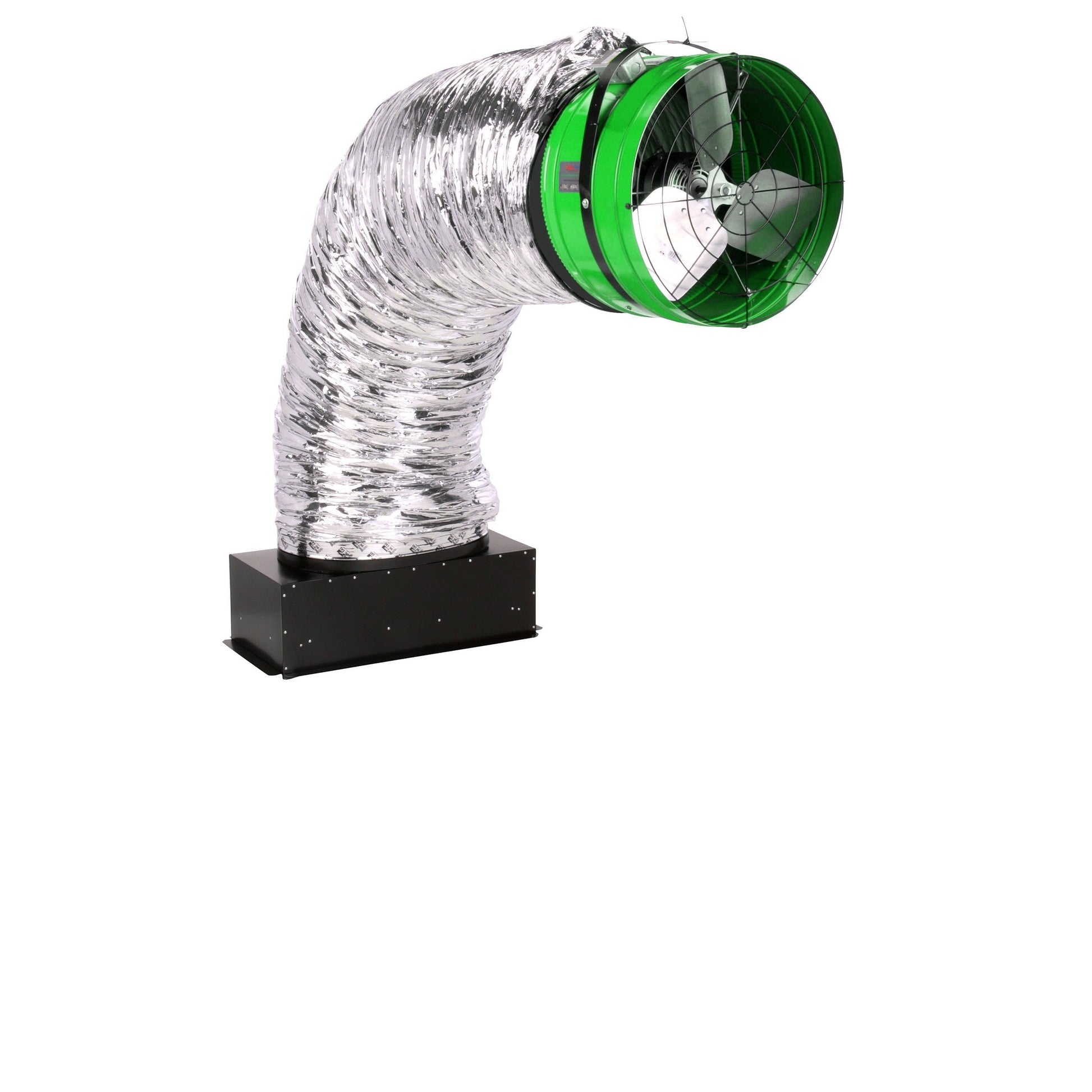

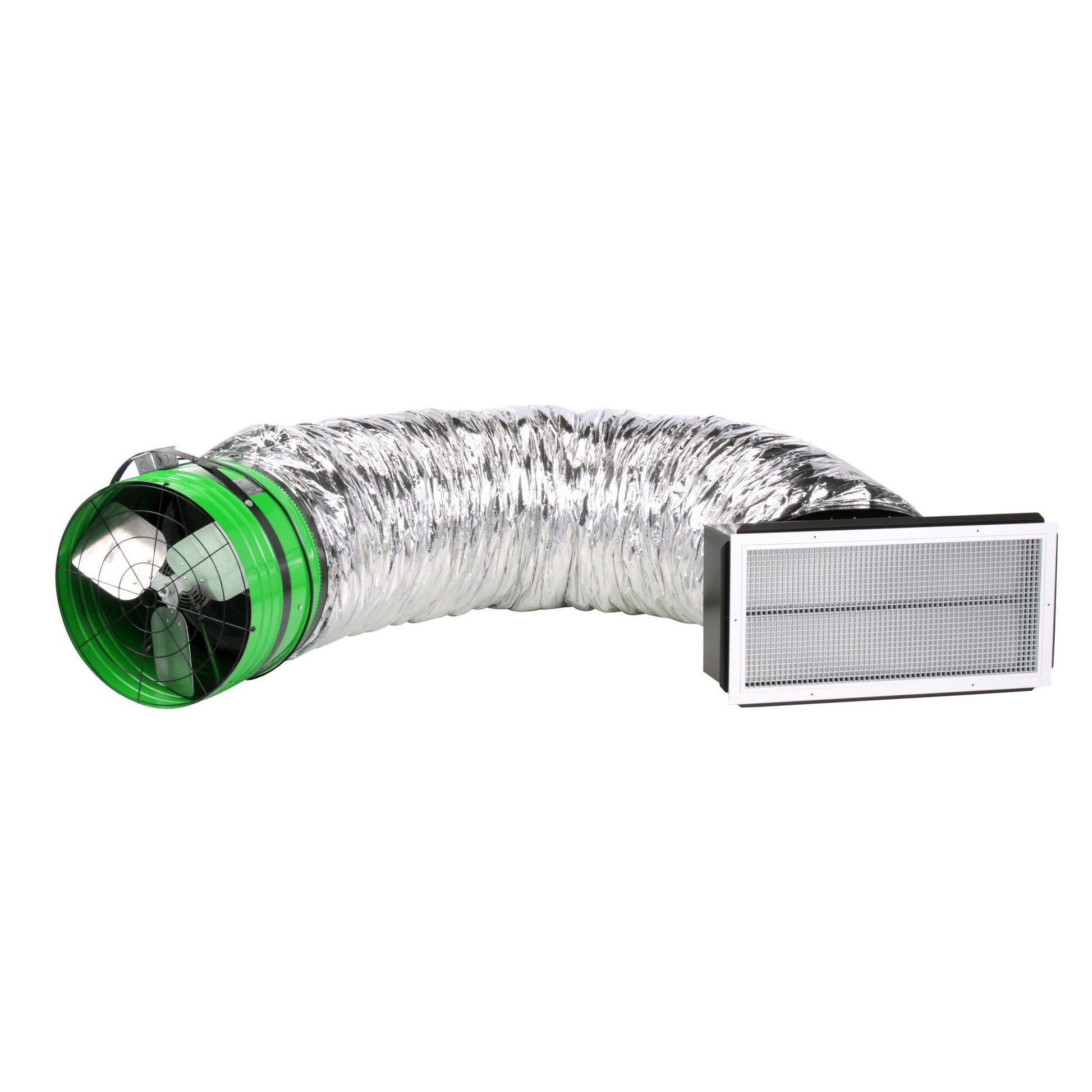

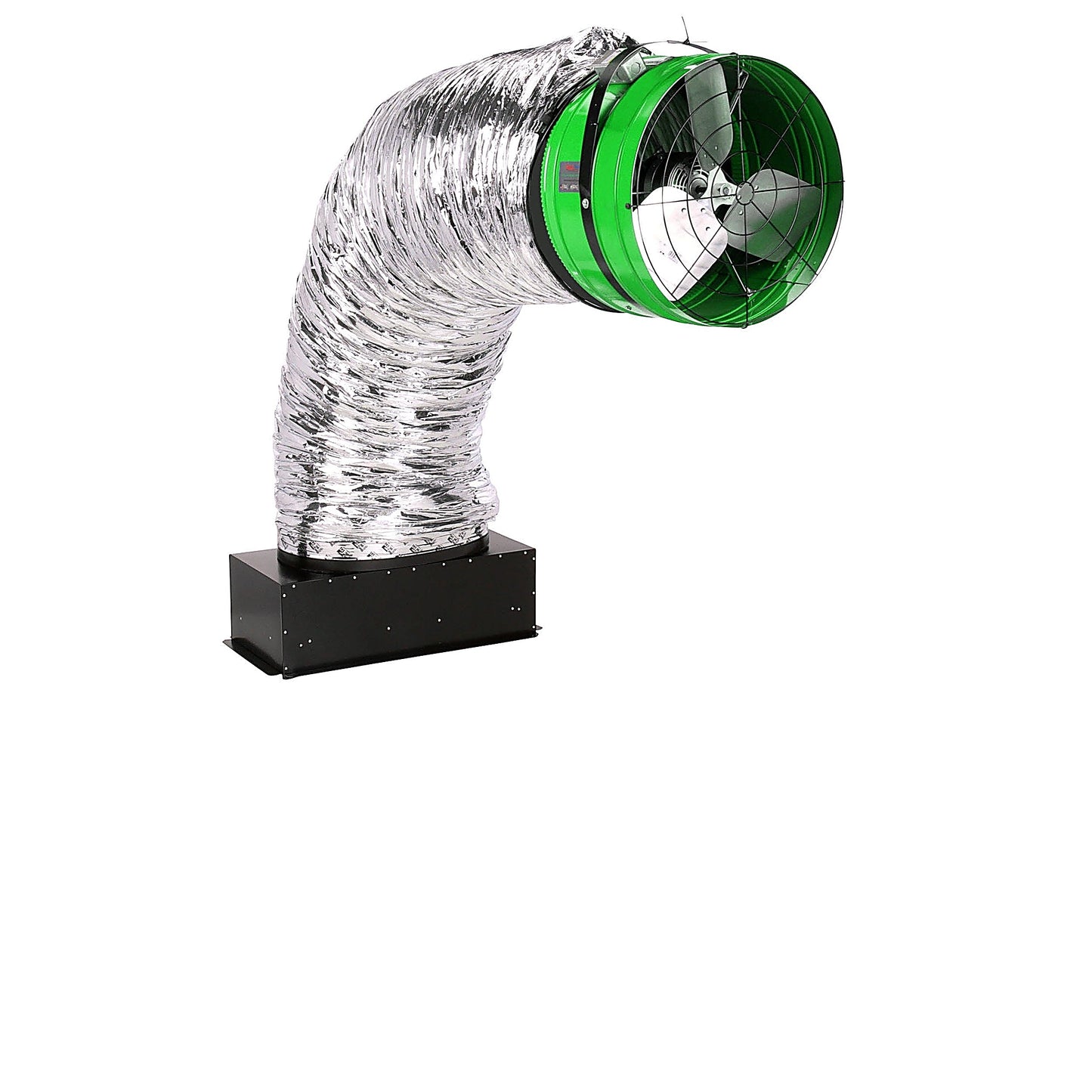

The QuietCool Energy Saver Classic - QC ES-6000 features a patented, self”contained duct system that hangs in the attic to help neutralize the sound and noise vibration heard in the home. The result is zero noise vibration allowing the system to be used in the home without disturbing anyone who may be sleeping.
- Motor Voltage 120 VAC, 60 Hz
- Energy Use Hi: 455 Watts / Low: 112 Watts
- Air Flow Hi: 5576 CFM / Low: 3417 CFM
- Square Foot Coverage @ 2 CFM per SQ FT Covers up to 2790 SQ FT
- # of Speeds 2
- Duct Diameter 22"
- Duct Length 9 feet
- Motor Head Diameter 22 1/2"
- Motor Head Length 13 1/2"
- Dampers Barometric Pressurized R5 Dampers
- Controls (not included) 8 Hour Electronic Timer and Double 3-Way Switch or Wi-Fi Smart Control (not included)
- Warranty 10 Years
- Framing None required
- Joist Cutting None required; fits 16” or 24” on center
- Minimum Suggested Attic Venting 7.44 SQ FT net free area
- Ceiling Rough Opening 14 1/4" X 36 1/4"
- Removable Grille Outside Dimension 16" x 328"
-
In the Box
- QC ES-6000 Motorhead
- Damper Box - Ceiling Grille - 9 foot duct
- Cut-out template - Accessory bag - Window locks
