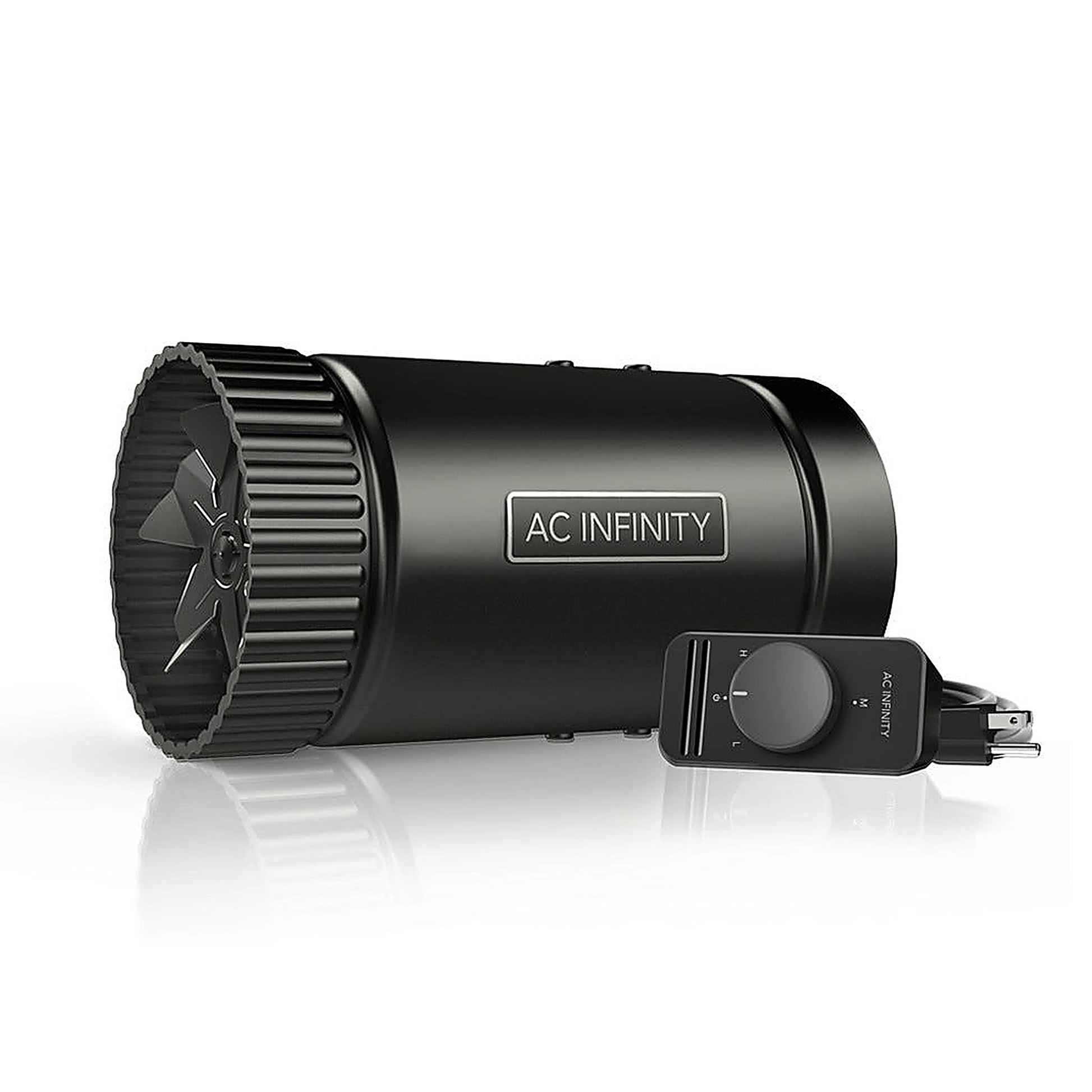

The AC INFINITY RAXIAL S4, Inline Booster Duct Fan with Speed Controller, 4-Inch, is an essential component for improving air circulation in various home and commercial spaces. Designed for both efficiency and versatility, this duct fan is ideal for a wide range of air movement applications.
Robust Construction and Design:

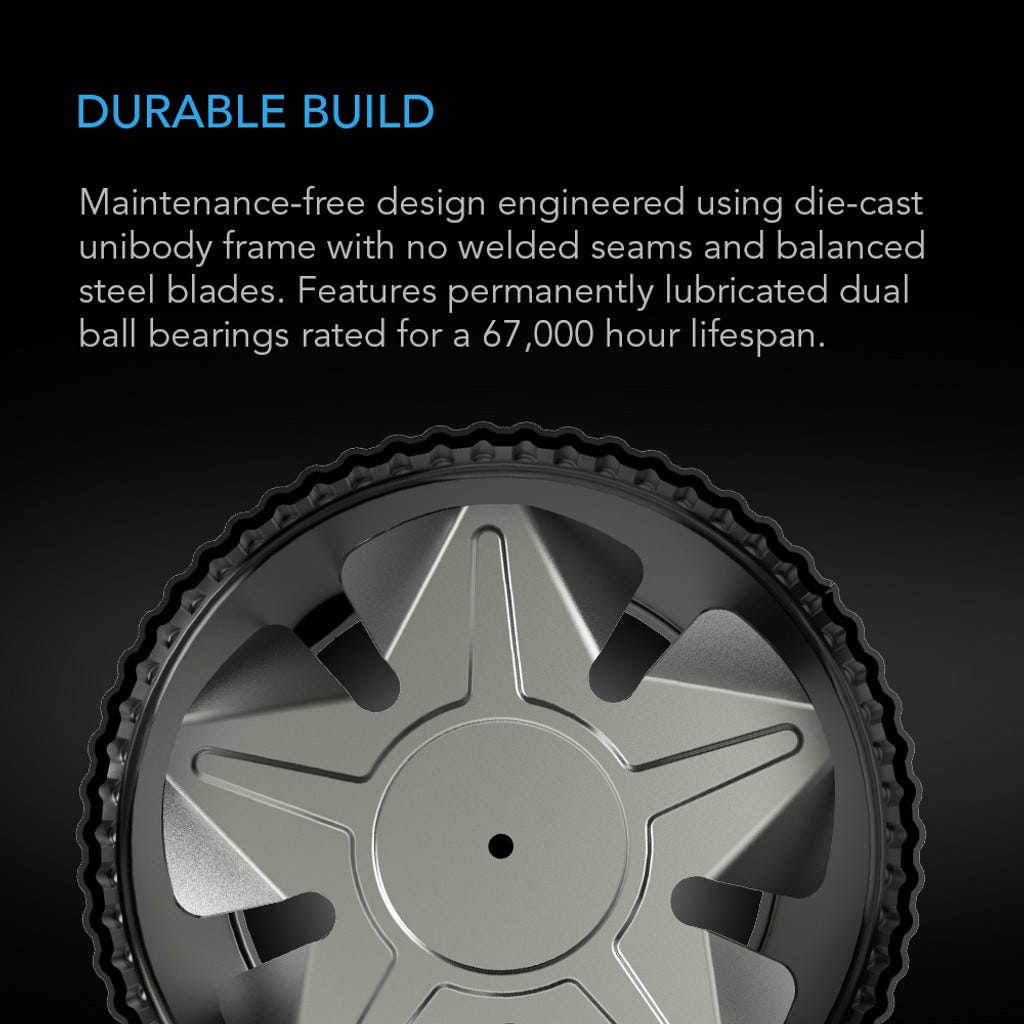

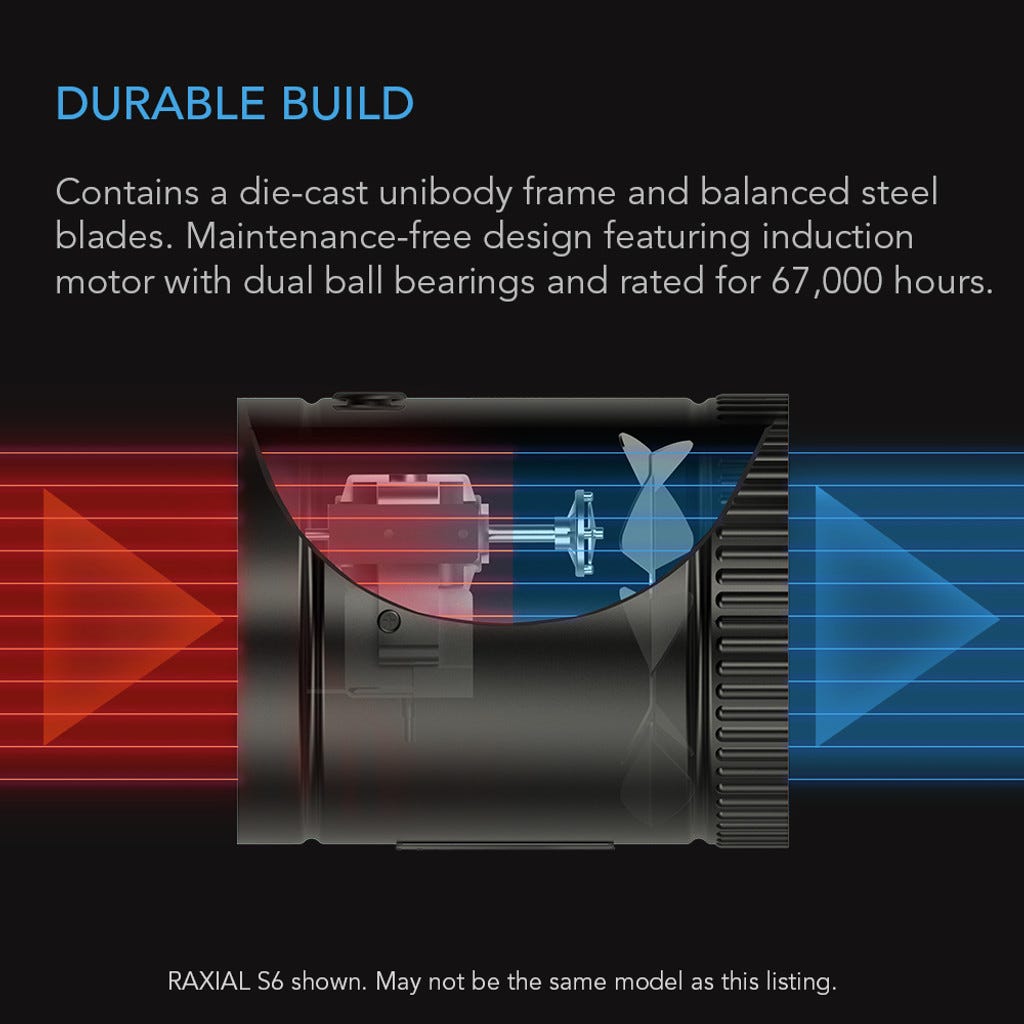

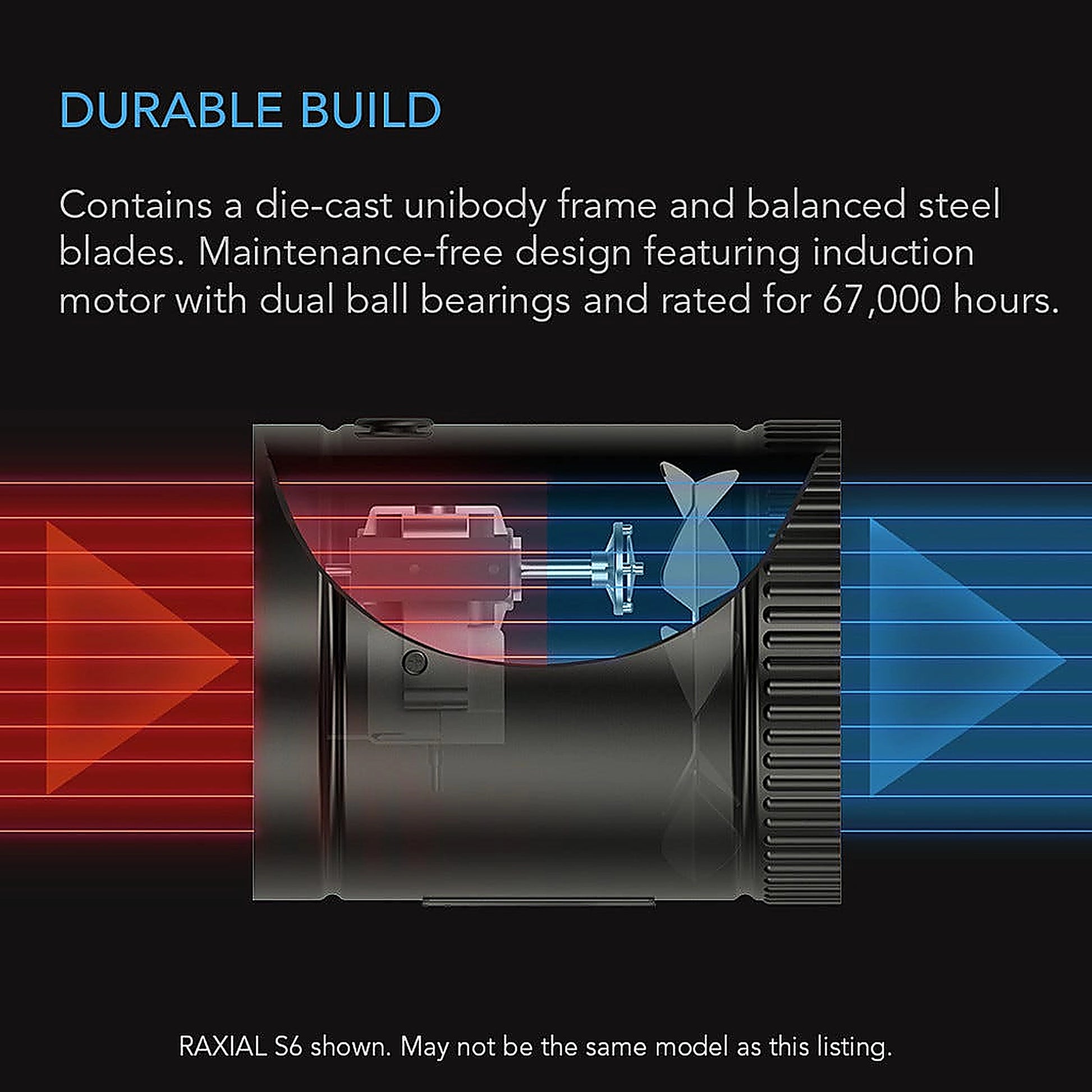

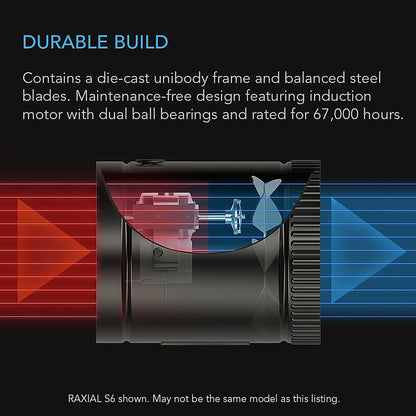

- Unibody Die-Cast Framework: The RAXIAL S4 features a unique unibody design with no welded seams, significantly reducing vibration for quieter operation. This solid construction ensures smooth, low-resistance airflow, enhancing overall efficiency.
- Matte Black Steel Cylinder: The fluted and ridged steel cylinder offers not only a sleek appearance but also practical functionality. Its design facilitates easy and secure installation within ducting systems, making it a versatile choice for various settings.

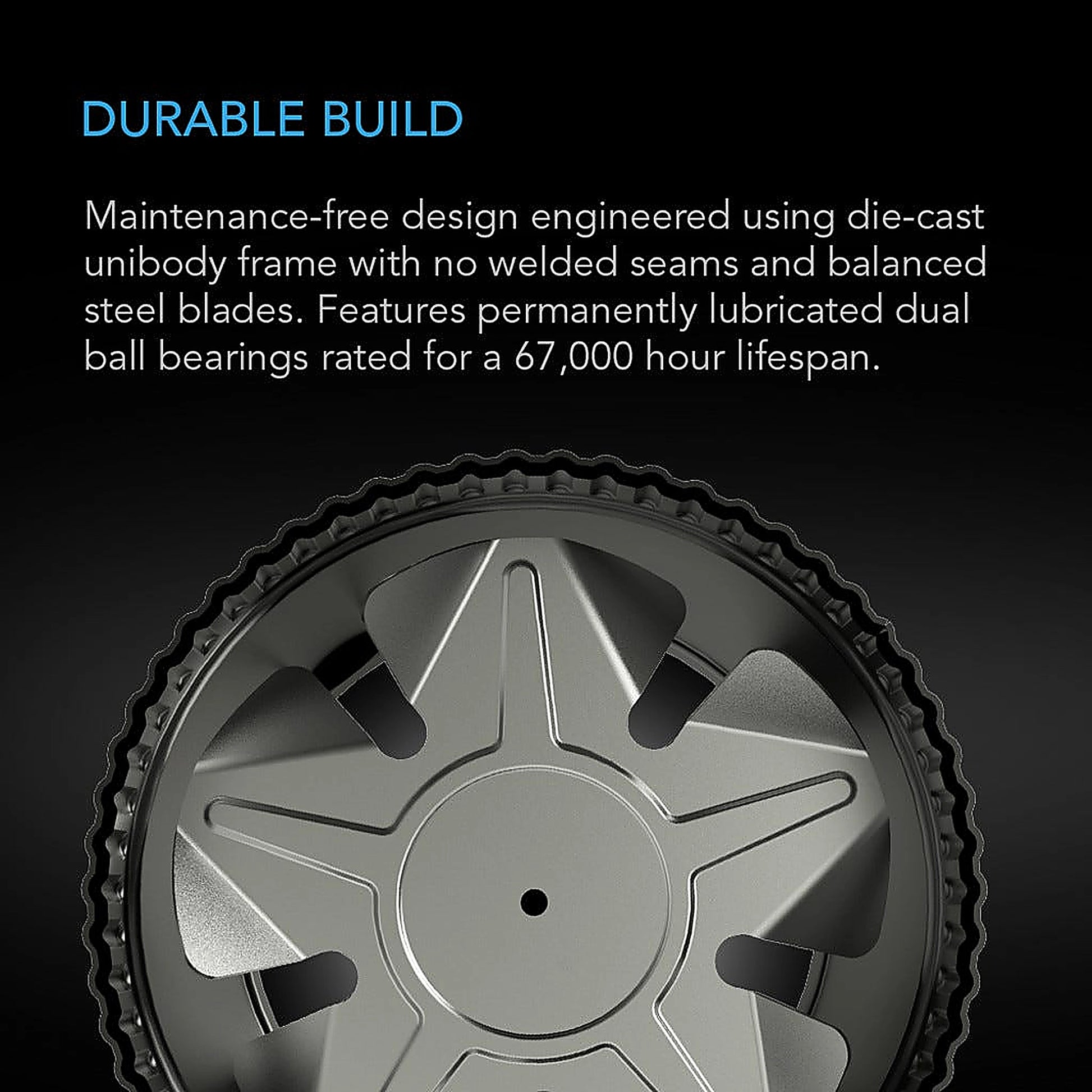

- Optimized Blade Design: Equipped with balanced steel blades, the fan achieves optimal airflow while maintaining minimal noise levels. These blades are designed for durability, backed by a 67,000-hour lifespan, and are supported by permanently lubricated dual-ball bearings, eliminating the need for regular maintenance.
Variable Speed Control for Customized Airflow:

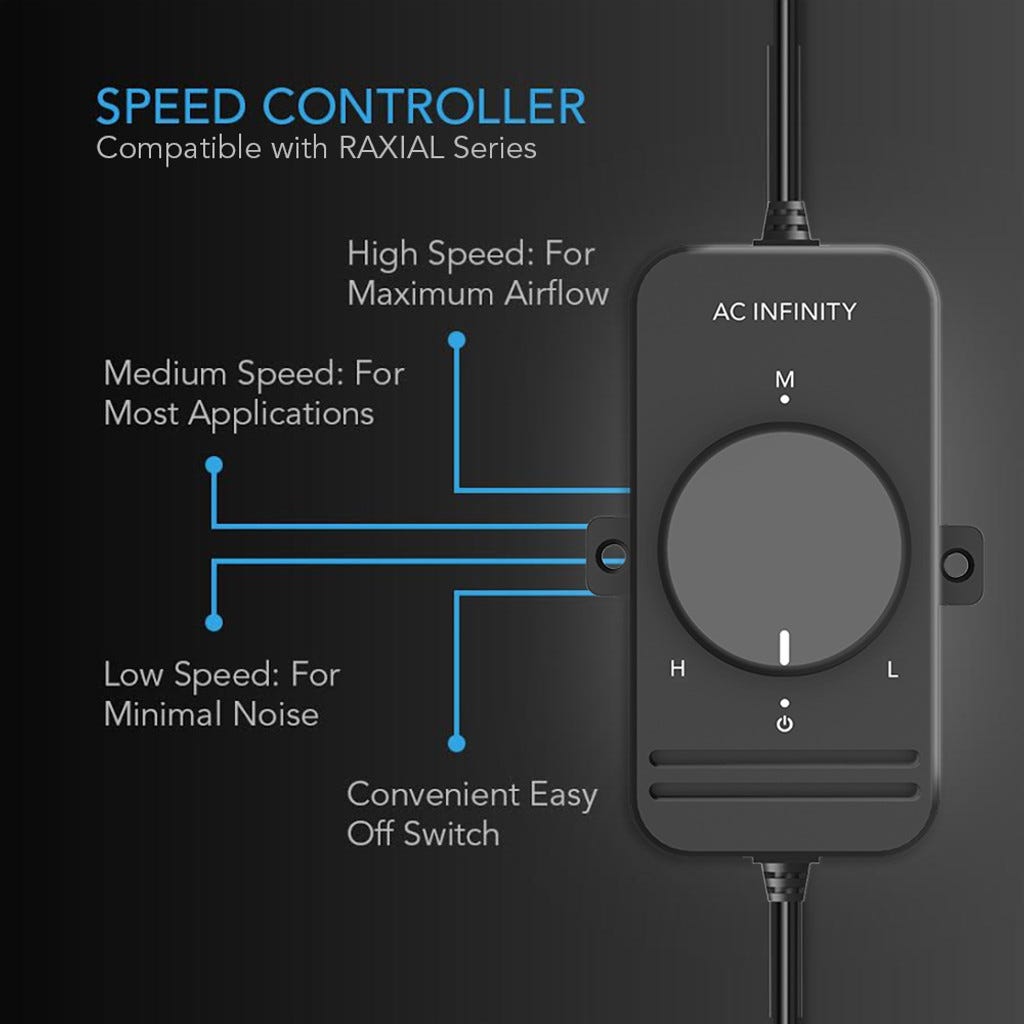

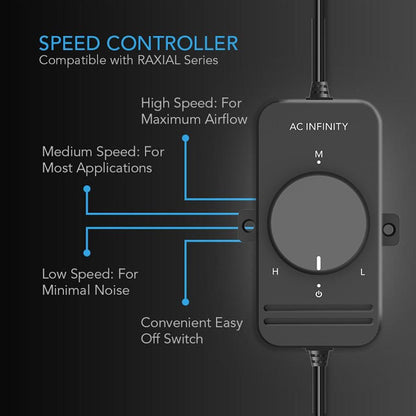

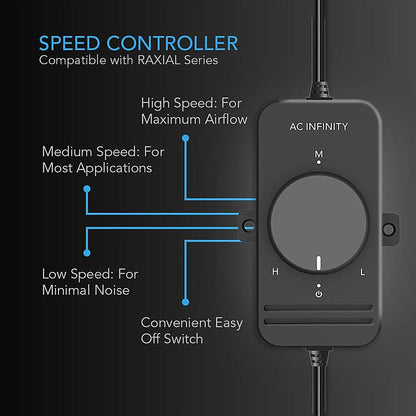

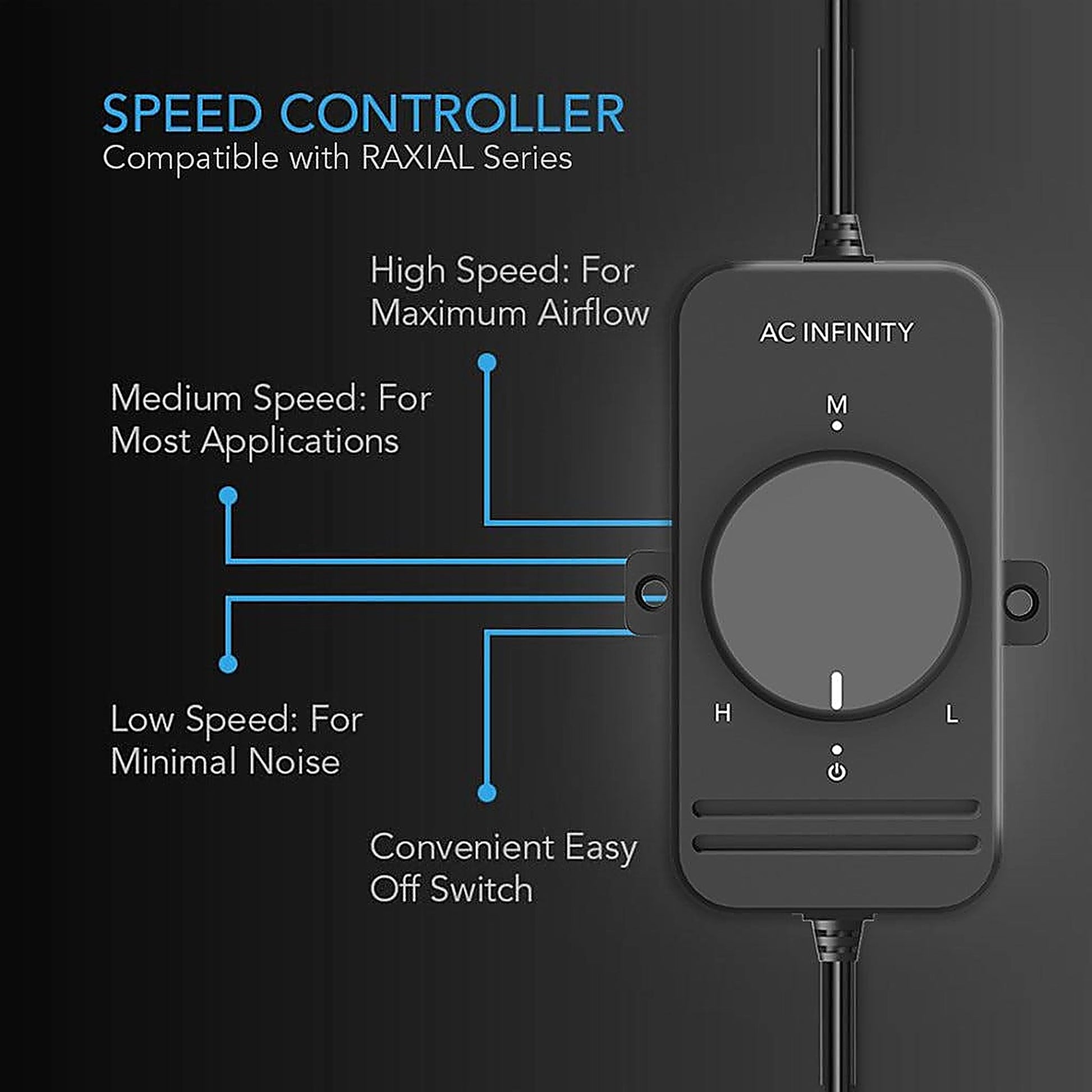

Inline Speed Controller: The included speed controller provides easy adjustment of the fan's operation. With a simple turn of the knob, you can modify the fan speed to achieve the desired airflow and noise level. The controller's speed range includes low, medium, and high settings, producing up to 106 CFM of airflow with a noise level as low as 28 dBA.
Secure Connection: The speed controller utilizes a female aviation plug with a metal retainer, ensuring a reliable and secure connection to the booster duct fan.
Versatile Applications:

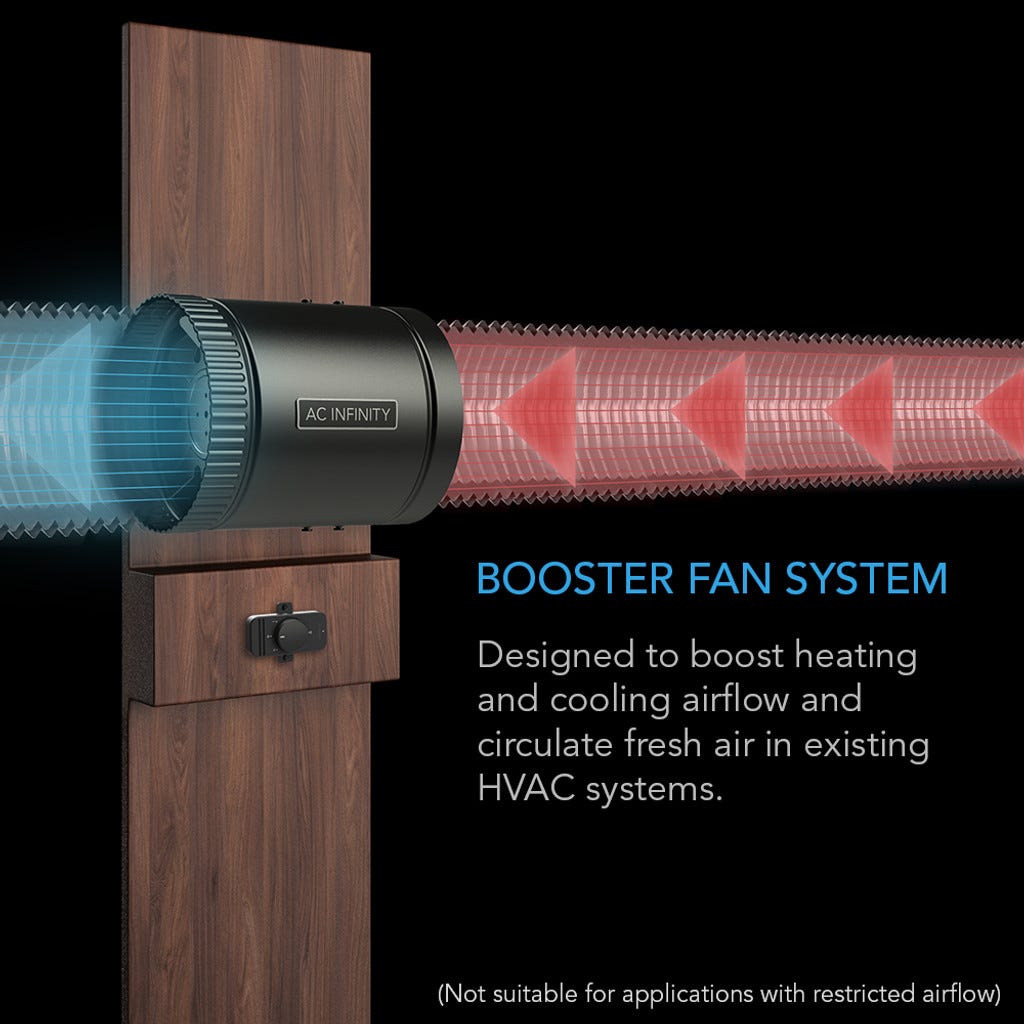

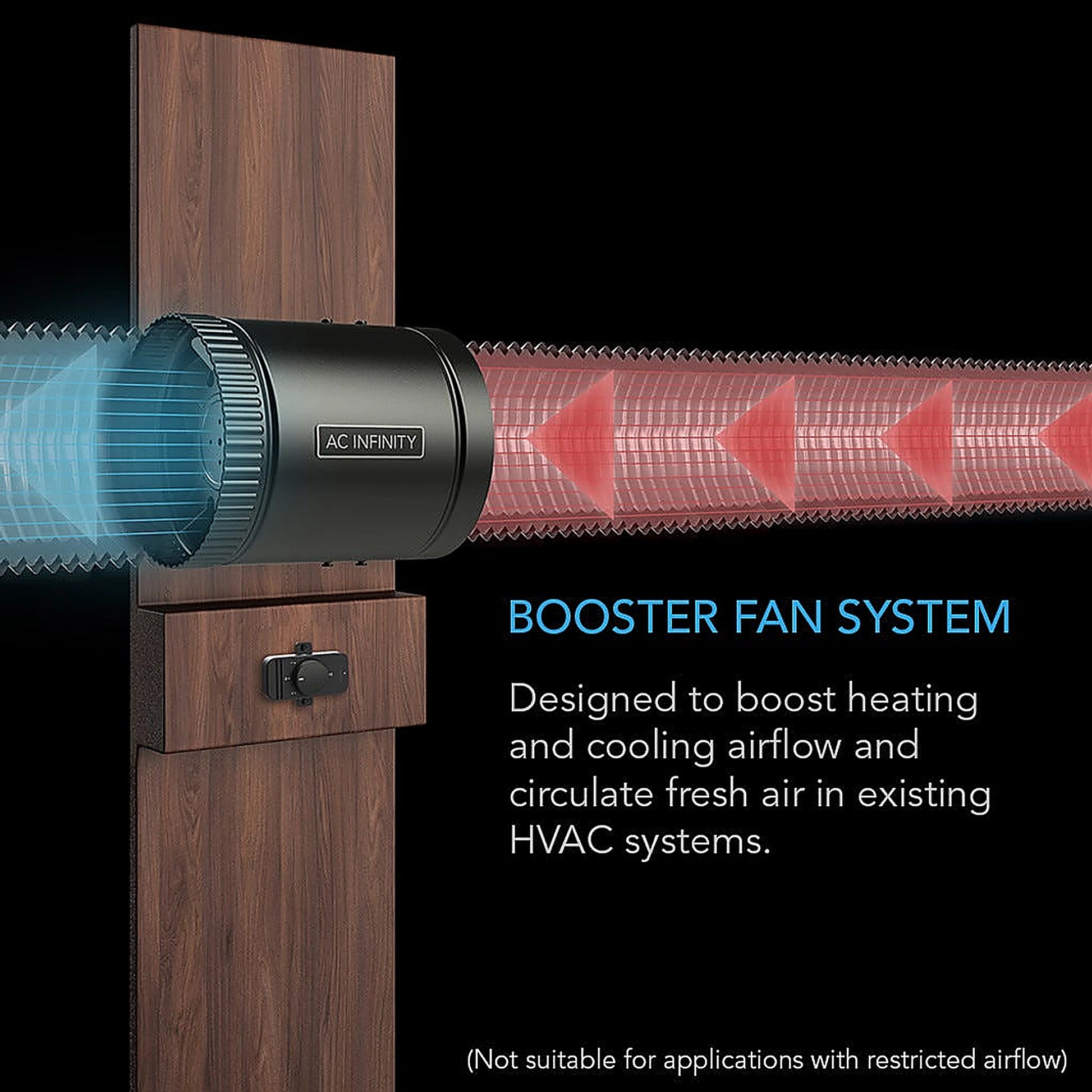

The RAXIAL S4 is suitable for various applications where enhanced air delivery is required. It can be used to boost airflow from HVAC units in residential settings, effectively ventilating spaces such as attics, workshops, kitchens, and basements. It also finds application in grow tents, rooms, and indoor gardens as an intake fan to bring in fresh air. However, it's important to note that this fan is not suitable for standalone use in high static pressure applications or systems with restricted airflow, such as those using carbon filters.

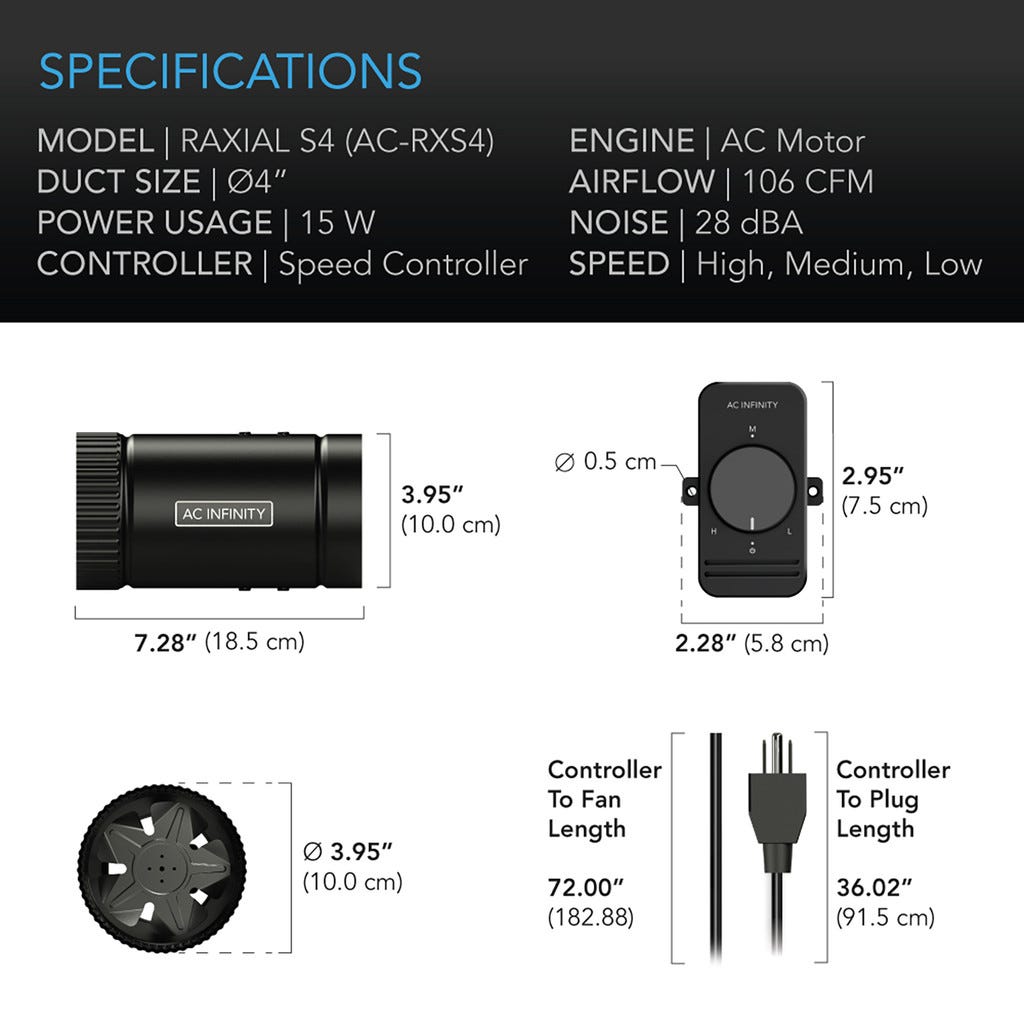

Specifications and Mounting Information:
- Fan Unit Dimensions: 7.28 x 3.95 x 3.95 inches
- Controller Dimensions: 2.95 x 1.49 x 1.18 inches
- Airflow Capacity: 106 CFM
- Noise Level: 28 dBA
- Static Pressure: 4.90 mm-H20
- Power and Operating Specs: 15 W power consumption, operating voltage of 110V-120V AC, and current of 0.15 A.
The RAXIAL S4 is designed for easy installation, capable of being mounted horizontally or vertically, making it a flexible option for various setups.
What's Included:
- AC-powered inline booster duct fan
- Speed controller with power plug
- Mounting screws
- Cable management set
This inline fan is an excellent choice for anyone seeking to improve air quality and circulation in their space. Whether for residential, commercial, or specialized applications like indoor gardening, the RAXIAL S4 provides reliable, efficient, and adjustable air movement solutions.

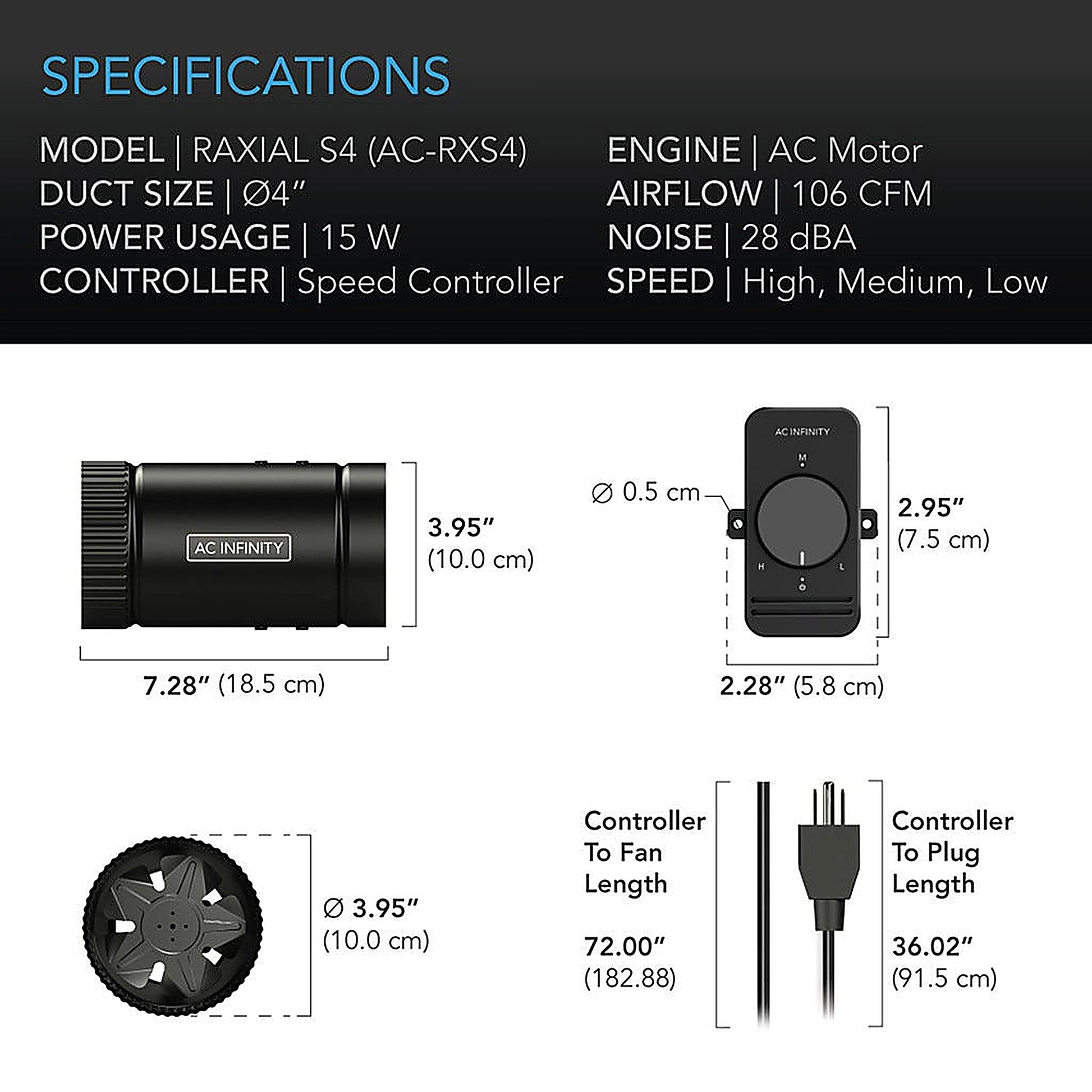

Dimensions, Performance, and Technical SpecificationsFAN UNIT
- Duct Size
4"
- Total Dimensions
7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
- Mounting Hole-To-Hole Distance
3.15 x 2.36 in. (8.0 x 6.0 cm)
- Screw Hole Size
Ø 0.197 in. (Ø 0.5 cm)
- Cord Length to Controller
72 in. (6 feet)
- Cord Length to Plug
72 in. (6 feet)
CONTROLLER
- Total Dimensions
2.95 x 1.49 x 1.18 in. (7.5 x 3.8 x 3.0 cm)
- Required Mounting Area
1.49 x 1.18 in. (3.8 x 3.0 cm)
- Hole-to-Hole Distance
1.88 in. (4.8 cm)
- Screw Hole Size
Ø 0.197 in. (Ø 0.5 cm)
FAN UNIT
- Maximum Airflow
106 CFM
- Total Noise
28 dBA
- Static Pressure
4.90 mm-H20
- Operating Voltage
110V-120V AC
- Power
15 W
- Current
0.15 A
- Operating Humidity
35 to 85% RH
- Operating Temperature
40 to 140 °F
- Fan Bearings
Dual Ball Bearing
- Mounting Positions
Horizontal or Vertical
- L10 Life Expectancy
67,000 Hours
