Fluence RAZRx LED Grow Light | 200 umol/s, 91W, 5 in Clearance

Where the Fluence RAZRx Fits in a Rack

Clearance is the number that matters on a tier. Passive cooling means no fan and no hot spot, so the bar sits 5 in above the canopy without cooking it. That buys back vertical space on every shelf. Output is 200 umol/s from 91W typical, giving 2.2 umol/J, dimmable from zero on 0 to 10V.

Building Out the RAZR Modular System

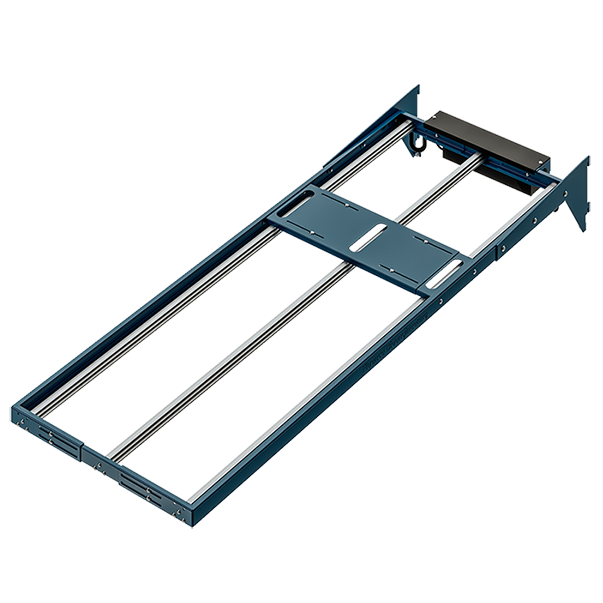

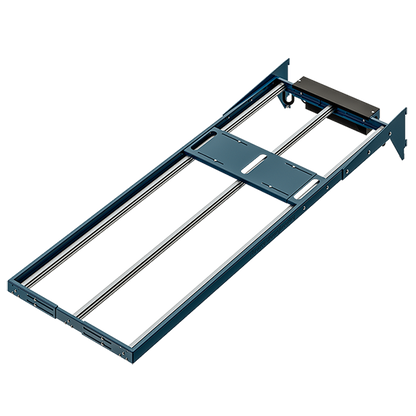

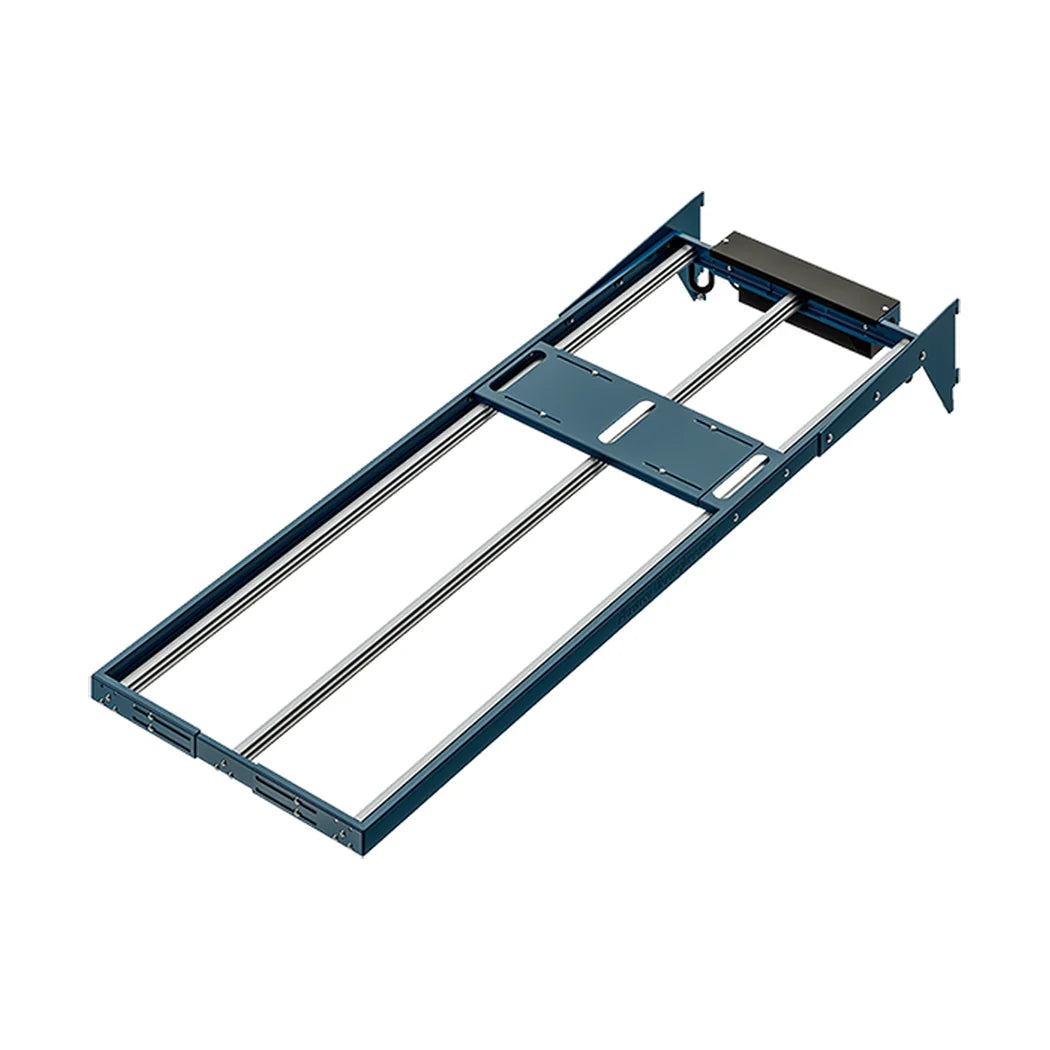

The chassis is the part people miss. This is a razr modular system fixture. The powder-coated galvanised steel frame scales in width from 17.9 to 22.8 in, while the bar stays 52.3 in long. That adjustment is what lets one part number fit racks that were not built to a single standard. Depth is only 1.2 in. Electrically it is flexible. Input runs 100 to 277V, drawing 0.76A at 120V, 0.44A at 208V, 0.38A at 240V and 0.33A at 277V. It arrives with a 6 ft cord, a NEMA 5-15P plug and hooks, so a small install needs no electrician. Build quality is aimed at wet rooms. The extruded aluminium is galvanised and the fixture is ETL listed for damp locations, which matters in propagation where misting is constant. Spectrum is PhysioSpec, weight is 14 lbs, and Fluence warrants it for three years.

Key Features

• 5 in mounting clearance: Passive cooling with no fan, so the bar can sit close without scorching the canopy.
• 200 umol/s from 91W: An efficacy of 2.2 umol/J, dimmable to zero over 0 to 10V.
• Chassis adjusts 17.9 to 22.8 in: One part number fits racks built to different widths. The bar stays 52.3 in long.
• 100 to 277V input: 0.76A at 120V down to 0.33A at 277V. Ships with a 6 ft cord and NEMA 5-15P plug.
• ETL listed for damp locations: Galvanised extruded aluminium, which propagation rooms need.
• 1.2 in deep, 14 lbs: PhysioSpec spectrum, hooks included, with a three year warranty.
