When to Fit a Hanna Replacement pH Probe
A meter body rarely fails outright. The glass wears, the junction clogs, and calibration starts drifting, and that is the probe rather than the electronics. This one carries a pre-amplified pH electrode, so the signal is boosted at the probe and picks up less noise along the cable. EC and TDS are read amperometrically across two stainless steel pins. A temperature sensor sits in the same body, which is what compensates both the pH and the conductivity readings. The range is pH 0 to 13, compensated from 0 to 50 °C.
What the HI1285-6 Probe Fits and How It Plugs In

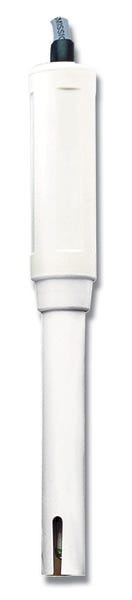

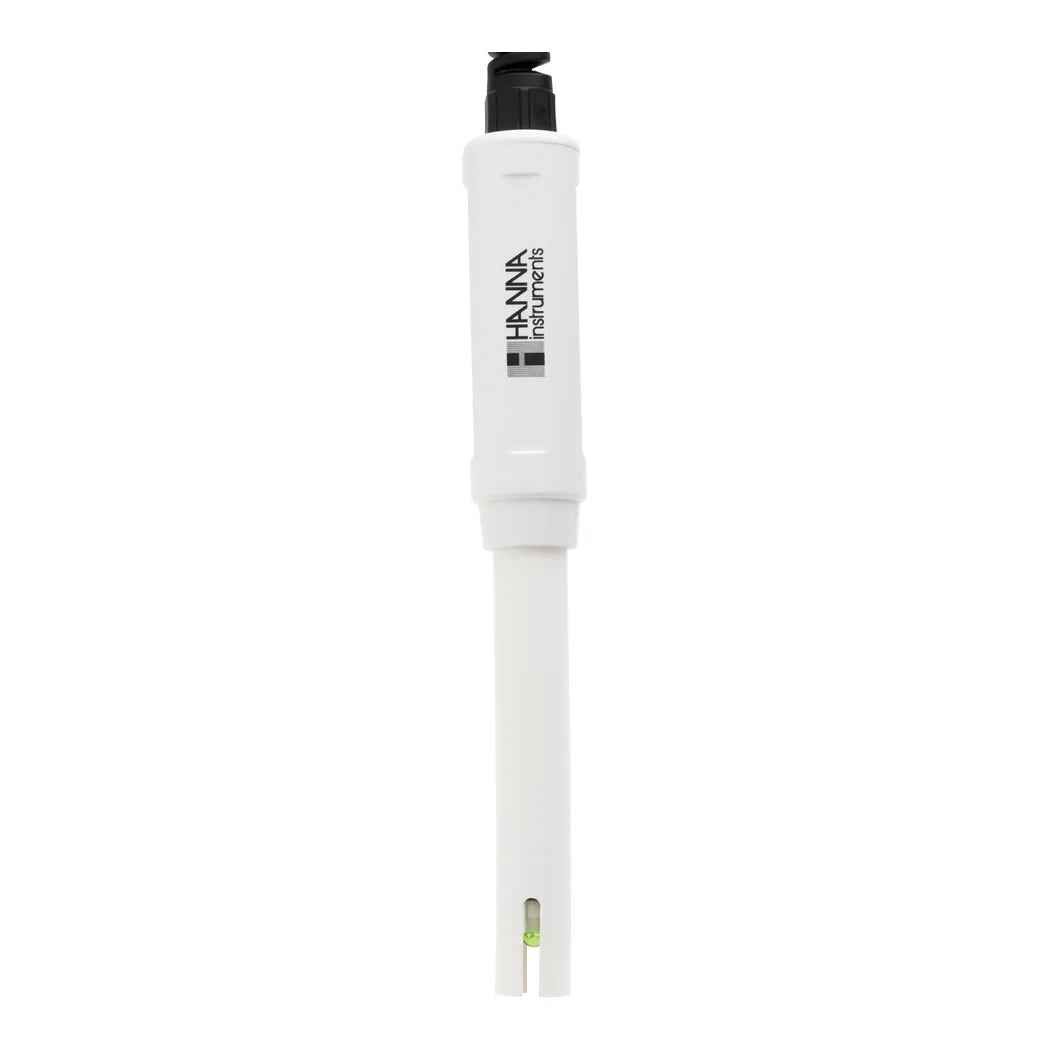

The body is polypropylene and the pH tip is a spherical 8 mm bulb. Fins around it take the knock when the probe lands on a bench. Inside is gel electrolyte against a single Ag/AgCl reference, so there is nothing to refill. It plugs in through a Quick Connect DIN fitting with CAL Check, on a seven-pole cable 1 m long. Maximum pressure is 0.1 bar. Before you replace anything, try the junction. The cloth junction pulls out to expose a fresh surface, and drifty or erratic readings often come back from that alone. One thing to check on the part number. The HI1285-7 is the GroLine HI9814 probe and is not the same fitting, so match the number to the meter you actually own.
Key Features
- Pre-amplified pH electrode: The signal is boosted at the probe, so cable noise has less to work with.
- Three readings, one body: pH, EC and TDS, with a temperature sensor compensating both.
- Amperometric EC and TDS: Two stainless steel pins rather than a separate conductivity cell.
- Quick Connect DIN with CAL Check: One plug, and the meter can flag a probe that is out of condition.
- Extractable cloth junction: Pull it to expose fresh surface when readings go drifty or erratic.
- Gel electrolyte: Single Ag/AgCl reference with nothing to refill or top up.
- Protective fins on the bulb: The spherical 8 mm glass tip survives the knocks a bench gives it.
- Polypropylene body: Chemically resistant, for tanks running mineral feed day after day.
- Match the number to the meter: HI1285-6 is the HI9813-6 series probe. HI1285-7 belongs to the HI9814.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hanna Instruments |
| Part Number | HI1285-6 |
| GrowersHouse SKU | 716816 |
| Type | Multiparameter replacement probe |

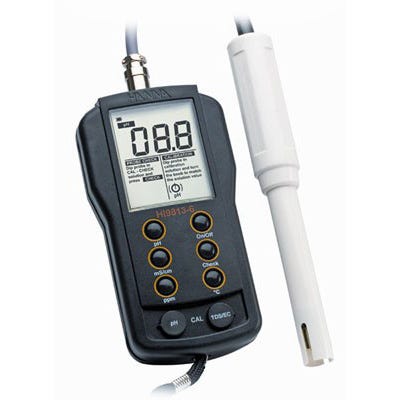

| Fits | GroChek HI9813-6 series portable meters |
| Measures | pH, EC, TDS and temperature |
| pH Range | 0 to 13 |
| Temperature Compensation | 0 to 50 °C, 32 to 122 °F |
| pH Electrode | Pre-amplified, spherical 8 mm glass tip with protective fins |
| EC and TDS Sensor | Amperometric, two stainless steel pins |
| Reference | Single Ag/AgCl with gel electrolyte |
| Junction | Cloth, extractable to expose a fresh surface |
| Body Material | Polypropylene |
| Cable | 7-pole, 1 m, 3.3 ft |
| Connector | Quick Connect DIN with CAL Check |
| Maximum Pressure | 0.1 bar |
| Not Interchangeable With | HI1285-7, which is the GroLine HI9814 probe |
| Meter Included | No. This is the probe only |
