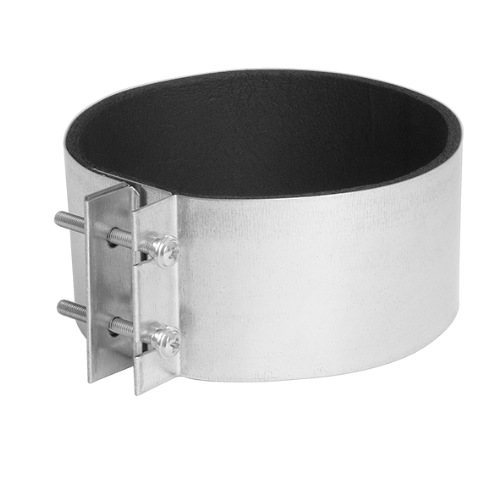

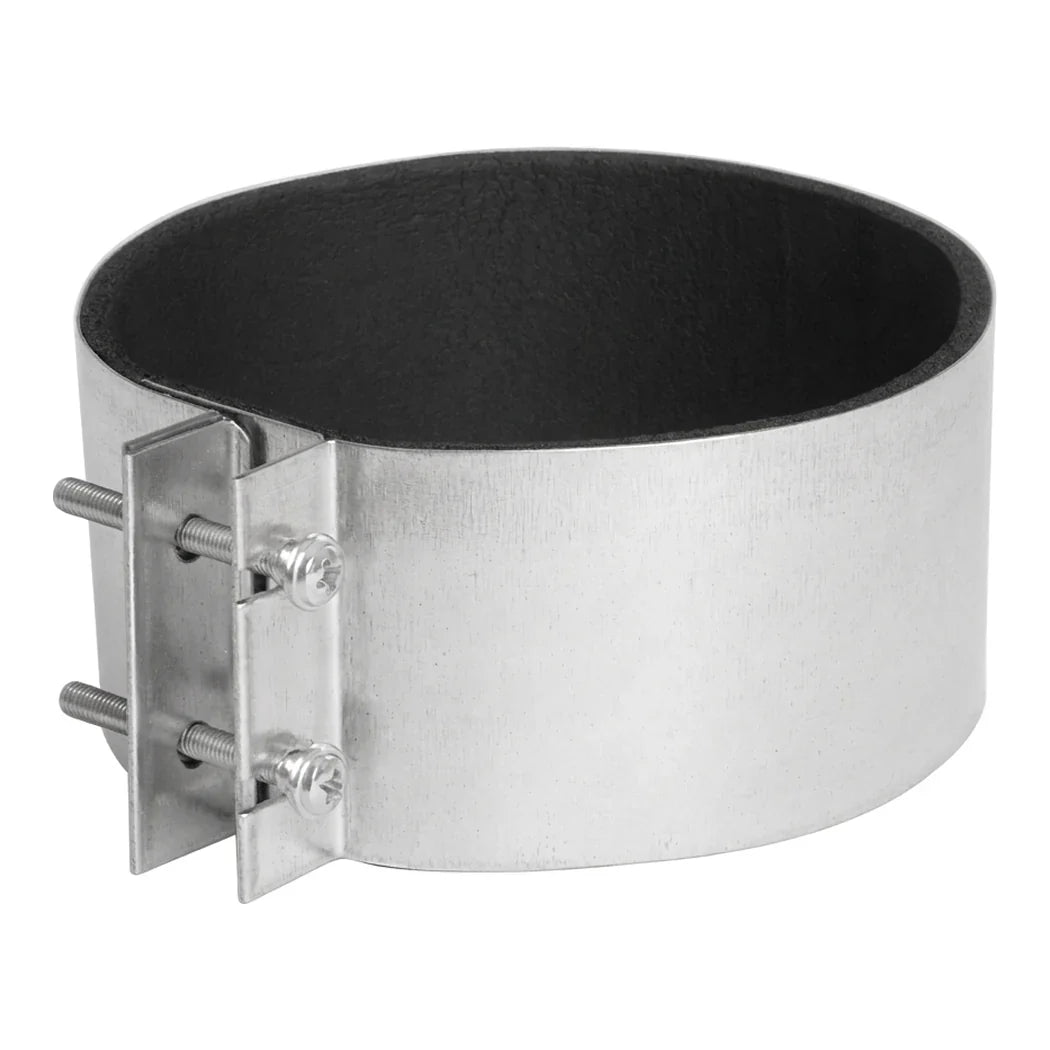

What the Ruck 10 Inch Fast Clamp Actually Does
On a 10 in run the components are heavy enough that the joint has to carry load as well as seal. This galvanized steel clamp does both, with a neoprene isolating seal inside the band to close the gap and damp vibration. It fastens by hand, so a fan can be swapped without dismantling the duct, and it comes in packs of two.
Fitting a Duct Coupling Clamp So the Fan Stays Serviceable
Clamp both ends of the fan and it can be dropped out for cleaning without disturbing the duct. Worth doing, because a 10 in impeller collects dust faster than people expect. The neoprene isolates vibration travelling through the metal, though it is not acoustic treatment, so a noisy run will still want a silencer section. Re-tension after the first few weeks once the seal has compressed into place. Keep a spare on the shelf, because a missing clamp stops a service job dead.
Key Features
- Galvanized Steel Band: Corrosion-resistant in the humid air a grow-room exhaust carries.
- Neoprene Isolating Seal: Seals the joint and breaks the metal path that carries motor hum.
- Hand-Tightened: No tools, so a fan or filter can be swapped in minutes.
- 10 in Component Fit: Matches Ruck 10 in fans, silencers and rigid duct sections.
- Supplied in Packs of Two: One pack does both ends of a single fan.
- Serviceable Joints: Lets a heavy component come out without cutting into the run.
Technical Specifications
| Specification | Value |
|---|---|
| Component Size | 10 in |
| Band Material | Galvanized sheet steel |
| Seal | Neoprene, isolating |
| Fastening | Hand-tightened, no tools |
| Supplied As | Pack of 2 |
| Function | Joint sealing and vibration isolation |
