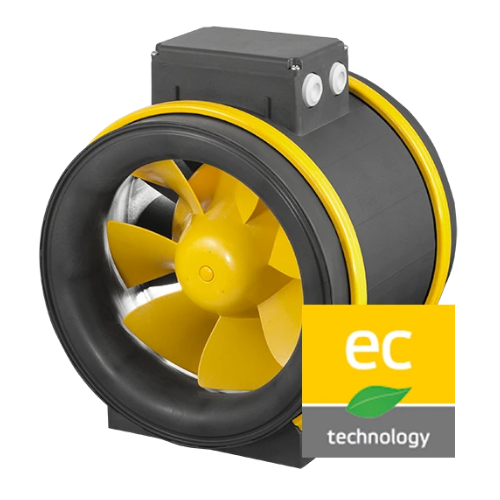

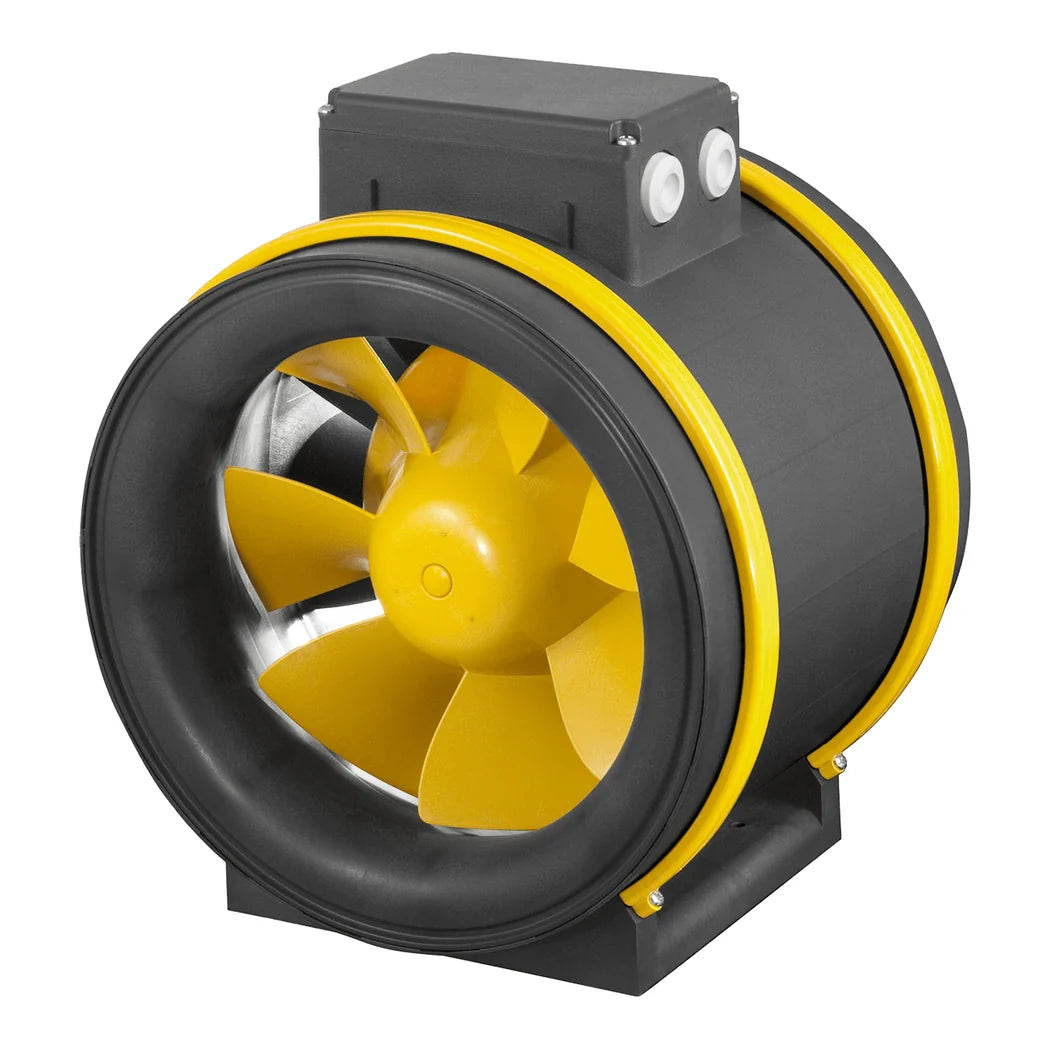

Ruck 10 Inch Prime EVO EC: Efficiency and Noise
1,312 CFM on 283W works out at 4.6 CFM per watt at full speed. The impeller runs up to 3,870 RPM and draws at most 3.5A at 120V. This is also the first size where Ruck publishes a sound figure, and it is worth knowing: 76 dB at maximum. That is machinery noise, not tent-fan noise. At 10.9 lbs a single strap carries it comfortably.
Matching a 10 Inch EC Inline Duct Fan to a Room
Ten inches suits a room, a multi-tent trunk, or a filter bank that would choke something smaller. The sound figure above is measured flat out, and most growers never run it there. Held at 60 or 70 percent on the 0-10V input it is markedly quieter and draws far less. That is the practical answer to noise in an occupied building. Give it a straight approach as well. A wide duct loses real airflow to an elbow sitting right at the inlet. The bracket and 5.5 ft cord are included, with three years of cover behind it.
Key Features
- 1,312 CFM: Peak mixed flow output for a 10 inch duct.
- EC Motor: Draw falls with speed, unlike a dimmed AC motor.
- Stepless 0-10V Control: Works with the MTP 21 and most climate controllers.
- 3D Impeller and Guide Vanes: Blade and vane pairing that holds pressure on long runs.
- IPX4 Plastic Housing: Corrosion-resistant and splash-rated for humid rooms.
- TEC Motor Protection: Thermal cut-out built into the motor windings.
- ETL Listed: Third-party safety certification for commercial installs.
- 3-Year Warranty: German-built, and covered for three years.
Technical Specifications
| Specification | Value |
|---|---|
| Duct Size | 10 in |
| Airflow | 1,312 CFM |
| Power | 283 W |
| Max Current | 3.5 A |
| Impeller Speed | 3,870 RPM (max) |
| Noise (max) | 76 dB |
| Weight | 10.9 lbs |
| Voltage | 120V, 60 Hz |
| Motor | EC, one-phase |
| Speed Control | Stepless 0-10V |
| Thermal Protection | TEC cut-out |
| Insulation Class | F |
| Impeller | 3D shaped, mixed flow with guide vanes |
| Housing | Corrosion-resistant injection moulded plastic, IPX4 |
| Certification | ETL listed |
| Mounting | Bracket included |
| Cord Length | 5.5 ft |
| Warranty | 3 years |
| Origin | Made in Germany |
