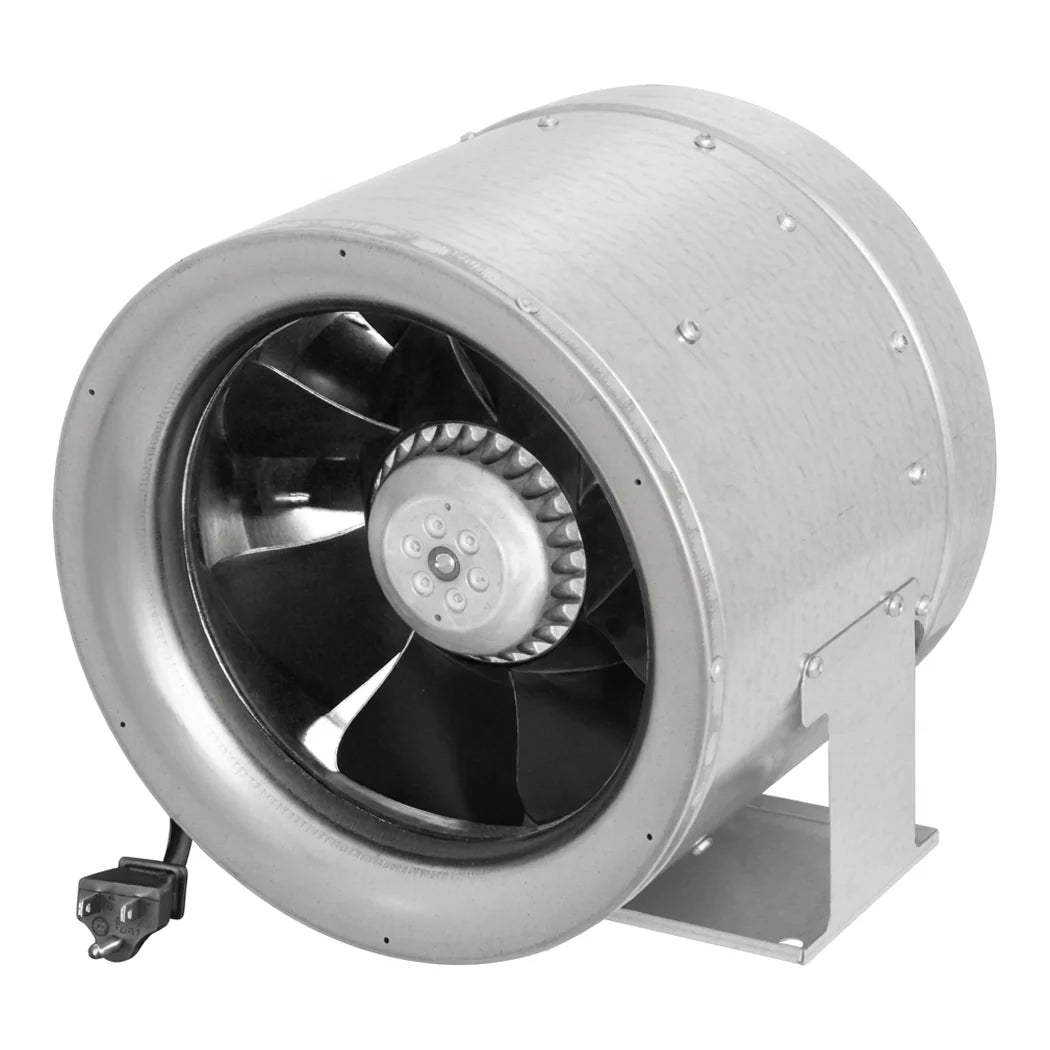

Ruck 10 inch Prime Mixed Flow Inline Duct Fan | 1,015 CFM, 206W

Ruck 10 Inch Prime Mixed Flow Moves 1,015 CFM

Ten inches is where the Prime line switches to metal. Galvanized steel housing, IPX4 rated, with the motor tucked inside the hub. It moves 1,015 CFM drawing 206W and about 1.9A. An integrated 3-speed switch is built in, so no external controller is needed to step it down. Rated from -13°F to 122°F.

Sizing a Grow Room Ventilation Fan at 1,015 CFM

Hang it with the supplied bracket rather than letting the ducting take the weight. A galvanized steel fan is heavy enough to sag a flex run. The 3-speed switch is the useful part day to day: set high for lights-on, drop a step at night. Temperature is the one thing to keep an eye on here. That ceiling sits lower than most of the range, and a sealed room under HPS in summer can approach it. Mixed flow keeps output up against a loaded filter, which is what a tent or small room asks of a fan this size.

Key Features

• 1,015 CFM: Mixed flow output that holds pressure against a loaded filter.
• 206W at 1.9A: Published draw on 120V, so the circuit can be planned properly.
• 3D Shaped Impeller: The blade form Ruck uses to lift efficiency and drop noise.
• Galvanized Steel Housing: Rigid and corrosion-resistant in damp exhaust air.
• Mounting Bracket Included: Hangs on its own support rather than loading the ductwork.
• Motor in the Hub: The motor sits inside the fan hub, out of the weather and the dust.
• Integrated 3-Speed Switch: Step output down at night without extra hardware.

Technical Specifications
