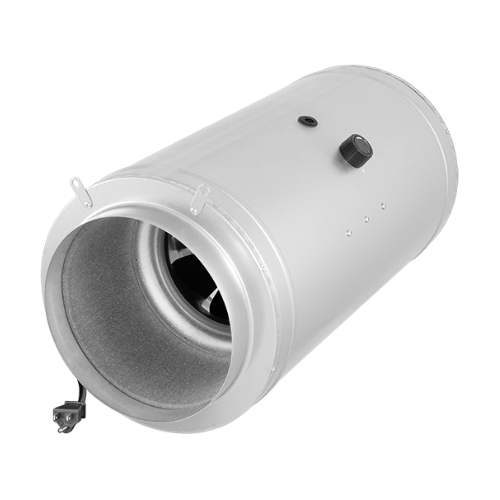

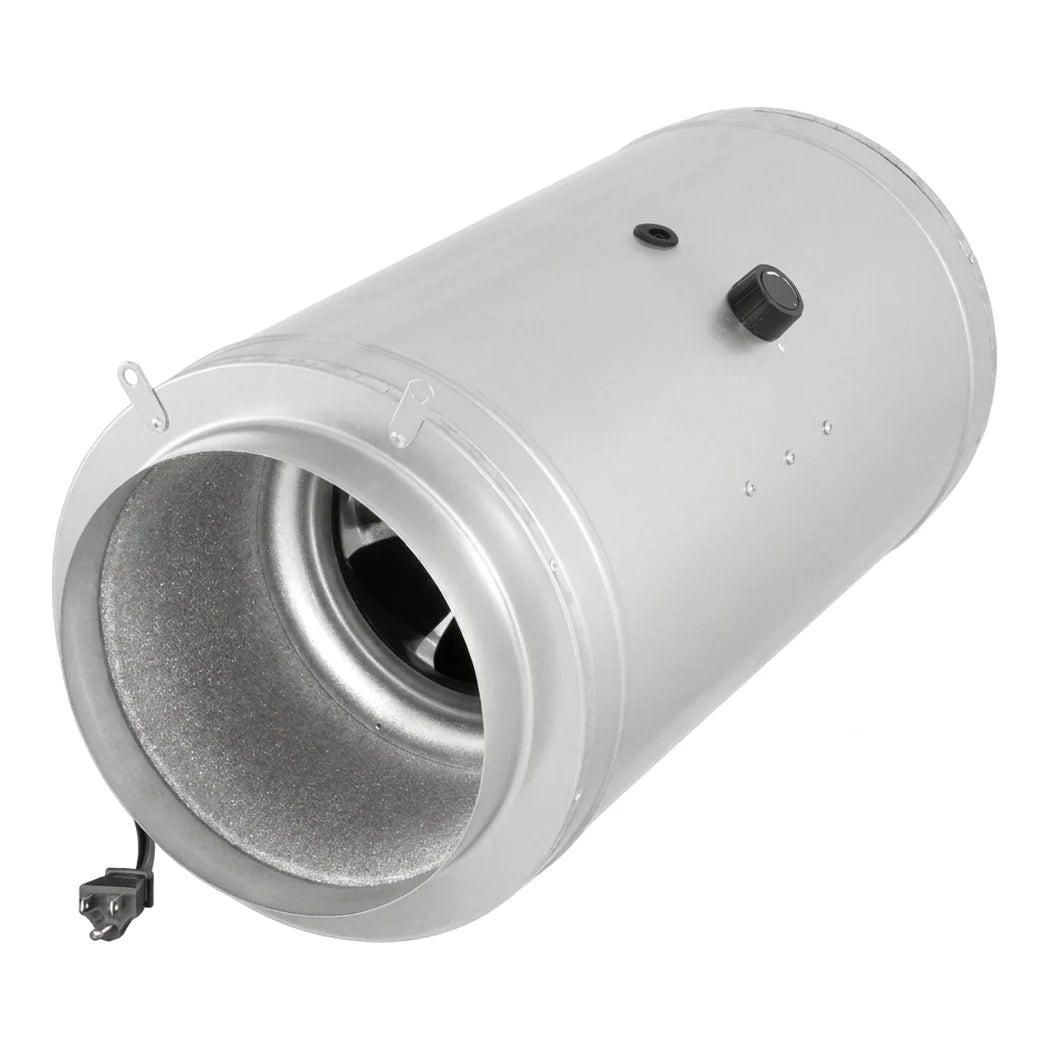

Ruck 10 inch S-Prime Inline Duct Fan | 1,035 CFM, Sound Insulated

Ruck 10 Inch S-Prime: 1,035 CFM on 221 Watts

The S in S-Prime is for sound insulated, and that is where the money in this fan has gone. A mixed flow impeller sits inside a galvanized steel shell lined with acoustic material, moving 1,035 CFM on 221W and 1.9A at 120V. A three-speed switch is built into the casing, so trimming output needs no separate controller. It is UL and CSA approved, weighs 22 lbs and runs about 27 inches long.

Fitting a 3-Speed Inline Duct Fan Near Living Space

A fan like this makes sense in a studio, a home office, or any room sharing a wall with somewhere people sleep. The insulation damps the noise coming off the casing rather than the noise travelling down the duct. A silencer on the outlet still earns its keep in a quiet space. The published figure is 32 sones, which is real machinery rather than background hum. It is heavy enough to want a proper hanger of its own. Ruck builds it in Germany and covers it for three years.

Key Features

• 1,035 CFM: Mixed flow output for a 10 inch duct.
• Sound Insulated Casing: Galvanized steel lined to damp noise off the fan body.
• One-Phase AC Motor: Simple, serviceable, and mains-powered.
• Integrated Switch: Mounted on the casing, no extra wiring needed.
• Mixed Flow Impeller: Holds pressure where an axial booster would stall.
• Made in Germany: Built and tested at the Ruck factory.
• 3-Year Warranty: Covered for three years, German built.
