How the 14 Inch Back Draught Damper Seals an Idle Duct

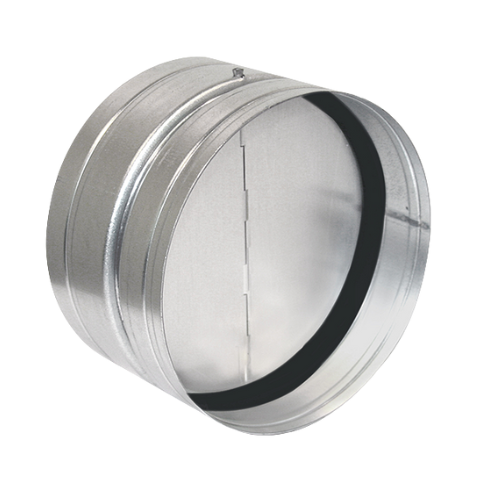

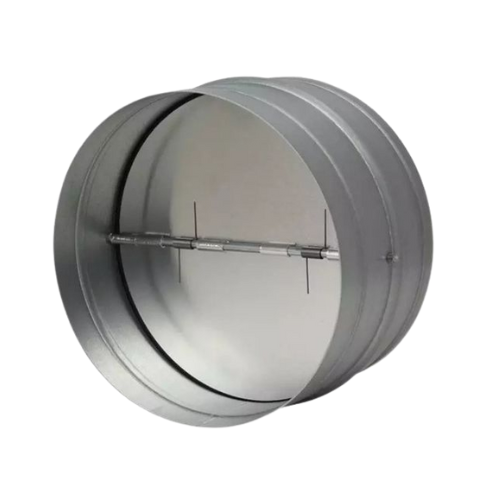

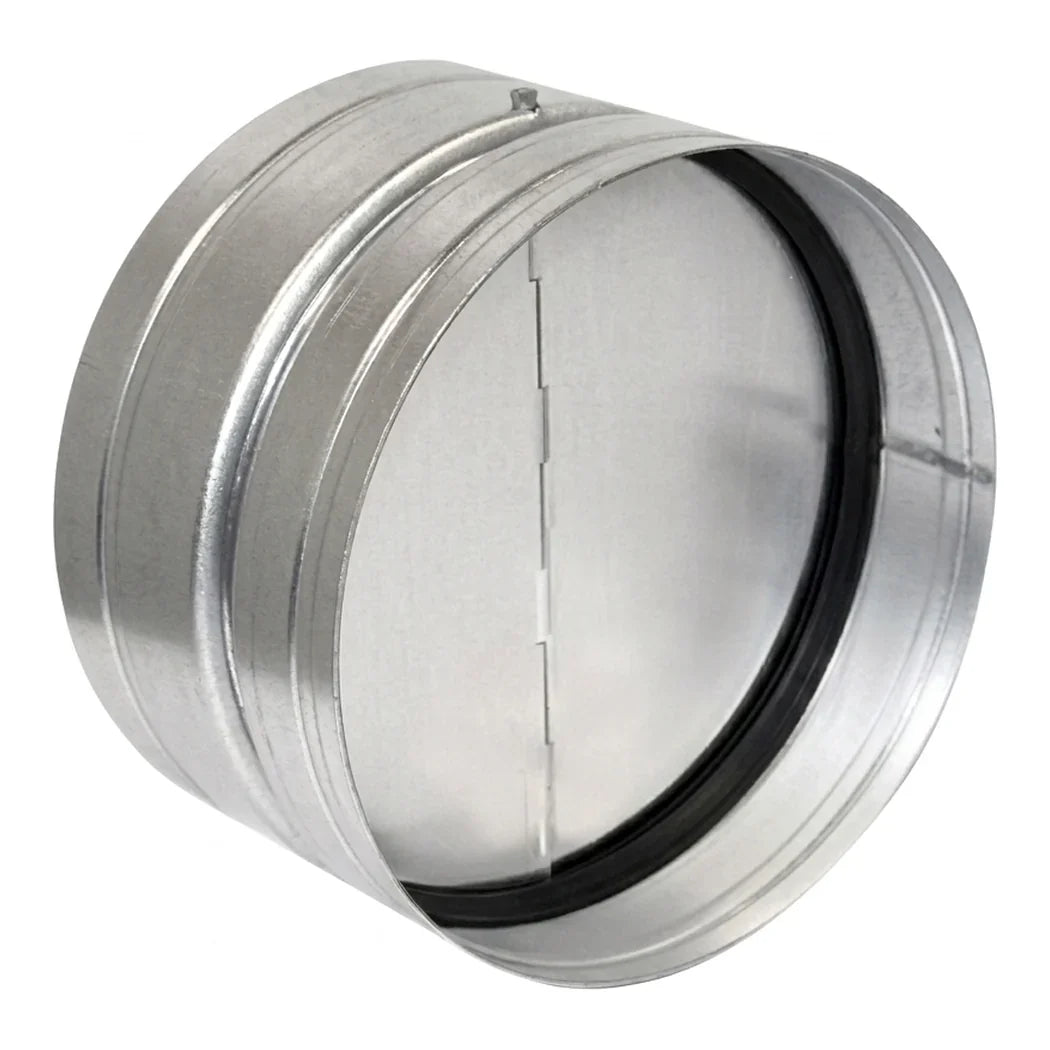

Mechanical, not electrical, which is the whole design brief. Spring-loaded aluminium flaps open under the fan's airflow and fall onto a rubber seal the moment it stops. The galvanized sheet steel housing takes the 14 in bore. There is no actuator, no wiring and no control signal to lose.
Mounting a Backdraft Shutter in the Right Place
It can be mounted either horizontally or vertically because the flaps are sprung, not gravity-hung. Fit it downstream of the fan, flaps opening with the flow. There is a modest static pressure cost, which at this size is worth it for the reverse-flow it stops. The maintenance is trivial and mostly ignored: clean the rubber seat, or dust will hold the flaps a fraction open. Expect a distinct thump when the fan stops. That is the flaps seating, and it is normal.
Key Features

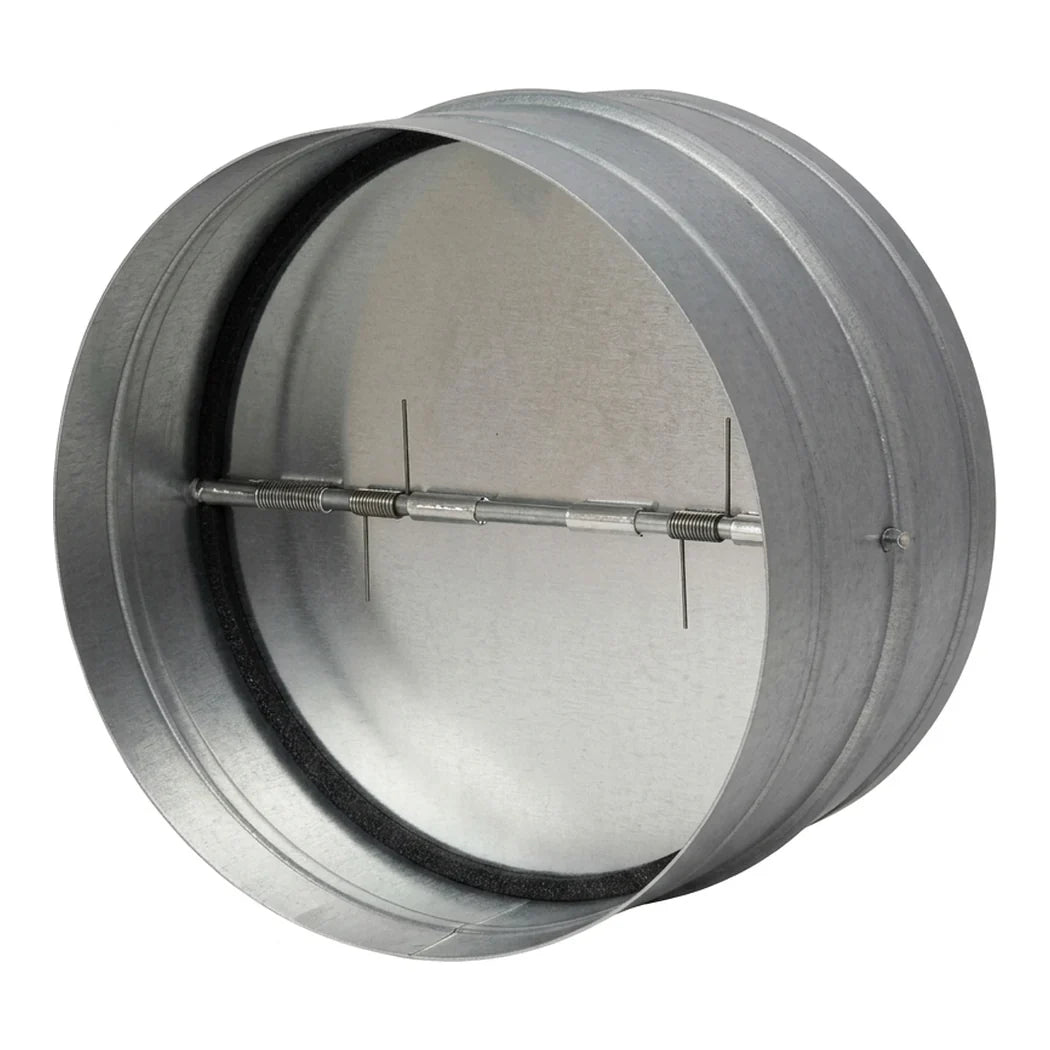

- Spring-Loaded Aluminium Flaps: Open on airflow and close under spring pressure, with nothing to power.
- Rubber Seal: Closes the gap at the seat so a stopped duct actually stays shut.
- Galvanized Steel Housing: Corrosion-resistant in the damp air an exhaust run carries.
- Horizontal or Vertical Mounting: Spring loading means it does not depend on gravity to close.
- 14 in Duct Fit: Matches Ruck 14 in components and standard 14 in ducting.
- Fully Mechanical: No wiring, no actuator and no control signal to lose.
Technical Specifications
| Specification | Value |
|---|---|
| Duct Size | 14 in |
| Housing | Galvanized sheet steel |
| Flaps | Spring-loaded aluminium |
| Seal | Rubber |
| Mounting | Horizontal or vertical |
| Operation | Airflow-opened, spring-closed |
