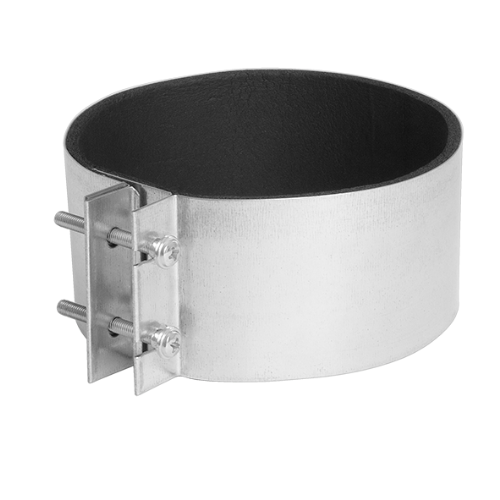

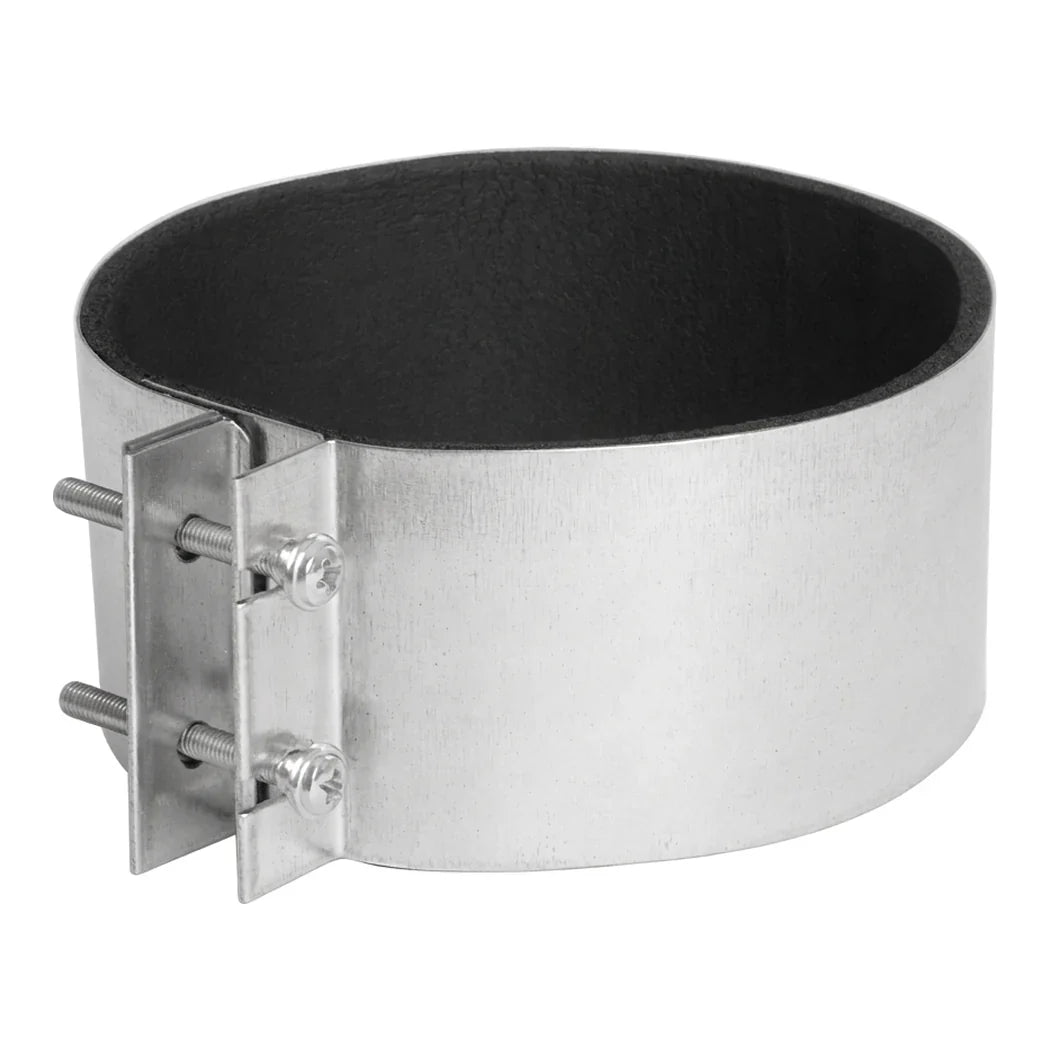

What the Ruck 14 Inch Fast Clamp Actually Does
This is the largest quick-release collar Ruck lists, for 14 in components. Galvanized sheet steel band, neoprene isolating seal, hand-tightened. At this diameter the isolating layer earns its keep twice over, because a 14 in fan puts real vibration into anything bolted hard to it. They come in packs of two.
Fitting a Duct Coupling Clamp So the Fan Stays Serviceable
Clamp each end of the fan and it lifts out as a unit. On a 14 in installation that is the difference between a service job and a rebuild. The isolating seal handles vibration through the joint, not air noise, so a silencer remains a separate item. Because the neoprene compresses as it beds in, go back and re-check the tension after a few weeks of running. Keep one spare aside, since a lost band at this size is not something you improvise.
Key Features
- Galvanized Steel Band: Corrosion-resistant in the humid air a grow-room exhaust carries.
- Neoprene Isolating Seal: Seals the joint and breaks the metal path that carries motor hum.
- Hand-Tightened: No tools, so a fan or filter can be swapped in minutes.
- 14 in Component Fit: Matches Ruck 14 in fans, silencers and rigid duct sections.
- Supplied in Packs of Two: One pack does both ends of a single fan.
- Serviceable Joints: Lets a heavy component come out without cutting into the run.
Technical Specifications
| Specification | Value |
|---|---|
| Component Size | 14 in |
| Band Material | Galvanized sheet steel |
| Seal | Neoprene, isolating |
| Fastening | Hand-tightened, no tools |
| Supplied As | Pack of 2 |
| Function | Joint sealing and vibration isolation |
