Brand: Ruck Air Movement

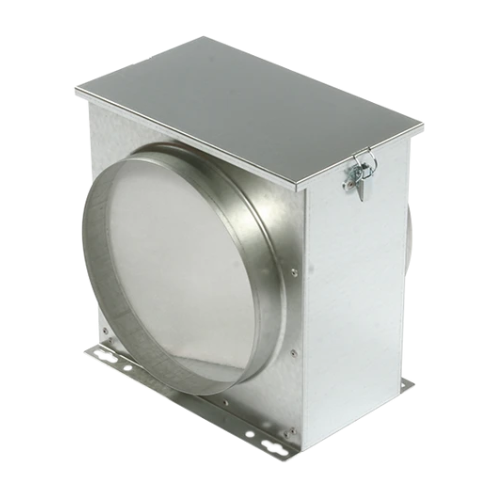

Ruck 14 Intake Filter Box

Ruck 14 Intake Filter Box

SKU: SKU:149456

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $166.00 USD
Regular price Sale price $166.00 USD
Sale Sold out
Shipping calculated at checkout.

The Ruck 14 inch intake filter box cleans high-volume intake air through an ISO Coarse 45% / MERV 5 fiber mat. It fits inline on 14 in duct, and toggle clips release the lid by hand.

View full details

Ruck 14 Inch Intake Filter Box for High-Volume Intake

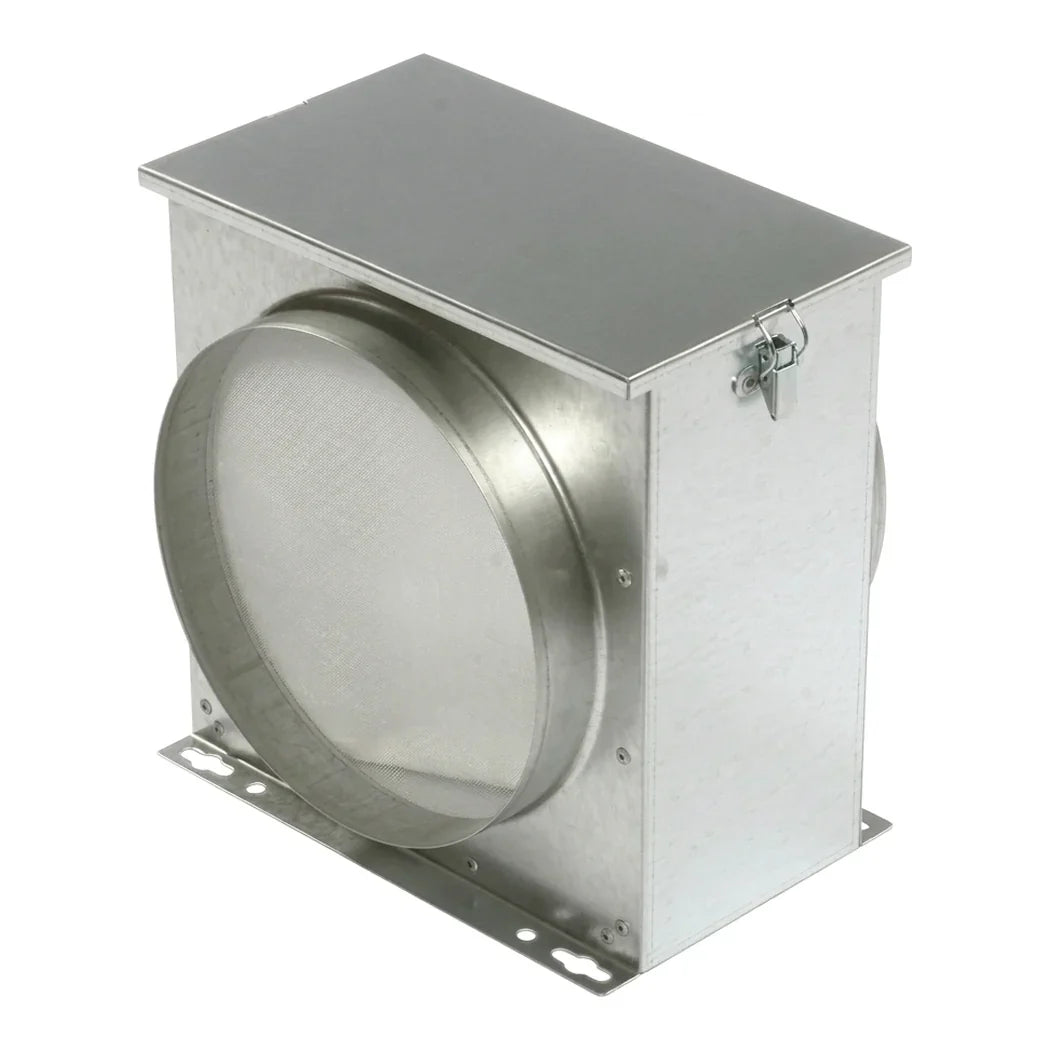

This box cleans the air pulled into a large grow room, greenhouse or warehouse through 14-inch ducting. Its galvanized steel housing has a round 14 in collar on each of two opposite sides. The media is a fiber mat graded ISO Coarse 45% (G3), the same as MERV 5. That grade stops dust, pollen, lint and insects carried in on fresh air. Ruck rates the box for minimal airflow restriction. The lid is fastened with toggle-type clips that release by hand. Overall dimensions are 19.9 x 20.0 x 7.8 in, and the weight is 11.0 lb. Base feet take bolts or screws for a frame, platform or bracket. The housing is rated for ambient temperatures up to 80°C, or 176°F. Used mats can be recycled. Replacement mats are Ruck part 149462, packed five at a time. The Ruck data sheet is attached.

Mounting an Air Filter Box on the Intake

Locate the box at the start of the intake, where outside air enters the duct system. Ahead of an intake fan, it lets the fan pull filtered air into the room. On a passive inlet, it attaches to the opening and the exhaust fans draw air through it. Support the box on a bracket or platform so the duct does not carry its weight. Fit each duct over a collar, tighten a clamp and seal the seam with foil tape. Leave space at the lid to open the toggles and remove the mat. Ruck's guide is a fresh mat every three to six months. Agricultural sites and dusty warehouses usually need the shorter end of that range. Check the mat at routine maintenance and change it once it turns grey. A filtered intake keeps dust off leaves and reduces pests riding in on the air. It also keeps grit away from fan blades, AC coils and dehumidifiers downstream. Odor on the exhaust side is handled by a carbon filter, while this mat handles particles.

Key Features

  • ISO Coarse 45% / MERV 5 Mat: Stops dust, pollen, lint and insects.
  • 14 in Inline Collars: Fits a 14-inch intake duct run.
  • Toggle-Type Clips: Release the lid by hand.
  • Galvanized Steel Housing: Steel box with bolt-down feet.
  • 176°F Ambient Rating: Rated for surroundings up to 80°C.
  • Replaceable Mat: Ruck 149462 mats come five to a pack.

Technical Specifications

Specification Value
Brand Ruck Air Movement
Part number 149456
Duct size 14 in
Filter class ISO Coarse 45% (G3) / MERV 5
Filter media Fiber mat, included
Replacement filter Ruck 149462, pack of 5
Housing Galvanized sheet steel
Fastener Toggle type
Dimensions 19.9 x 20.0 x 7.8 in
Weight 11.0 lb
Max ambient temperature 80°C (176°F)
Mat change interval 3 to 6 months
Recyclable Yes
