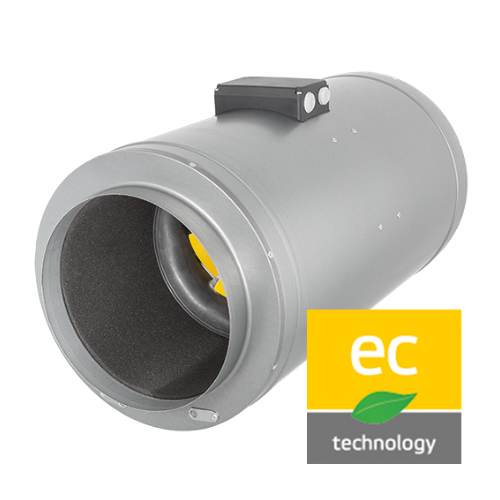

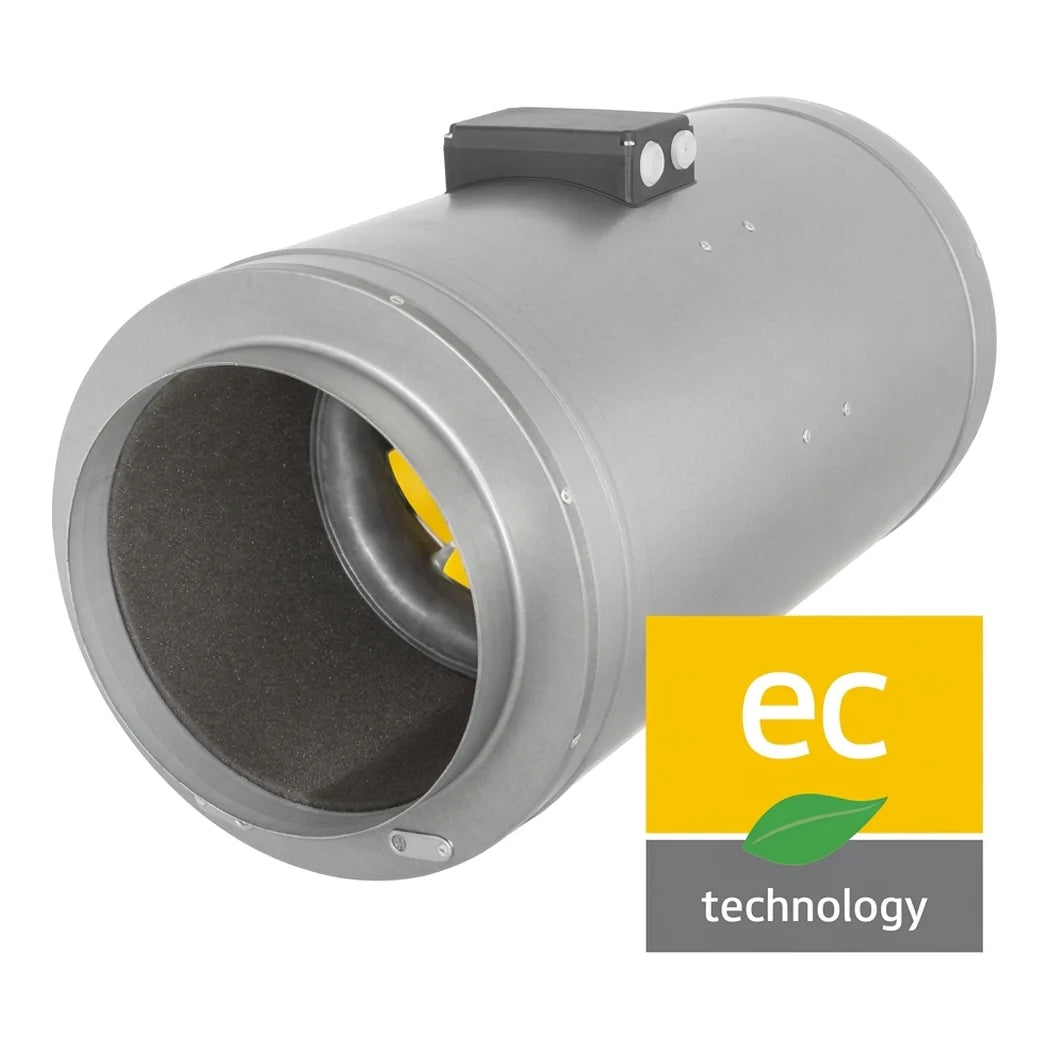

Ruck 14 Inch S-Prime EVO EC at 1,960 CFM
1,960 CFM from a 14 inch duct, inside a sound insulated galvanized steel casing. The motor is the same stepless 0-10V EC unit at 120V. That makes it the largest single-phase fan in the line. Ruck does not publish watts or impeller speed for this size in the retail listings. That is a gap worth knowing about before a circuit gets designed around it.
Placing a Sound Insulated EC Inline Fan on a Trunk
A fan this size belongs on a trunk line serving several rooms rather than a single tent. Straight duct at both ends matters more here than on anything smaller. A 14 inch body loses more to a tight bend, and that loss never shows up on a spec sheet. Since the current draw is not published, size the circuit from the nameplate rather than any retail listing. Everything else carries over, from the insulated casing to the three-year German warranty.
Key Features
- 1,960 CFM: Mixed flow output for a 14 inch duct.
- Sound Insulated Casing: Galvanized steel lined to damp noise off the fan body.
- EC Motor: Draw falls with speed on a 0-10V input.
- Stepless 0-10V Control: Works with the MTP 21 and most climate controllers.
- Motor in the Hub: Kept out of the airstream, so airflow is not disrupted.
- Made in Germany: Built and tested at the Ruck factory.
- 3-Year Warranty: Covered for three years, German built.
Technical Specifications
| Specification | Value |
|---|---|
| Duct Size | 14 in |
| Airflow | 1,960 CFM |
| Complete Unit Rating | IPX4 |
| Voltage | 120V, 60 Hz |
| Motor | EC, one-phase |
| Speed Control | Stepless 0-10V (MTP 21 compatible) |
| Thermal Protection | TEC cut-out |
| Insulation Class | F |
| Casing | Sound insulated galvanized sheet steel |
| Impeller | Mixed flow, motor in the hub |
| Warranty | 3 years |
| Origin | Made in Germany |
