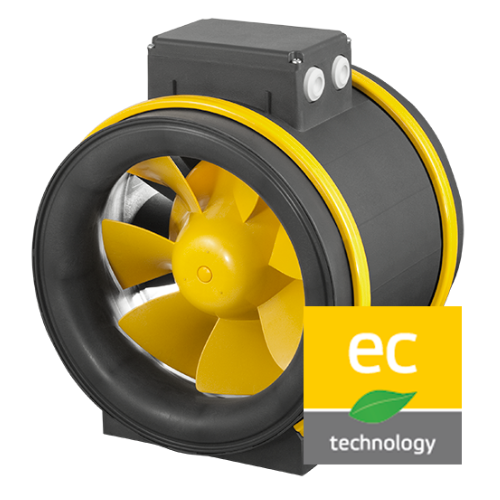

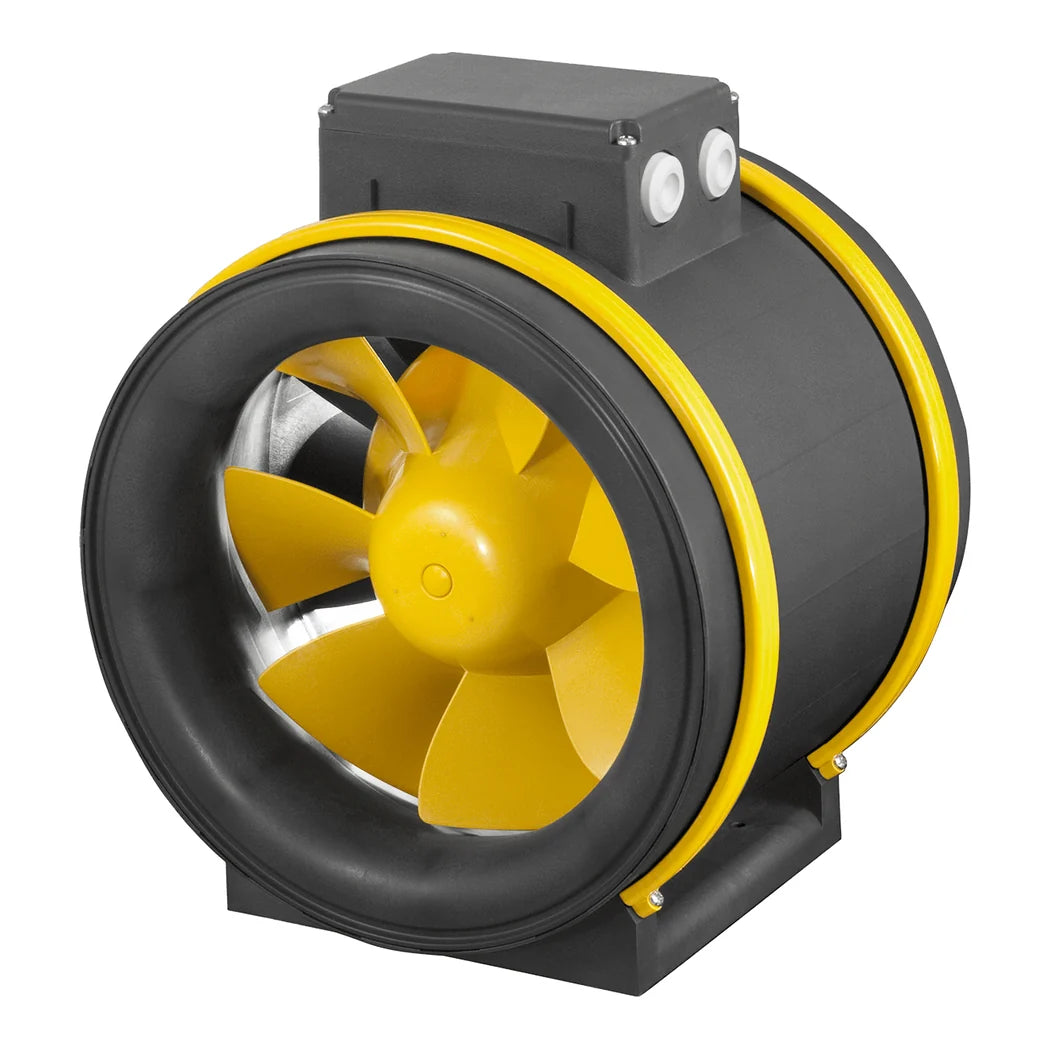

The Largest Fan in the Prime EVO EC Range
3,354 CFM is the biggest figure the range offers, and it comes from a maximum draw of 3.4A at 120V. Stepless 0-10V control lets a building management system or a climate controller hold it anywhere below that. Ruck rates the unit from -22°F to 140°F, the broadest span here, with an IP20 motor and ETL listing.
Placing a 16 Inch EC Inline Duct Fan in a Facility
Sixteen inches is facility equipment. Commercial trunk lines, multi-room exhaust and filter banks serving several zones are what it was built around. It will be more fan than a single room needs. Mounting deserves thought before delivery, because a fan this size wants a dedicated hanger and straight duct on both sides to reach its rated figure. The motor rating is the one caveat, since it is the least protected in this family. A damp plant room is the wrong home unless the fan itself sits in dry air. Bracket, 5.5 ft cord and three years of warranty are included.
Key Features
- 3,354 CFM: Peak mixed flow output for a 16 inch duct.
- EC Motor: Draw falls with speed, unlike a dimmed AC motor.
- Stepless 0-10V Control: Works with the MTP 21 and most climate controllers.
- 3D Impeller and Guide Vanes: Blade and vane pairing that holds pressure on long runs.
- IPX4 Plastic Housing: Corrosion-resistant and splash-rated for humid rooms.
- TEC Motor Protection: Thermal cut-out built into the motor windings.
- ETL Listed: Third-party safety certification for commercial installs.
- 3-Year Warranty: German-built, and covered for three years.
Technical Specifications
| Specification | Value |
|---|---|
| Duct Size | 16 in |
| Airflow | 3,354 CFM |
| Max Current | 3.4 A |
| Motor Protection Rating | IP20 |
| Ambient Temperature | -22 to 140 °F |
| Voltage | 120V, 60 Hz |
| Motor | EC, one-phase |
| Speed Control | Stepless 0-10V |
| Thermal Protection | TEC cut-out |
| Insulation Class | F |
| Impeller | 3D shaped, mixed flow with guide vanes |
| Housing | Corrosion-resistant injection moulded plastic, IPX4 |
| Certification | ETL listed |
| Mounting | Bracket included |
| Cord Length | 5.5 ft |
| Warranty | 3 years |
| Origin | Made in Germany |
