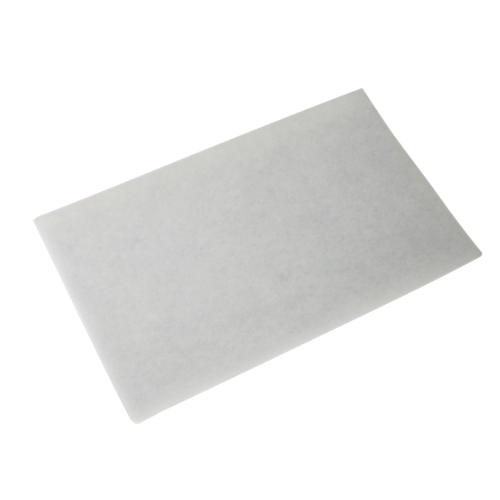

Ruck Intake Filter Mat for 4 and 6 Inch Filter Boxes
This pack holds five replacement filter mats for Ruck intake filter boxes in the 4-inch and 6-inch sizes. Each mat is a fiber filter edged with a wire frame that holds its shape in the box. Ruck rates the media ISO Coarse 45%, also known as G3 or MERV 5. It is rated 85% efficient on particles down to 3 microns. That grade stops dust, pollen, lint and insects carried in on fresh intake air. Each mat measures 7.9 by 9.4 inches. The media is rated for temperatures up to 80°C, or 176°F. Ruck makes the mats from 90% recycled material, and used mats are fully recyclable. The part number is 149457.
Changing a MERV 5 Filter Pad in the Intake Box
Swap in a fresh mat whenever the old one turns grey or the intake airflow drops. Ruck's guide for its filter boxes is a new mat every three to six months. Dusty sites, farms and warehouses usually need the shorter end of that range. Switch off the intake fan before opening the box. Release the lid clips, lift out the used mat and lay in a new one with the wire frame sitting flat. Close the lid and check that the clips hold it tight, so no air slips around the mat. Write the date on the box or in a log so the next change is easy to time. A clean mat keeps dust off leaves and out of fans, coils and dehumidifiers downstream. It also cuts the insects and spores that ride in on fresh air. With five mats in the pack, one box can run for well over a year at the usual interval. Send used mats to recycling rather than landfill.
Key Features
- G3 / MERV 5 Rating: ISO Coarse 45% fiber media.
- 85% Efficient to 3 Microns: Stops dust, pollen, lint and insects.
- Wire-Framed Mat: Holds its shape in the filter box.
- Fits 4 and 6 Inch Boxes: Sized 7.9 x 9.4 in for Ruck intake boxes.
- Five Mats per Pack: Covers more than a year of changes.
- 90% Recycled Material: Fully recyclable after use.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Ruck Air Movement |
| Part number | 149457 |
| Fits | Ruck intake filter box 4 in and 6 in |
| Filter class | ISO Coarse 45% (G3) / MERV 5 |
| Efficiency | 85% to 3 microns |
| Media | Fiber mat with wire frame |
| Mat size | 7.9 x 9.4 in |
| Max temperature | 80°C (176°F) |
| Pack quantity | 5 mats |
| Recycled content | 90% |
| Recyclable | 100% |
