Ruck 8/10 Inch Replacement Intake Filter Mat - G3 / MERV 5, 5-Pack, 149461

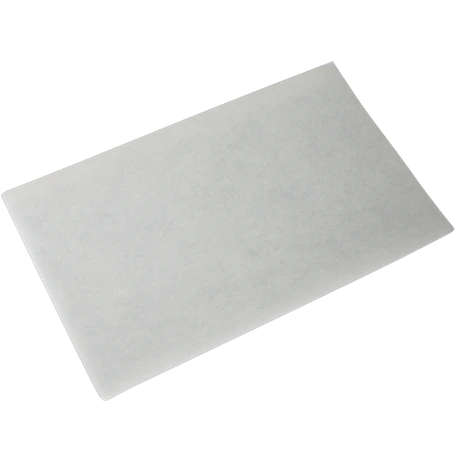

Ruck Replacement Filter Mat for 8 and 10 Inch Filter Boxes

Five replacement mats come in this pack, sized for Ruck intake filter boxes in the 8-inch and 10-inch sizes. A wire frame runs around the edge of each fiber mat so it sits flat and holds its shape. The media is rated ISO Coarse 45%, the same grade as G3 or MERV 5. Ruck rates it 85% efficient on particles down to 3 microns. At that grade, the mat catches dust, pollen, lint and insects drawn in with fresh air. Each mat measures 11.9 by 12.8 inches. It is rated for air temperatures up to 80°C, or 176°F. The mats are made from 90% recycled material and are fully recyclable after use. Ruck's part number for the pack is 149461.

Keeping a G3 Intake Filter Clean on a Busy Fresh Air Line

A larger intake box moves more air, so its mat loads up faster in a dusty setting. Ruck's guide is a fresh mat every three to six months. Greenhouses, farms and warehouse grows often land at the shorter end. Check the mat at each routine service and change it once it looks grey. Turn off the intake fan first. Open the toggle clips, lift out the old mat and set the new one in with its frame flat. Clip the lid shut firmly so no air can pass around the edges. Keep a dated log of changes so the schedule stays on track. Clean intake air keeps grit off leaves and away from fans, cooling coils and dehumidifiers. It also lowers the number of insects and spores reaching the crop. Five mats in the pack cover well over a year of changes at the usual interval. Recycle the used mats instead of sending them to landfill.

Key Features

• G3 / MERV 5 Rating: ISO Coarse 45% fiber media.
• 85% Efficient to 3 Microns: Catches dust, pollen, lint and insects.
• Wire-Framed Mat: Sits flat in the filter box.
• Fits 8 and 10 Inch Boxes: Sized 11.9 x 12.8 in for Ruck intake boxes.
• Five Mats per Pack: More than a year of changes.
• 90% Recycled Material: Fully recyclable after use.

Technical Specifications
