Inside the 8 Inch Intake Filter Box

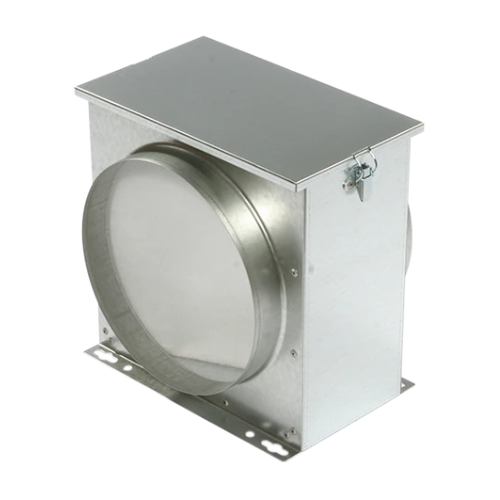

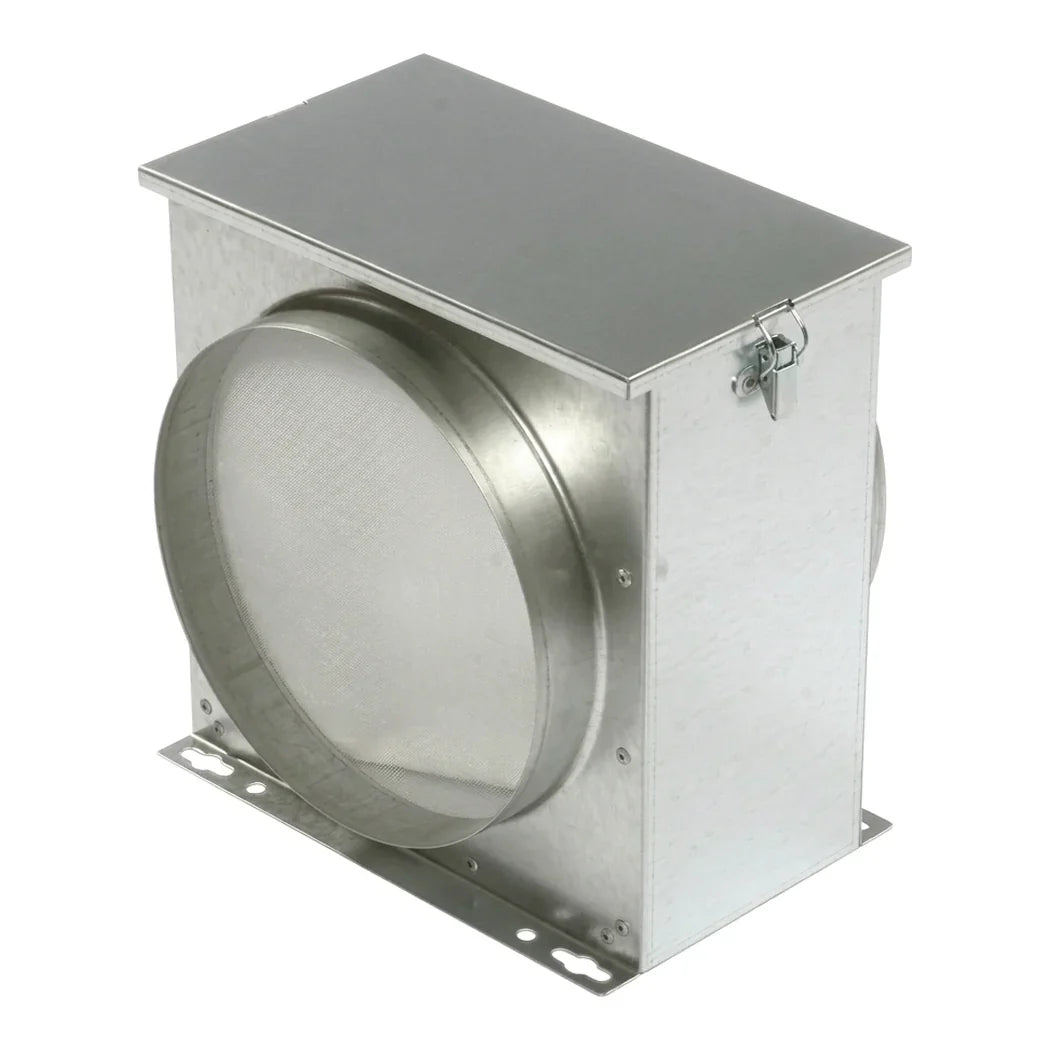

Filtering the intake is the simplest pest and dust control there is, and it is routinely skipped. This box takes an ISO Coarse 45% / MERV 5 fiber mat in a galvanized sheet steel housing sized for 8 in duct. It measures 12 x 12.1 x 7.8 in and weighs 6.4 lbs.
Servicing the MERV 5 Intake Filter
The lid is held by a toggle fastener, so swapping the mat takes no tools and about a minute. Change it every three to six months, sooner in a dusty space. Do not confuse this with odour control. It filters particles coming in and does nothing for smell going out, which is still a carbon filter's job on the exhaust side. Expect a small pressure drop that increases as the mat fills. Put it at the room end of the intake, where the mat is easy to reach for changing.
Key Features
- ISO Coarse 45% / MERV 5 Mat: Coarse on purpose, so it traps debris without strangling the intake.
- Galvanized Steel Housing: Holds its shape and resists corrosion in a damp intake path.
- Toggle Fastener: Opens without tools, so mat changes take about a minute.
- 3 to 6 Month Mat Life: A realistic interval, shorter in a dusty or high-pollen space.
- Recyclable Mat: The media can be recycled rather than binned.
- 8 in Duct Fit: Sized for Ruck 8 in components and standard 8 in duct.
Technical Specifications
| Specification | Value |
|---|---|
| Duct Size | 8 in |
| Filter Class | ISO Coarse 45% (G3) / MERV 5 |
| Housing | Galvanized sheet steel |
| Fastener | Toggle type |
| Dimensions (L x H x W) | 12 x 12.1 x 7.8 in |
| Weight | 6.4 lbs |
| Filter Replacement | Every 3 to 6 months |
