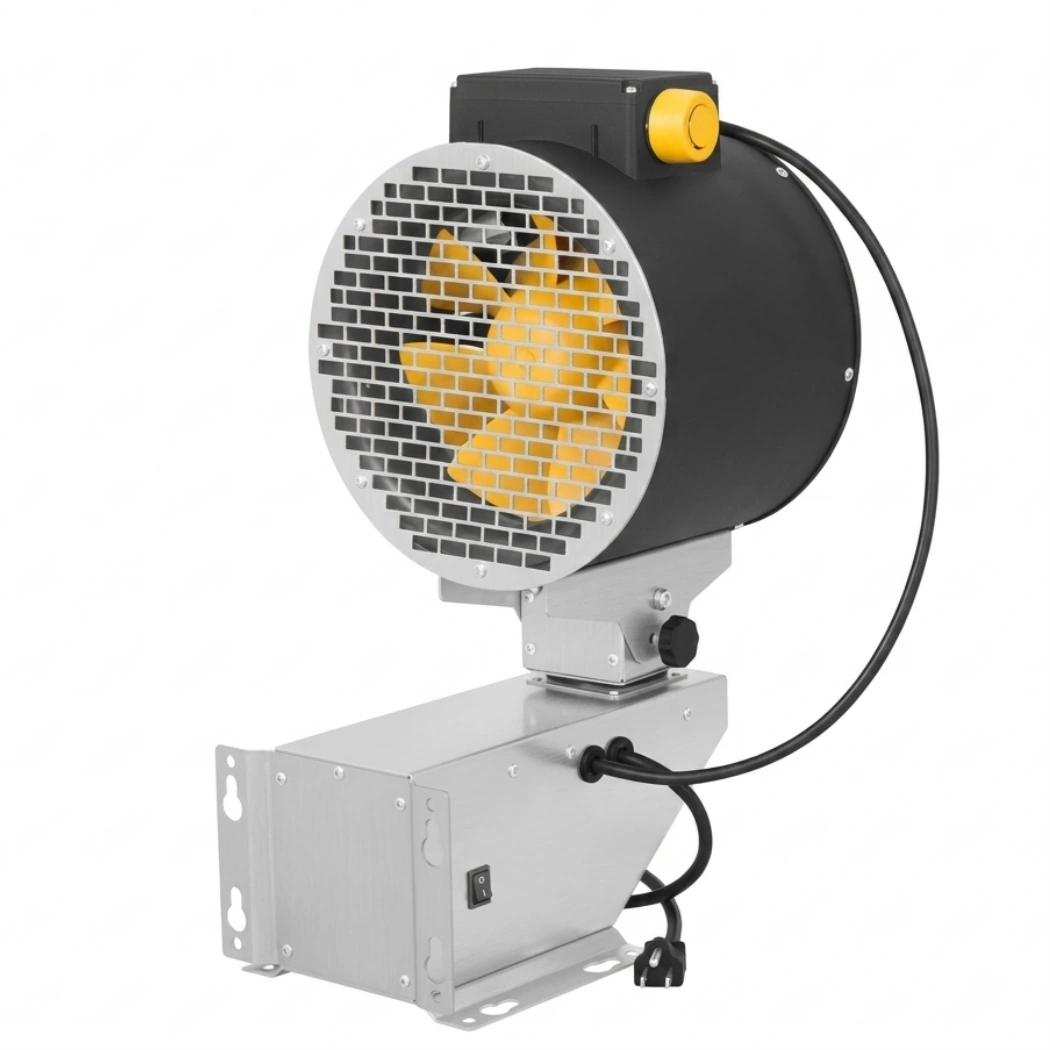

Ruck Optimus Oscillating Fan for Grow Rooms and Greenhouses

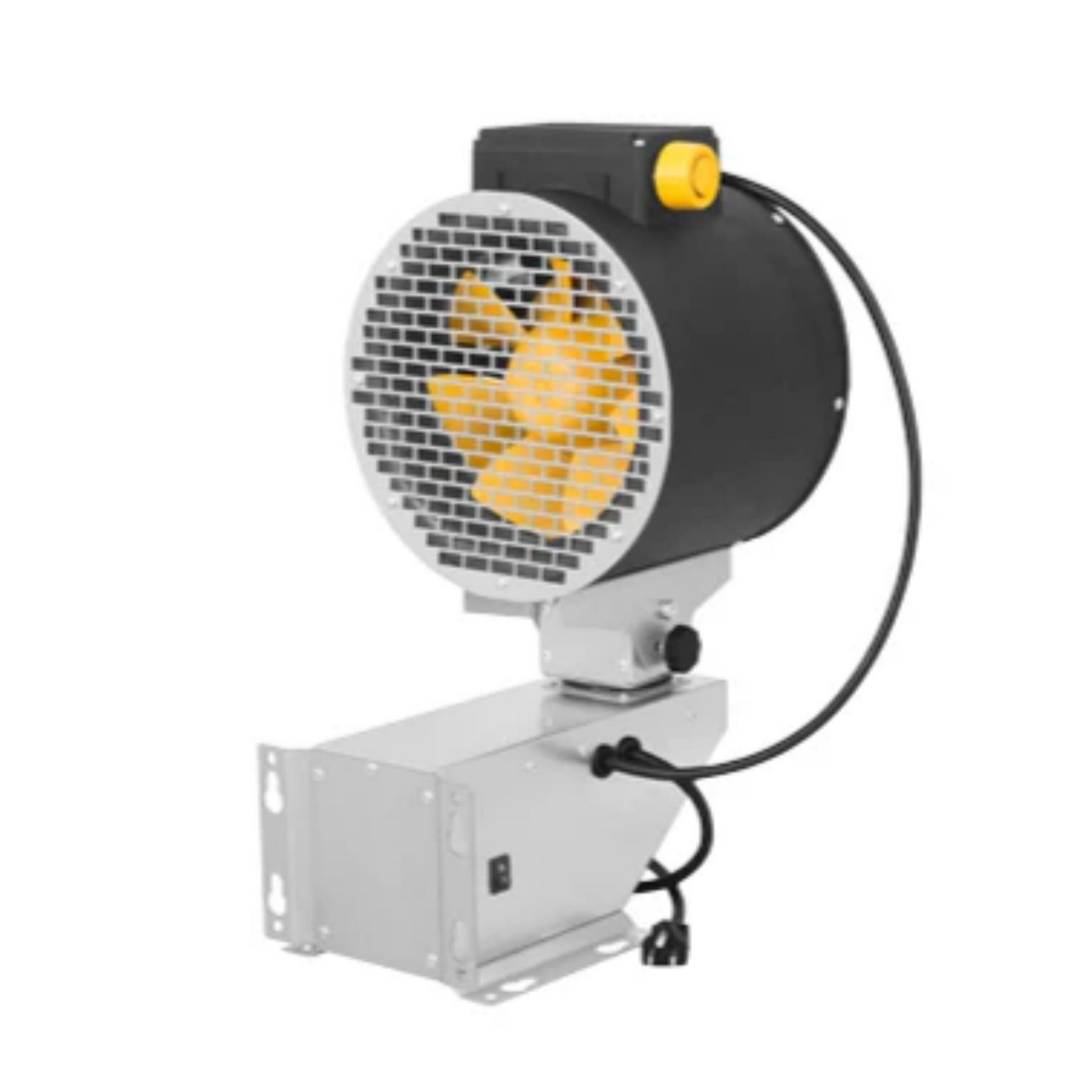

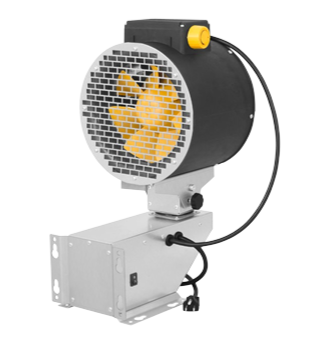

The Optimus is an oscillating circulation fan from Ruck Air Movement, built around a Prime Evo 8-inch mixed flow fan. Its laminar airflow throws a focused stream that reaches farther than a typical oscillating fan. Maximum airflow is 710 CFM. The head sweeps 120 degrees from side to side and moves 23 degrees up and 23 degrees down. A 3-speed switch built into the unit sets the output. The one-phase AC motor runs on 120V, 60 Hz. It draws 220 W and up to 1.9 A. Rated speed is 3215 rpm, with a maximum of 3370 rpm. The motor carries class F insulation. It runs in air and surroundings from -13°F to 104°F. The unit weighs 14.3 lb. It mounts on a ceiling or a wall. The Optimus carries ETL certification and a 3-year warranty.
Placing a Grow Room Circulation Fan Over the Canopy
Circulation keeps air moving across and through the canopy, which evens out temperature and humidity. Mount the fan high on a wall or from the ceiling, above the tops of the plants. Set the sweep so the stream crosses the canopy rather than blasting one spot. Use the tilt to angle the air slightly down over the plants or up toward the lights. Start on a low speed and raise it until leaves move gently. Leaves that flap hard or curl show the air is too strong at that range. In a long room, place a unit at each end so the airflow forms a loop. Keep it running through the dark period to stop damp, still air settling in the canopy. Unplug the fan before servicing it. Clean the guard and impeller between crops so dust and spores are not blown back onto the plants.
Key Features
- 710 CFM Laminar Airflow: Prime Evo 8 in mixed flow fan inside.

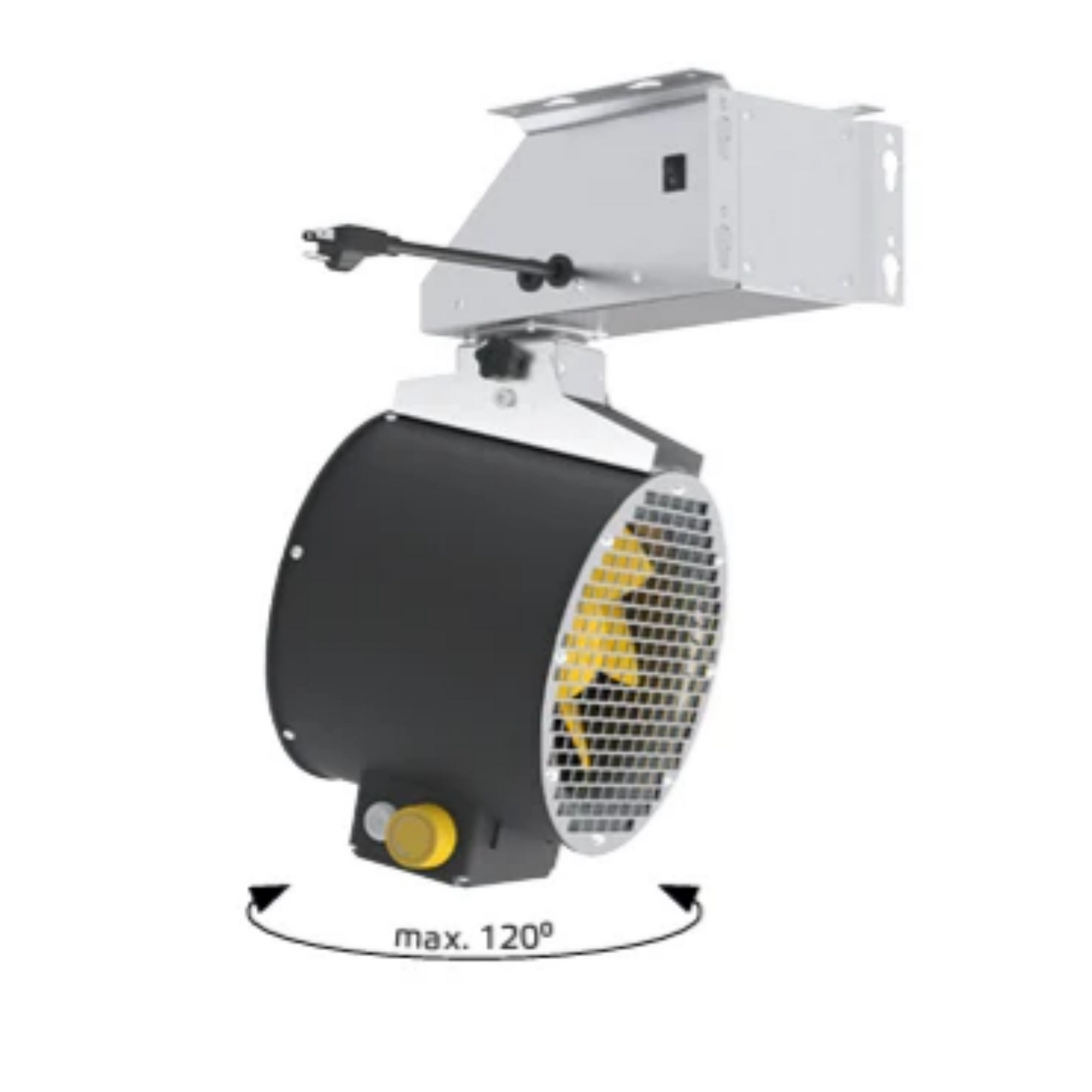

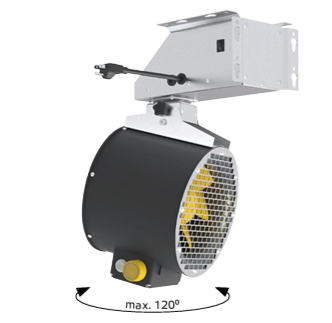

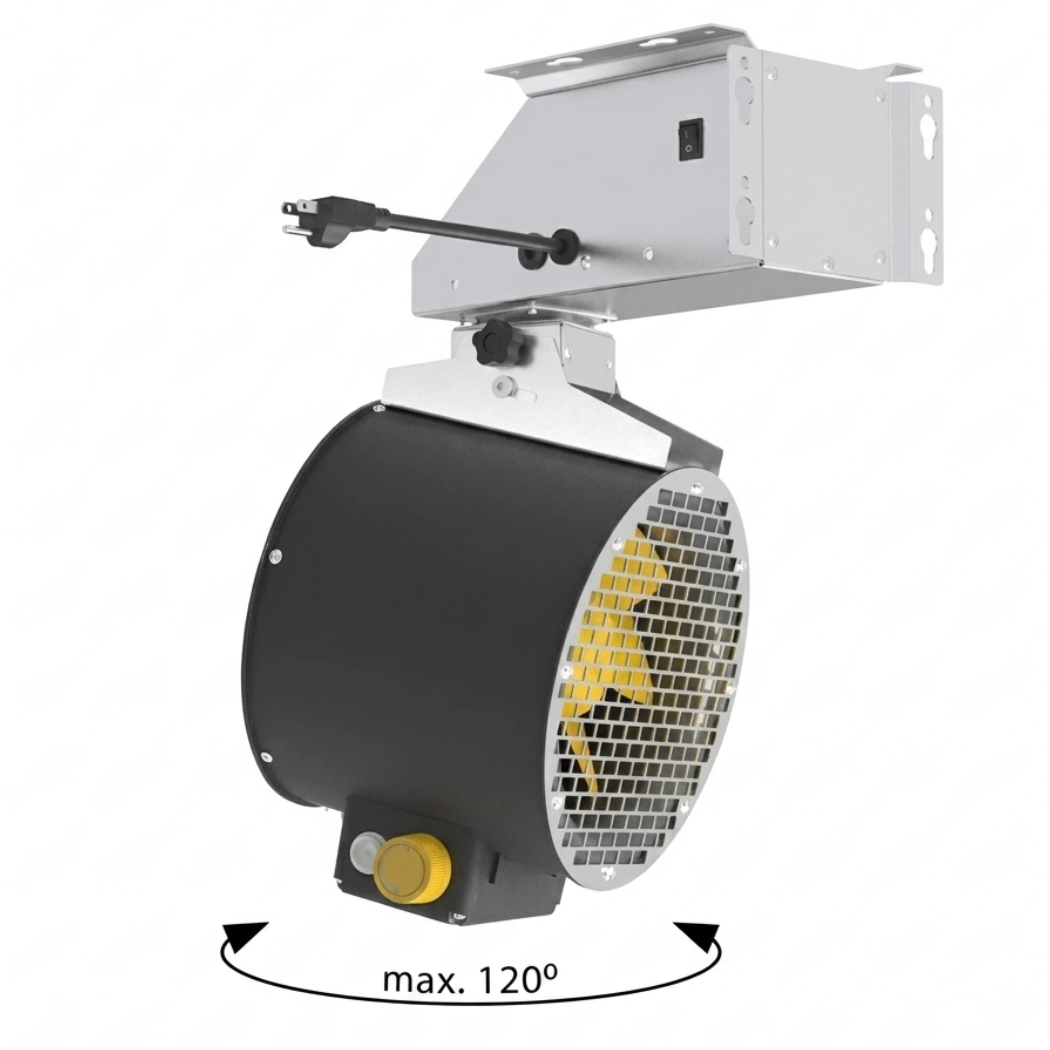

- 120 Degree Sweep: Oscillates side to side across the canopy.

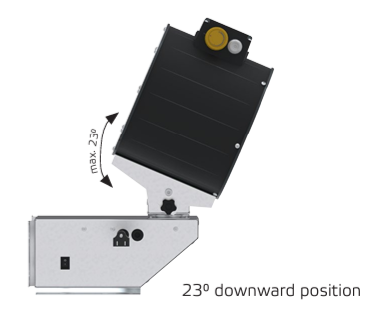

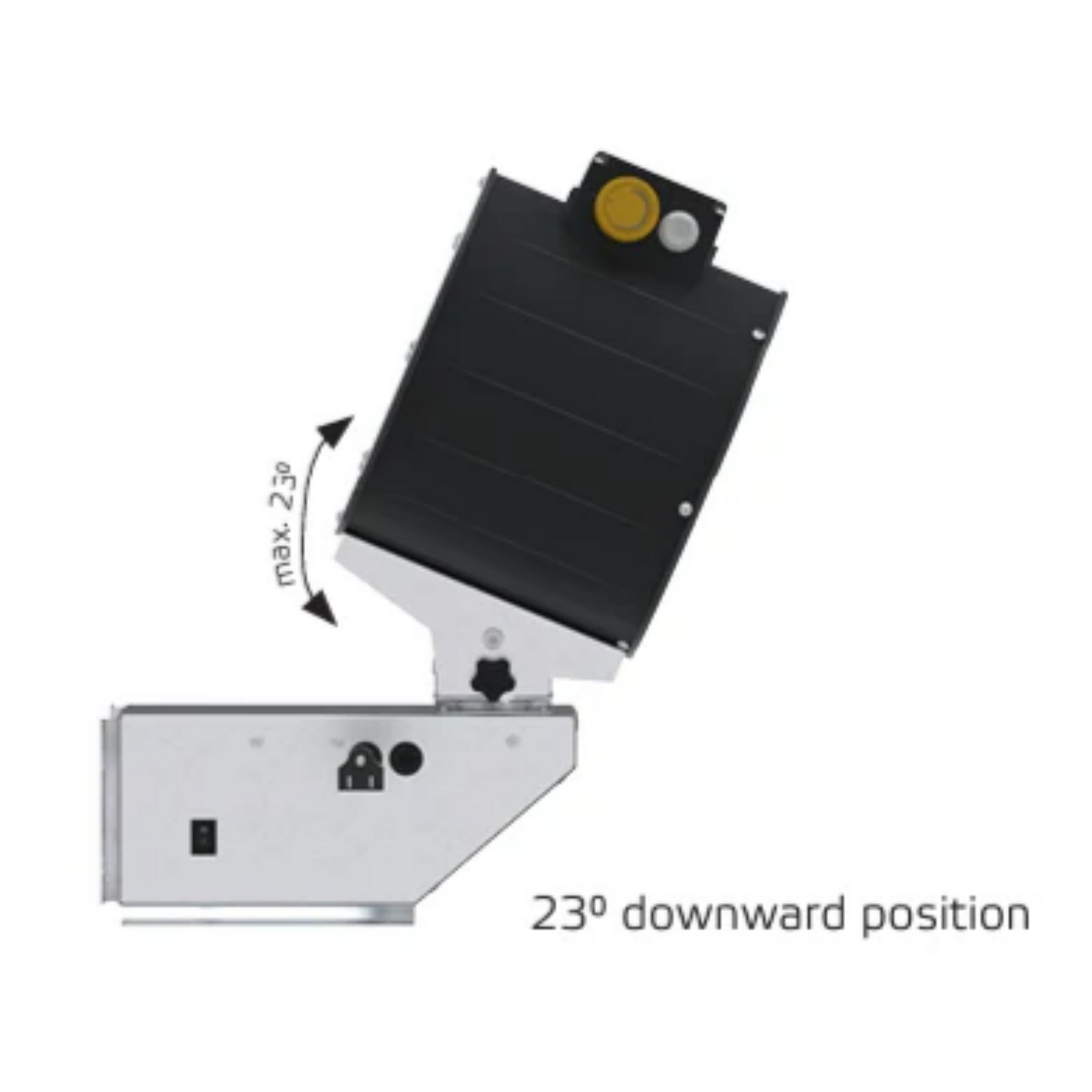

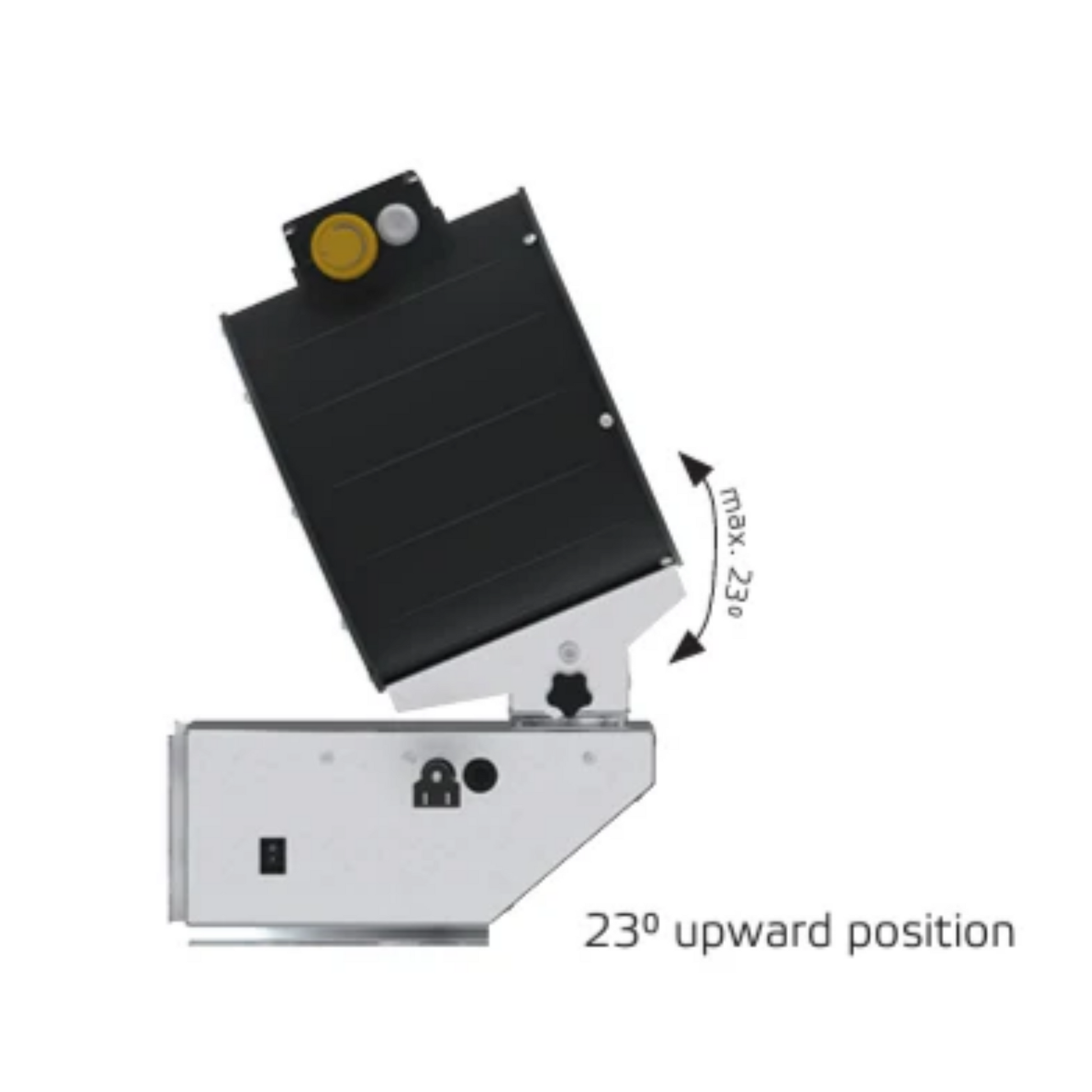

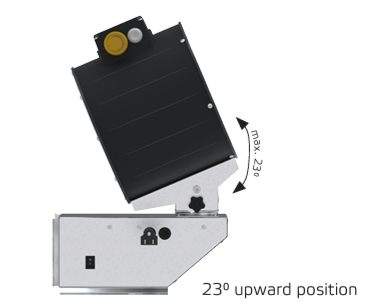

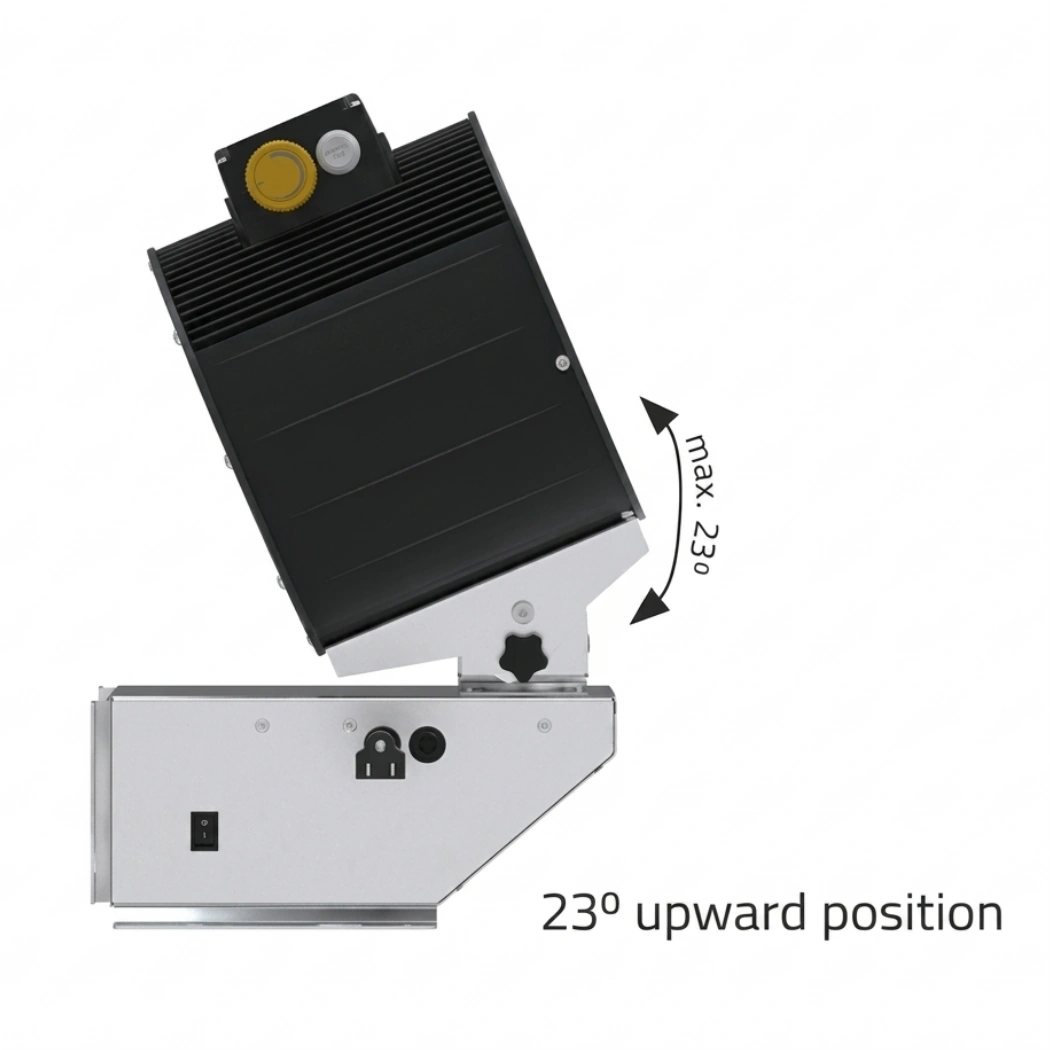

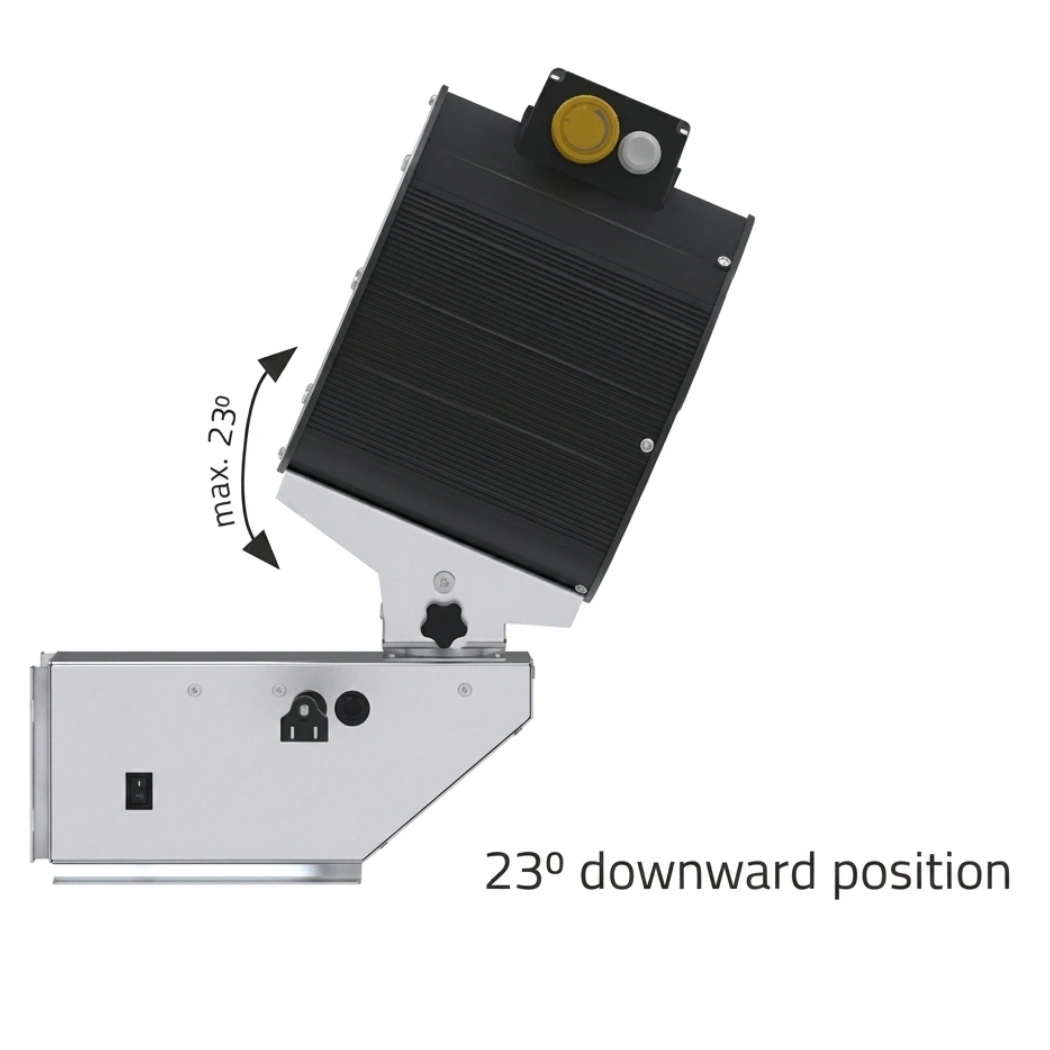

- 23 Degree Tilt: Moves up and down for vertical coverage.
- Integrated 3-Speed Switch: Sets the output at the unit.
- Ceiling or Wall Mount: Hangs above the plants.
- ETL Certified: Backed by a 3-year warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Ruck Air Movement |
| Model | Optimus |
| Part number | 147968 |
| Fan | Prime Evo 8 in mixed flow |
| Max airflow | 710 CFM (1210 m³/h) |
| Oscillation | 120° side to side, 23° up and 23° down |
| Voltage | 120V, 1-phase, 60 Hz |
| Rated power | 220 W |
| Max current | 1.9 A |
| Speed control | Integrated 3-speed switch |
| Rated speed | 3215 rpm |
| Max speed | 3370 rpm |
| Motor protection | TAI |
| Insulation class | F |
| Temperature range | -13°F to 104°F (-25°C to 40°C) |
| Mounting | Ceiling or wall |
| Weight | 14.3 lb |
| Certification | ETL |
| Warranty | 3 years |
