What Changed in the Secret Jardin DR90 3.0
The frame, mostly. Tube diameter went from 16 mm to 19 mm, which Secret Jardin measures as 26% more rigidity. The corners were re-engineered to match. A five tube concept replaced the older assembly, so spare parts now cover the whole range rather than one size.
Fitting a DR90 Grow Tent Into a 3 by 3 Space

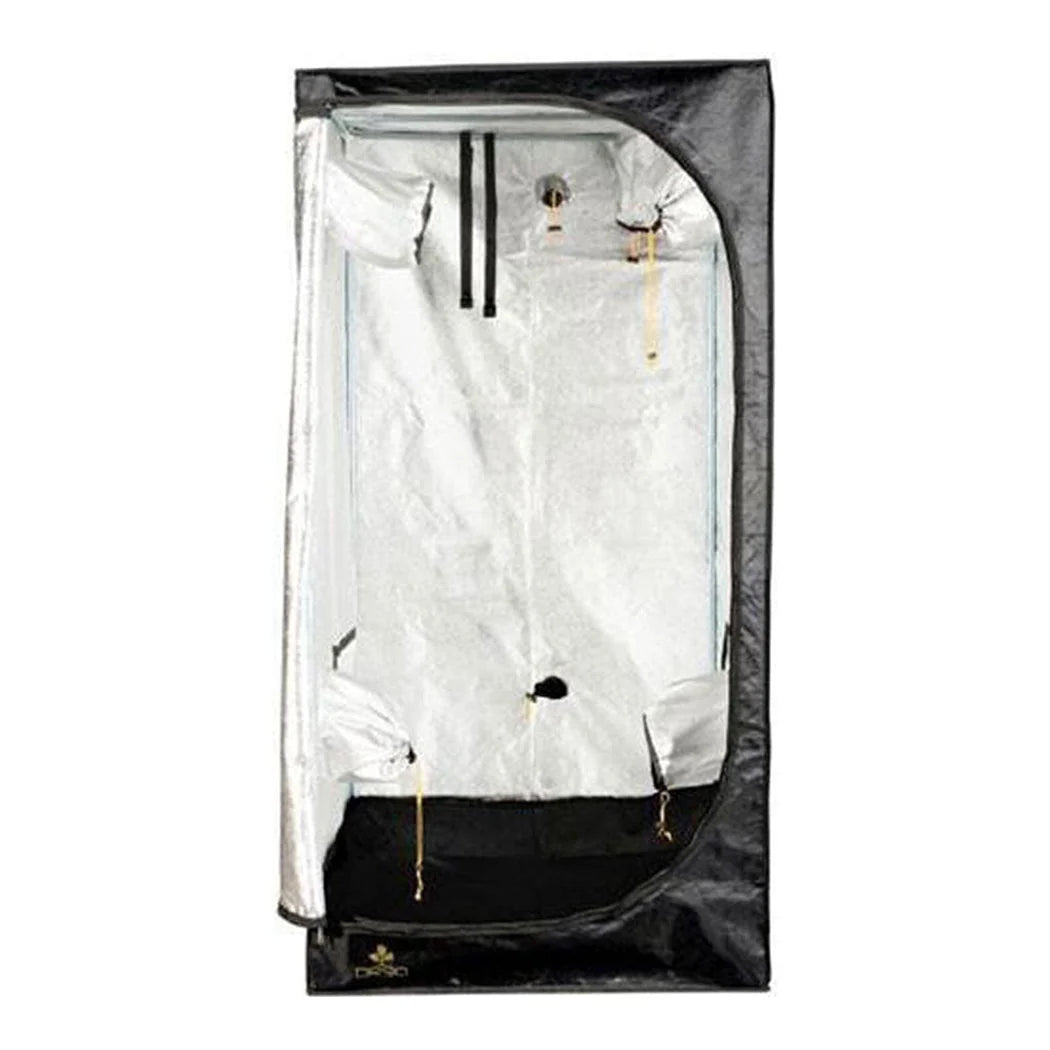

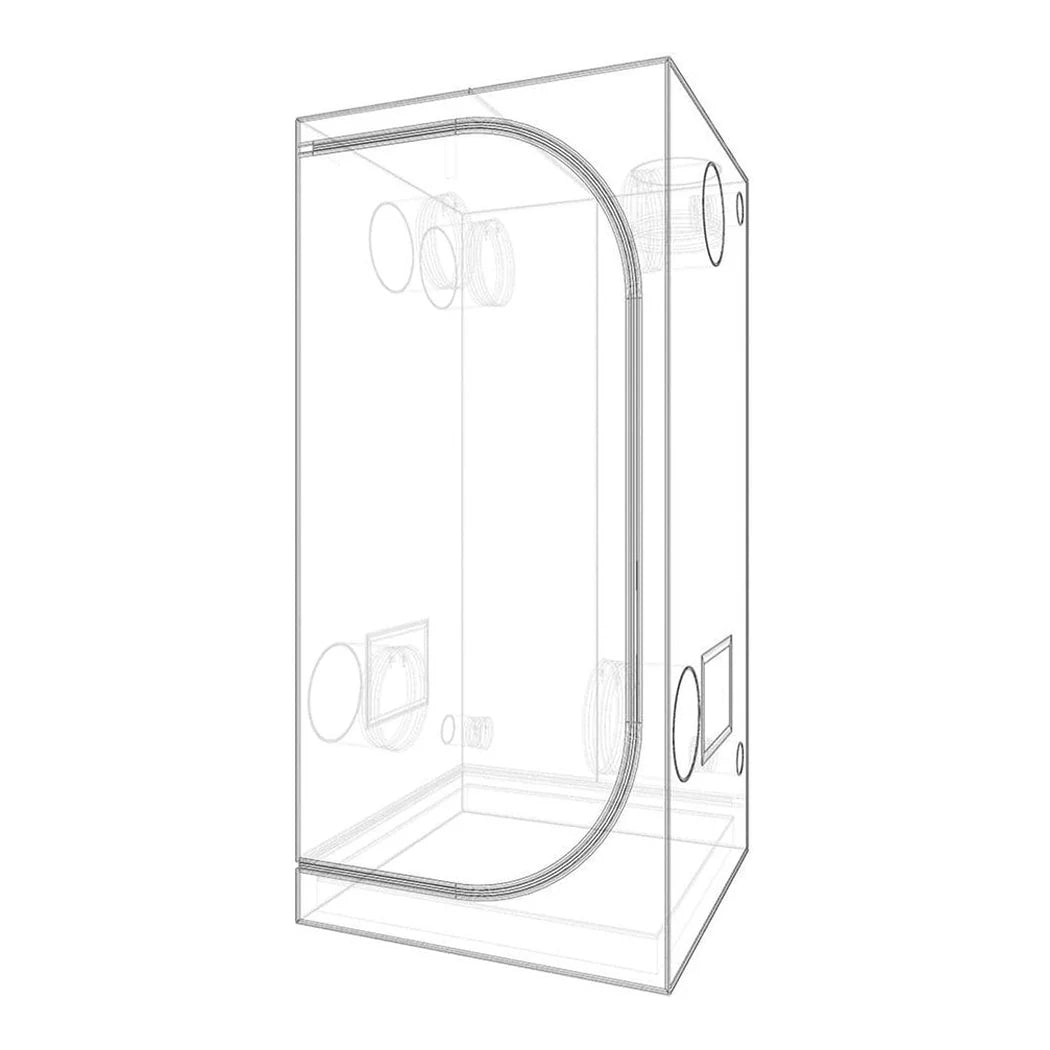

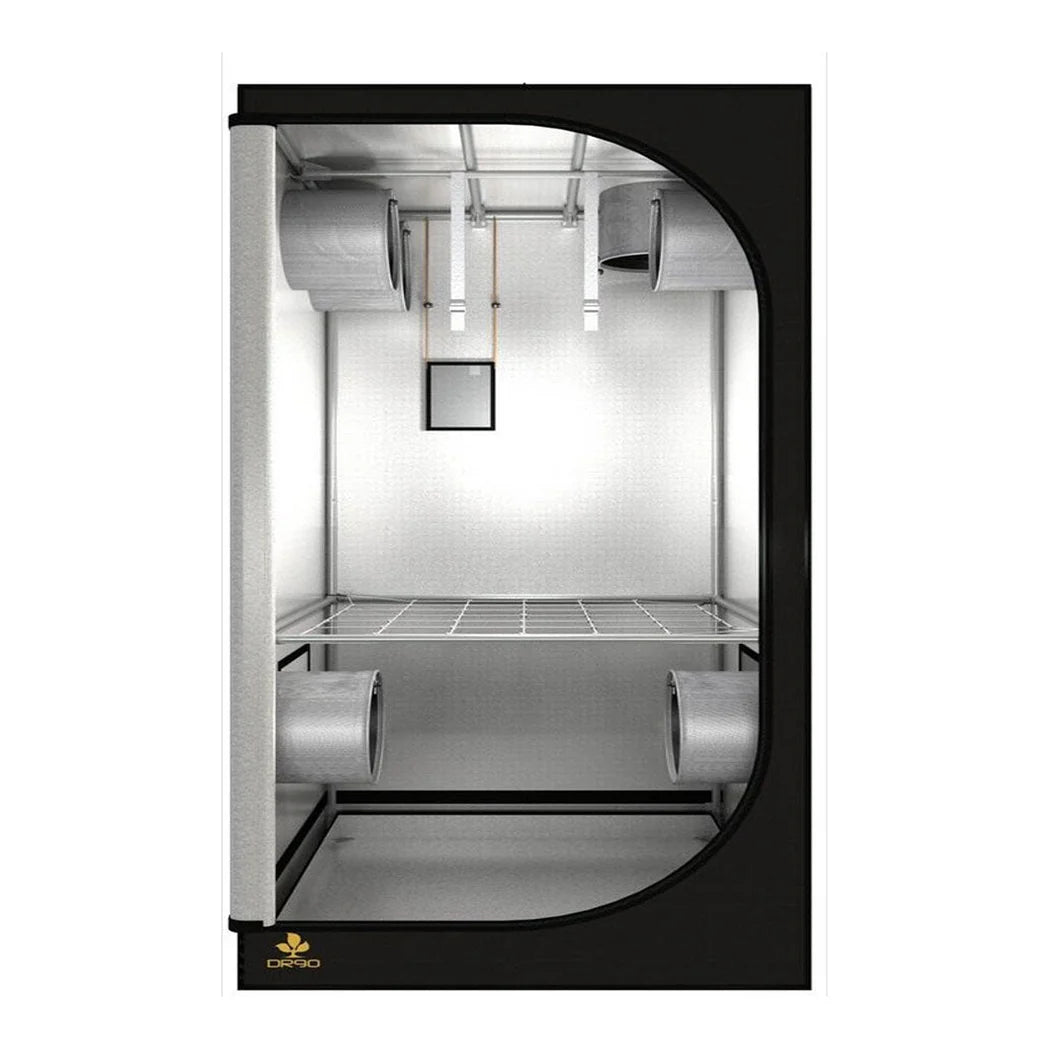

Footprint is 90 by 90 by 185 cm, or about 36 by 36 by 73 in. That is a nominal three by three with a little over six feet of headroom. That headroom decides whether a fixture and a filter both fit above the canopy. The frame carries up to 30 kg, 66 lbs of lighting and ventilation. Seven ports are cut into the walls: one for extraction, two for intake, two for cables and two for cool tubes. Lining is 95% reflective hammered mylar on 210D fabric. Secret Jardin rates that at 2.5 times the tear strength and three times the abrasion resistance of the older cloth. A webbed interior fabric handles light proofing, and a waterproof tray covers the floor. It goes up in minutes, by one person, without tools.
Key Features
- 19 mm tubes, 26% stiffer: Up from 16 mm, with re-engineered corners to match the load.
- Holds 30 kg, 66 lbs: A fixture and a filter, hung from the frame rather than the ceiling.
- Seven ports: One extraction, two intake, two cable and two cool tube.
- 95% reflective mylar on 210D: 2.5x the tear strength and 3x the abrasion resistance of the old cloth.
- Five tube concept: Spare parts cover the whole range rather than one tent size.
- Tool free assembly: One person, minutes, and it collapses as fast for storage.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Secret Jardin |
| Model | Dark Room DR90 |
| Revision | 3.0 |
| Dimensions | 90 x 90 x 185 cm, about 36 x 36 x 73 in |
| Footprint | Nominal 3 ft x 3 ft |
| Frame Tubes | 19 mm, up from 16 mm |
| Rigidity | 26% higher than the previous frame |
| Load Capacity | 30 kg, 66 lbs |
| Fabric | 210D |
| Lining | 95% reflective hammered mylar |
| Tear Strength | 2.5x the previous fabric |
| Abrasion Resistance | 3x the previous fabric |
| Light Proofing | Webbed interior fabric |
| Ports | 7 total |
| Port Breakdown | 1 extraction, 2 intake, 2 cable, 2 cool tube |
| Floor | Waterproof tray |
| Zipper | Lightproof |
| Cable Management | CableIT |
| Hanging | Hook-IT included |
| Assembly | Tool free, one person |
| Part Number | SJDR90 |
