Covering a Bench With a Seedling Heat Mat 48 x 20
Four feet of heated surface changes how a propagation bench is laid out. At 48 x 20 in this takes several standard trays end to end on one mat and one plug. A row of small pads each needs its own cord. Draw is 107 watts at 0.9 amps on 120 volts, so even a long run stays modest on the circuit. Root zone temperature lands 10 to 20 degrees over ambient. The build is waterproof and multi layer, roughly 50% thicker than the previous generation. It is aimed squarely at greenhouse benches that never really dry out. Cord length is 6 feet and the mat carries a UL listing. That listing is worth checking for on any mat that spends months under standing water, because plenty in this category do not have one.

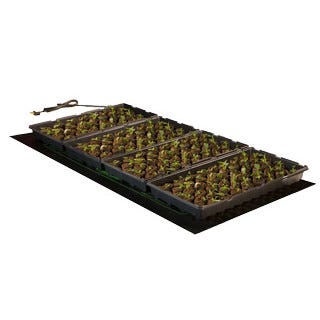

Running a Germination Mat Across Multiple Trays
The advantage of one long mat over several small ones is consistency. Every tray sits on the same heating element at the same output, so a batch germinates together instead of the corner trays lagging behind. Lay it flat with nothing bunched underneath, and keep the whole surface in contact with the trays it is heating. Do not fold it to fit a shorter bench, because a crease concentrates heat and shortens the life of the wire. Check the root zone with a probe rather than the back of your hand. Surfaces feel warmer than they are once your hands are cold from working. The trade at this size is commitment. A mat this long is awkward in a small space, and it heats the whole run even when half empty. A grower using two trays at a time is better served by a shorter mat. There is no thermostat, so pair it with a controller if the room swings.
Key Features
- 48 by 20 inch surface: Takes several trays end to end, so a whole bench run heats from one outlet.
- 107 watts at 0.9 amps: Covers four feet of bench while staying light on the circuit.
- 10 to 20 degrees over ambient: Consistent root zone lift across every tray rather than just the middle one.
- Waterproof multi layer build: About 50% thicker than the older design, aimed at wet greenhouse benches.
- UL listed: A genuine safety listing for a mat sitting under water trays continuously.
- 6 foot cord: Enough reach to site a long bench without running an extension across the floor.
Technical Specifications
| Specification | Value |
|---|---|
| Product | Seedling heat mat, 48 x 20 in |
| Part Number | MT10009 |
| Dimensions | 48 x 20 in |
| Power | 107 W |
| Current | 0.9 A |
| Voltage | 120 V |
| Temperature Rise | 10 to 20 degrees F over ambient |
| Construction | Waterproof, multi layer, about 50% thicker than the previous design |
| Cord | 6 ft |
| Certification | UL listed |
| Markings | Light, watering and planting guidance printed on the mat |
| Thermostat | Not included |
| UPC | 638104100090 |
