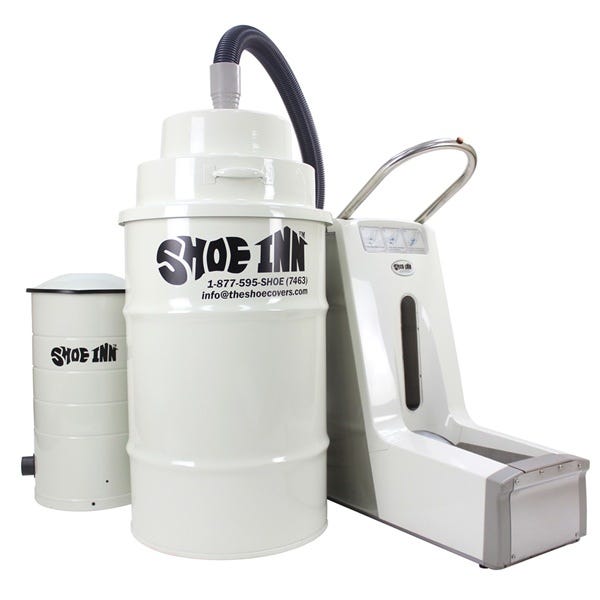

Shoe Inn ASCR-33 Automatic Shoe Cover Remover for Busy Exits
The Shoe Inn ASCR-33 strips used covers from shoes with suction, so nobody touches a dirty bootie at the exit. It is built for medium to high traffic. The system has three parts linked by a plastic vacuum hose. A stainless steel remover station stands at the exit with a safety handlebar. Behind it sit a 33 gallon interceptor canister and a separate HEPA vacuum power unit. The interceptor holds 600 or more covers, depending on cover type and how often the bag is compacted. A momentary switch in the handlebar sends a radio signal to start the suction. That signal reaches the vacuum from up to roughly 250 ft away. The power unit and canister can therefore sit in a utility space instead of the gowning area. The transmitter runs on AAA batteries rated for about ten years. The vacuum plugs into a standard 120V wall outlet. Together, the components weigh about 120 lbs.
Running the Removal Machine Day to Day
Removal takes three steps, printed on a placard on the front of the unit. Press and hold the handlebar button, then rest one heel lightly against the vacuum port. Keep loose clothing clear so it is not drawn in with the cover. Once suction grabs, lift the foot out heel first and let the machine take the cover. Repeat with the other foot and pause about a second before letting go of the button. Fabric covers need the toothed adaptor plate installed before use. When suction weakens, open the interceptor lid and fold the bag sides over the collected covers. Pressing them down frees room and stretches the time between bag changes. Keep the metal tab at the back of the interceptor uncovered when the bag goes back in. If pull stays weak, check the hose for clogs and inspect the HEPA bag in the power unit. The power unit can be mounted on a wall to save floor space. Place the signal receiver at least three feet from the power unit to avoid interference.
Key Features
- Hands-Free Removal: Suction pulls the cover off as the foot lifts out, heel first.
- 600+ Cover Interceptor: A 33-gallon canister collects used covers until the bag needs changing.
- Wireless Handlebar Switch: An RF transmitter starts the vacuum from up to about 250 ft away.
- HEPA Power Unit: A HEPA bag in the vacuum unit filters the exhaust air.
- Wall-Mount Option: The power unit can hang on a wall to free up floor space.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ASCR-33 |
| Capacity | 600+ shoe covers (varies by type and compaction) |
| Interceptor | 33 gallon, 40 in H x 19 in diameter |
| Vacuum Unit | 23 in H x 13 in diameter |
| Remover Station | 29 x 13 x 35.5 in (L x W x H, with handlebar) |
| Weight | About 120 lbs (all components) |
| Power Source | Standard 120V wall outlet |
| Switch | RF momentary switch in handlebar, AAA batteries |
| Materials | Stainless steel, powder-coated mild steel, ABS plastic |
| Recommended Use | Medium to high volume |
