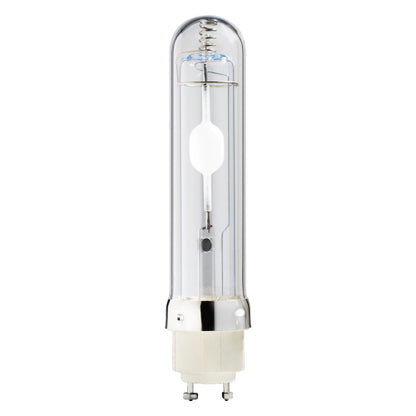

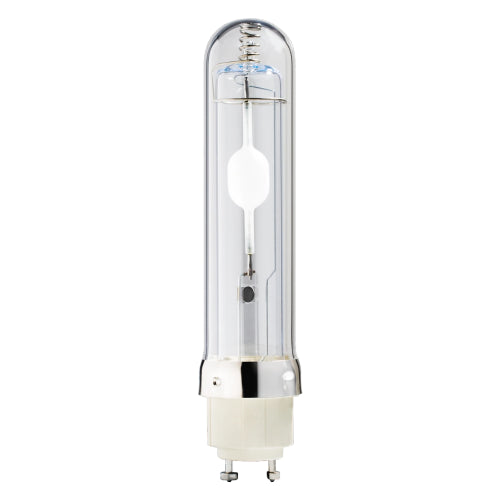

SunPulse 315 CMH 32K Lamp
SunPulse Ceramic Metal Halide Grow lamps were created by the GAS Technologies group of photo-biologists, plant scientists, mechanical and electrical engineers, gas chemists, and HID lamp designers. They are designed with true solar symmetry for true photochemical reactions in living organisms, greater molecular efficiency in operations, and better color rendering. Sun Pulse lamps are made with the highest quality materials and quality control in mind.
Bulb Designation T12
Bulb Diameter (mm) 1.5"(38mm)
Max. Overall Length (mm) 7.6"(193mm)
Light Centre Length (mm) 3.5"(89mm)
Max. Base Temperature ( ºC) 250
Max. Bulb Temperature ( ºC) 350
Luminaire Type Open /Enclosed
Lamp Wattage (W) 315W
Lamp Operating Voltage (V) 100V
Lamp Operating Current (Amps) 3.15A
Min. Open Circuit Voltage (RMS) 198V
Min. - Max. Starting Pulse (Peak KV) 3-4.0
SunPulse Ceramic Metal Halide Grow lamps were created by the GAS Technologies group of photo-biologists, plant scientists, mechanical and electrical engineers, gas chemists, and HID lamp designers. They are designed with true solar symmetry for true photochemical reactions in living organisms, greater molecular efficiency in operations, and better color rendering. Sun Pulse lamps are made with the highest quality materials and quality control in mind.
Performance Data
- Light Output (Lumens @ 100 hours): 33000
- Lamp Lumens Per Watt: 105
- Rated Life (Hrs. @ 10 Hr. /Start): 20000
- Correlated Colour Temperature (K): 3200K
- Colour Rendering Index (CRI) or (Ra): ı80
- Typical Hot Restart Time (Minutes): 6-8
- Burning Position: Universal
Physical Data / Requirements
Base Designation PGZX18Bulb Designation T12
Bulb Diameter (mm) 1.5"(38mm)
Max. Overall Length (mm) 7.6"(193mm)
Light Centre Length (mm) 3.5"(89mm)
Max. Base Temperature ( ºC) 250
Max. Bulb Temperature ( ºC) 350
Luminaire Type Open /Enclosed
Lamp Electrical Data / Requirements
ANSI Standard C182/OLamp Wattage (W) 315W
Lamp Operating Voltage (V) 100V
Lamp Operating Current (Amps) 3.15A
Min. Open Circuit Voltage (RMS) 198V
Min. - Max. Starting Pulse (Peak KV) 3-4.0
