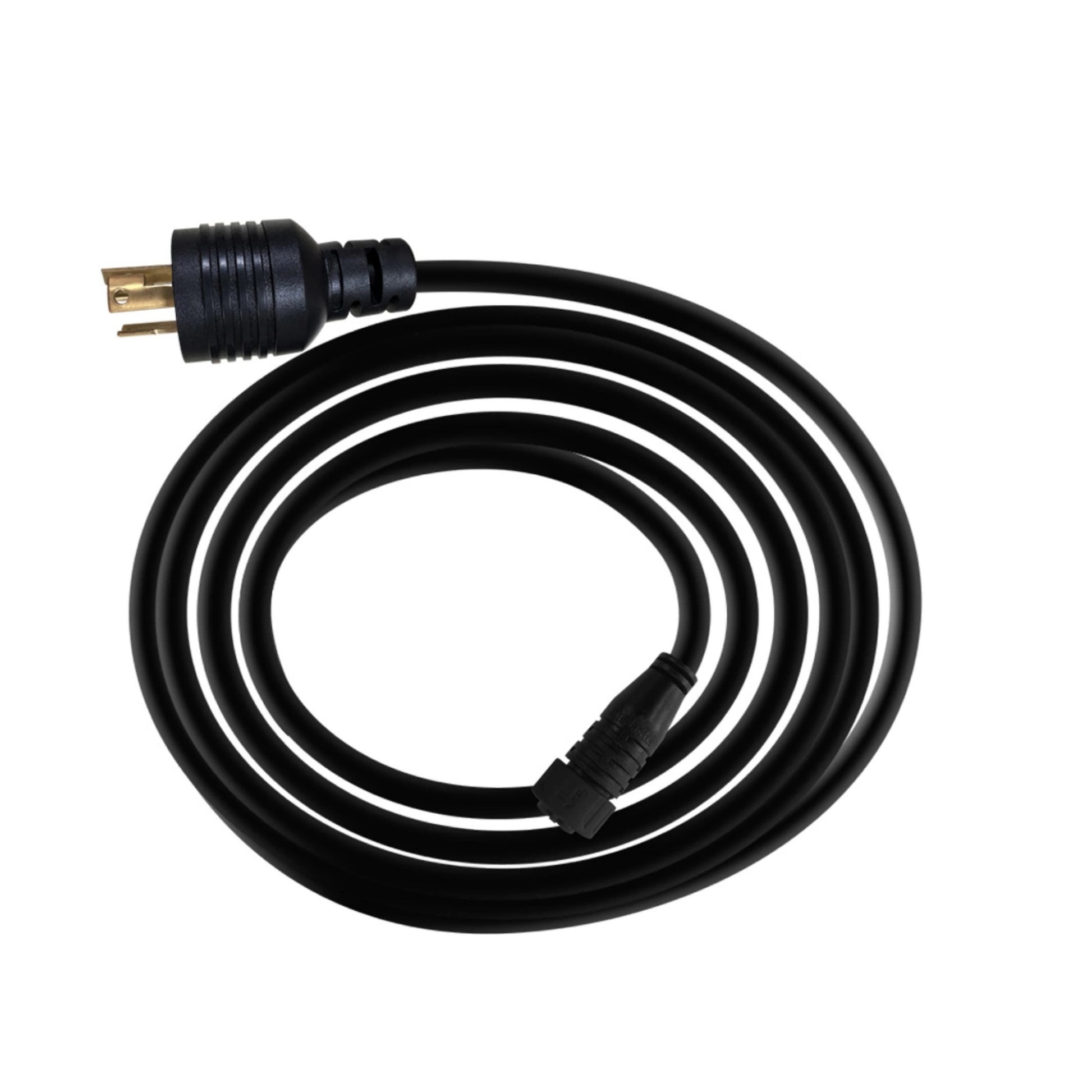

ThinkGrow 12 ft 277V Power Cord with NEMA L7-15P Locking Plug
ThinkGrow's EC-277 is the 12 ft (3.66 m) cord that plugs the brand's auto-sensing 100-277V LED fixtures into a NEMA L7-15P locking 277V circuit. Compatible fixtures include Model-I, Model-I Plus, Model-H, Model-H Plus, and Model-V. The L7-15 plug is rated to 15A and twist-locks into its receptacle. That matters more than it sounds. A hung 600W LED on a vibrating ceiling truss eventually shakes a regular straight-blade plug loose.
Why 277V Wiring Pays Off in Multi-Fixture Rooms
On 277V, current per fixture drops by half. A 20A breaker holds two to three times more lights before tripping. Voltage drop across a long ceiling run stays inside the 3% the NEC suggests. The 12 ft length is intentional. Growers typically mount the L7-15R receptacle on the ceiling. The cord drops with enough slack to come out the side of the fixture. No coiled hot wire on top of the heatsink.
Key Features
- Length: 12 ft (3.66 m), enough drop from a ceiling outlet to a hung fixture without coiling
- Voltage: 277V AC nominal, single-phase commercial wiring
- Plug type: NEMA L7-15P locking, 2-pole 3-wire grounding — twist-locks against vibration
- Amperage: 15A per the L7-15 standard
- Fixture compatibility: All ThinkGrow auto-sensing 100-277V fixtures (Model-I, Model-I Plus, Model-H, Model-H Plus, Model-V)
Technical Specifications
| Specification | Value |
|---|---|
| Model | EC-277 |
| Length | 12 ft (3.66 m) |
| Voltage | 277V AC |
| Amperage | 15A |
| Plug Type | NEMA L7-15P (locking, 2-pole 3-wire grounding) |
| Configuration | 2-pole, 3-wire grounding (Hot, Neutral, Ground) |
| Compatibility | ThinkGrow Model-I, Model-I Plus, Model-H, Model-H Plus, Model-V (100-277V auto-sensing) |
