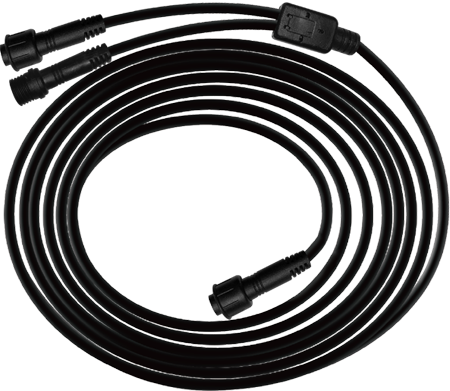

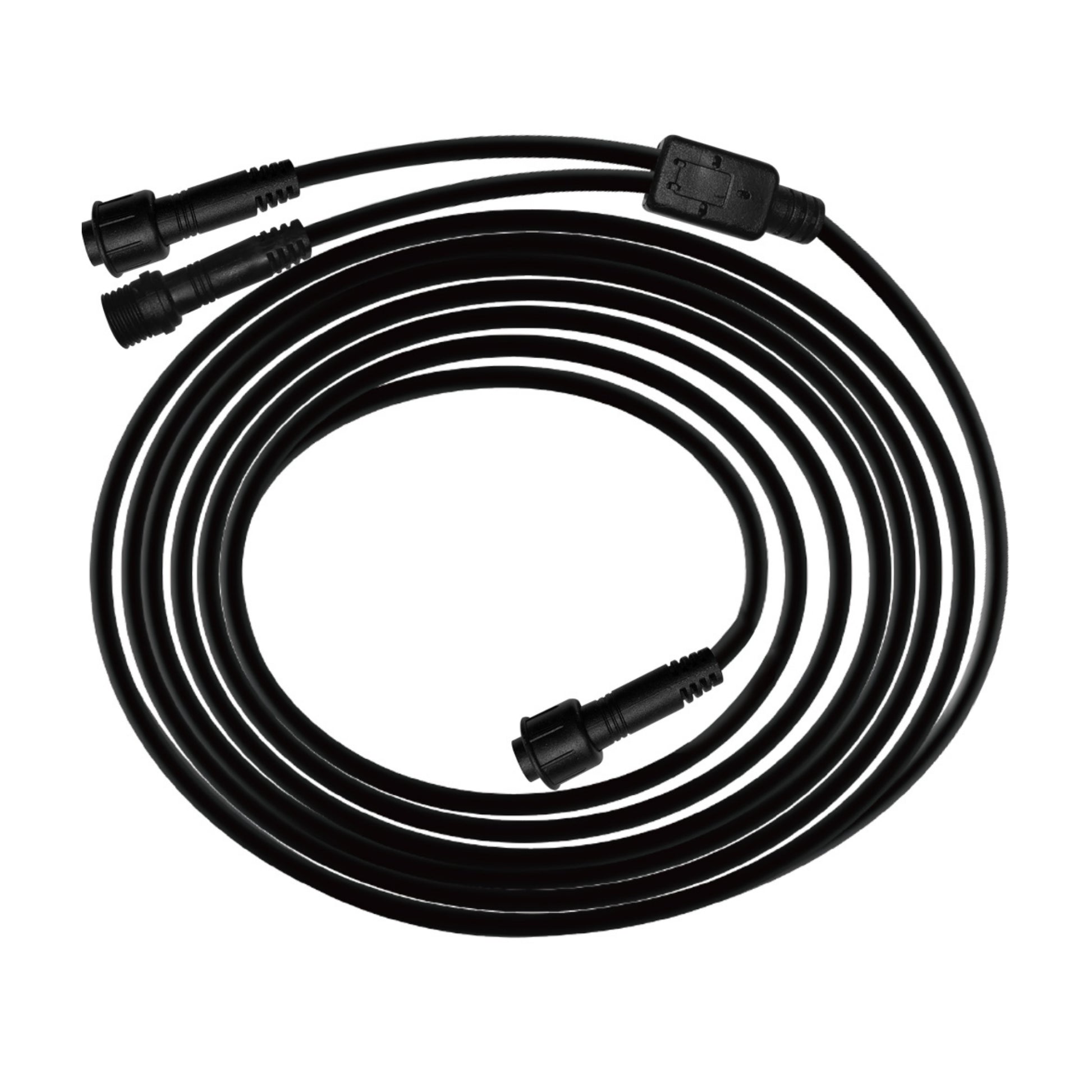

ThinkGrow ECS-7 12 ft Daisy Chain Control Cable for LMA-T Bridges
ThinkGrow's ECS-7 is the 12 ft (3.66 m) low-voltage control cable. It bridges a TrolMaster LMA-T lighting adapter to ThinkGrow's Model-I, Model-H, Model-V, and Model-W LED fixtures. RJ12 on the controller side, a 4-pin IP65 threaded waterproof connector on the fixture side. Daisy-chain pass-through at every fixture lets a single controller line sync dim levels across an entire room.
Where the ECS-7 Sits in a TrolMaster Daisy Chain
Standard layout: Hydro-X controller into LMA-T adapter into ECS-7 to first fixture into ECS-7 fixture-to-fixture down the row. Growers typically place the LMA-T near the controller and run the ECS-7 along the same ceiling truss as the power cords. The IP65 fixture connector matters when the room runs evaporative cooling or any supplemental humidity. Water on a non-sealed signal connector eventually corrodes pins and trips intermittent dimming bugs that look like driver failures. Signal cable only, not power.
Key Features
- Cable length: 12 ft (3.66 m), enough to bridge LMA-T to first fixture or fixture-to-fixture in a typical row
- Connectors: RJ12 controller-side, 4-pin IP65 threaded waterproof fixture-side
- Function: Daisy-chain control signal — syncs dim levels and schedules across the run
- Compatible fixtures: ThinkGrow Model-I, Model-I Plus, Model-H, Model-H Plus, Model-V, Model-W
- Bridge requirement: Pairs with TrolMaster LMA-T adapter on the Hydro-X / Hydro-X Pro side
Technical Specifications
| Specification | Value |
|---|---|
| Model | ECS-7 |
| Length | 12 ft (3.66 m) |
| Connector | RJ12 to 4-pin IP65 threaded waterproof |
| Function | Low-voltage daisy-chain control signal — not power |
| Bridge | TrolMaster LMA-T to ThinkGrow LED fixtures |
| Compatible Fixtures | ThinkGrow Model-I, Model-I Plus, Model-H, Model-H Plus, Model-V, Model-W |
| Ingress Rating | IP65 fixture-side connector |
