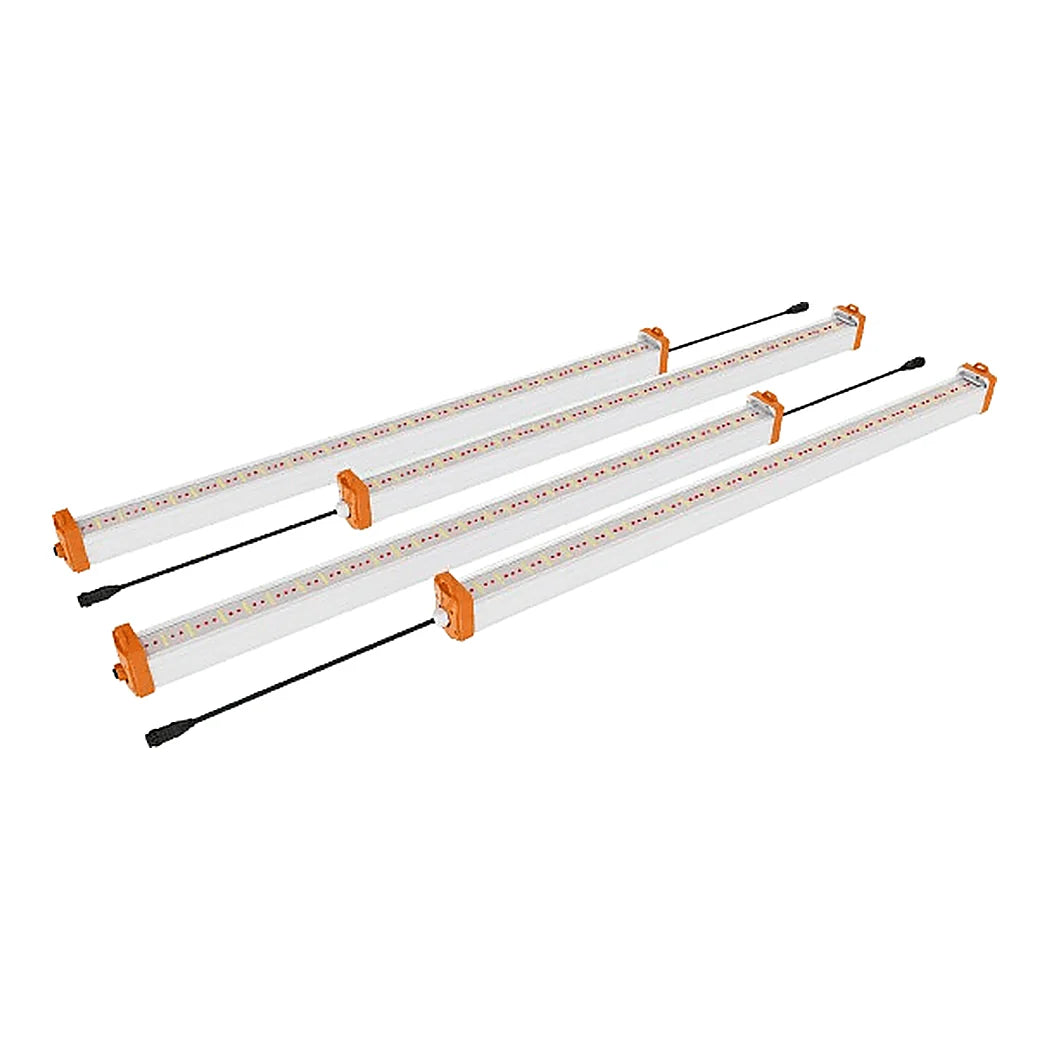

ThinkGrow ICL-120 4-Pack Outfits Full Rows of Under Canopy Lighting
Lower branches in dense flower rooms often finish small and airy because overhead light never reaches them. Under canopy bars fix that by lighting the plant from below. This pack holds four ICL-120 bars, enough to start a full row or several benches at once. Each bar draws 120 watts and puts out 348 µmol/s from one full spectrum channel. Together the four bars deliver 1,392 µmol/s from 480 watts of input. Efficacy is 2.9 µmol/J, and the 120-degree beam spreads the output across the lower canopy. Every bar has a built-in driver that autosenses 100–277V with a power factor of at least 90%. The housing is rated IP66 for rooms that see heavy spraying and washdowns. ThinkGrow rates the diodes at L90 beyond 54,000 hours with a 5-year warranty. The bars operate from -4 to 104°F at up to 90% humidity.
Laying Out Commercial Under Canopy Lights
Plan the rows before plants get too dense to work underneath. Each bar sits on a pair of TSD-3 vertical stands, which are sold separately. The stands set the bar at 8, 10, 12 or 14 inches off the floor or bench. Bars link end to end through male and female ports that lock together. Place the output of one bar right next to the input of the next before connecting them. Power cords are not included, so plan one feed for the first bar in each run. Keep enough clearance that leaves and flowers never rest on the lens. Clean the lens between cycles, since spray residue and leaf debris reduce output. The full carton measures 49.53 × 11.19 × 10.24 in and weighs 25.95 lbs. For a single bench or a trial row, the ICL-120 is also offered as a 2-pack. Our under canopy LED guide compares this bar with other options.
Key Features
- Four Bars per Carton: Outfits a full row or several benches in one shipment.
- 348 µmol/s per Bar: 2.9 µmol/J from a 120W full spectrum bar.
- 120° Upward Beam: Spreads light across the lower canopy.
- Built-In Driver: Autosensing 100–277V, power factor 90% or higher.
- IP66 and 5-Year Warranty: Sealed for washdowns and rated L90 beyond 54,000 hours.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | ICL-120 |
| Quantity | 4 × ICL-120 bars |
| Input power | 120W per bar (480W total) |
| PPF | 348 µmol/s per bar |
| Efficacy | 2.9 µmol/J |
| Beam angle | 120° |
| Spectrum | Single full spectrum channel |
| Input voltage | Autosensing 100–277V~ |
| Power factor | ≥90% |
| IP rating | IP66 |
| Bar dimensions | 43.7 × 3.72 × 2.74 in |
| Lifetime | L90 >54,000 hours |
| Operating environment | -4–104°F (-20–40°C), ≤90% RH |
| Package size | 49.53 × 11.19 × 10.24 in |
| Package weight | 25.95 lbs (11.77 kg) |
| Warranty | 5 years |
| Not included | Power cords, TSD-3 stands |
