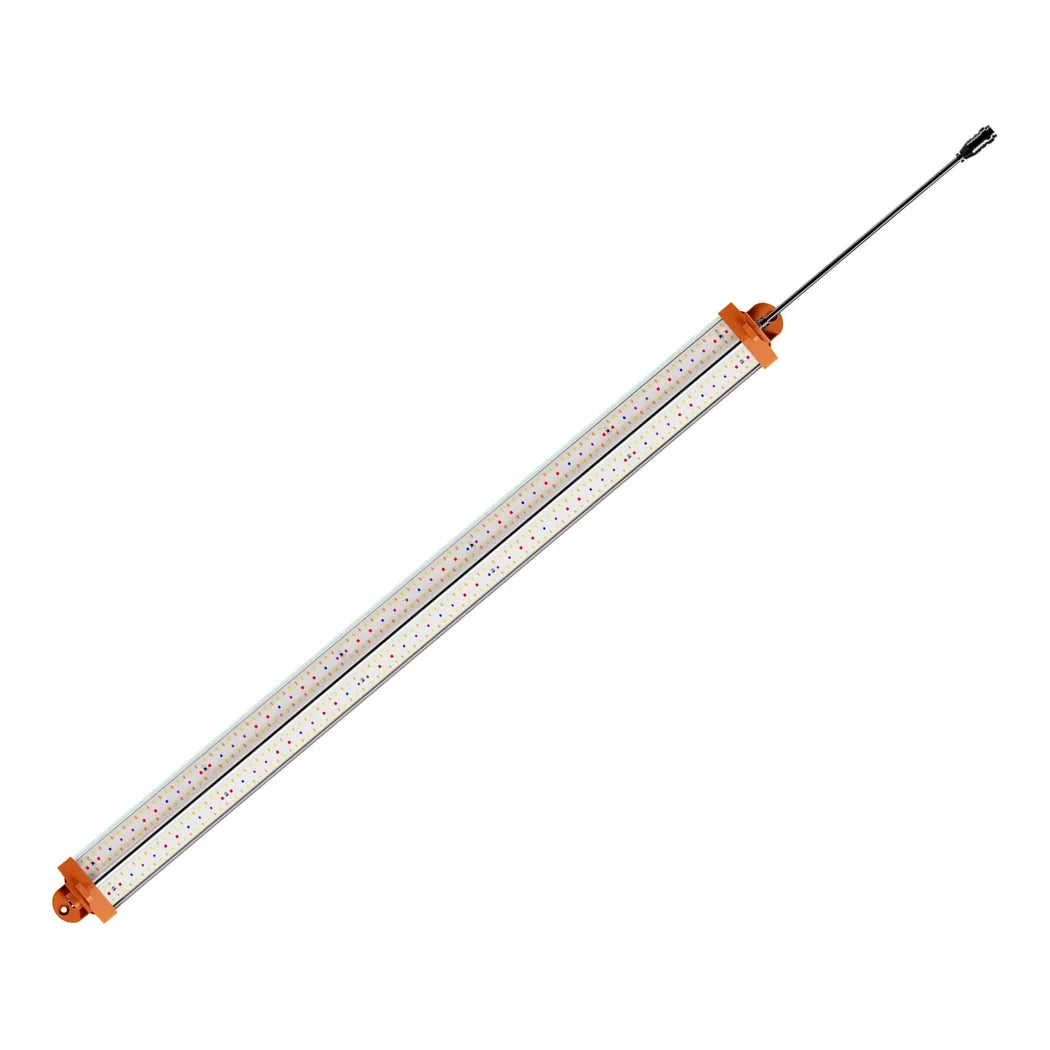

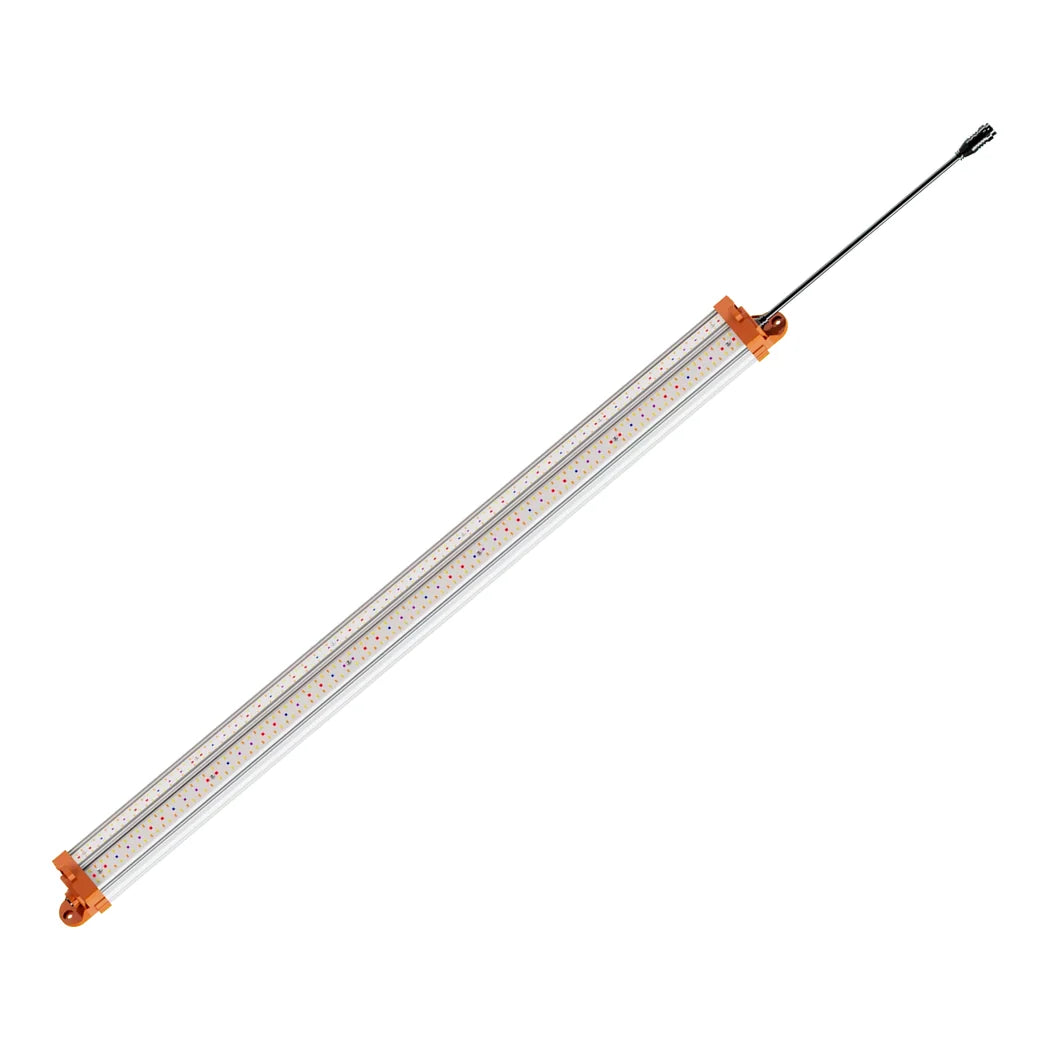

ThinkGrow ICL-150 Works Above, Beside or Under the Canopy
Most supplemental bars are built for one position, but plant structure changes through the cycle. The ICL-150 can move with it. Its wide 150-degree beam lets it serve as a top light, a side light or an under canopy light. Hydrofarm lists four spectrum channels: full spectrum, deep red, far red and UV. The bar draws 120 watts and puts out up to 360 µmol/s of PPF. ThinkGrow rates it at up to 3.0 µmol/J, depending on the spectrum setting. The driver is built in and autosenses 100–277V, with a power factor of at least 90%. A sealed cover protects the diodes, and the housing is rated IP66. The bar itself measures about 45.3 × 3.55 × 2.72 in. ThinkGrow rates the diodes at L90 beyond 54,000 hours with a 5-year warranty.
Mounting a Multi-Purpose LED Grow Bar
The ICL-150 offers three mounting options. For top lighting, hook the two mounting holes and hang the bar from a secure point with rope, wire rope or cable. On Unistrut, bolt the bar to 1-5/8 in channel with user-supplied 1/4-20 screws and nuts. For under canopy use, set it on a pair of TSD-3 vertical stands at 8, 10, 12 or 14 inches. Test the support after hanging to confirm it carries the bar's full weight. Bars daisy-chain by locking the output port of one to the input port of the next. The power cord and stands are not included. The operating range is 32–104°F at up to 90% humidity. The boxed bar measures 46.54 × 4.09 × 3.03 in and weighs 6.50 lbs. For a single full spectrum channel at a narrower 120-degree beam, the ICL-120 is the simpler option. The attached tech sheet covers specifications and every mounting method.
Key Features
- 150° Beam: Works as a top, side or under canopy light.
- Four Spectrum Channels: Full spectrum, deep red, far red and UV, per Hydrofarm.
- Up to 360 µmol/s: 120W input at up to 3.0 µmol/J.
- Built-In Driver: Autosensing 100–277V, power factor 90% or higher.
- IP66 Sealed: Protected diodes for humid, washdown-heavy rooms.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | ICL-150 |
| Input power | 120W |
| PPF | Up to 360 µmol/s |
| Efficacy | Up to 3.0 µmol/J |
| Beam angle | 150° |
| Spectrum channels | Full spectrum, deep red, far red, UV |
| Input voltage | Autosensing 100–277V~ |
| Power factor | ≥90% |
| IP rating | IP66 |
| Fixture size | 45.3 × 3.55 × 2.72 in |
| Mounting | Hanging, Unistrut (1/4-20 hardware) or TSD-3 stands |
| Lifetime | L90 >54,000 hours |
| Operating environment | 32–104°F (0–40°C), ≤90% RH |
| Package size | 46.54 × 4.09 × 3.03 in |
| Package weight | 6.50 lbs (2.95 kg) |
| Warranty | 5 years |
| Not included | Power cord, TSD-3 stands |
