ThinkGrow TLB-3 Brings Four-Channel Model One Light to Shorter Runs

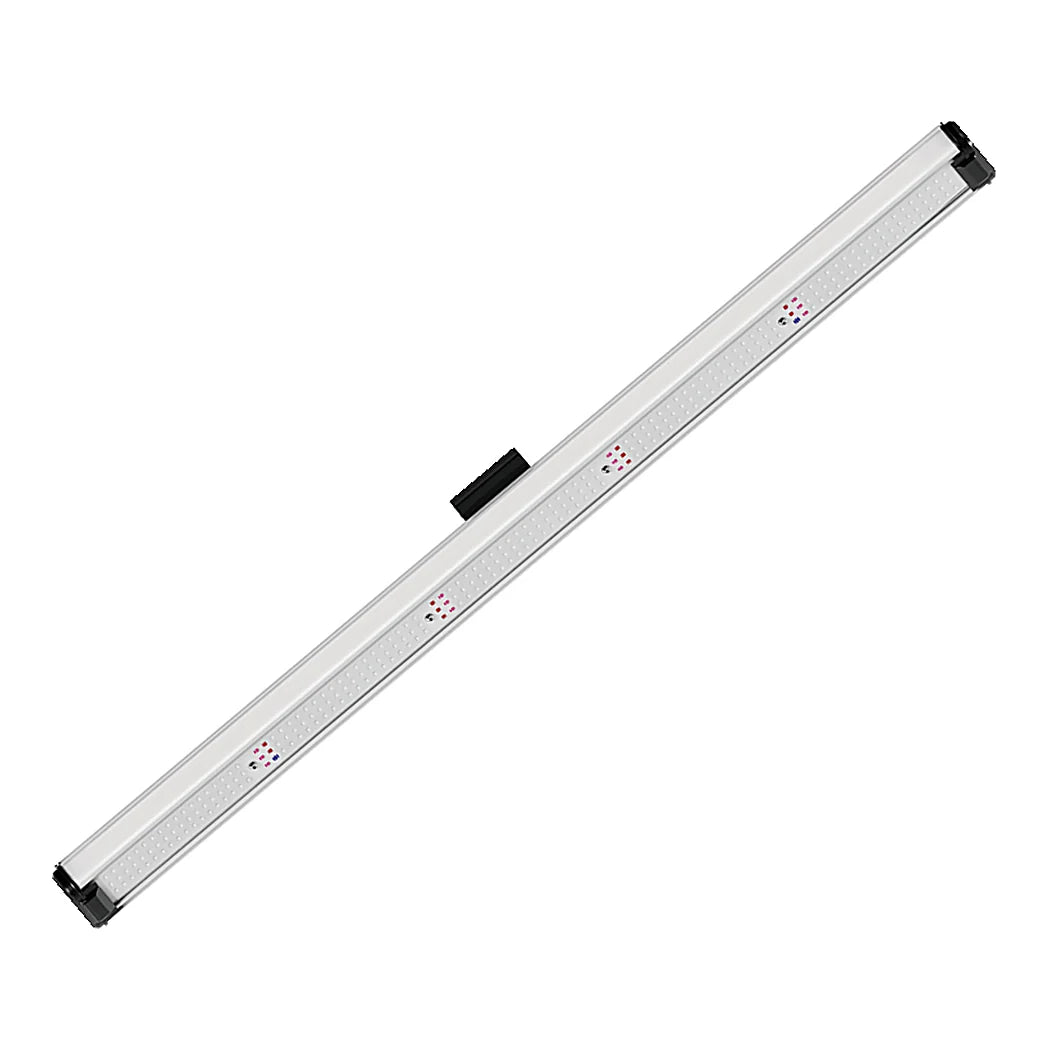

Not every bench or rack has room for a 4 ft light bar. The TLB-3 is the 2.5 ft member of the Model One bar family. It draws 90 watts and puts out up to 261 µmol/s of PPF. Four spectrum channels share the board: white, deep red, far red and UV. Paired with a TLD-4 driver, each channel dims on its own from 0 to 100%. That lets a grower add far red or UV at set times without changing fixtures. ThinkGrow rates the TLD-4 and TLB-3 combination at up to 2.9 µmol/J. The bar is sealed to IP56 and rated at L90 for more than 54,000 hours. The manual lists a gross weight of 1.43 lbs for one bar. ThinkGrow positions it as supplemental top lighting for indoor rooms and greenhouses.
Setting Up a 2.5 ft LED Grow Bar
Mount the TLD-4 driver on a Model One mounting bar or on its hangers first. Press the light bar into the driver until it clicks and sits fully seated. Together the driver and bar form a fixture about 30.15 in long and 4.04 in tall. Hang it more than six inches above the canopy, as the manual requires. Link neighboring drivers with TDC-2, TDC-3 or TDC-4 daisy-chain cords. A TDC-120, TDC-240 or TDC-277 splitter cord feeds power and the controller signal to each group. The drivers accept 100–277VAC, so the same parts suit common commercial voltages. A TrolMaster controller then sets intensity and spectrum on a schedule. The driver and power cords are sold separately. Rooms that need longer coverage can run the longer TLB-1 or TLB-2 on the same drivers. Full wiring and spacing diagrams are in the Model One manual attached below.
Key Features
- Four Spectrum Channels: White, deep red, far red and UV on a single bar.
- Up to 261 µmol/s: 90W of output at up to 2.9 µmol/J with a TLD-4 driver.
- Compact Length: Fits benches and racks too short for 4 ft Model One bars.
- IP56 Sealed: Suitable for damp grow rooms and greenhouses.
- Swappable Spectrum: Clicks into a Model One driver, so the bar can be changed later without rewiring.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | TLB-3 |
| Length class | 2.5 ft (0.76 m) |
| Input power | 90W |
| PPF | Up to 261 µmol/s |
| Efficacy (with TLD-4) | Up to 2.9 µmol/J |
| Spectrum channels | White, deep red, far red, UV |
| Compatible driver | TLD-4 (sold separately) |
| Fixture size with TLD-4 | 30.15 × 2.06 × 4.04 in |
| IP rating | IP56 |
| Mounting height | >6 in (15.2 cm) above canopy |
| Lifetime | L90 >54,000 hours |
| Operating temperature | 32–104°F (0–40°C) |
| Gross weight | 1.43 lbs (0.65 kg) |
| Package contents | 1 × TLB-3 light bar |
