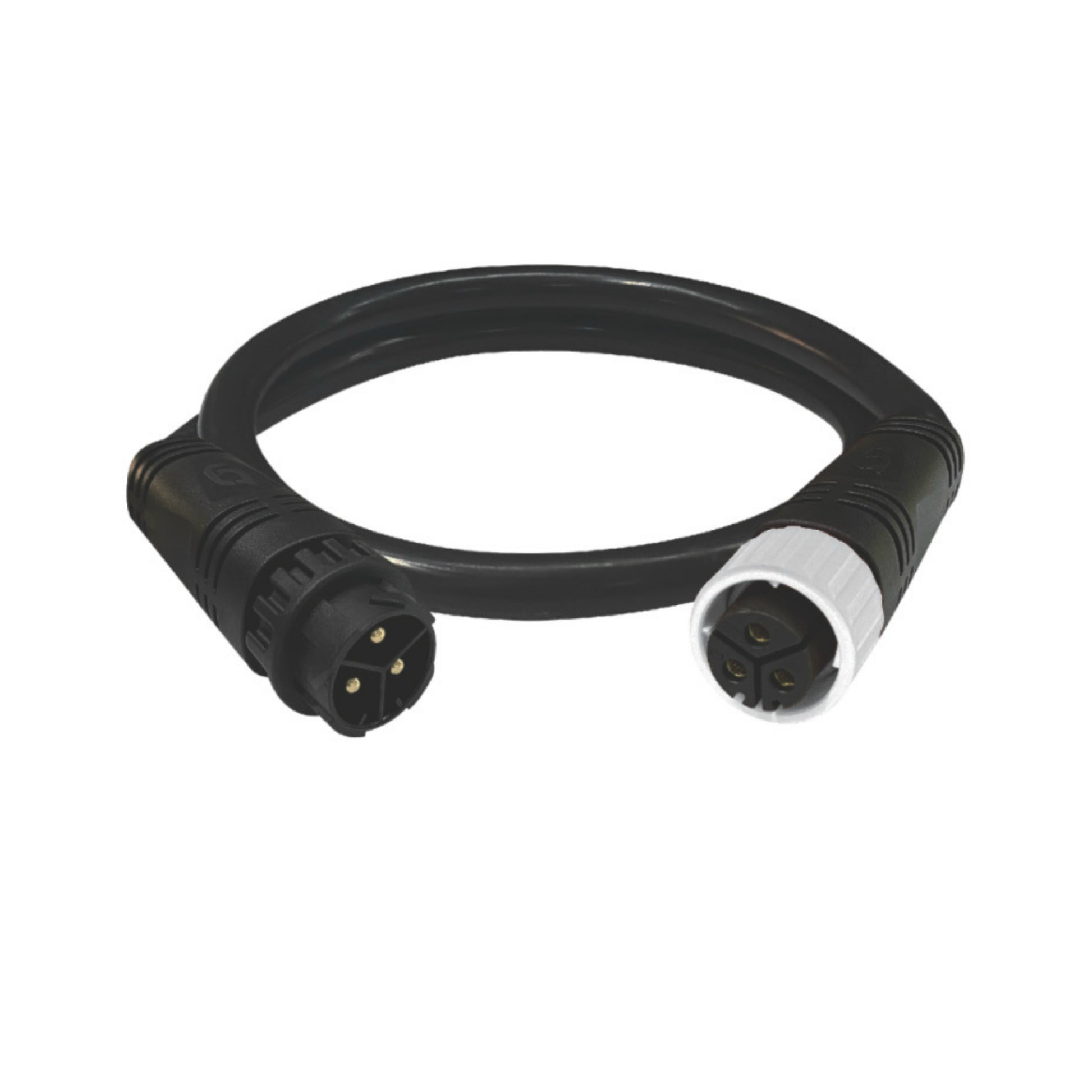

ThinkGrow DEA-14 3 ft 15A AWG#14 Extension Power Cord
ThinkGrow's DEA-14 is the 3 ft (0.9 m), 15A, 14 AWG daisy-chain cord. It bridges fixture-to-fixture across 100-277V auto-sensing ThinkGrow LEDs. Short on purpose. The 3 ft length is the close-spaced jumper between two adjacent fixtures, sized to keep wire bundles tight against the ceiling. ETL-certified and IP67 waterproof at the connectors so spray from a foliar pass does not compromise the link.
DEA-14 in a Real Daisy-Chain Layout

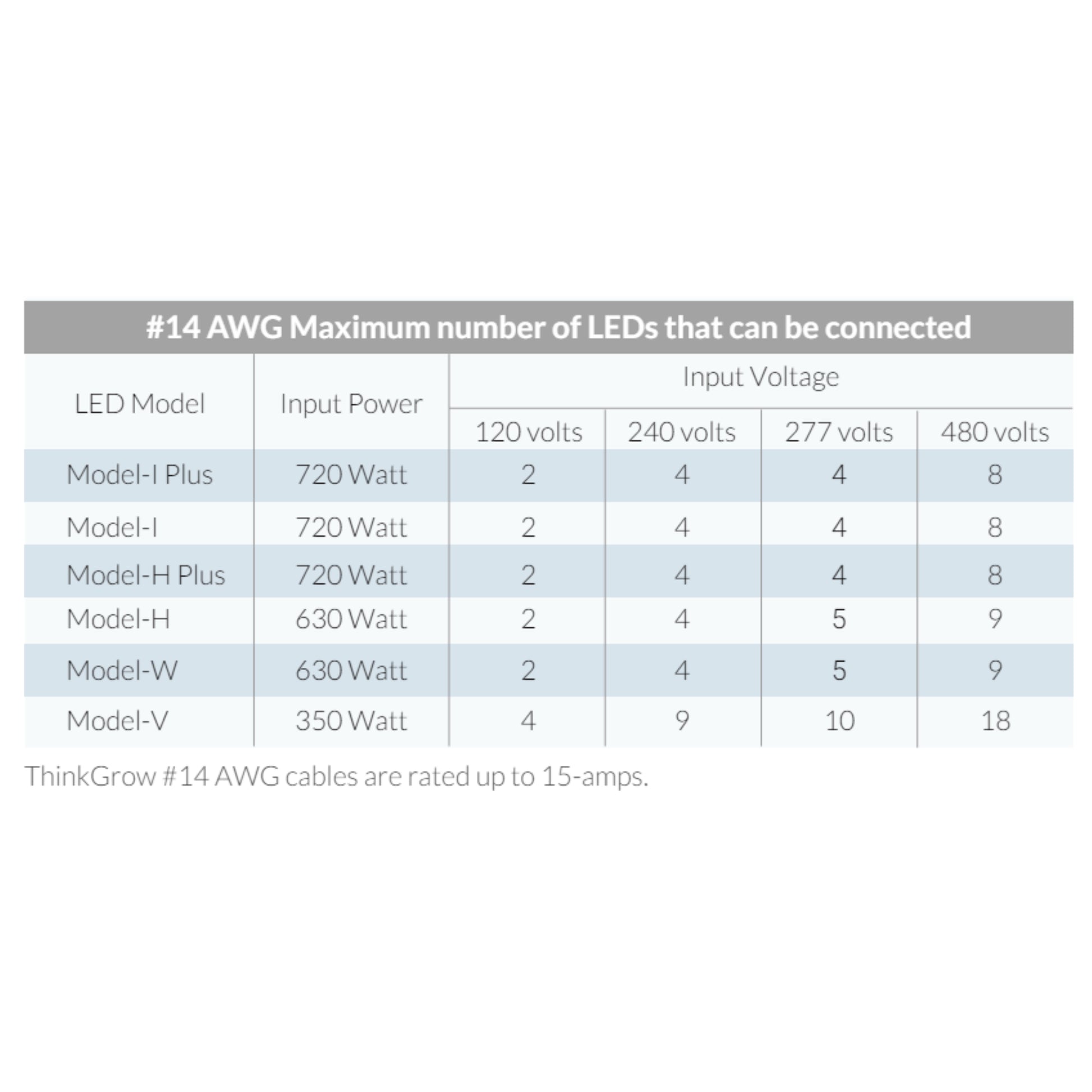

Most ThinkGrow rooms run one inbound 277V cord (EC-277) to the row, then a series of DEA-14 jumpers between fixtures. Growers typically hang each fixture at 18-24 inches above the canopy. Resistance is held under 21 milliohms, so voltage drop across the jumper is negligible even at full fixture load. The 15A rating ceilings the chain. At 277V that is roughly four full-power Model-H fixtures before you need to start a new circuit. Plan for that math before laying the row.
Key Features
- Length: 3 ft (0.9 m), the tight jumper for fixture-to-fixture daisy chains
- Wire gauge: 14 AWG copper, sized for 15A continuous duty
- Voltage range: 100-277V auto-sensing, matches all current ThinkGrow LED fixtures
- Certification: ETL-listed and IP67 waterproof at the connectors
- Resistance: Under 21 milliohms — voltage drop across the jumper stays negligible
Technical Specifications
| Specification | Value |
|---|---|
| Model | DEA-14 |
| Length | 3 ft (0.9 m) |
| Wire Gauge | 14 AWG copper |
| Amperage | 15A |
| Voltage Range | 100-277V auto-sensing |
| Certification | ETL-listed, IP67 waterproof connectors |
| Resistance | Less than 21 milliohms |
| Compatibility | ThinkGrow Model-I, Model-I Plus, Model-H, Model-H Plus, Model-V, Model-W |
