ThinkGrow DPA-10 Feeds a ThinkGrow LED String Directly

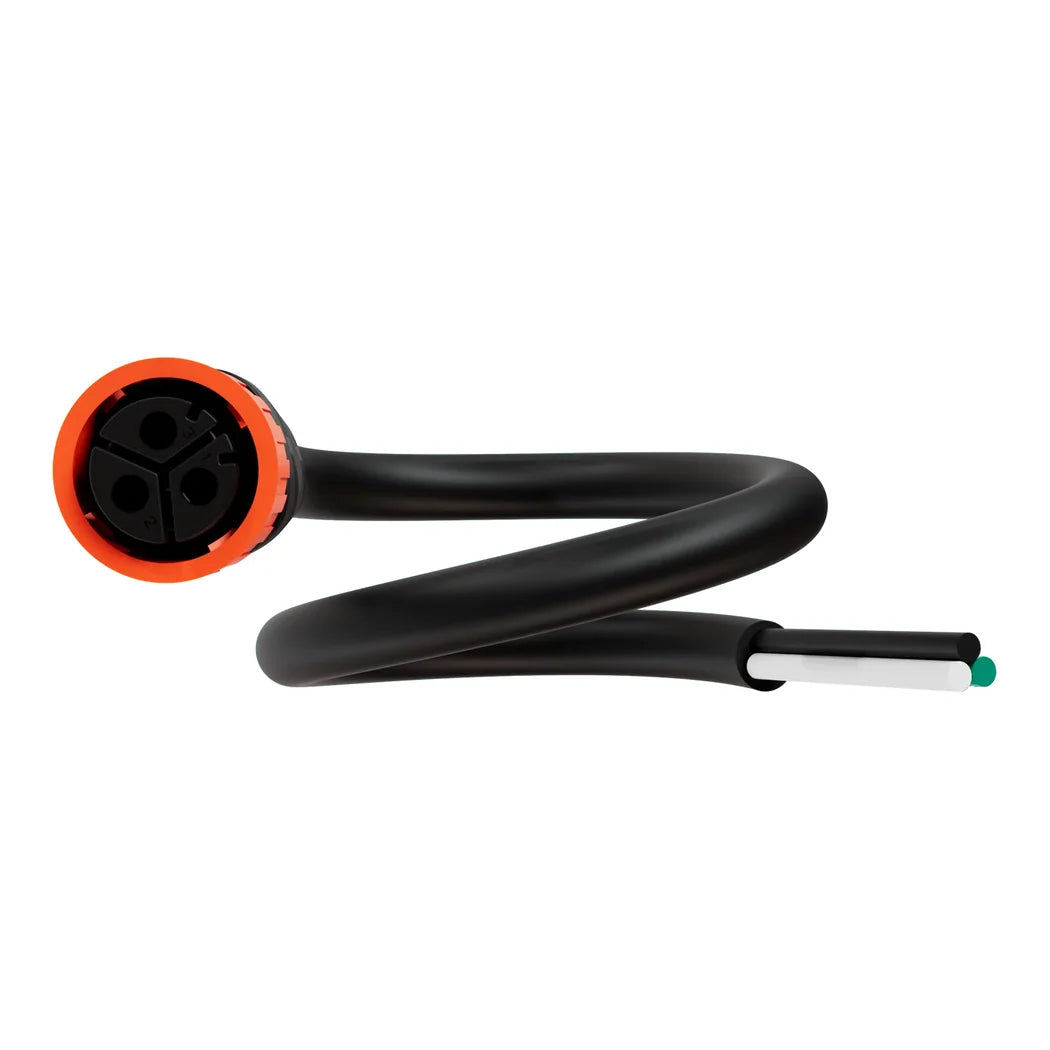

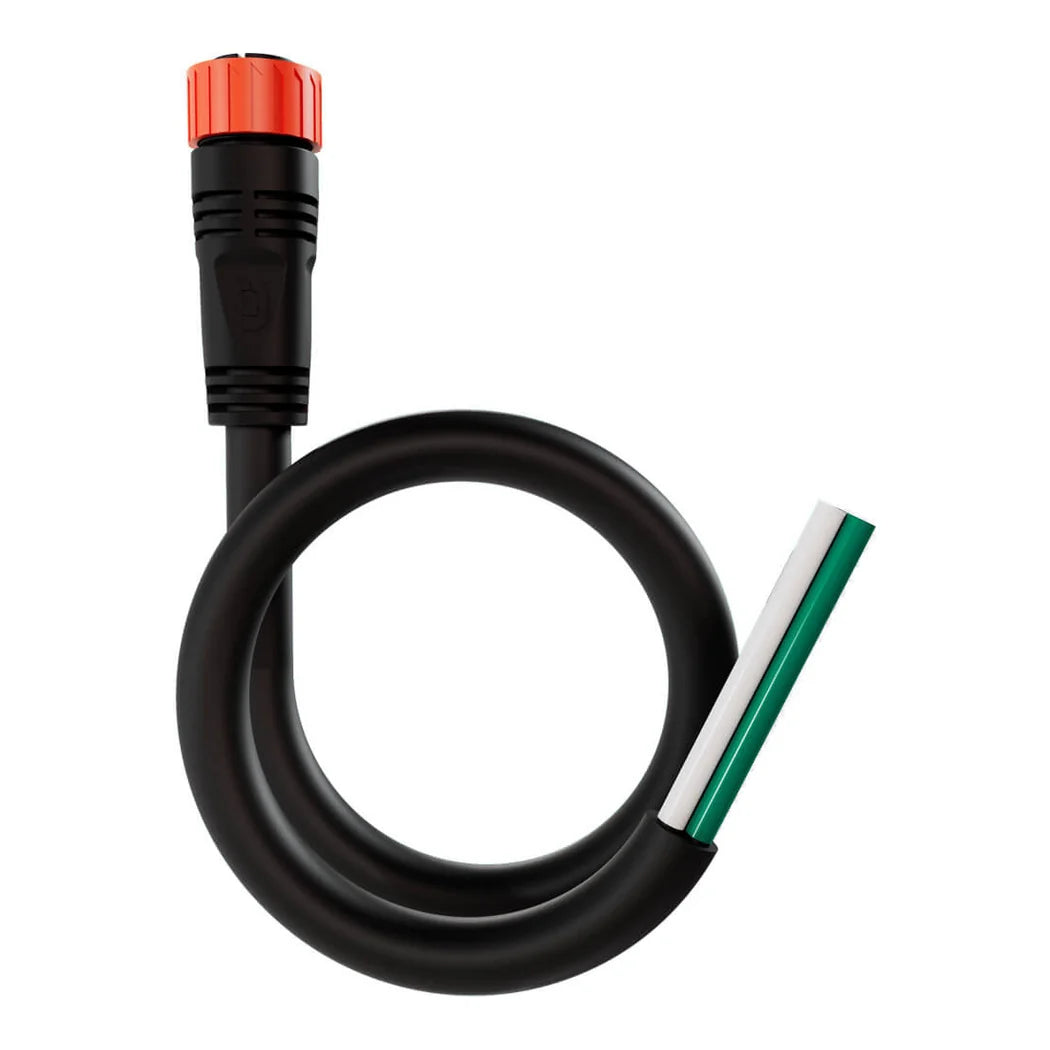

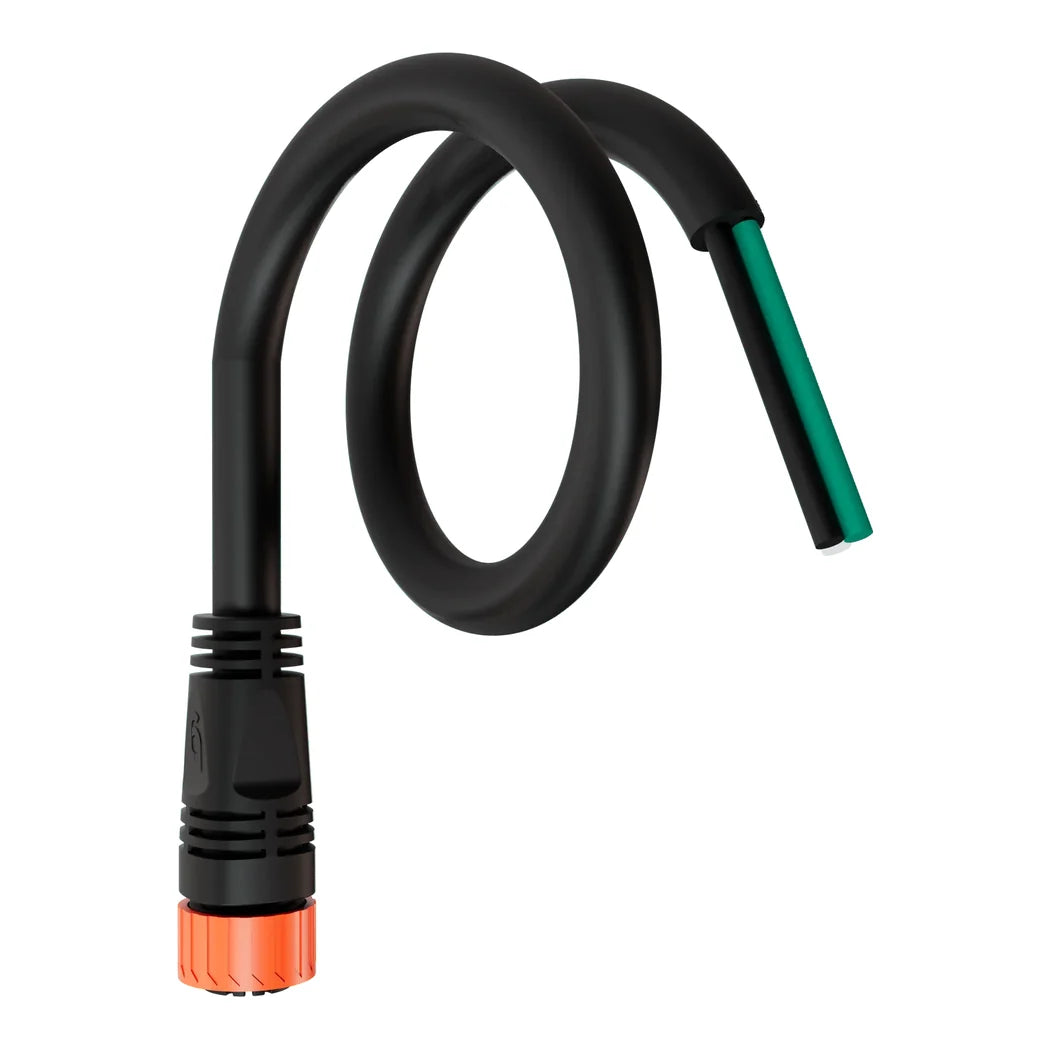

ThinkGrow fixtures share power down a row through locking daisy-chain cords. The first fixture in that row still needs a connection back to the building's circuit. The DPA-10 is that connection when no Smart Junction Box is being used. One end carries ThinkGrow's 4-pin IP65 waterproof connector with an M25 3-pin plug and protective caps. The other end comes pre-stripped for an electrician to land in a junction box or disconnect. The conductor is 10 AWG copper with a 5.26 mm² area. It is rated to 30A at 100–277V, with resistance under 12 mΩ. The jacket is rated for temperatures up to 105°C, and the cord meets RoHS standards. Length is 3 ft (0.9 m), which keeps the feed short and tidy at the head of the row. The package measures 5.43 × 6.69 × 2.52 in and weighs 0.97 lbs.
Choosing a Hardwire Power Cord or a Smart Junction Box
The OPA-1 and OPA-2 junction boxes add metering and electronic overcurrent protection at the head of the string. The DPA-10 skips that hardware and connects the string straight to the branch circuit. That makes sense where the panel breaker already provides the protection the room needs. It also suits sites that monitor power at the panel rather than at each row. Match the breaker and supply wiring to the cord's rating and to the total draw of the fixtures on the string. A licensed electrician should terminate the stripped end to local code. Seat the waterproof connector fully and lock it before the circuit is energized. Keep unused connector caps in place so moisture and debris stay out of the pins. If a row later needs metering or remote trip settings, an OPA-2 can take this cord's place. This cord is for ThinkGrow daisy-chain strings; non-ThinkGrow loads on an OPA-2 use the DOA-10 instead.
Key Features
- Direct String Feed: Connects a ThinkGrow daisy-chain LED string to the main power source without a junction box.
- 10 AWG, 30A Rated: Heavy copper conductor with a 5.26 mm² area and under 12 mΩ resistance.
- IP65 Connector: 4-pin waterproof connector with M25 3-pin plug and protective caps.
- Pre-Stripped End: Ready for an electrician to land in a junction box or disconnect.
- 105°C Rated Jacket: Built for warm grow rooms and meets RoHS standards.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | DPA-10 |
| Use | Main power to ThinkGrow LED daisy-chain string |
| Wire gauge | 10 AWG |
| Rated current | ≤30A |
| Voltage | 100–277V |
| Copper area | 5.26 mm² |
| Resistance | <12 mΩ |
| Connector | 4-pin IP65 waterproof; M25 3-pin with protective covers |
| Temperature rating | Up to 105°C |
| Length | 3 ft (0.9 m) |
| Compliance | RoHS |
| Package contents | 1 × DPA-10 hardwire power cord |
| Package dimensions | 5.43 × 6.69 × 2.52 in (138 × 170 × 64 mm) |
| Weight | 0.97 lbs (0.44 kg) |
