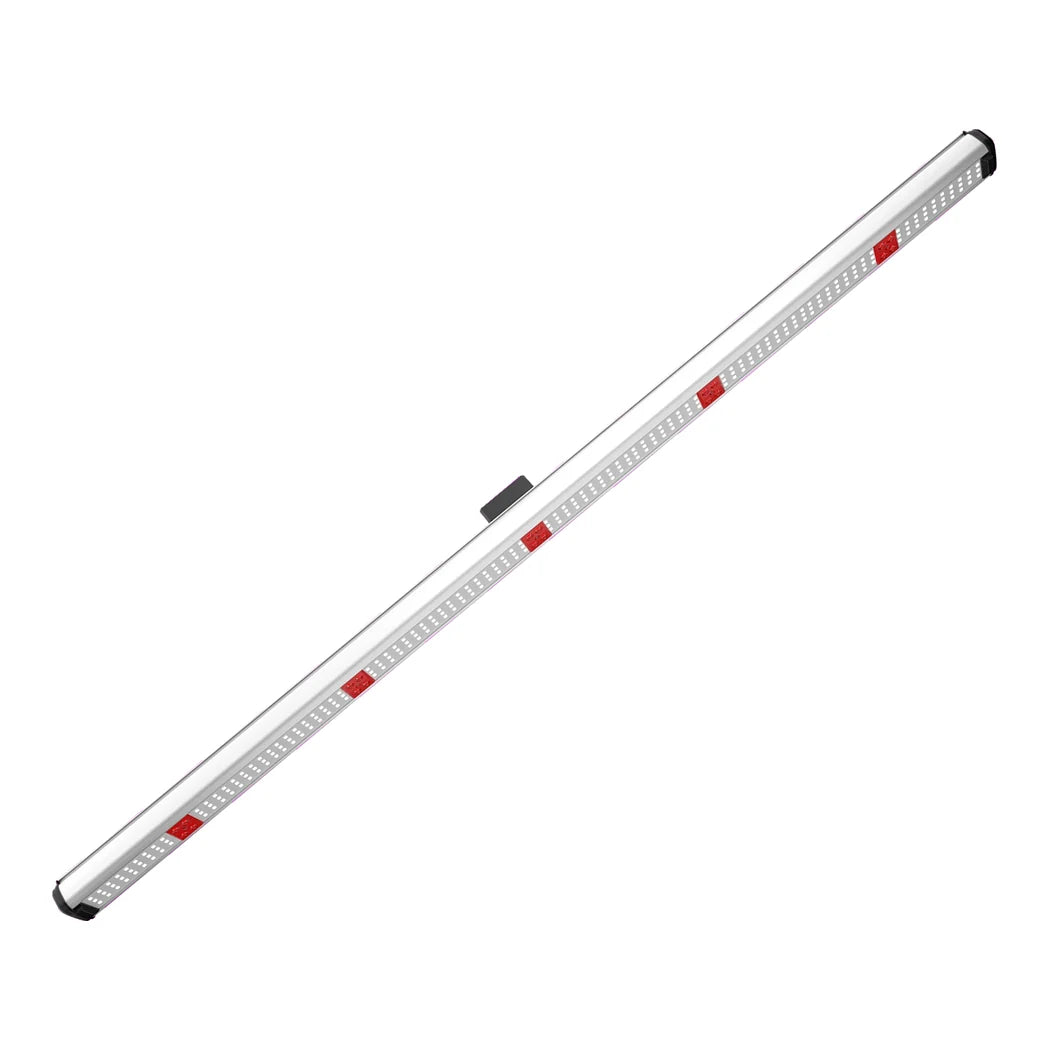

ThinkGrow FR-1 Puts Far Red on Its Own Channel
Far red is useful, but most growers do not want it at the same level all day. The FR-1 separates it from the rest of the spectrum. One channel carries full spectrum white light, and the second carries far red only. On a TLD-2 driver the two channels dim independently from 0 to 100%. That makes it simple to add a far red boost at the end of the day or hold it back in veg. The bar draws 90 watts and puts out 234 µmol/s of PPF. ThinkGrow rates the TLD-2 and FR-1 pairing at 2.6 µmol/J. It is sealed to IP56 and its diodes are rated L90 beyond 54,000 hours. The manual lists the bar at 45.35 × 2.68 × 2.20 in with a gross weight of 1.65 lbs. The box holds one FR-1 bar with no driver or cord.
Adding a Far Red LED Bar to a Model One Fixture
Hang TLD-2 drivers on an MB-series mounting bar, then click an FR-1 into each one. The assembled fixture runs about 45 in long, 2.05 in wide and 4.04 in tall. Mount it more than six inches above the canopy. FR-1 bars can share a mounting bar with DR-1 or TLB bars to build a mixed spectrum. Link the drivers with TDC-2, TDC-3 or TDC-4 daisy-chain cords. A TDC-120, TDC-240 or TDC-277 splitter cord feeds power and the controller signal to each group. A TrolMaster controller can then run a far red schedule separate from the main light cycle. Drivers, cords and mounting bars are sold separately. If a room needs UV as well, the four-channel TLB-1 adds it on a TLD-4 driver. For background on how far red affects plants, see our guide to far red grow lighting. Wiring diagrams are in the Model One manual attached below.
Key Features
- Separate Far Red Channel: Dims and schedules far red apart from the full spectrum light.
- 234 µmol/s at 2.6 µmol/J: Rated output of the FR-1 on a TLD-2 driver.
- Two-Channel Simplicity: Runs on the TLD-2 driver without the extra UV channel.
- IP56 Sealed: Suitable for damp grow rooms and greenhouses.
- Mix and Match: Shares mounting bars with DR-1 and TLB bars in one fixture.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | FR-1 |
| Length class | 4 ft (1.2 m) |
| Input power | 90W |
| PPF | 234 µmol/s |
| Efficacy (with TLD-2) | 2.6 µmol/J |
| Spectrum channels | Full spectrum, far red |
| Compatible driver | TLD-2 (sold separately) |
| Bar size | 45.35 × 2.68 × 2.20 in |
| Fixture size with TLD-2 | 45 × 2.05 × 4.04 in |
| IP rating | IP56 |
| Mounting height | >6 in (15.2 cm) above canopy |
| Lifetime | L90 >54,000 hours |
| Operating temperature | 32–104°F (0–40°C) |
| Gross weight | 1.65 lbs (0.75 kg) |
| Package contents | 1 × FR-1 light bar |
