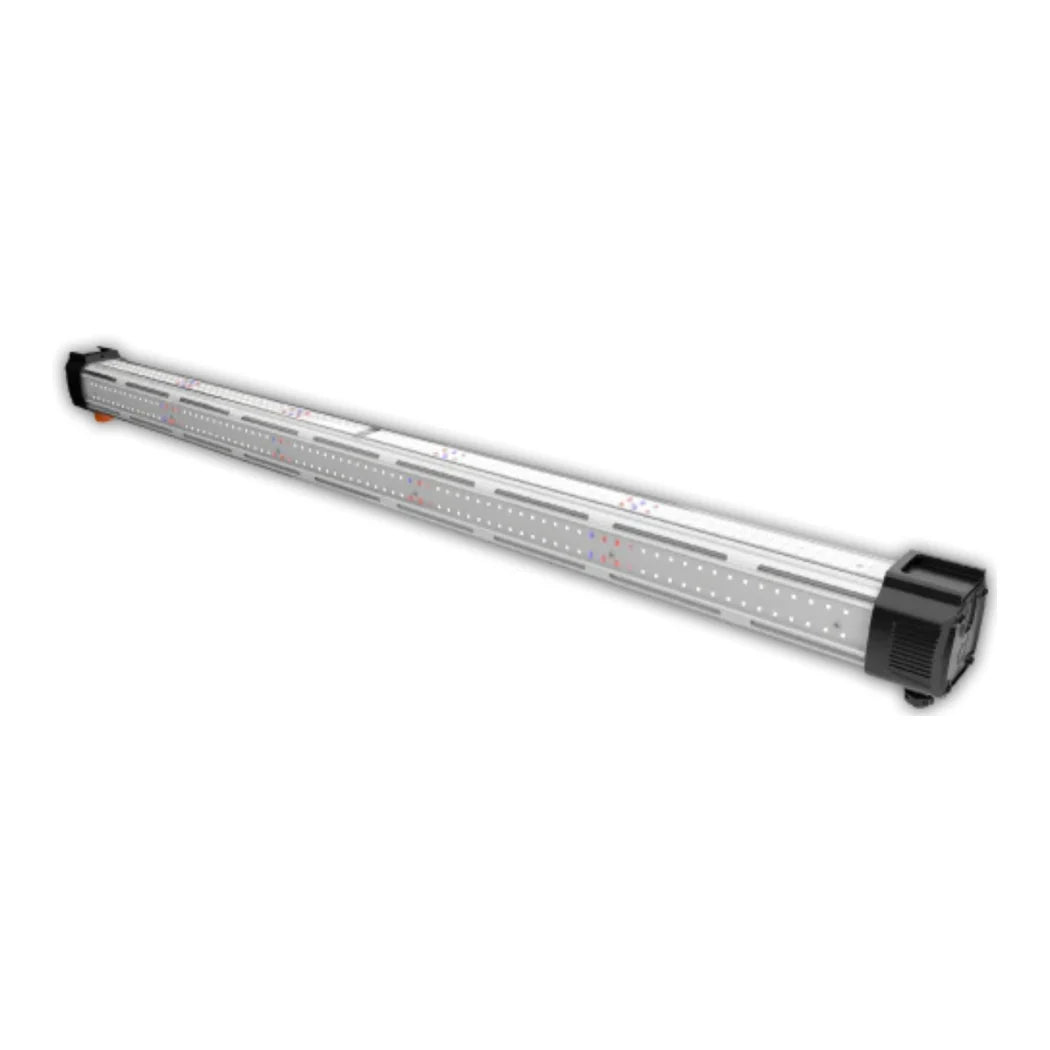

ThinkGrow ICL-300 Lights the Middle of the Plant
Overhead fixtures light the top of the canopy well, but leaves and sites below it stay in shade. Flowers that form in that shade tend to be smaller and lower in quality. The ICL-300 sits inside the canopy and throws light in a 300-degree pattern. That wide spread reaches branches above, beside and below the bar at the same time. It draws 120 watts and puts out more than 314 µmol/s. The driver is built in and accepts 100–277VAC at 50/60Hz. The housing is rated IP56 for humid flower rooms. The bar measures 46.21 × 3.60 × 2.64 in and ships at 6.17 lbs. ThinkGrow rates the diodes at L90 beyond 54,000 hours with a 5-year warranty. It works from 32 to 104°F at 5 to 95% humidity.
Three Ways to Mount an Inner Canopy LED Bar

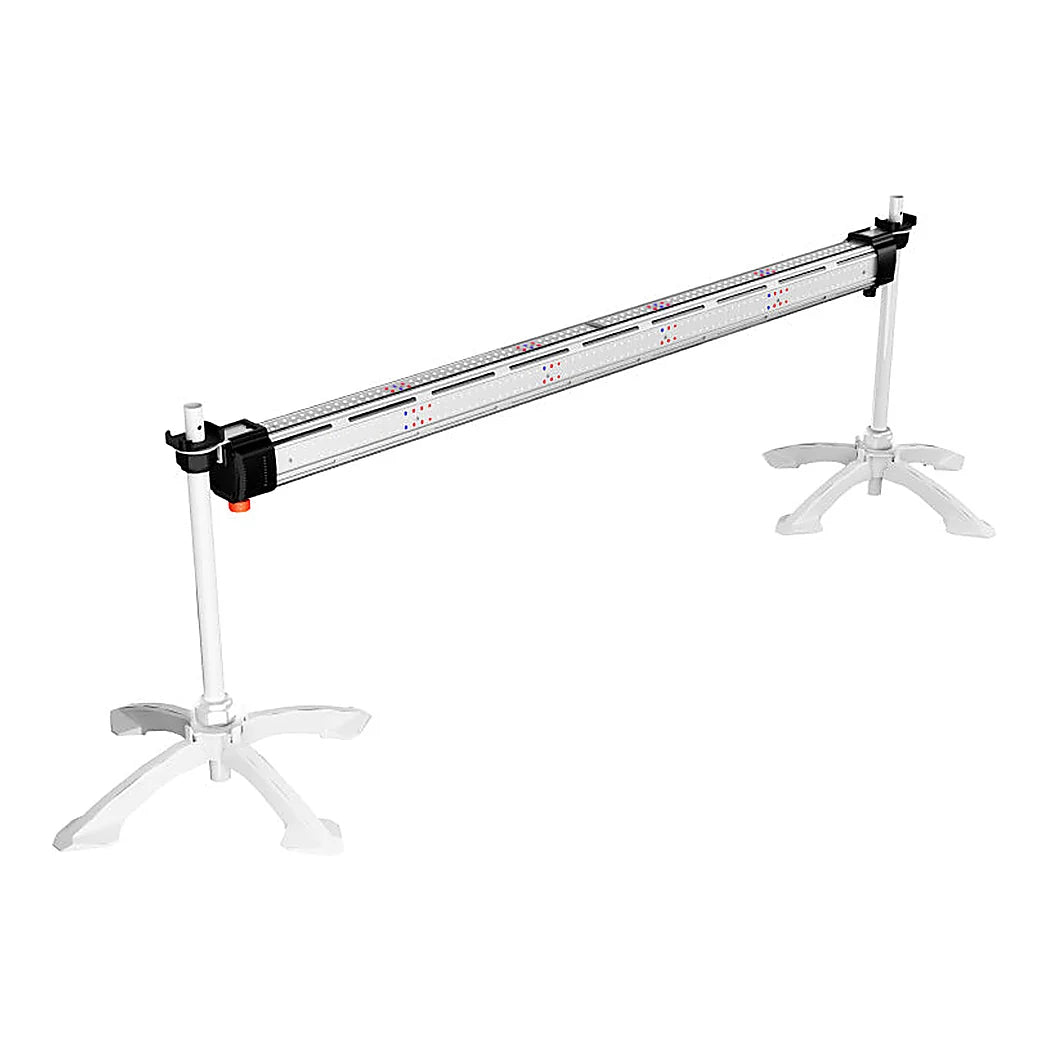

The ICL-300 can hang, clamp to tubing or stand on its own. To hang it, insert the hooks into the mounting holes on each side and suspend it with rope, wire rope or cable. To clamp it, use the two collar mounts included with every bar on PVC or metal pipe from 3/4 to 1 in diameter. To stand it, set it on a pair of TSD-1 LED stands, which are sold separately. Neighboring bars can share a stand, so a row of 12 bars needs 13 stands. Whichever method you use, test the support before leaving the bar in place. Set the height so the bar sits within the plant structure without touching leaves. Adjust the position as plants stretch through flower. Wipe the lens between cycles to clear leaf debris and spray residue. Browse our under canopy grow lights for other inner and under canopy options. The attached tech sheet shows each mounting option step by step.
Key Features
- 300° Light Pattern: Reaches branches above, beside and below the bar.
- >314 µmol/s: From 120W with a built-in driver.
- Three Mounting Options: Hang it, clamp it to 3/4–1 in tubing or set it on TSD-1 stands.
- Universal Input: Built-in driver accepts 100–277VAC at 50/60Hz.
- IP56 and 5-Year Warranty: Rated L90 beyond 54,000 hours.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | ICL-300 |
| Input power | 120W |
| PPF | >314 µmol/s |
| Light pattern | 300° |
| Input voltage | 100–277VAC, 50/60Hz |
| IP rating | IP56 |
| Dimensions | 46.21 × 3.60 × 2.64 in |
| Gross weight | 6.17 lbs (2.8 kg) |
| Mounting | Hooks, collar mounts for 3/4–1 in tubing (2 included), or TSD-1 stands |
| Lifetime | L90 >54,000 hours |
| Working environment | 32–104°F (0–40°C), 5–95% RH |
| Warranty | 5 years |
| Not included | TSD-1 stands (sold separately) |
