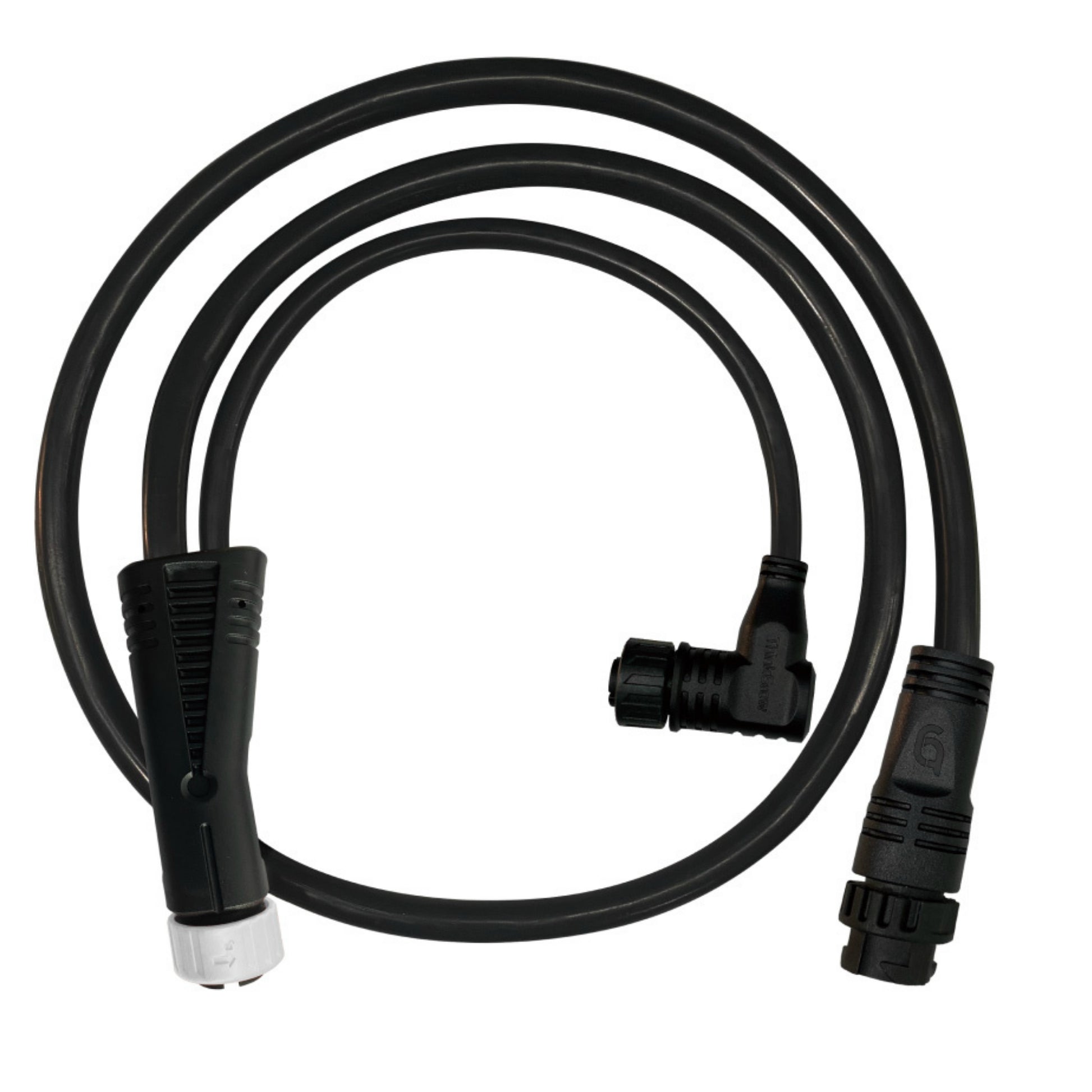

LED daisy chain power cord for fixture trunk lines
The ThinkGrow 15A daisy chain cord links LED grow lights through a single 5-foot run with AWG#14 copper. It carries 100-277V at up to 15 amps, so it tracks any modern LED driver without a voltage swap. ETL certification and IP67 sealing keep the connection rated for North American grow rooms. Copper area is 2.08mm-squared with resistivity below 21 milliohm, holding voltage drop tight across the chain. The 1.06-pound cord stays light enough to dress along a truss without sagging between fixture bars.
LED daisy chain power cord that trims breaker count
Growers typically run an LED daisy chain power cord between fixtures to consolidate trunk wiring on a 15A circuit. Place the cord so the male end seats first, then add fixtures down-stream until you approach the amperage cap. Up to 18 LED grow lights chain off one source under the 15A limit, depending on per-fixture draw. The 5-foot length matches the spacing growers actually use between LED bars, not idealized layout diagrams. And the IP67 jacket shrugs off canopy mist and runoff splash that would corrode lesser connectors mid-flower. That holds up over multiple cycles without the slow brown-out that ungasketed connections drift into. On dense racks where one breaker covers a sub-row, the trunk pattern frees outlets for sensors and pumps. And ETL certification gives the building inspector a paper trail without a custom wiring sign-off.
Key Features
- AWG#14 copper, 2.08mm-squared: Low-resistance copper area below 21 milliohm keeps voltage drop tight on a 15A trunk.
- 100-277V at 15A: Tracks modern LED drivers across single-phase residential and commercial branch circuits.
- IP67 sealing, ETL certified: Sealed against dust and water immersion to North American safety standards.
- 5-foot length, 1.06 lb: Reaches realistic between-fixture spacing without sagging from cord weight.

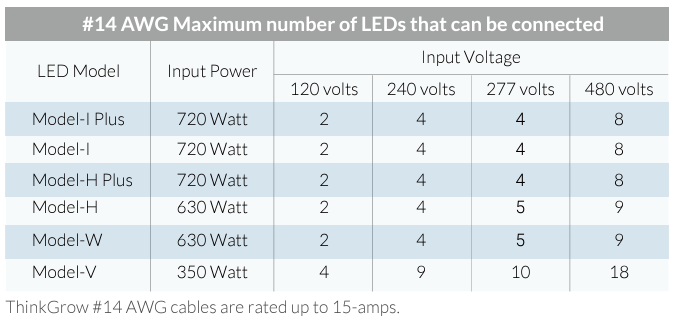

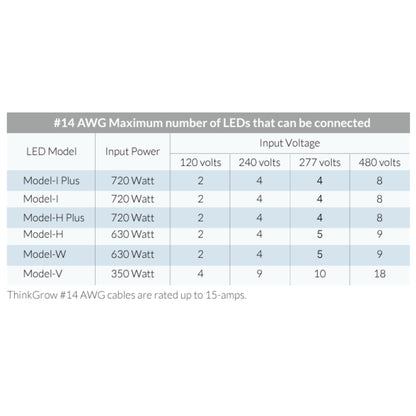

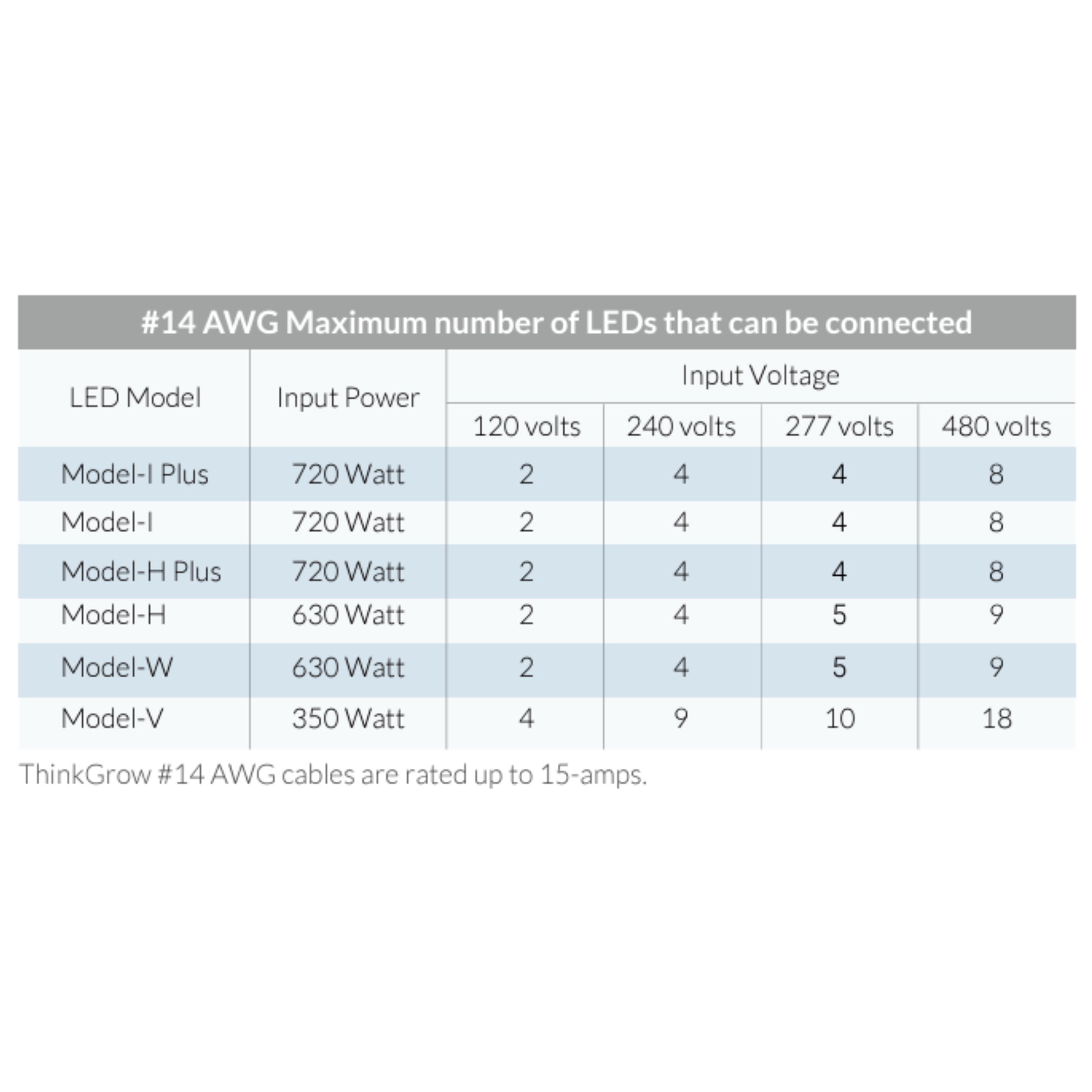

- Up to 18 LED fixtures per chain: Cuts the outlet count on dense racks where one breaker covers a whole sub-row.
Technical Specifications
| Specification | Value |
|---|---|
| Conductor | AWG#14 copper |
| Copper Area | 2.08 mm² |
| Resistivity | < 21 mΩ |
| Voltage | 100-277V |
| Amperage | 15A |
| Length | 5 ft (1.5 m) |
| Weight | 1.06 lb (480 g) |
| Sealing | IP67 |
| Certifications | ETL |
| Max LED Fixtures | Up to 18 per chain |
