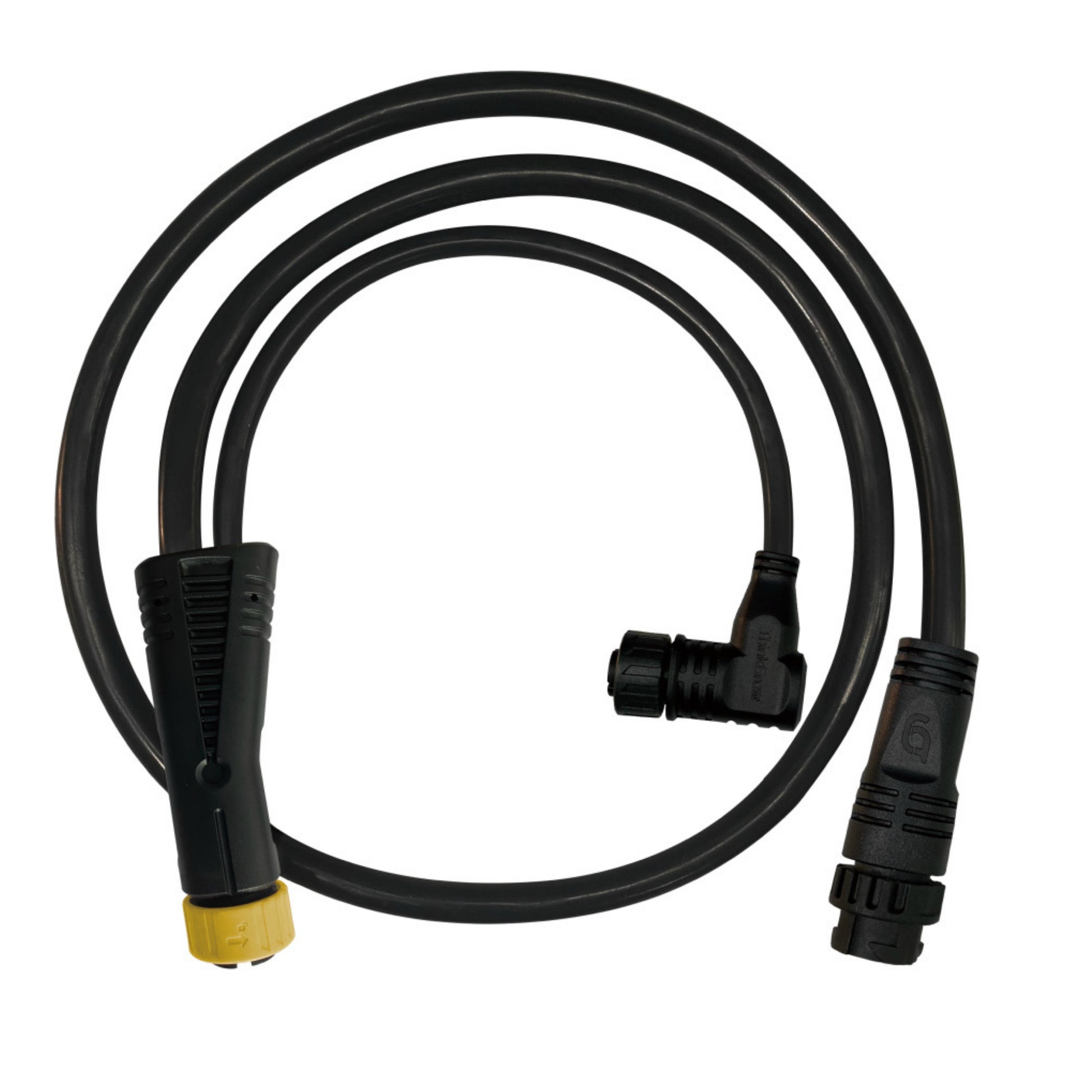

20A LED daisy chain cord for high-draw LED rows
The ThinkGrow 20A daisy chain cord scales the AWG#12 chain for higher per-fixture draw across a 5-foot link. It runs 100-277V at up to 20 amps, holding load on heavier LED drivers in commercial flower rooms. Copper area sits at 3.31mm-squared with resistivity below 16 milliohm, trimming voltage drop on long trunks. ETL certification and IP67 sealing keep it rated against canopy moisture and runoff overspray. The 1.24-pound cord stays manageable when dressed along a truss between LED fixture bars.
20A LED daisy chain cord that consolidates trunk wiring
Growers typically reach for the 20A trunk when per-light draw or row count outgrows a 15A circuit. Place the cord with the female end at the breaker side, then walk fixtures outward down the chain. On the 20A cap the chain handles a deeper bench than the 15A version, which matters in flower-room flips. The 5-foot reach is short by design — it forces honest fixture spacing instead of slack loops behind the canopy. AWG#12 copper at 3.31mm-squared holds voltage steady when LED drivers spike at startup or after a brown-out. And the IP67 jacket survives the wet edge of a runoff cleanup, where ungasketed cords corrode at the connector first. On a dedicated 20A circuit the trunk trims the outlet count without forcing a panel upgrade or sub-feed pull. That saves install hours and keeps the breaker map readable for the next cycle of fixture changes.
Key Features
- AWG#12 copper, 3.31mm-squared: Low-resistance copper below 16 milliohm holds voltage drop tight on a 20A trunk.

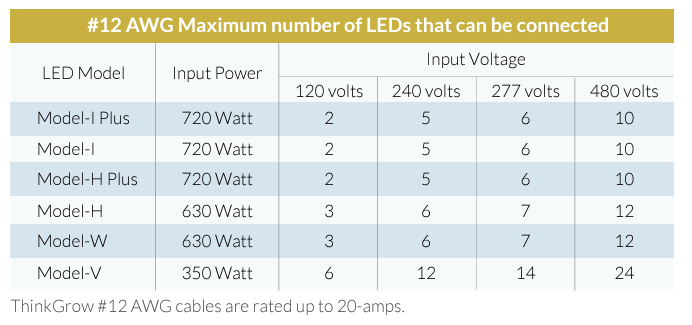

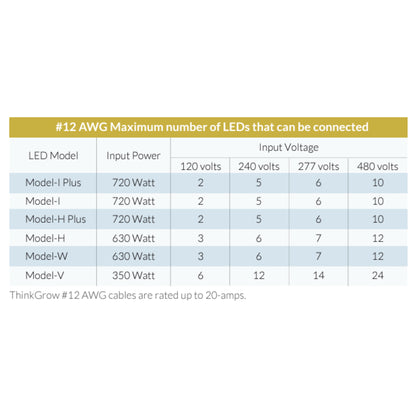

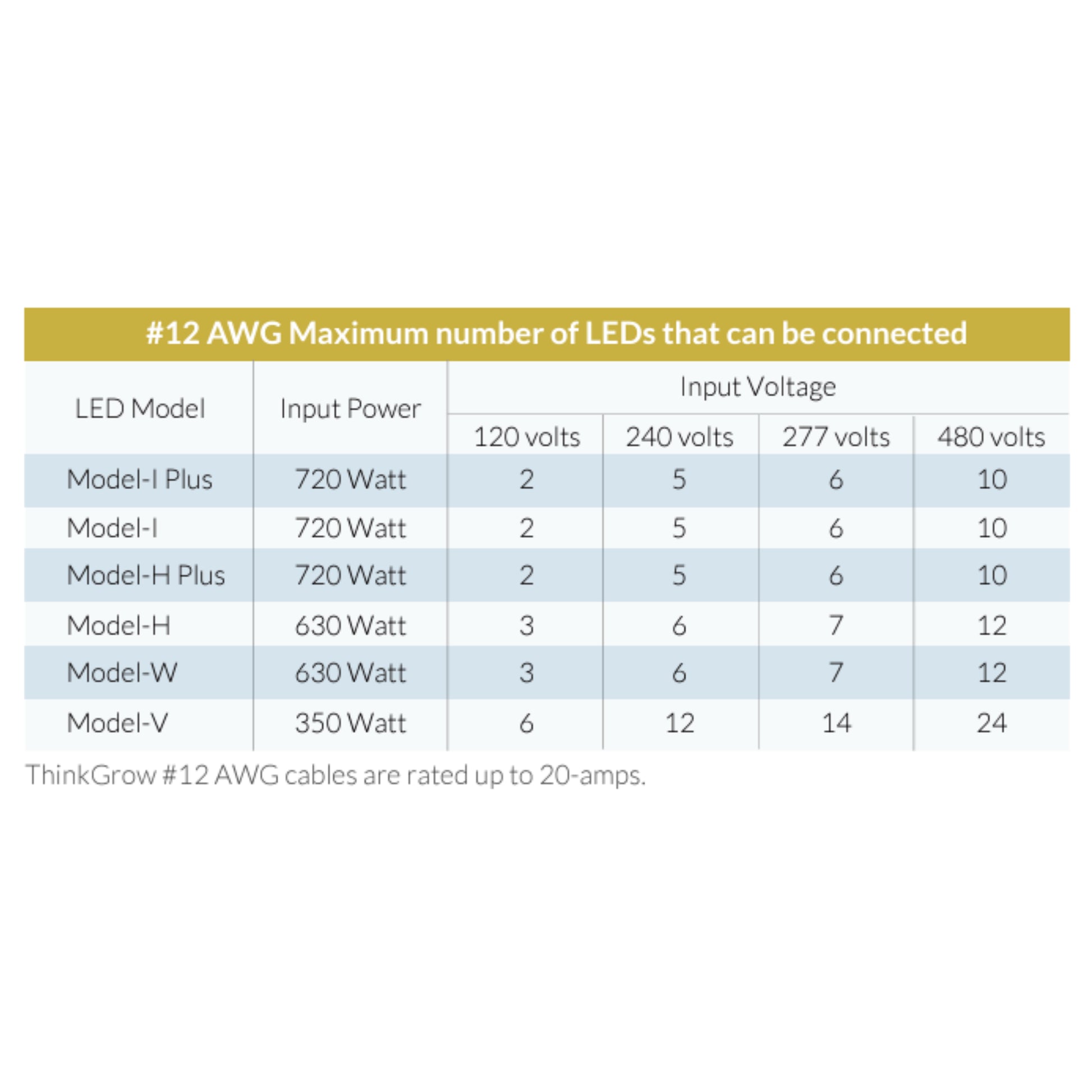

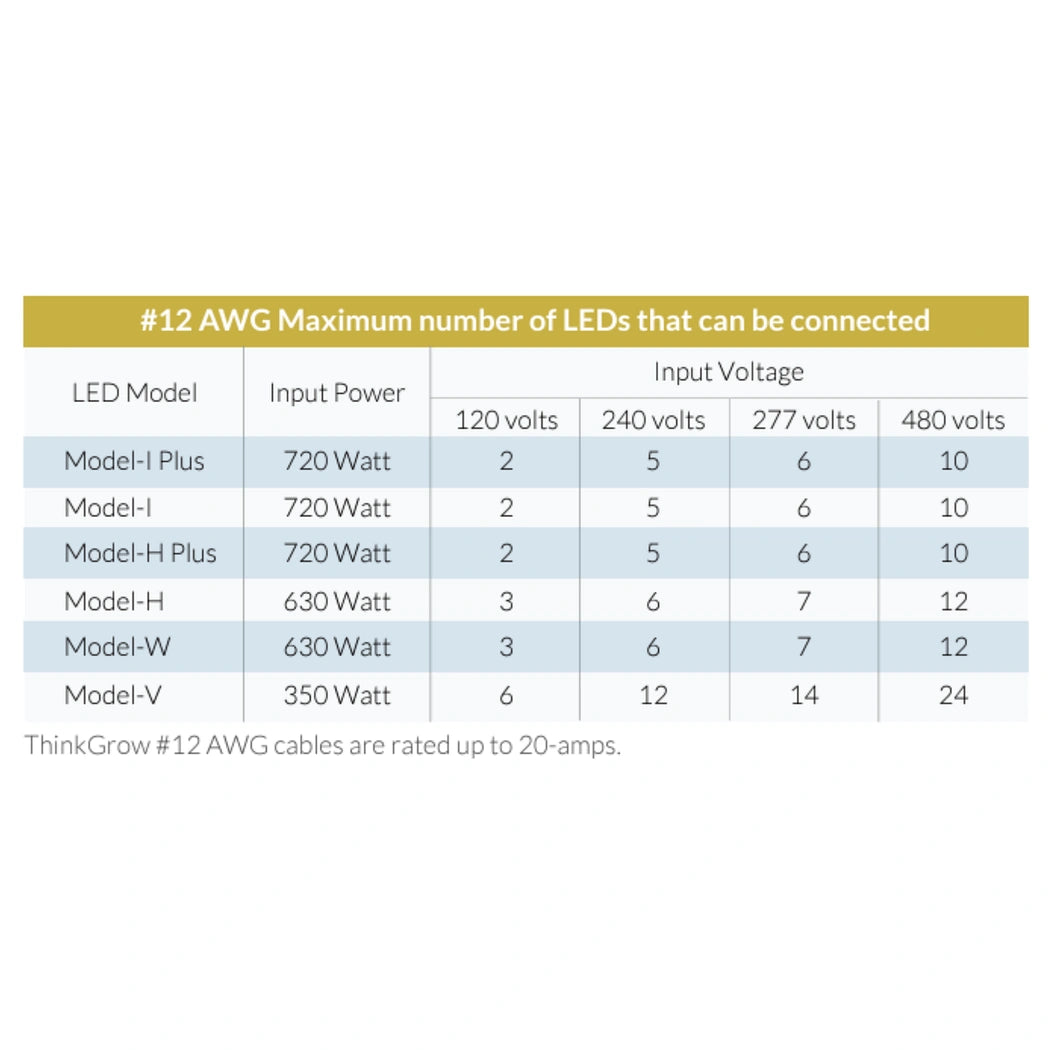

- 100-277V at 20A: Carries higher per-fixture draw than the AWG#14 sibling for denser commercial benches.
- IP67 sealing, ETL certified: Sealed to North American safety standards against dust and water immersion.
- 5-foot length, 1.24 lb: Forces honest fixture spacing without slack loops behind the canopy.
- Plug-and-play termination: Chains LED fixtures without splicing or pulling new conduit between bars.
Technical Specifications
| Specification | Value |
|---|---|
| Conductor | AWG#12 copper |
| Copper Area | 3.31 mm² |
| Resistivity | < 16 mΩ |
| Voltage | 100-277V |
| Amperage | 20A |
| Length | 5 ft (1.5 m) |
| Weight | 1.24 lb |
| Sealing | IP67 |
| Certifications | ETL |
