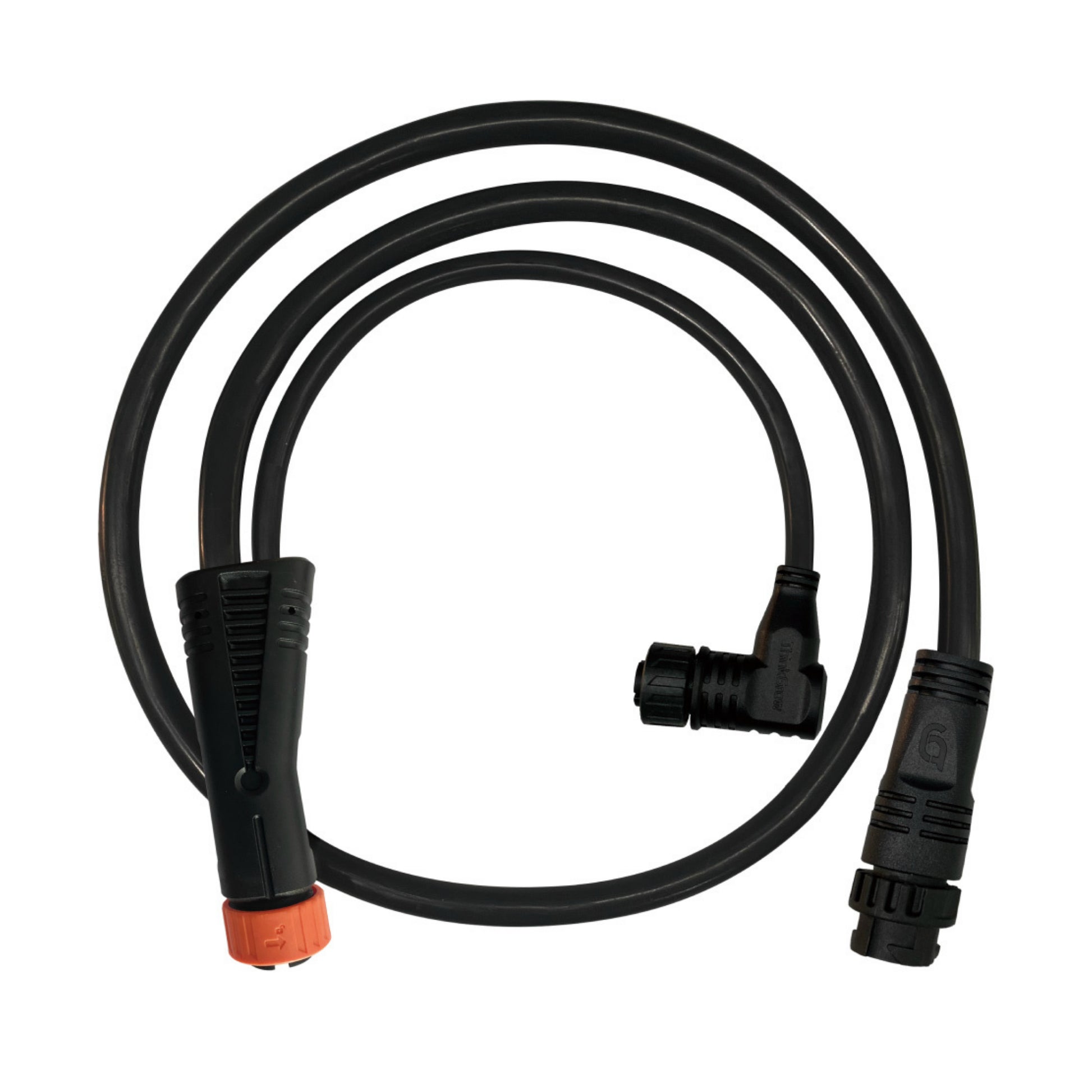

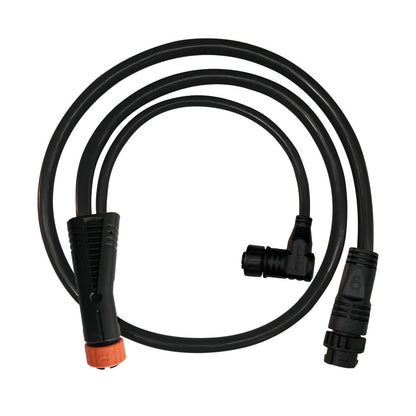

30A LED daisy chain cord for commercial trunks
The ThinkGrow 30A daisy chain cord moves the chain to AWG#10 copper for a 30-amp commercial trunk. It carries 100-277V at up to 30 amps, pairing with high-output LED drivers without throttling at peak load. Copper area is 5.26mm-squared with resistivity below 12 milliohm, the tightest voltage drop in the family. ETL certification and IP67 sealing meet North American safety standards in damp grow-room conditions. The 5-foot length keeps the trunk short between rack bays where a 30A breaker actually lands.
30A LED daisy chain cord for high-density grow rooms
Growers typically deploy the 30A trunk on the largest commercial benches where 20A circuits run out of headroom. Place the cord at the breaker side first and chain fixtures outward, watching the cumulative amperage as you go. AWG#10 copper handles surge currents from multiple LED drivers without the voltage sag that ages drivers early. The 5-foot link length matches commercial bay spacing more than tent-scale layouts, so plan the run to match. And the IP67 sealing keeps the connector dry when canopy runoff or wash-down water hits the trunk path. On a clean 30A circuit, that translates into fewer outlets pulled, less conduit, and a tidier panel breakdown. Across paired benches, a single 30A trunk replaces a daisy of two 15A runs and reads cleaner on the load schedule. That keeps the inspector and the next install crew on the same page when a fixture rotation hits.
Key Features
- AWG#10 copper, 5.26mm-squared: Lowest resistivity in the family below 12 milliohm for tight voltage drop.
- 100-277V at 30A: Carries the highest amperage trunk in the ThinkGrow daisy chain line.
- IP67 sealing, ETL certified: Rated to North American safety standards in damp grow-room conditions.
- 5-foot length: Matches commercial bay spacing without slack between LED fixture bars.
- Plug-and-play termination: Chains high-output LED fixtures without splicing or new conduit pulls.
Technical Specifications
| Specification | Value |
|---|---|
| Conductor | AWG#10 copper |
| Copper Area | 5.26 mm² |
| Resistivity | < 12 mΩ |
| Voltage | 100-277V |
| Amperage | 30A |
| Length | 5 ft (1.5 m) |
| Sealing | IP67 |
| Certifications | ETL |
