ThinkGrow TDC-277 Powers a Model One Group on 277V

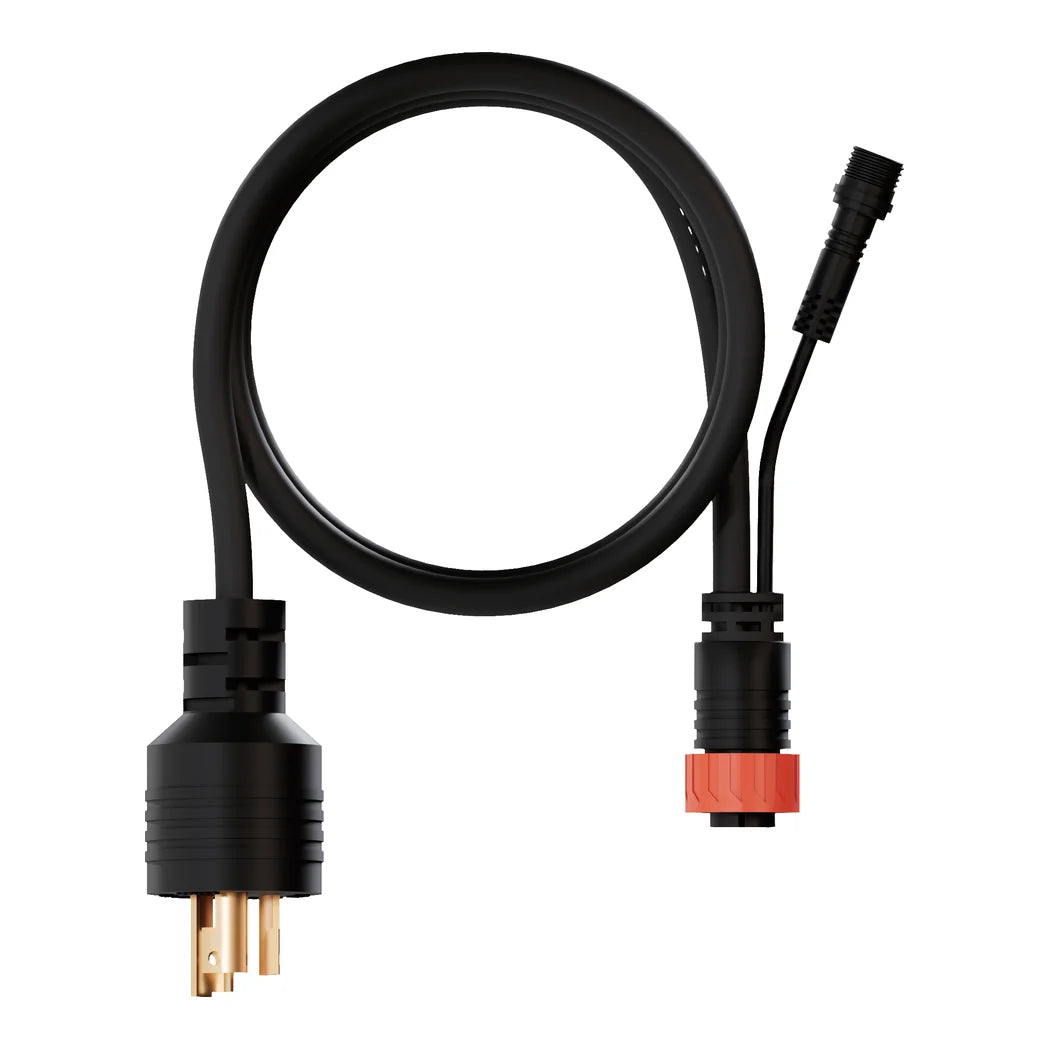

Every group of Model One drivers needs one feed cord that brings in power. The TDC-277 is that cord for rooms wired for 277 volts. It ends in a NEMA L7-15P twist-lock plug, the locking style common on commercial 277V lighting circuits. The cord is 7 ft (2.1 m) long and rated to 10A. At the driver end it splits into a power lead and a control connection. The power lead plugs into the input of the first driver in the group. The control branch links to a TrolMaster controller with an ECS-9 cable for dimming and scheduling. TrolMaster lists the cord at 0.88 lbs. It is rated for rooms from 32 to 104°F. Separate TDC-120 and TDC-240 versions cover 120V and 240V circuits.
Planning a Group Around a 277V Splitter Power Cord
At this voltage, the Model One manual allows up to 25 drivers on one feed cord. That is the highest count of any supply voltage, which makes long rows practical. Mount the drivers first, alternating direction so the male and female leads line up. Link neighboring drivers with TDC-2, TDC-3 or TDC-4 daisy-chain cords. Connect the splitter head to the first driver's input port. Run an ECS-9 from the control branch to the controller if the group is being dimmed. Plug into a matching L7-15R receptacle last, once every driver and bar is seated. The twist-lock plug resists being pulled loose by a bumped cord or a moving light lifter. A licensed electrician should confirm the circuit rating before the first power-up. The Model One manual attached below shows the complete wiring layout.
Key Features
- 277V Twist-Lock Plug: NEMA L7-15P locking plug for commercial 277V lighting circuits.
- Power and Control in One: The split head carries both the driver power lead and the controller connection.
- 7 ft Reach: Enough length to reach a ceiling receptacle from the first driver.
- Up to 25 Drivers: The Model One manual rates one 277V feed for up to 25 drivers.
- 10A Rated: Matches the current rating of the Model One daisy-chain power system.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | TDC-277 |
| Plug | NEMA L7-15P twist-lock |
| Input voltage | 277VAC, 50/60Hz |
| Rated current | 10A |
| Length | 7 ft (213.4 cm) |
| Max drivers per cord | 25 Model One drivers at 277V |
| Operating temperature | 32–104°F |
| Weight | 0.88 lbs (0.40 kg) |
| Compatible with | ThinkGrow Model One TLD-2 / TLD-4 drivers |
