ThinkGrow TDC-240 Feeds Larger Model One Groups on 240V

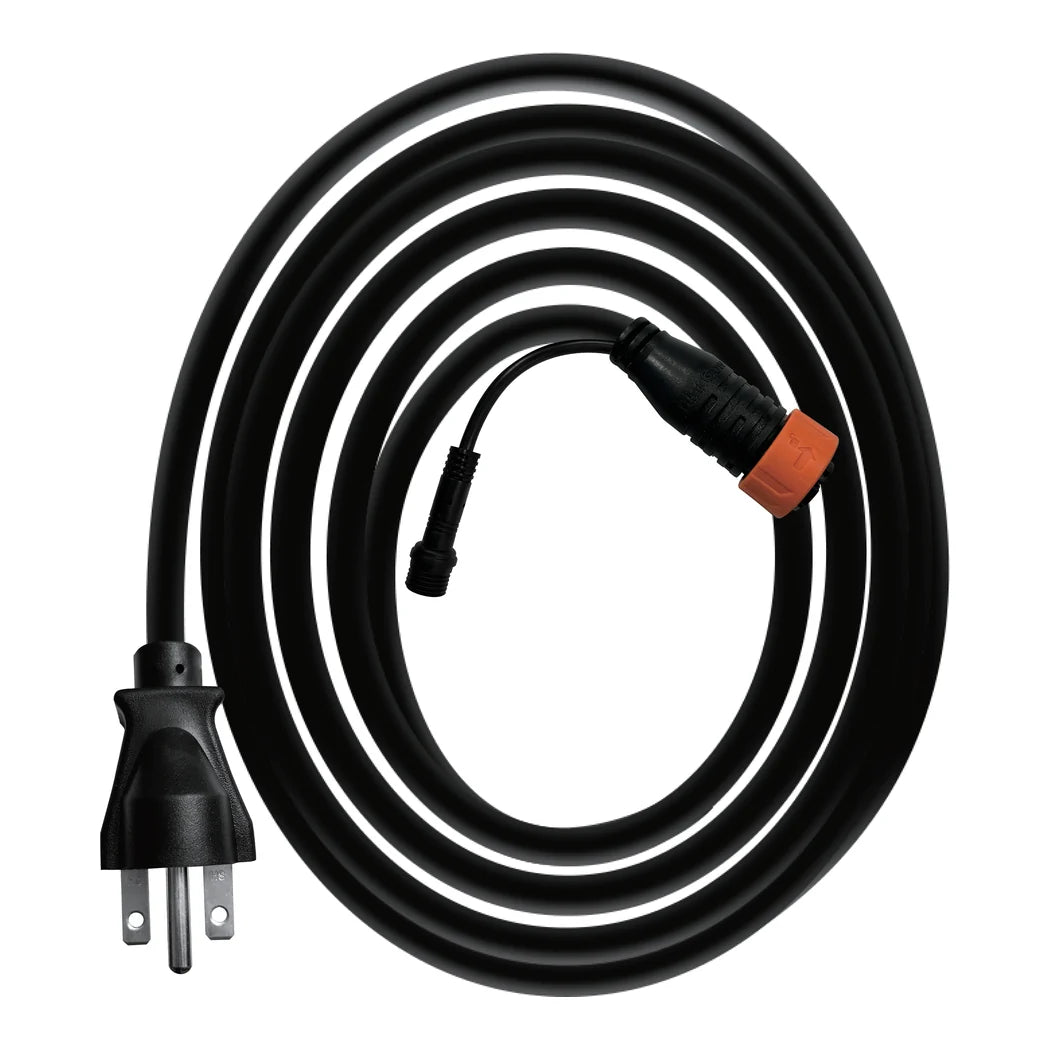

Every group of Model One drivers needs one feed cord to bring in power. The TDC-240 is that cord for rooms wired for 240 volts. It ends in a NEMA 6-15 plug, which also fits T-slot 6-20 receptacles. The cord is 7 ft (2.1 m) long, with 18 AWG conductors rated to 10A. At the driver end it splits into a power lead and a control connection. The power lead plugs into the input of the first driver in the group. The control branch links to a TrolMaster controller with an ECS-9 cable for dimming and scheduling. The manual lists the cord at 0.88 lbs. It is rated for rooms from 32 to 104°F. Feed cords are not included with Model One drivers or bars, so each group needs one ordered separately.
Sizing a Group on a 240V Splitter Power Cord
The manual allows up to 22 drivers on one feed cord at this voltage. That is double the count allowed on the 120-volt version, so fewer feed cords serve the same room. On 208-volt supplies the limit drops to 19, and on 230-volt supplies it is 21. Mount the drivers first, alternating direction so the male and female leads line up. Link neighboring drivers with TDC-2, TDC-3 or TDC-4 daisy-chain cords. Connect the splitter head to the first driver's input port. Run an ECS-9 from the control branch to the controller if the group will be dimmed. Plug into the receptacle last, once every driver and bar is seated. Have a licensed electrician confirm the circuit rating for the full group load. The TDC-120 and TDC-277 cover other supply voltages. The Model One manual attached below shows the complete wiring layout.
Key Features
- NEMA 6-15 Plug: Fits 6-15 and T-slot 6-20 receptacles on 208–240V circuits.
- Power and Control in One: Split head carries power and the controller link to the first driver.
- 7 ft Reach: Room to reach a receptacle from the mounting bar.
- 18 AWG, 10A: Rated for a full 240V Model One group.
- Up to 22 Drivers: Manual limit for one feed cord at 240V.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | TDC-240 |
| Plug | NEMA 6-15 |
| Input voltage | 240VAC, 50/60Hz |
| Wire gauge | 18 AWG |
| Rated current | 10A |
| Length | 7 ft (213.4 cm) |
| Max drivers per cord | 19 at 208V / 21 at 230V / 22 at 240V |
| Operating temperature | 32–104°F |
| Weight | 0.88 lbs (0.40 kg) |
| Compatible with | ThinkGrow Model One TLD-2 / TLD-4 drivers |
