ThinkGrow TLD-4 Gives Model One Full Four-Channel Spectrum Control

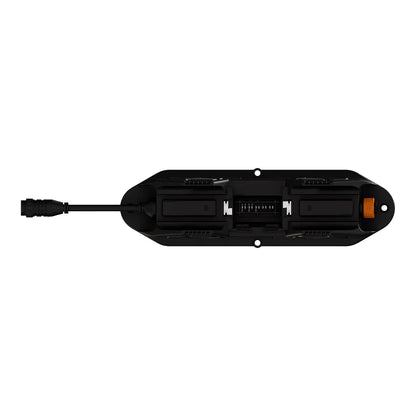

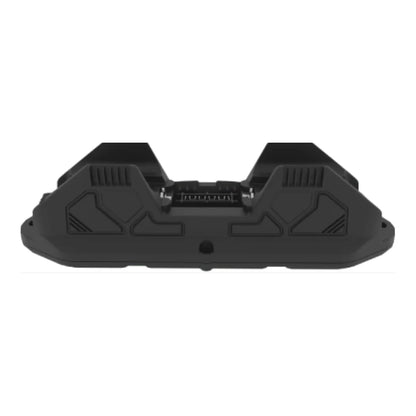

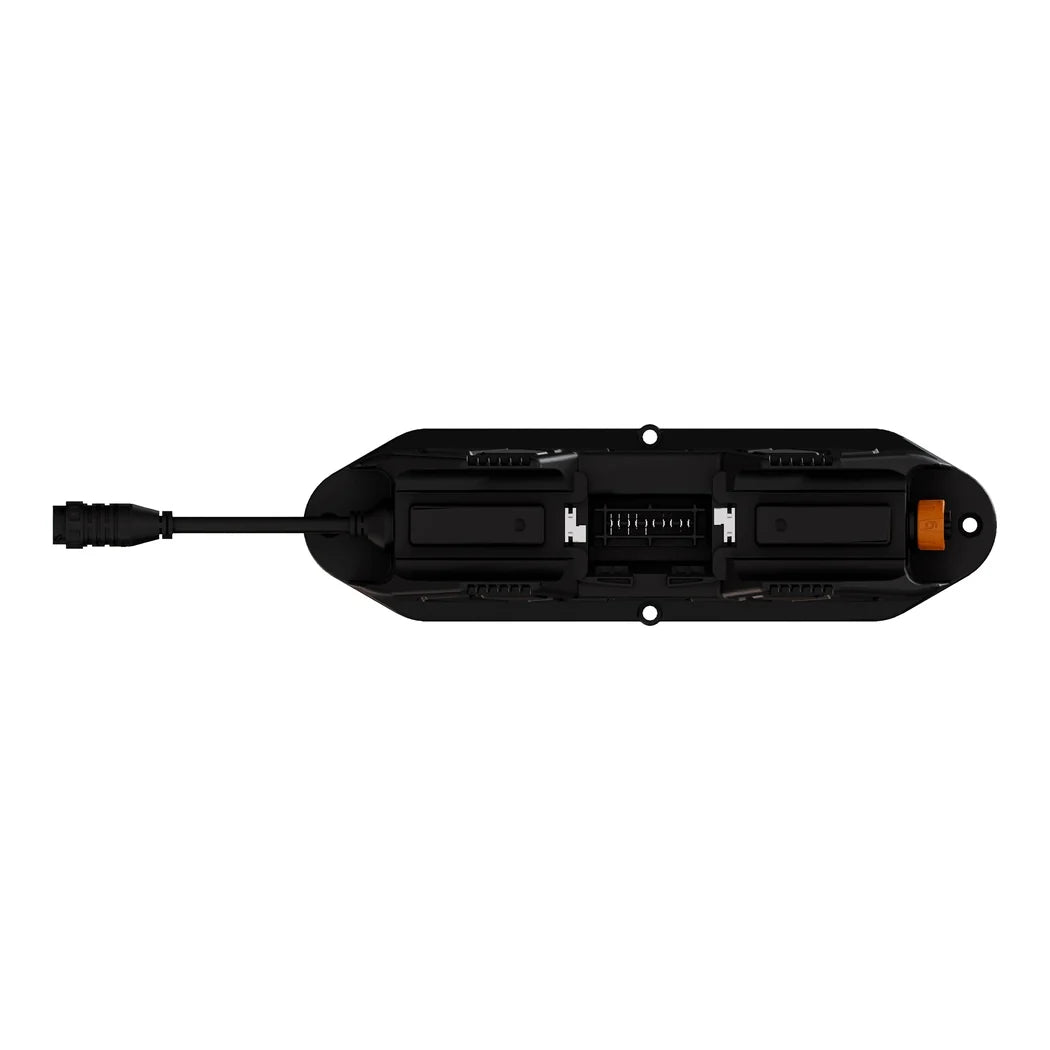

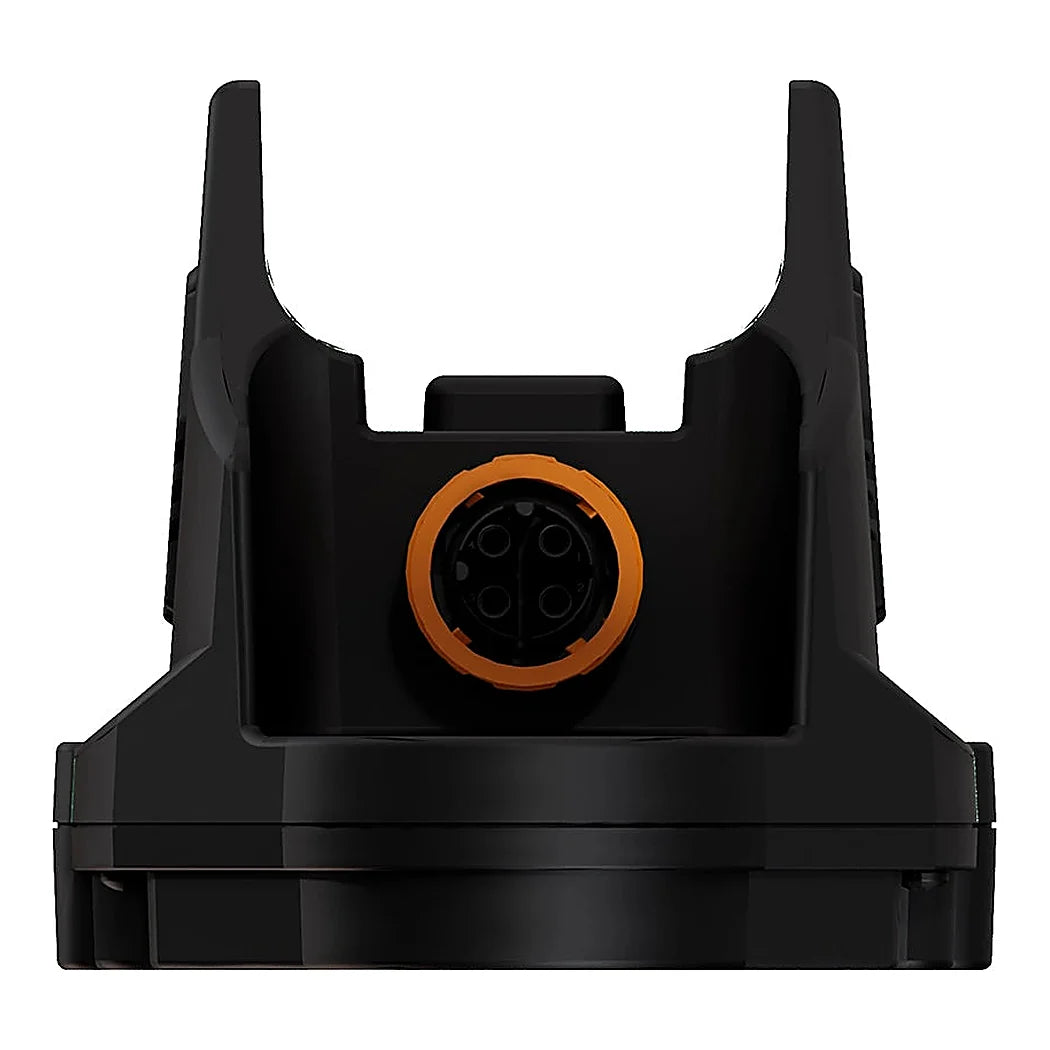

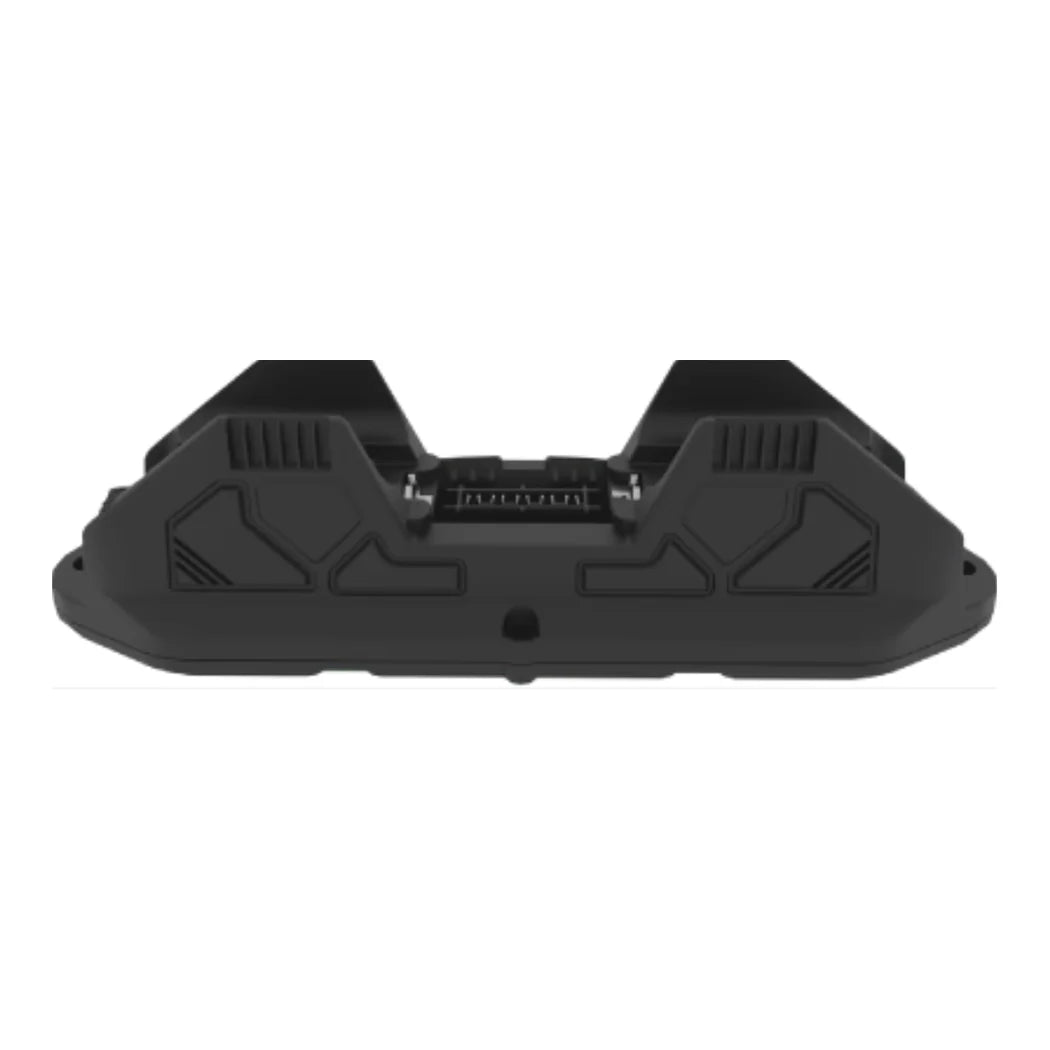

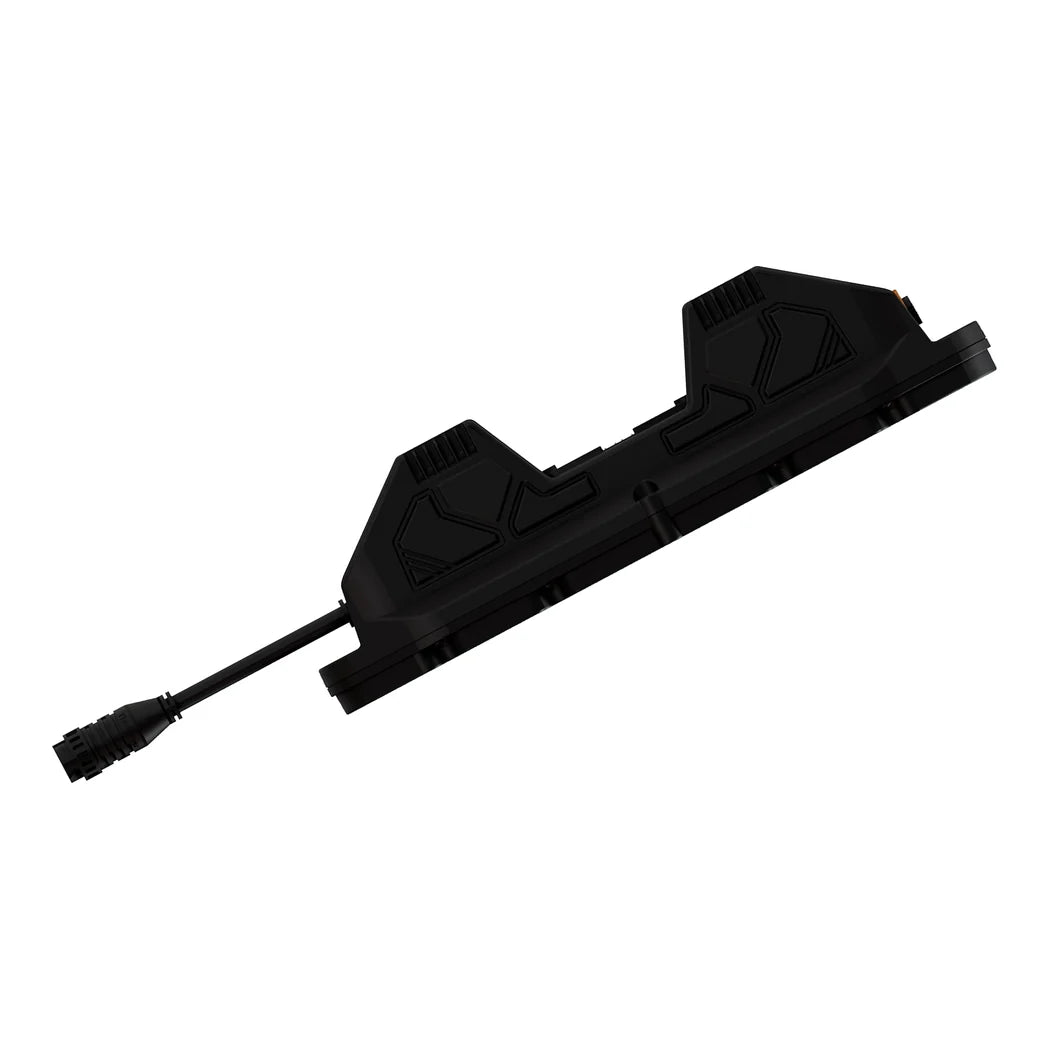

In the Model One system, every light bar gets its own driver. The TLD-4 is the advanced version of that driver. It offers four control channels, one each for full spectrum, deep red, far red and UV. Each channel dims on its own from 0 to 100% over RS485 using the Modbus protocol. That lets a TrolMaster controller change the spectrum as plants move from veg to flower. The driver runs a single 90W bar, such as the TLB-1, TLB-2 or TLB-3. Input is 100–277VAC at 50/60Hz with a power factor of at least 96%. Amperage draw is 0.77A at 120V, 0.39A at 240V and 0.35A at 277V. The housing is rated IP56 and marked suitable for damp locations. The manual lists a gross weight of 2.27 lbs per driver.
Installing a Horticultural LED Driver on a Mounting Bar
Fit the twist lock plate to an MB-series mounting bar, then twist the TLD-4 onto it. Keep more than 115 mm between drivers, using the scale plate on the bar as a guide. Alternate the direction of each driver so the male and female power leads line up. Link neighboring drivers with TDC-2, TDC-3 or TDC-4 daisy-chain cords. A TDC-120 or TDC-240 splitter cord feeds power and the controller link to the first driver in each group. The manual caps a group at 11 drivers on a 120-volt feed and 22 on a 240-volt feed. The driver label also marks a ten-unit maximum, so confirm group sizes against the manual. Click a TLB light bar into the socket and make sure it is fully seated. For simpler two-channel bars like the DR-1 and FR-1, the TLD-2 is the matching driver. The attached Model One manual covers installation and wiring step by step.
Key Features
- Four Spectrum Channels: Full spectrum, deep red, far red and UV dim independently.
- RS485 Modbus Dimming: Controlled by TrolMaster controllers from 0 to 100%.
- Universal Input: 100–277VAC, 50/60Hz, power factor of 96% or higher.
- IP56 Rated: Suitable for damp grow rooms and greenhouses.
- Twist Lock Mount: Twists onto any MB-series mounting bar for tool-light installs.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | TLD-4 |
| Output | 1 × 90W Model One light bar |
| Control channels | 4 (full spectrum, deep red, far red, UV) |
| Compatible bars | TLB-1, TLB-2, TLB-3 |
| Input voltage | 100–277VAC, 50/60Hz |
| Power factor | ≥96% |
| Amperage draw | 0.77A @ 120V / 0.39A @ 240V / 0.35A @ 277V |
| Dimming | 0–100%, RS485 Modbus |
| IP rating | IP56 |
| Operating temperature | 32–104°F (0–40°C), ≤90% RH |
| Package size | 25.98 × 3.64 × 3.44 in |
| Gross weight | 2.27 lbs (1.03 kg) |
| Package contents | 1 × TLD-4 driver |
