ThinkGrow Model-I 480V panel for 3-Phase Commercial Rooms

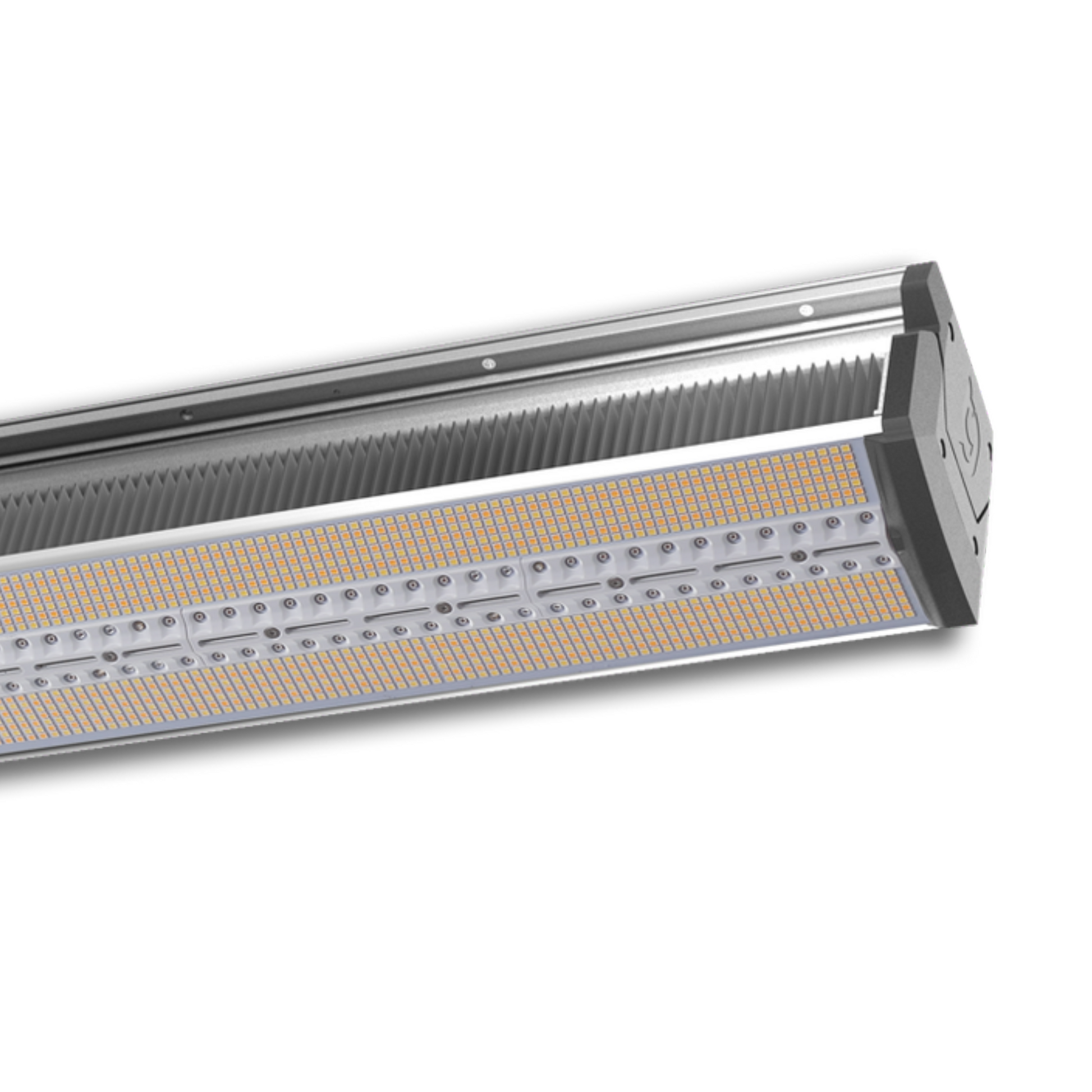

The ThinkGrow Model-I 347-480V LED Grow Light pulls 720W at 2.54 umol/J fixture efficacy. Delivering 1829 umol/s PPF on autosensing 347-480V three-phase commercial input. Amp draw runs 2.09A at 347V or 1.55A at 480V, keeping breaker math tight in high-density flower rooms. Power factor is 90 percent or better. Build is an IP66 V-shaped slim panel with built-in driver, no remote ballast box needed. Spectrum is full-spectrum white plus UV and far-red channels for stage-specific finishing.

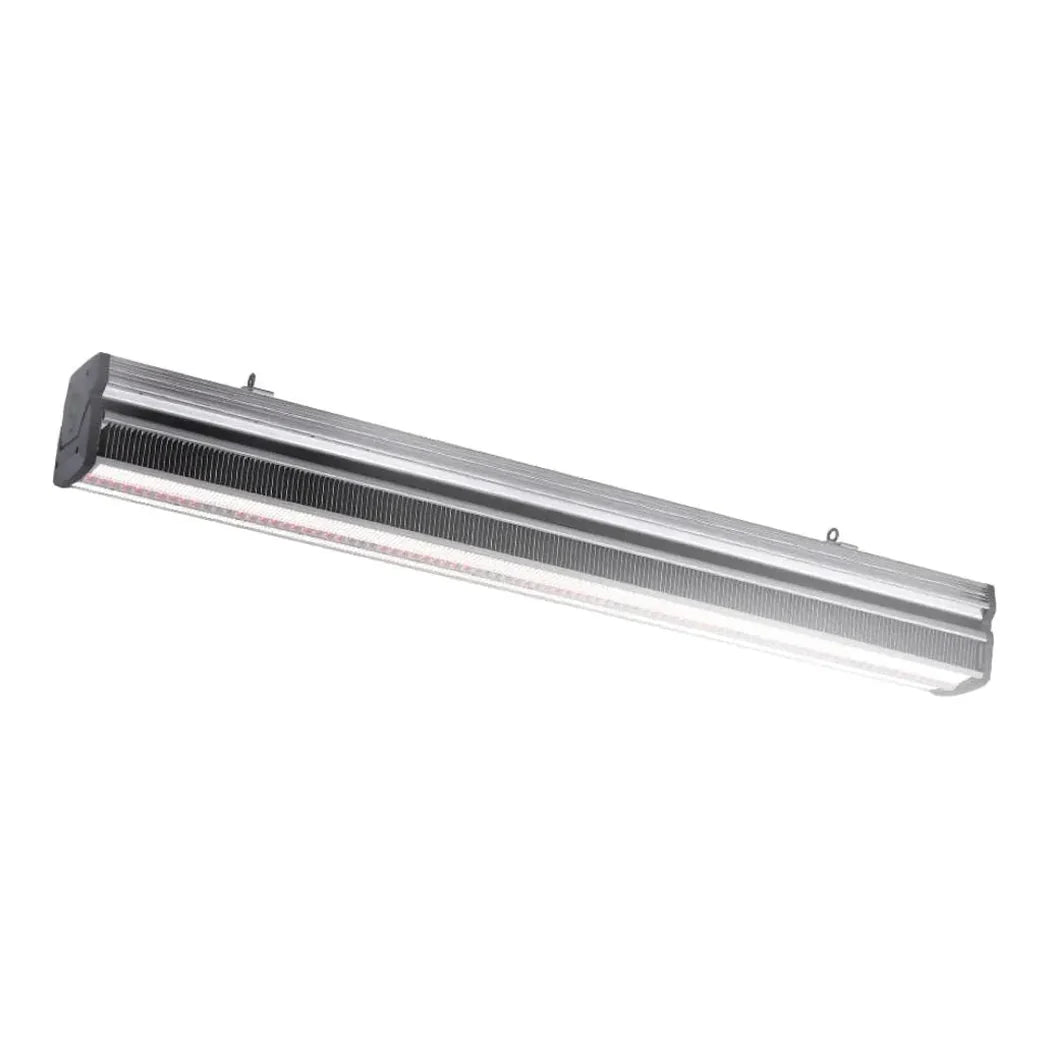

ThinkGrow Model-I 720W 480V Commercial LED with TrolMaster Hydro-X External Dimming and Far Red Control
Growers typically hang the V-shaped panel at 18 to 24 inches above canopy in 5x5 commercial. Flower bays and ramp from 50 percent in transition up to full output in peak bloom. The autosensing 347-480V three-phase commercial input drops the fixture into industrial cultivation buildouts without a separate driver SKU per voltage. Pair with TrolMaster Hydro-X external dimming and Far Red control for stage-specific veg-to-bloom transitions and finishing photoperiod tweaks. The 1829 umol/s PPF and 2.54 umol/J efficacy class targets commercial grow. Rooms running 50+ fixtures where per-fixture amp draw drives panel sizing decisions. Build quality holds up across multi-cycle commercial deployments. Per-fixture amp draw matters when sizing a high-density bloom panel. Stage-specific ramps reduce light stress during transition between veg and bloom. Field-replaceable drivers shorten downtime when service intervals come due. Spectrum consistency across fixture batches keeps cultivar response repeatable.
Key Features
- Voltage and Power: Autosensing 347-480V three-phase commercial input pulls 720W per fixture.
- Amp Draw: 2.09A at 347V or 1.55A at 480V keeps breaker math tight in dense flower rooms.
- PPF and Efficacy: 1829 umol/s PPF at 2.54 umol/J turns three-phase watts into canopy delivery.

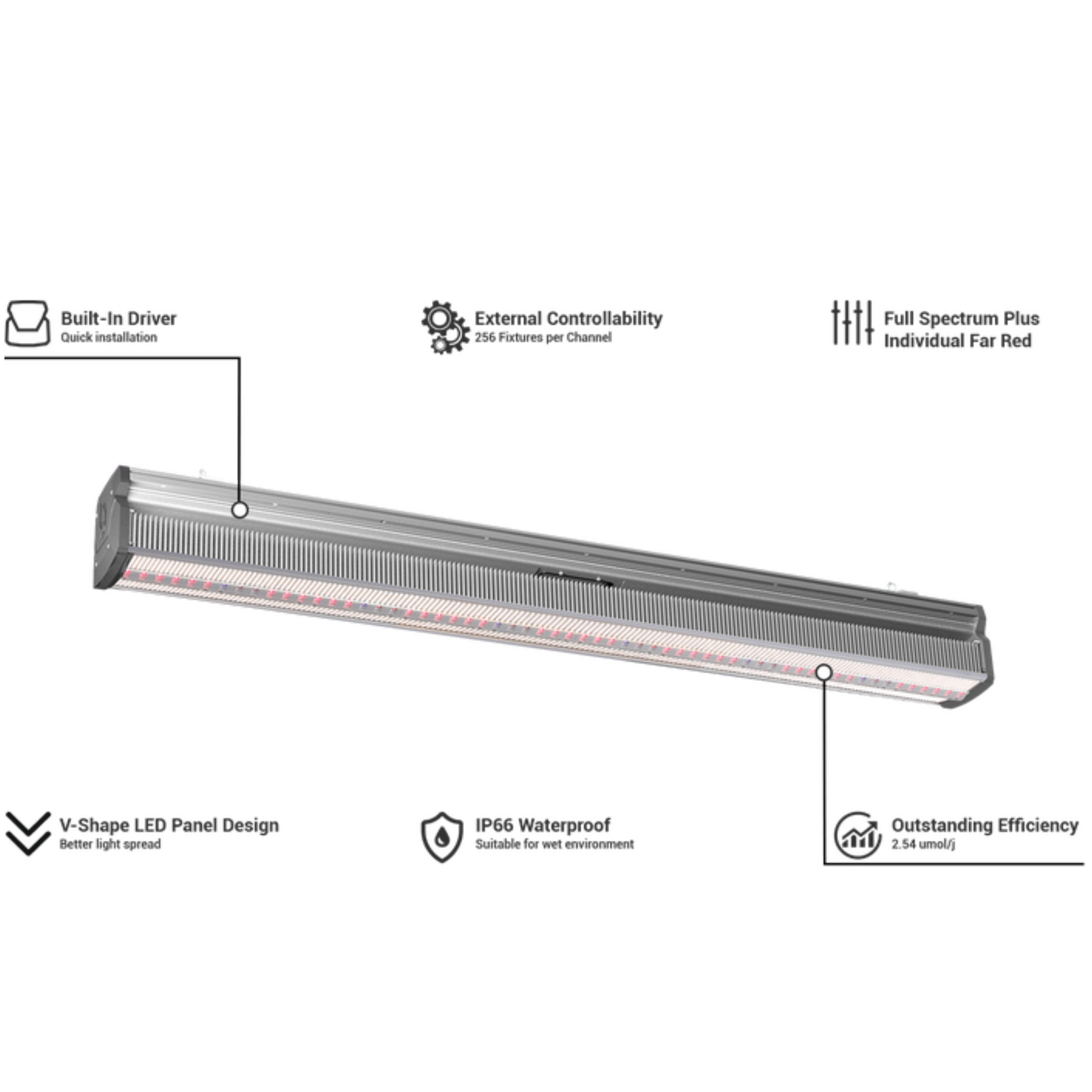

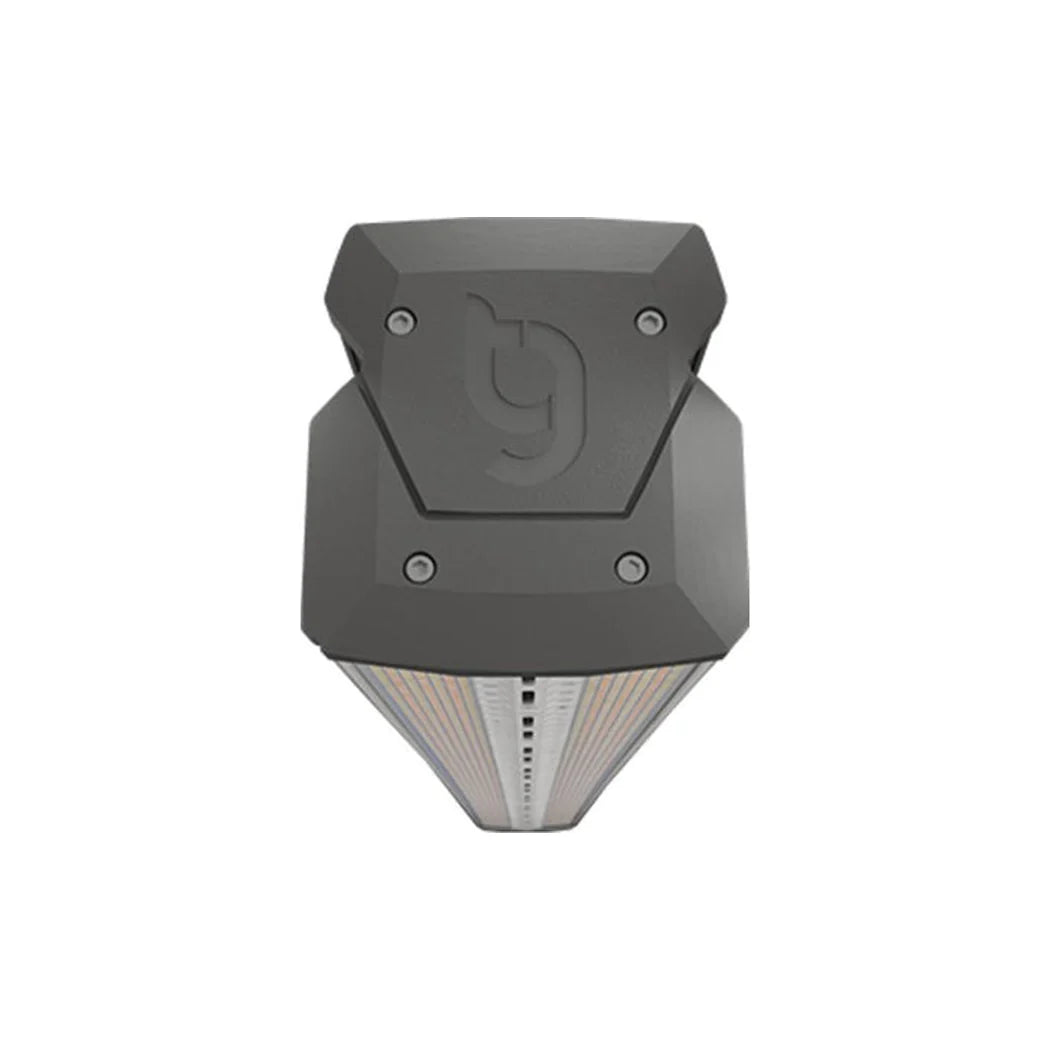

- IP66 V-Shape Panel: IP66 V-shaped slim panel with built-in driver simplifies installs.
- Built-In Driver: No external ballast box; full driver lives in the fixture housing.
- TrolMaster Hydro-X Compatible: External dimming and Far Red control via Hydro-X room controllers.

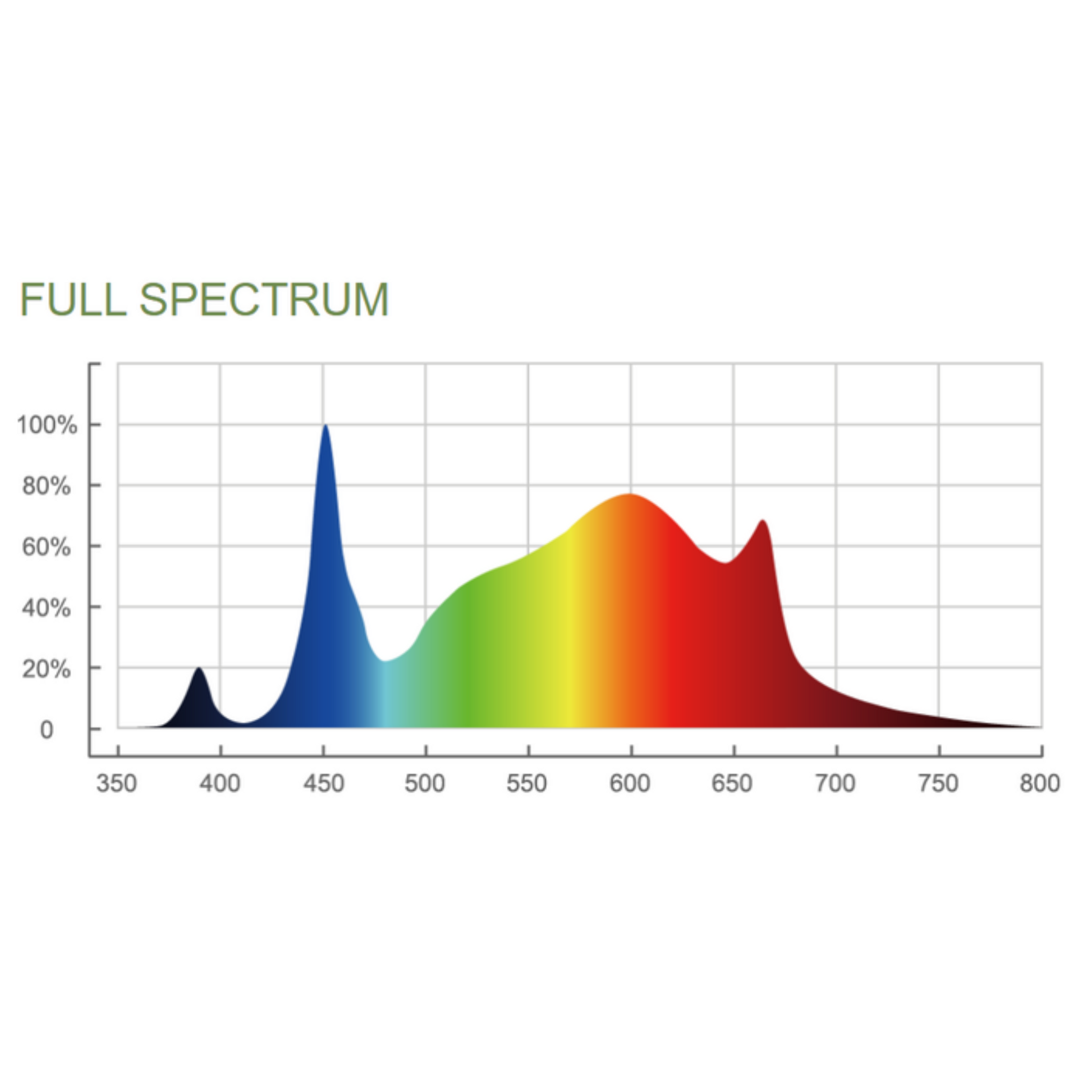

- Spectrum: Full-spectrum white with UV and Far Red for stage-specific finishing.
- Power Factor: >=90% PF for honest commercial billing on three-phase circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Brand / Model | ThinkGrow Model-I (347-480V variant) |
| Input Power | 720W |

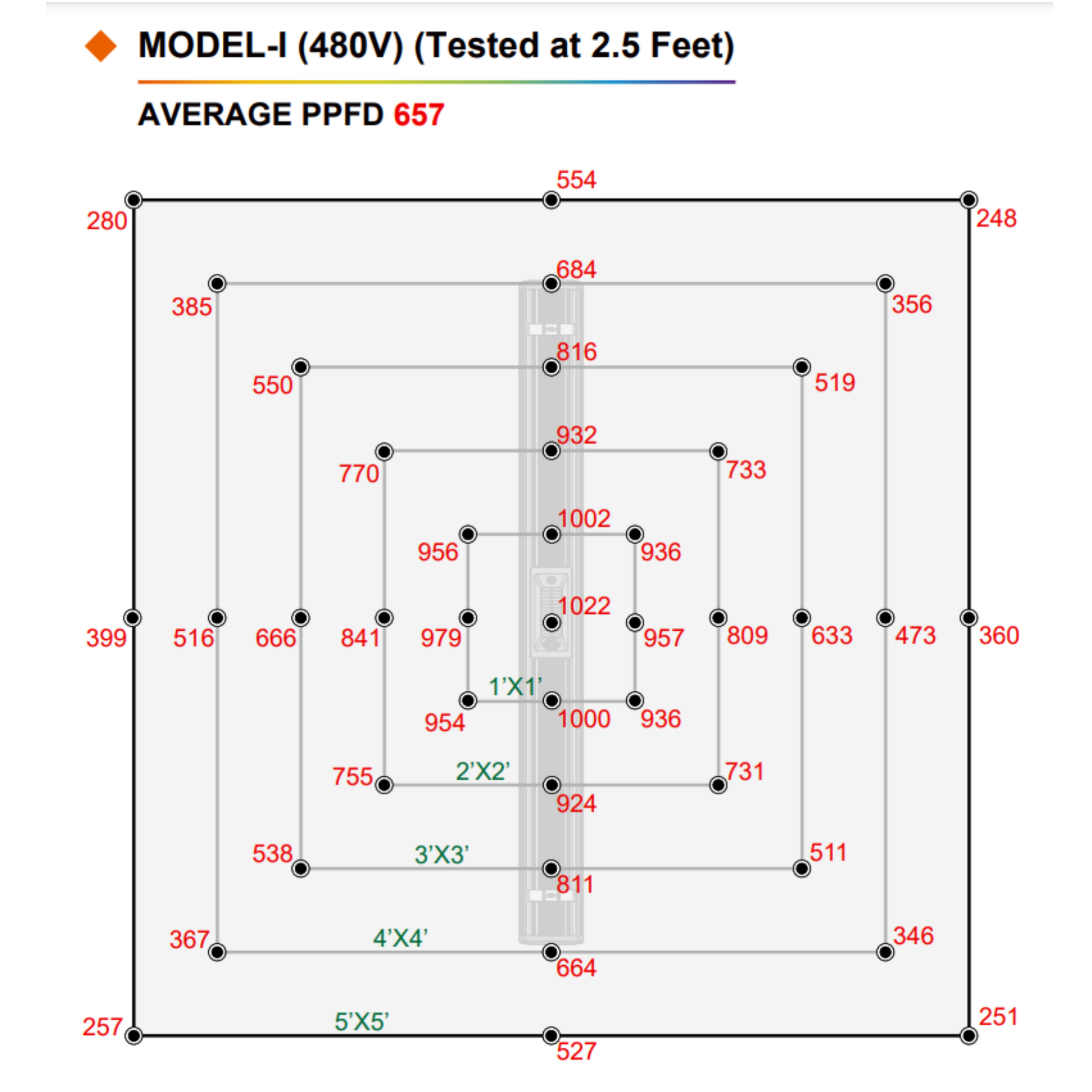

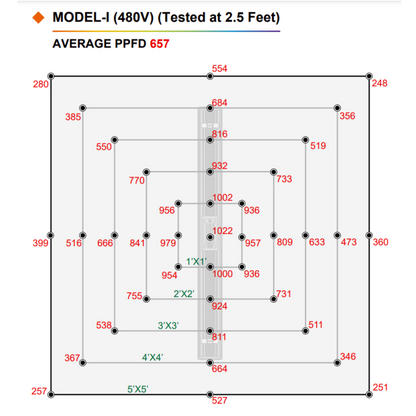

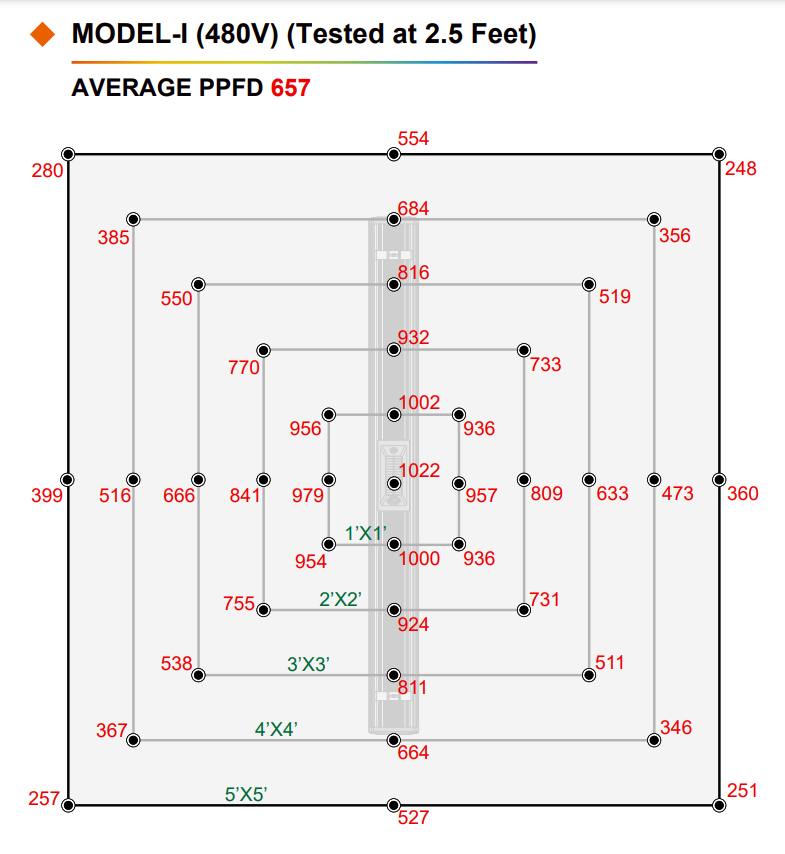

| PPF Output | 1829 umol/s |
| Efficacy | 2.54 umol/J |
| Input Voltage | Autosensing 347-480V |
| Amp Draw | 2.09A @ 347V / 1.55A @ 480V |
| Power Factor | >=90% |
| IP Rating | IP66 |
| Form Factor | V-shaped slim panel with built-in driver |

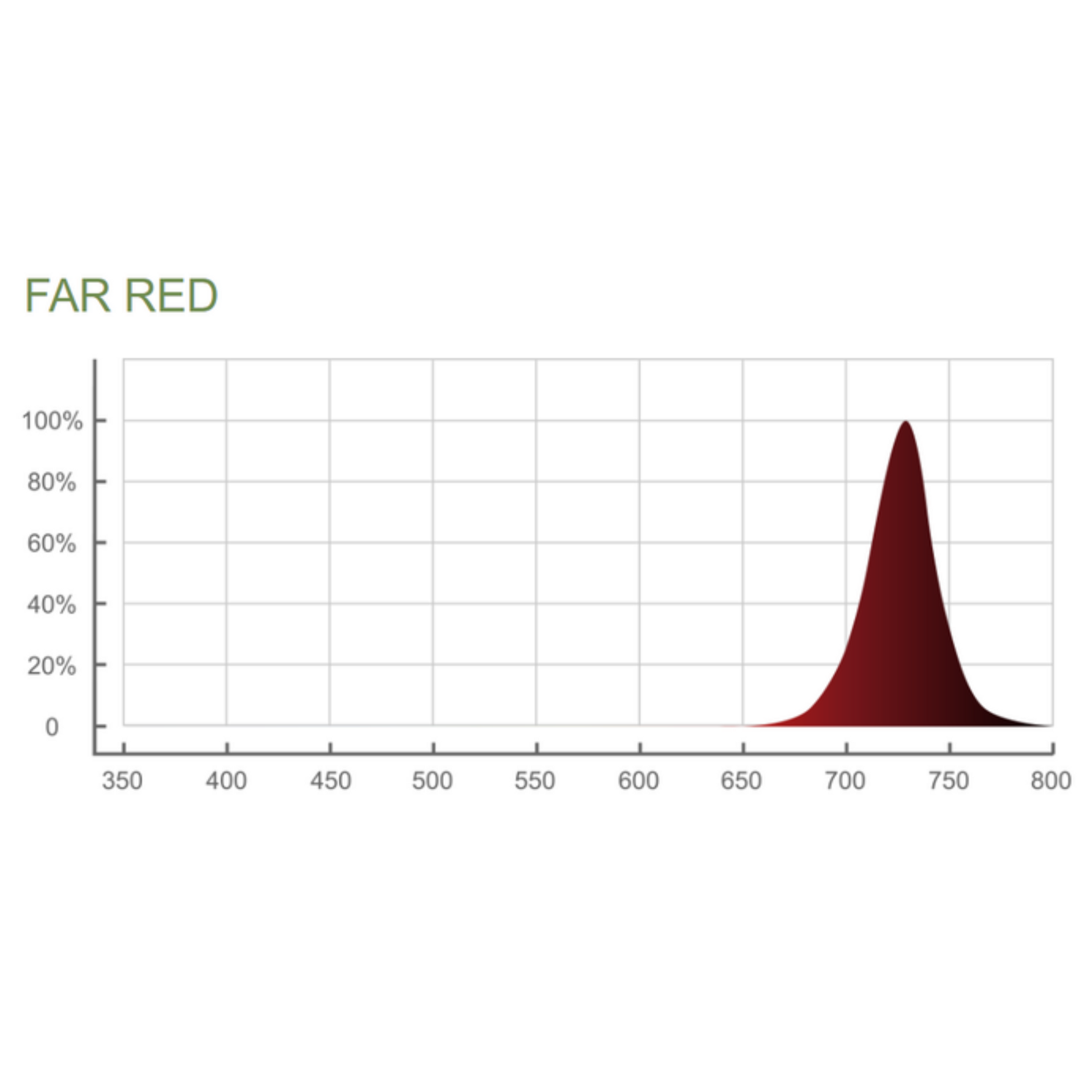

| Spectrum | Full-spectrum + UV + Far Red |
| Controller | TrolMaster Hydro-X external dimming + Far Red |
