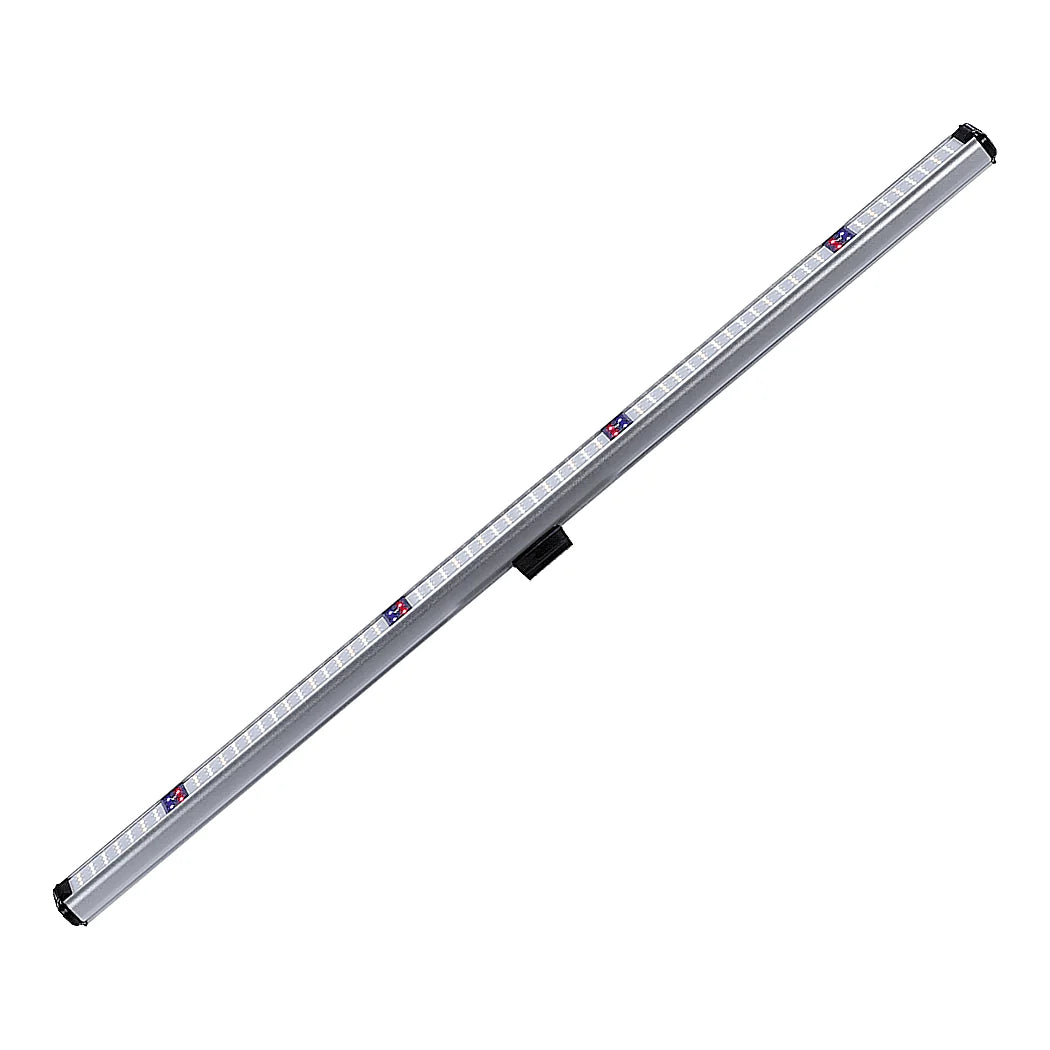

ThinkGrow UV Light Bar for Model-H/W | 70W Full Spectrum + 10W UV

ThinkGrow UV Light Bar for Late-Flower Finishing on Model-H and Model-W

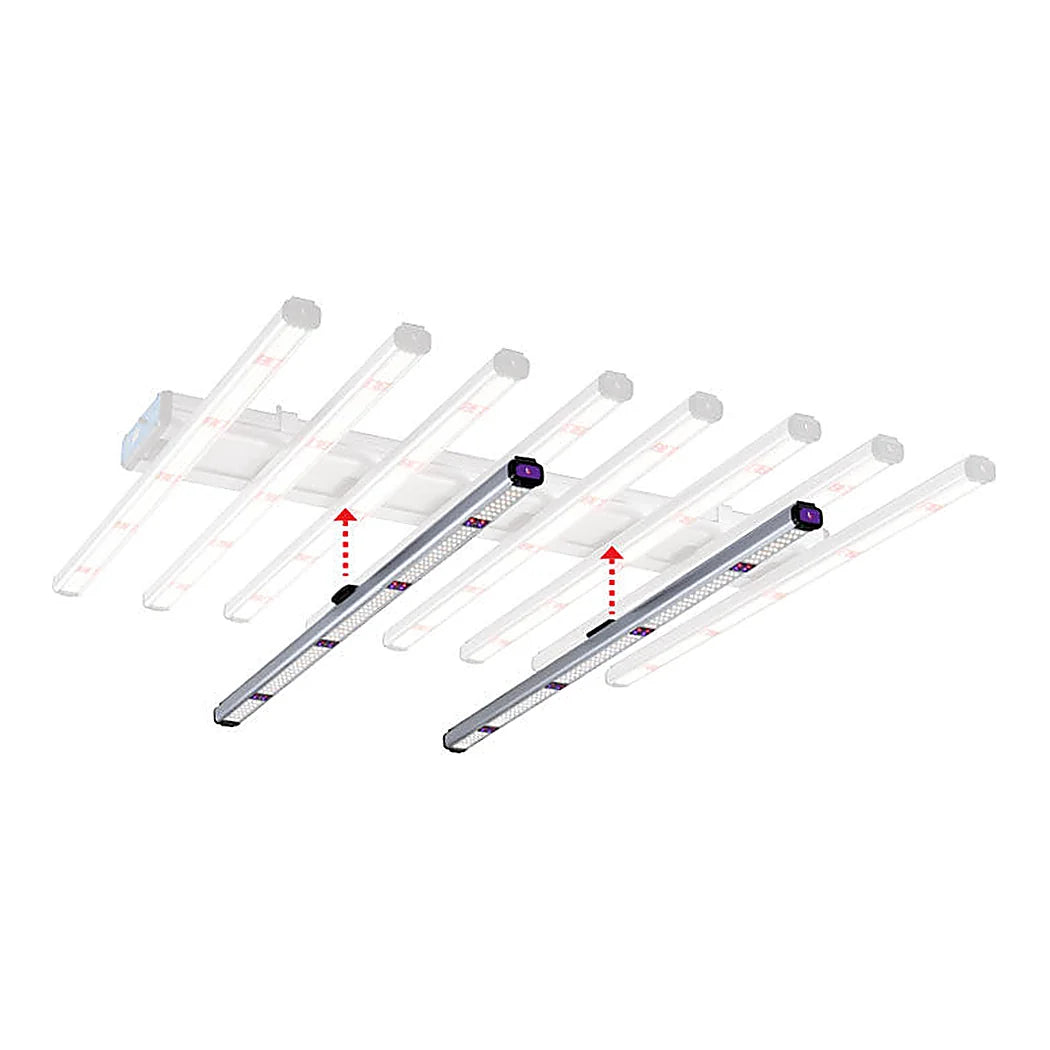

This is a replacement bar that clips into a ThinkGrow Model-H or Model-W fixture in place of one standard bar. Each one carries 70W of full-spectrum LEDs plus a 10W supplemental UV channel, for 80W on a single bar. Because the full-spectrum diodes stay on board, the swapped position still lights the plants directly below it. You add UV without giving up white light. ThinkGrow's own guidance is two UV bars per fixture over a 4×4 or 5×5 ft footprint. Run them through the last four weeks of the flowering cycle, then pull them before the next crop goes into veg. The Model-H hangs eight bars off a central driver assembly, and each bar unclips on its own. That layout turns the swap into a short lights-out job, with no extra cord or driver to wire in. The bar is listed at 46.46 in long and 3.99 lbs, so one person can handle it on a ladder. It carries the ThinkGrow part number UV-1, which is the number to match on a replacement.

Where Supplemental UV Light Fits in a ThinkGrow Flower Room

Most growers slot the UV bars in once the stretch has finished and the flowers are stacking. Spread the pair apart on the fixture rather than side by side, so both halves of the canopy see UV. Keep the hang height you already run for that fixture, since the rest of the bar behaves like its neighbors. Supplemental UV light is a finishing tool, not a growth driver. It adds a stress signal late in the cycle, which is why it stays out of veg and early bloom. ThinkGrow does not publish the peak UV wavelength or the split between UVA and UVB. If your program depends on a measured UVB dose, a dedicated UV fixture with a published spectrum is the better call. For a room already built on these fixtures, though, the bar keeps the finishing light on the driver you already power. Wear UV-rated eye protection whenever you work under the lights with these bars installed. It is built for Model-H and Model-W only, so check the fixture model before swapping bars.

Key Features

• 70W Full Spectrum + 10W UV: The swapped position keeps lighting the canopy while it adds UV, so no dark stripe forms.
• Clip-In Bar Swap: It replaces a standard bar on a Model-H or Model-W, so the fixture, hang height and power setup stay as they are.
• Two-Bar Finishing Rate: Two bars per fixture covers a 4×4 or 5×5 ft canopy during the last four weeks of flower.
• No Extra Driver or Cord: The bar runs off the fixture's own driver, which keeps the ceiling free of another power supply.
• Removable Between Crops: Pull the UV bars after harvest and reinstall the standard bars before the next veg cycle starts.
