Brand: Titan Controls

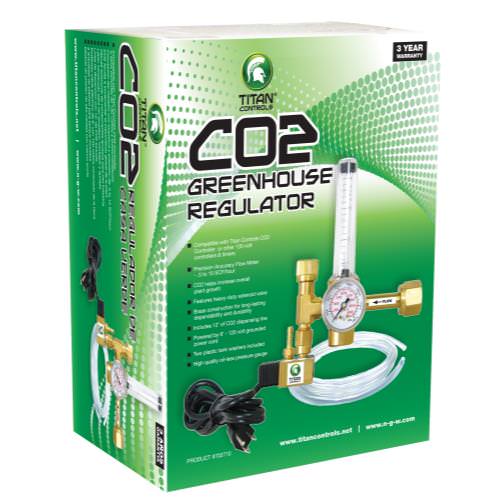

Titan Controls CO2 Regulator

Titan Controls CO2 Regulator

SKU: SKU:702710

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $103.90 USD
Regular price Sale price $103.90 USD
Sale Sold out
Shipping calculated at checkout.

The Titan Controls CO2 regulator pairs a tank pressure gauge and a 0.5 to 15 SCFH flowmeter with a 120 volt solenoid. It plugs into an Atlas CO2 controller, an Apollo repeat cycle timer or a standard wall timer. Dispensing tubing and a 1-year warranty are included.

View full details

Titan Controls CO2 Regulator for Tank-Fed Grow Rooms

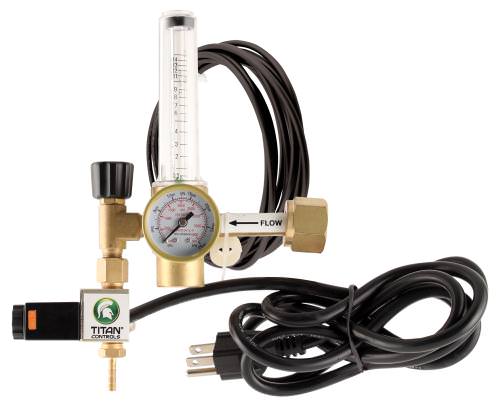

Enriching a sealed room with bottled CO2 starts at the tank, and this regulator is the piece that meters the gas out. Titan Controls item 702710 combines a tank pressure gauge, a flowmeter and a heavy-duty 120 volt solenoid in one body. The flowmeter reads from 0.5 to 15 standard cubic feet per hour, set with a brass flow adjustment knob. A ball rises and falls inside the clear tube, so the flow rate is visible at a glance. The solenoid opens only when it receives power, which lets a controller or timer decide when CO2 flows. That makes it compatible with any 120 volt CO2 controller or timer, including Titan's Atlas monitor/controllers and Apollo repeat cycle timers. With an Atlas controller, gas runs whenever the room drops below the PPM set point. With a timer, the regulator opens at set intervals based on room volume and flow rate. Titan's instructions include a timing chart for raising a room by about 1,100 to 1,200 PPM, to roughly 1,500 PPM total. For rooms over 2,000 cubic feet, the sheet gives a simple formula for working out run time.

Installing a CO2 Regulator With Solenoid on the Tank

Before connecting, crack the tank valve open for about 3 seconds to blow out any debris, then close it. Seat one of the white plastic washers inside the large brass nut to prevent leaks. Tighten the nut with a crescent wrench, not pliers, and do not hold the plastic flowmeter while tightening. Skip pipe thread tape and lubricants on the tank connection. Run the 1/4 in tubing from the barbed fitting to the back of an oscillating fan, which helps spread CO2 around the room. Open the flow knob about half a turn before opening the tank, then open the tank valve 2 or 3 turns. Check every connection with soapy water for leaks. Set the flow with the brass knob. Never open it so far that the ball passes the top of the scale, since that can freeze the regulator. Run CO2 only while the lights are on, and keep room levels below 2,500 PPM. Titan covers the regulator against material defects for 1 year, and replacement washers are item 702712.

Key Features

  • 0.5-15 SCFH Flowmeter: Visible ball indicator with a brass adjustment knob.
  • 120V Solenoid: Opens only when the controller or timer powers it.
  • Tank Pressure Gauge: Shows how much CO2 is left in the cylinder.
  • Controller Compatible: Atlas CO2 controllers, Apollo timers and wall timers.
  • Timing Chart Included: Run times by room volume and flow setting.
  • 1-Year Warranty: Covers material defects.

Technical Specifications

Specification Value
Item Number 702710
Flow Range 0.5-15 SCFH
Solenoid 120 volt
Gauge Tank pressure gauge
Outlet 1/4 in barbed fitting
Included Regulator, 1/4 in dispensing tubing, white plastic washers
Replacement Washers Item 702712
Compatible Controls Any 120 volt CO2 controller or timer
Warranty 1 year
